Metal enclosed power supply, low profile 1.97 inches, built-in fan, 24V 15A output

Analog Technologies

Analog Technologies ALRS24V15AT 360W 24V 15A Switching Power Supply

SKU CH-M1HP-2WWDP

Converts 90–264 VAC to 24 VDC at 15 A with 85 % efficiency at 230 VAC, 1.97-inch low-profile metal enclosure, built-in fan and 5 G vibration resistance

  • TypeSwitching Power Supply
  • Wide input range 90–264VAC suits global mains
  • 360W output delivers 24VDC at 15A for demanding loads
  • 85% efficiency at 230VAC reduces heat and energy waste
  • Operates reliably from 10°C to 60°C with built-in fan
  • All-metal 1.97-inch enclosure provides EMI shielding and 5G vibration resistance

Power supply for 24V DC systems

The Analog Technologies ALRS24V15AT converts 90 to 264VAC input into a regulated 24VDC output at 15A, delivering 360W of continuous power. Its enclosed metal chassis measures 1.97 inches in height and includes a built-in fan for thermal management across an operating range of 10°C to 60°C. Efficiency reaches 85% at 230VAC and exceeds 83% broadly. The unit withstands a 300VAC surge for five seconds and provides 5G anti-vibration resistance.

Suited for 3D printers.

This supply fits machines that need a single 24V rail at up to 15A and can accept a wide AC mains range. Buyers who require multiple output voltages, higher current on the 24V rail, or a fanless silent design should look at other products. The fixed 24V output also makes it unsuitable for systems needing adjustable voltage or redundant power architectures.

Standard screw-terminal wiring

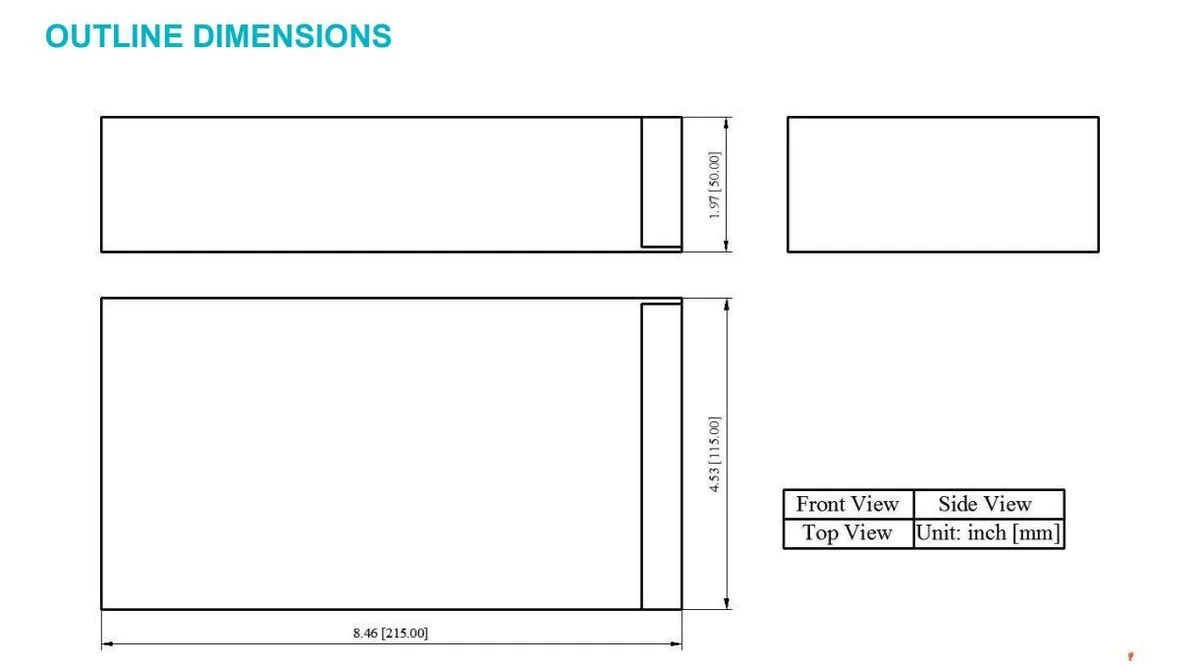

Installation uses the input and output terminal blocks on the front face; no specialised tools are required beyond a screwdriver. The low-profile 50mm height eases fitment in tight cabinets, but the internal fan needs clearance for airflow. Common issues arise when the AC supply falls below 90VAC or when the load exceeds 15A, triggering over-current protection and shutting the unit down.

Highlights

  • Wide input range 90–264VAC suits global mains
  • 360W output delivers 24VDC at 15A for demanding loads
  • 85% efficiency at 230VAC reduces heat and energy waste
  • Operates reliably from 10°C to 60°C with built-in fan
  • All-metal 1.97-inch enclosure provides EMI shielding and 5G vibration resistance

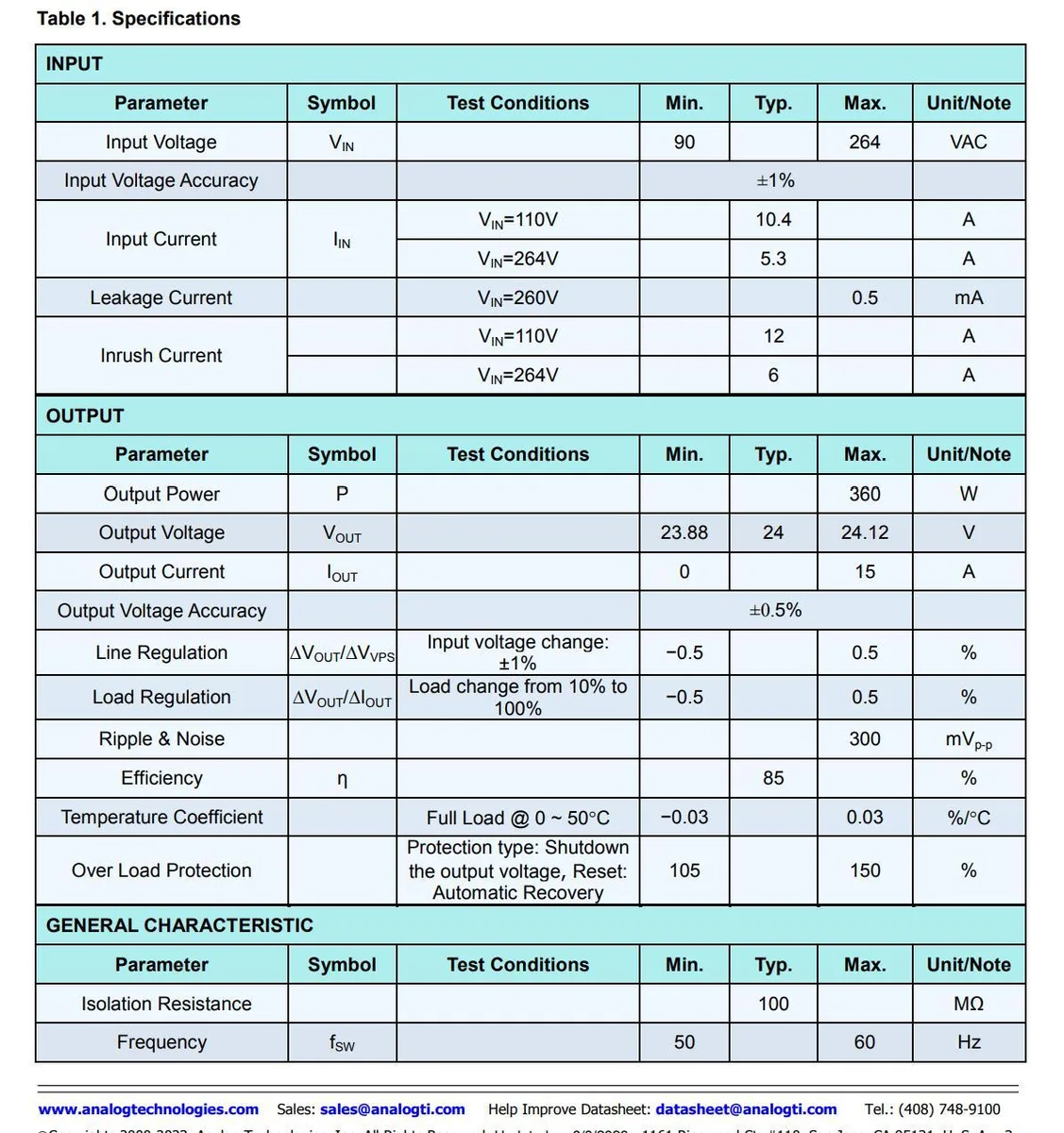

Specifications

TypeSwitching Power Supply

Questions about this item

Does this power supply need any external fan or heatsink to run at 15 A?

No, it has a built-in long-life fan and operates from 10 °C to 60 °C without extra cooling.

Will the 90 V–264 VAC input range let me keep my existing 110 V and 220 V lab equipment on the same circuit?

Yes, the wide input range accepts both 110 VAC and 220 VAC sources without switching.

How can I confirm the unit is delivering a stable 24 VDC at full load after installation?

Measure the output with a multimeter under load; it should read 24 VDC at up to 15 A with efficiency above 83 %.
