Enclosed metal power supply with built-in fan, low-profile 1.65 inch height

Analog Technologies

Analog Technologies ALRS24V5AT 120W 24V 5A Switching Power Supply

SKU CH-TM60-NZ2HA

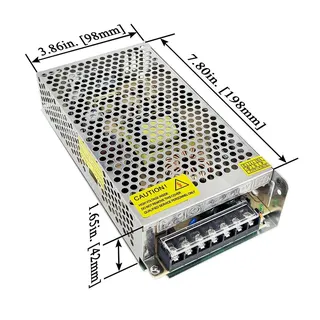

Converts 90–264 VAC to 24 VDC at 5 A with 85 % efficiency in a 1.65-inch metal enclosure

  • TypeSwitching Power Supply
  • Delivers 120W continuous power for demanding 3D printers and LED arrays
  • Wide 90–264VAC input handles 110VAC and 220VAC mains worldwide
  • 85% efficiency at 230VAC cuts waste heat and lowers running cost
  • All-metal 42mm low-profile enclosure with built-in fan operates 10–60°C
  • Survives 300VAC surge for 5s and 5G vibration in industrial settings

120W 24V 5A Switching Power Supply

The Analog Technologies ALRS24V5AT converts 90–264VAC input to a regulated 24VDC 5A output. It delivers 120W continuous power in a 42mm low-profile metal enclosure with a built-in long-life fan for full-load cooling. Designed for industrial equipment, 3D printers and LED lighting systems requiring stable DC power.

Capacity and headroom at 120W

The unit supplies 5A at 24V with 85% efficiency at 230VAC and over 83% across the range. It operates from 10°C to 60°C and withstands 300VAC surge input for five seconds. Loads exceeding 120W or currents above 5A will trigger protection or exceed the rated output.

Replaces open-frame or lower-rated supplies

Builders upgrading from unenclosed units gain full EMI shielding, 5G anti-vibration rating and comprehensive protection functions. The jump is worth it when equipment demands a rugged metal housing, wide 90–264VAC input tolerance and reliable operation in harsh industrial environments.

Highlights

  • Delivers 120W continuous power for demanding 3D printers and LED arrays
  • Wide 90–264VAC input handles 110VAC and 220VAC mains worldwide
  • 85% efficiency at 230VAC cuts waste heat and lowers running cost
  • All-metal 42mm low-profile enclosure with built-in fan operates 10–60°C
  • Survives 300VAC surge for 5s and 5G vibration in industrial settings

Specifications

TypeSwitching Power Supply

Questions about this item

Will the ALRS24V5AT run from the 110VAC or 220VAC mains I already have in my workshop?

The supply accepts a universal input range of 90V to 264VAC, so it operates directly on both 110VAC and 220VAC lines without any selector switch.

How can I verify the ALRS24V5AT is delivering a stable 24VDC at 5A after installation?

Measure the output terminals with a multimeter under load; you should read approximately 24VDC and the unit will maintain regulation up to the full 5A rating.

Does the ALRS24V5AT include mounting hardware or output cables, or must I source them separately?

The product ships as the enclosed power supply unit only; mounting screws and DC output cables are not included and must be purchased separately.
