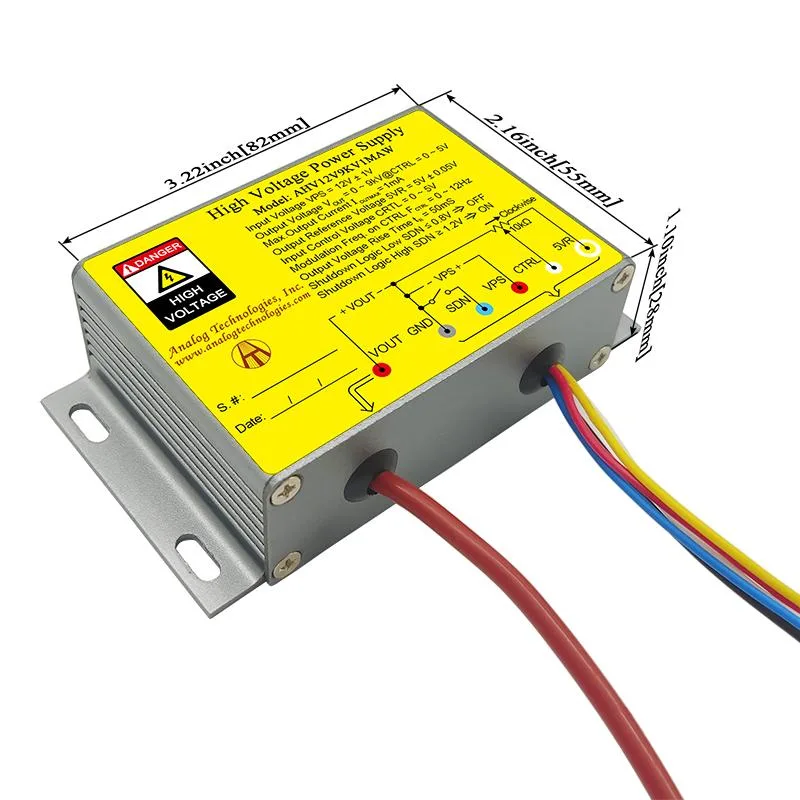

Compact high-voltage DC-DC module with metal enclosure and terminal connections

Analog Technologies

Analog Technologies Compact High Voltage Power Supply 0-9kV 1mA 12V DC-DC AHV12V9KV1MAW

SKU CH-ZVFT-AZYT4

Delivers 0 to 9 kV at up to 1 mA from a 12 V DC input with 0–5 V control and electronic shutdown

  • TypeHigh Voltage Power Supply
  • 0-9kV adjustable output covers wide high-voltage needs
  • 12V DC input simplifies integration into existing systems
  • 1mA maximum current supports precision low-power applications
  • 0-5V control voltage enables full-span electronic modulation
  • Electronic shutdown control adds safety for sensitive equipment

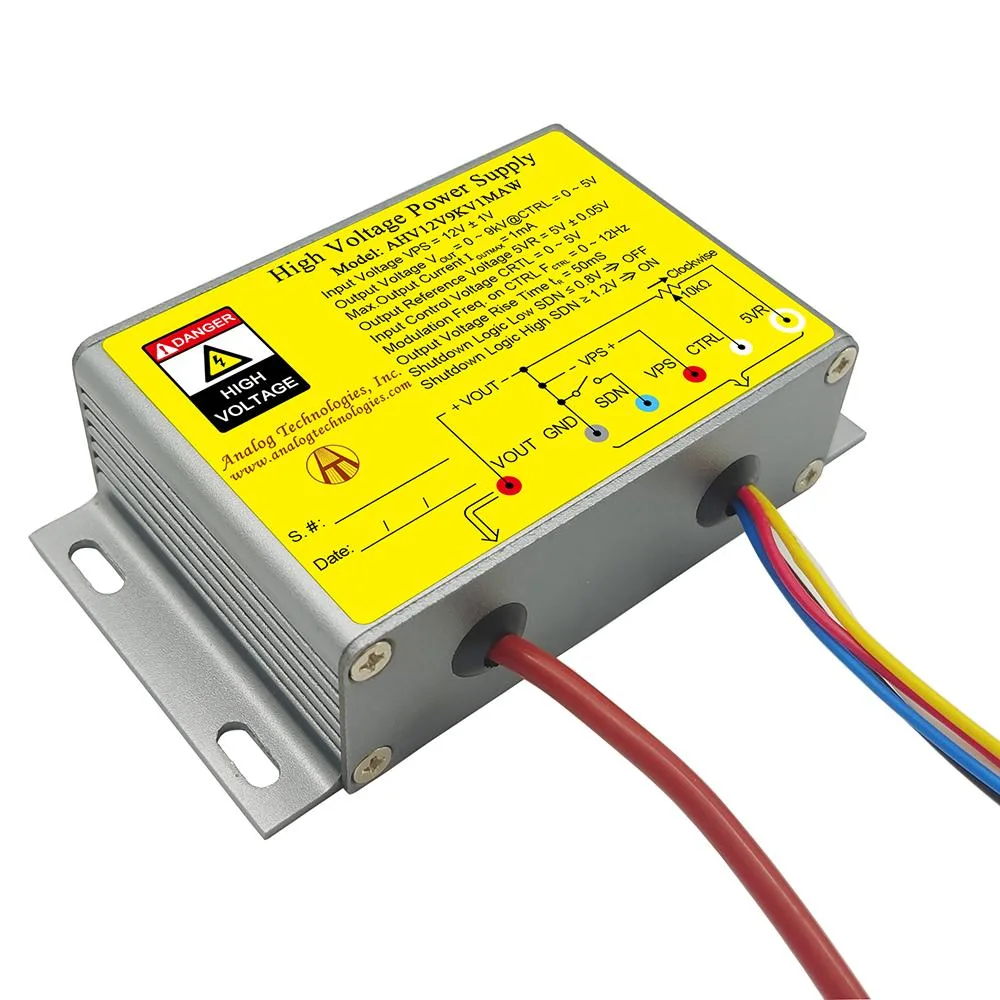

Compact 9 kV DC-DC module

The Analog Technologies AHV12V9KV1MAW converts a 12 V rail into an adjustable 0 to 9 kV output with a maximum current of 1 mA. It is built for engineers and OEMs who need a regulated high-voltage source in research, inspection or coating equipment.

Thermal and power behaviour

The unit draws between 225 mA and 1.1 A from the 12 V input depending on load. With no fan or heatsink specified, heat dissipation relies on conduction to the mounting surface, so mechanical integration must provide an adequate thermal path.

Upgrade path and fit

The module replaces older discrete high-voltage bricks in X-ray, spectroscopy, semiconductor and electrospinning systems where space is limited. It is not suited for applications that require more than 1 mA output current or an input voltage outside the 12 V ± 1 V window.

Highlights

  • 0-9kV adjustable output covers wide high-voltage needs
  • 12V DC input simplifies integration into existing systems
  • 1mA maximum current supports precision low-power applications
  • 0-5V control voltage enables full-span electronic modulation
  • Electronic shutdown control adds safety for sensitive equipment

Specifications

TypeHigh Voltage Power Supply

Questions about this item

How do I wire the 12 V input and the 0–5 V control signal to get 0–9 kV output?

Feed 12 V ± 1 V to the input pins; the unit draws 225 mA to 1.1 A depending on load. Apply 0–5 V to the CTRL pin to set output from 0 to 9 kV. The on-board 5 V ± 0.05 V reference can drive the control directly.

What maintenance or replacement will this supply need over time?

No user-serviceable parts inside; the sealed potted module is rated for continuous operation. If output drifts beyond spec or the electronic shutdown trips repeatedly, replace the entire unit.

What limit appears first during sustained high-voltage operation?

The 1 mA current ceiling is reached before the 9 kV voltage ceiling, so extended runs at full voltage are constrained by the maximum output current.
