Analog Technologies High Voltage Power Supply 0-500V 2mA 24V Input

SKU CH-CZRF-MJY2H

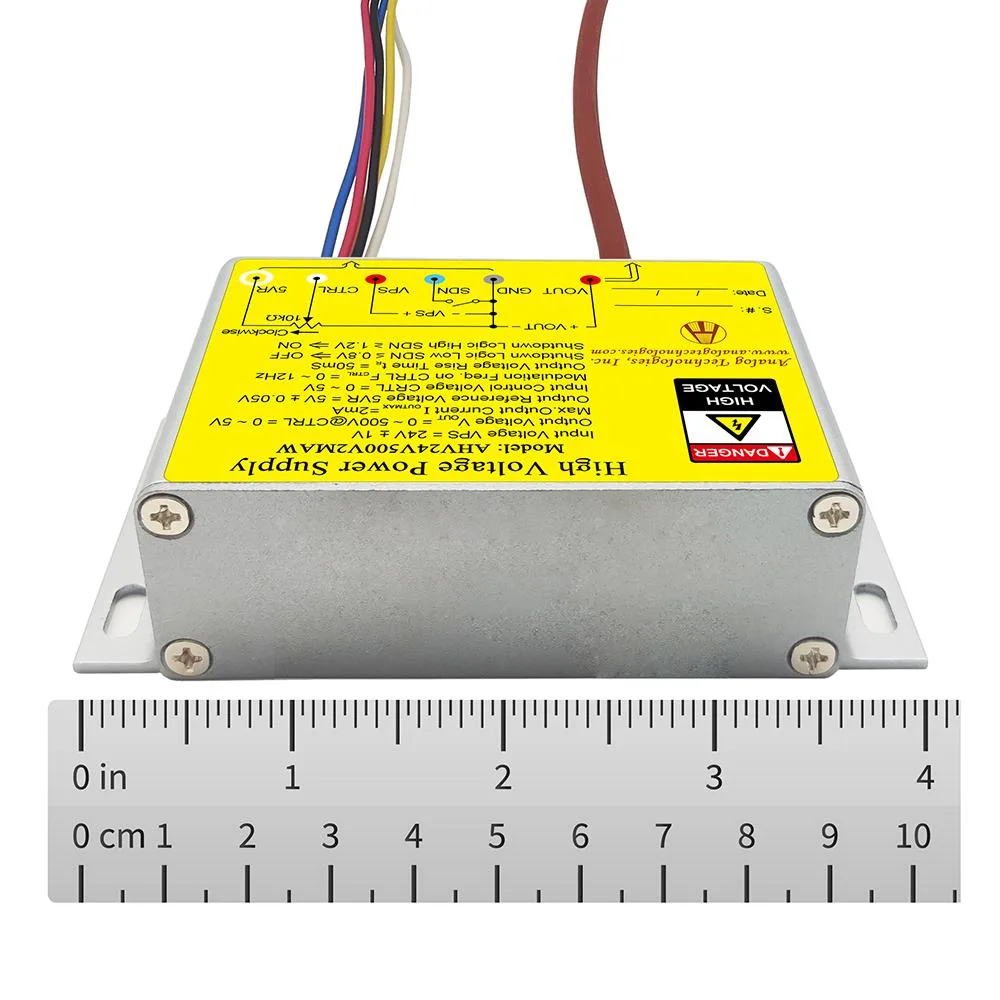

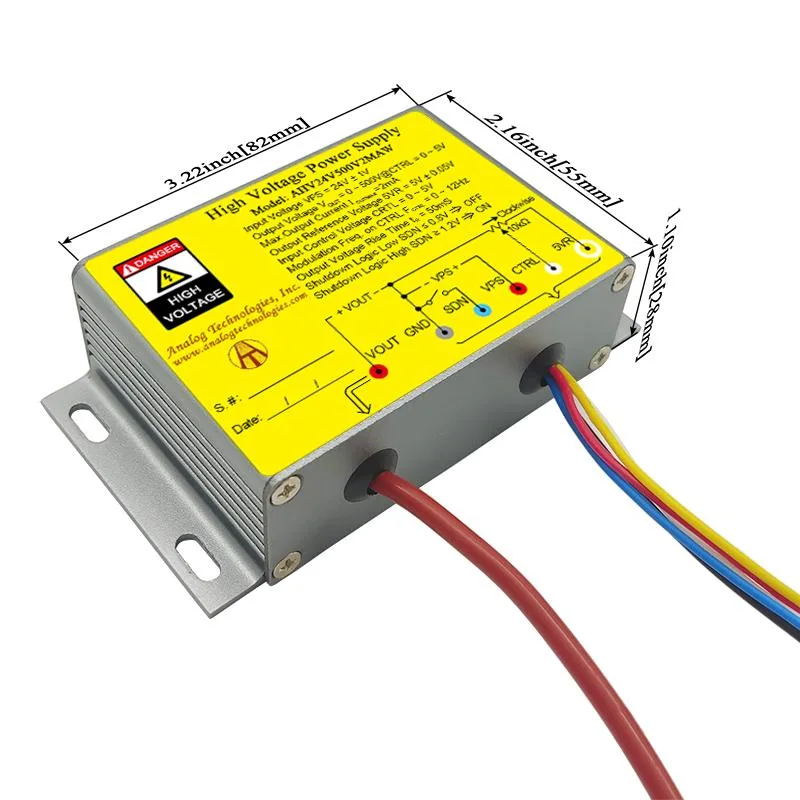

Compact high-voltage DC-DC converter delivering 0-500 V at 2 mA from a 24 V input with 0-5 V control and electronic shutdown

  • TypeHigh Voltage Power Supply
  • 0–500 V adjustable output for versatile high-voltage applications
  • 24 V DC input enables integration into standard industrial power systems
  • 2 mA maximum current delivers precise low-power performance
  • 0–5 V control voltage gives full-span modulation of output
  • Electronic shutdown control provides instant output disable for safety

Compact High Voltage Module for Precision

This DC-DC converter delivers 0 to 500V output from a 24V input with a maximum current of 2mA. It is built for engineers integrating high voltage into X-ray, spectrometry, electrospinning or semiconductor equipment. The unit accepts a 0 to 5V control voltage for full span modulation of the output.

Straightforward Integration with Shutdown Control

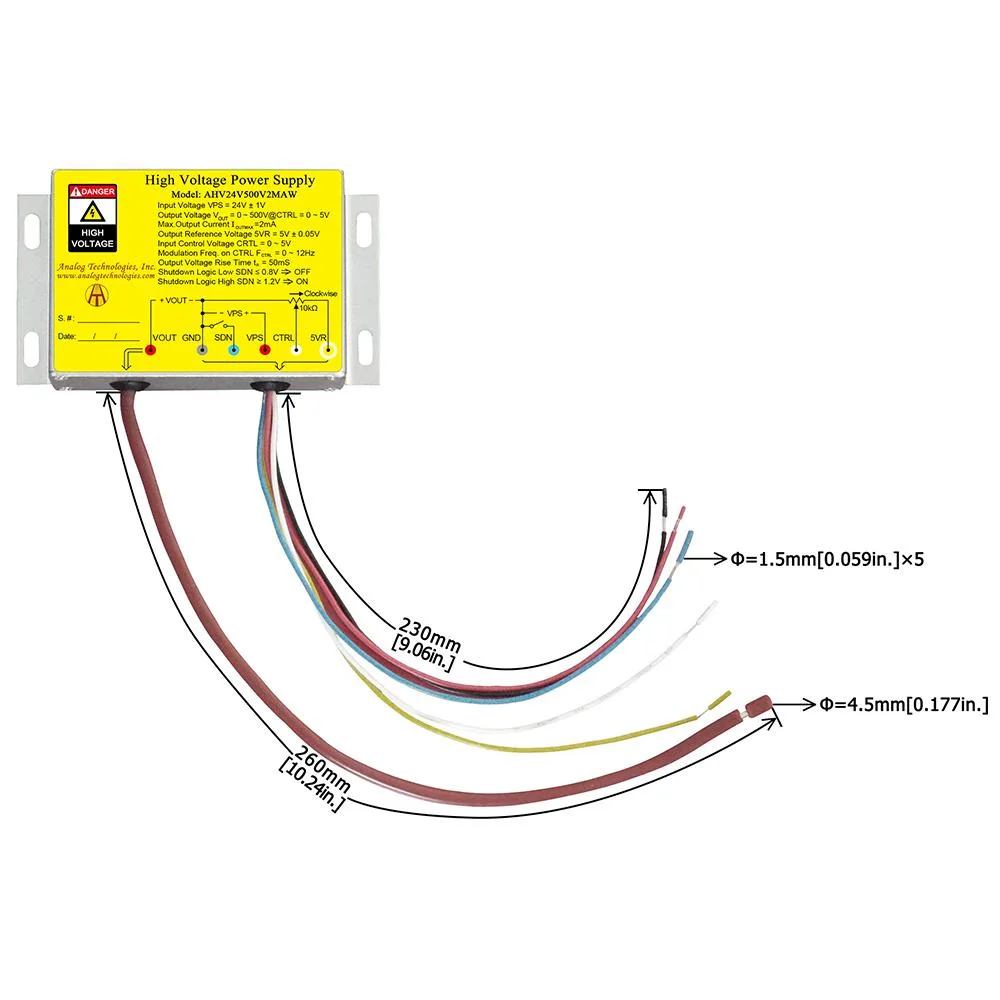

The module operates from a 24V supply drawing 5 to 60mA and provides a 5V reference voltage for the control loop. An electronic shutdown pin allows immediate output disable without cycling the main input. Wiring follows the labelled pins for input power, control voltage and high voltage output.

Suited for Low Current High Voltage Prototypes

This supply fits test rigs and OEM designs needing adjustable high voltage at very low current. It is not suitable for applications requiring more than 2mA output or input voltages outside the 24V nominal range. Buyers needing higher power or different input levels should look at other modules.

Highlights

  • 0–500 V adjustable output for versatile high-voltage applications
  • 24 V DC input enables integration into standard industrial power systems
  • 2 mA maximum current delivers precise low-power performance
  • 0–5 V control voltage gives full-span modulation of output
  • Electronic shutdown control provides instant output disable for safety

Specifications

TypeHigh Voltage Power Supply

Questions about this item

How do I verify the module is producing the correct high voltage after wiring it?

Apply a control voltage between 0 and 5 V to the CTRL pin and measure the output; it should track linearly from 0 to 500 V. The on-board 5 V reference (±0.05 V) can be checked with a multimeter to confirm the internal regulator is alive.

What does the unit include and what must I source separately?

The module itself is supplied; you must provide a 24 V DC source capable of at least 60 mA, a 0–5 V control signal or potentiometer, and any high-voltage cabling or load protection components your application requires.

Which output voltage range should I select for my application?

This model delivers a fixed 0–500 V range controlled by a 0–5 V input; choose it when your load needs up to 500 V at 2 mA maximum.
