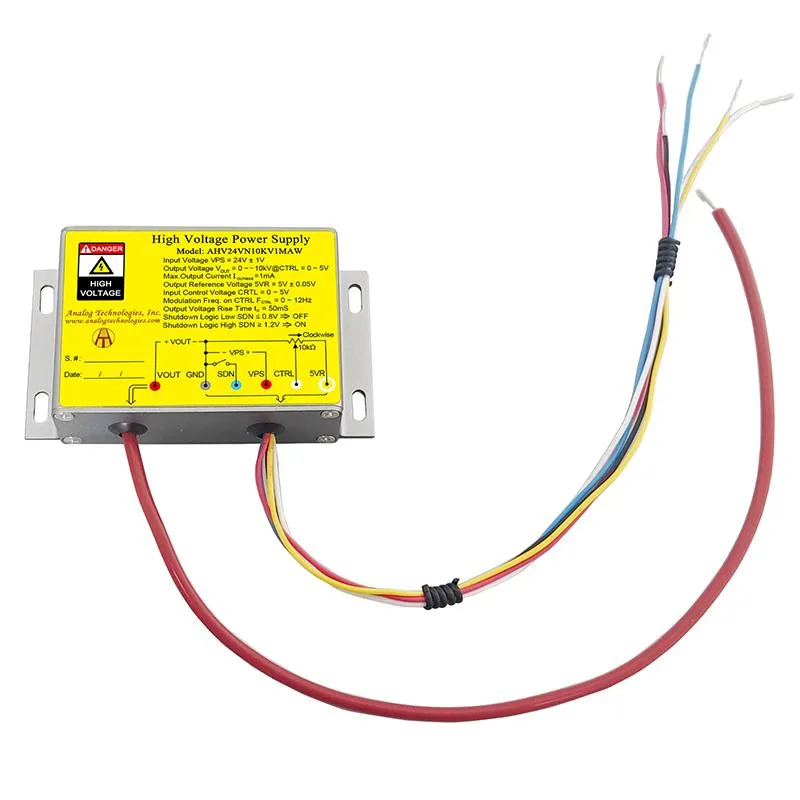

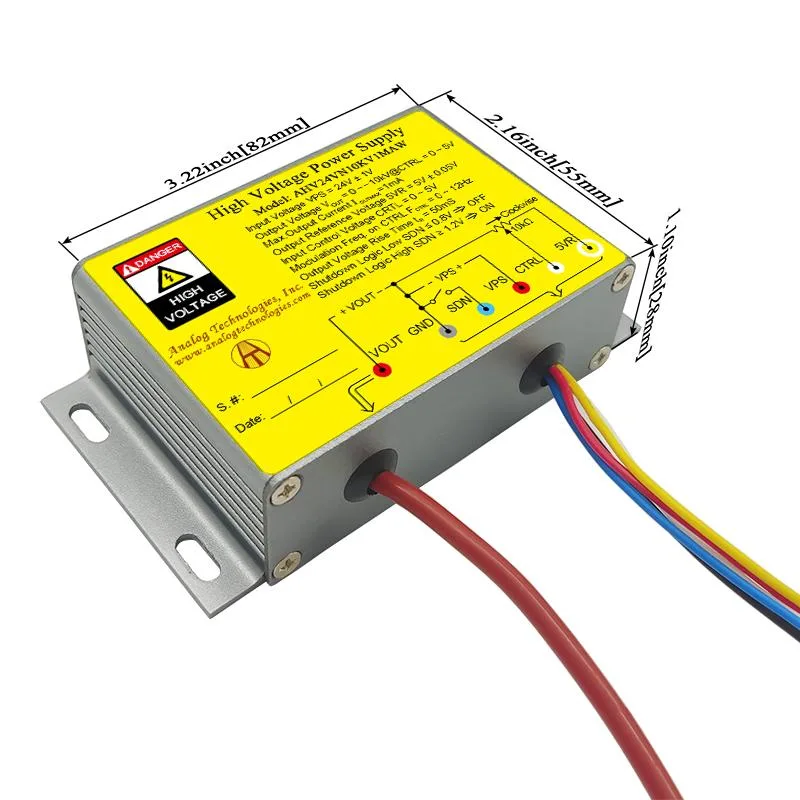

Compact high-voltage DC-DC module with 24V input and 10kV output

Analog Technologies

Analog Technologies High Voltage Power Supply 24V 10kV 1mA AHV24VN10KV1MAW

SKU CH-1E07-5GV90

Converts 24V DC input to adjustable 0 to -10kV output at up to 1mA for high-voltage applications

  • TypeHigh Voltage Power Supply
  • Adjustable 0 to -10 kV output for versatile high-voltage needs
  • 24 V DC input simplifies integration into existing low-voltage systems
  • Electronic shutdown control protects equipment during fault conditions
  • Full-span modulation enables precise voltage regulation across the entire range
  • Stable 5 V reference voltage supports accurate control-loop performance

Compact High-Voltage DC-DC Module

The Analog Technologies AHV24VN10KV1MAW converts a 24V DC input into a regulated 0 to -10kV output with a maximum current of 1mA. It accepts an input current range of 70mA to 700mA and provides a 5V reference voltage for control. The unit features full-span output modulation and electronic shutdown control for integration into OEM equipment.

Suits High-Voltage OEM Integration

Engineers building X-ray sources, electrospinning rigs, or semiconductor inspection tools will find the 10kV rating and compact DC-DC topology a direct fit. The module is not for designers who need positive high-voltage output, output currents above 1mA, or an input voltage other than 24V DC.

0 to -10kV Adjustable Negative Output

The defining specification is the adjustable negative high-voltage output spanning 0 to -10kV controlled by a 0 to 5V signal. This polarity and voltage range determine whether the module matches the load requirements in capillary electrophoresis, sputter coating, or particle acceleration applications.

Highlights

  • Adjustable 0 to -10 kV output for versatile high-voltage needs
  • 24 V DC input simplifies integration into existing low-voltage systems
  • Electronic shutdown control protects equipment during fault conditions
  • Full-span modulation enables precise voltage regulation across the entire range
  • Stable 5 V reference voltage supports accurate control-loop performance

Specifications

TypeHigh Voltage Power Supply

Questions about this item

Will this 24 V input module work with my existing 24 V bench supply that delivers up to 700 mA?

Yes — the unit accepts 24 V ± 1 V and draws 70 mA to 700 mA, so a 24 V source rated for at least 700 mA will power it correctly.

How can I verify the –10 kV output is tracking the 0–5 V control signal after installation?

Measure the 5 V ± 0.05 V reference pin and the control voltage input; the high-voltage output should scale linearly from 0 to –10 kV as the control voltage moves from 0 to 5 V.

What comes in the box and what must I source separately for the AHV24VN10KV1MAW?

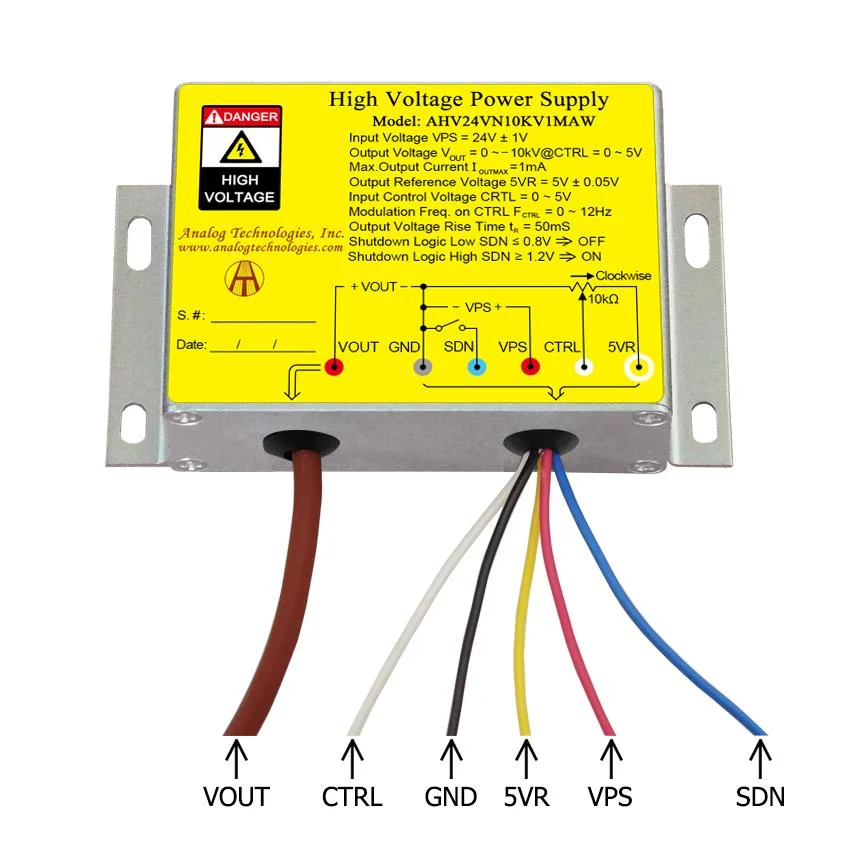

The module itself is supplied; you must provide a 24 V DC source capable of 700 mA, control-voltage wiring for 0–5 V, and suitable high-voltage cabling for the –10 kV output.
