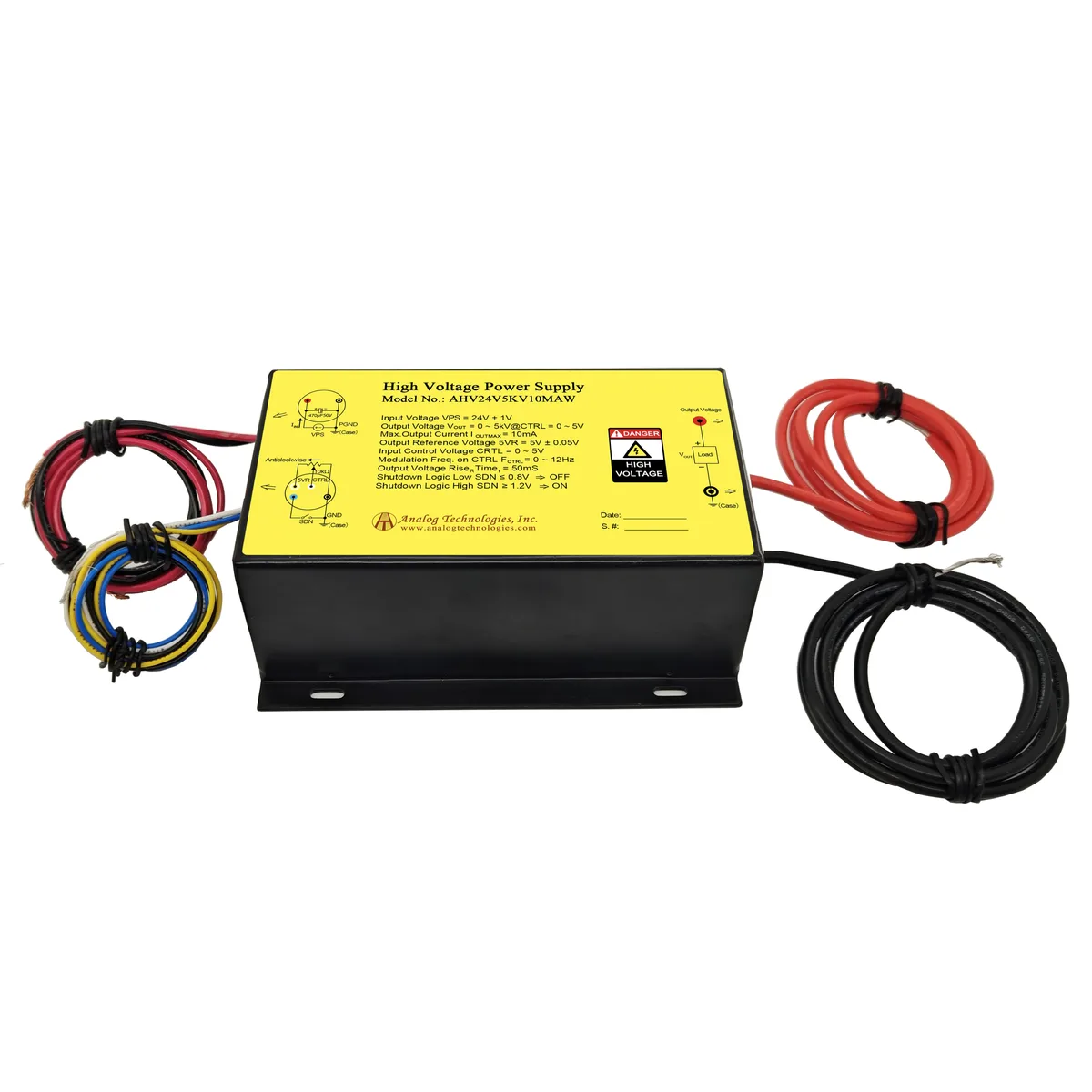

Compact metal high-voltage power supply module, 24V input 5KV output 10mA

Analog Technologies

Analog Technologies High Voltage Power Supply 24V 5KV 10mA

SKU CH-YJ8X-YTBZ2

High-voltage supply delivers 0–5 kV at 10 mA from 24 V DC input with linear adjustment and short-circuit protection

  • TypeHigh Voltage Power Supply
  • Adjustable 0–5 kV output for flexible high-voltage applications
  • 24 V DC input enables integration into standard industrial power rails
  • 10 mA maximum current supports low-power precision instruments
  • Low power consumption with high efficiency reduces thermal load
  • Overload and short-circuit protection safeguards connected equipment

High-Voltage DC–DC Converter

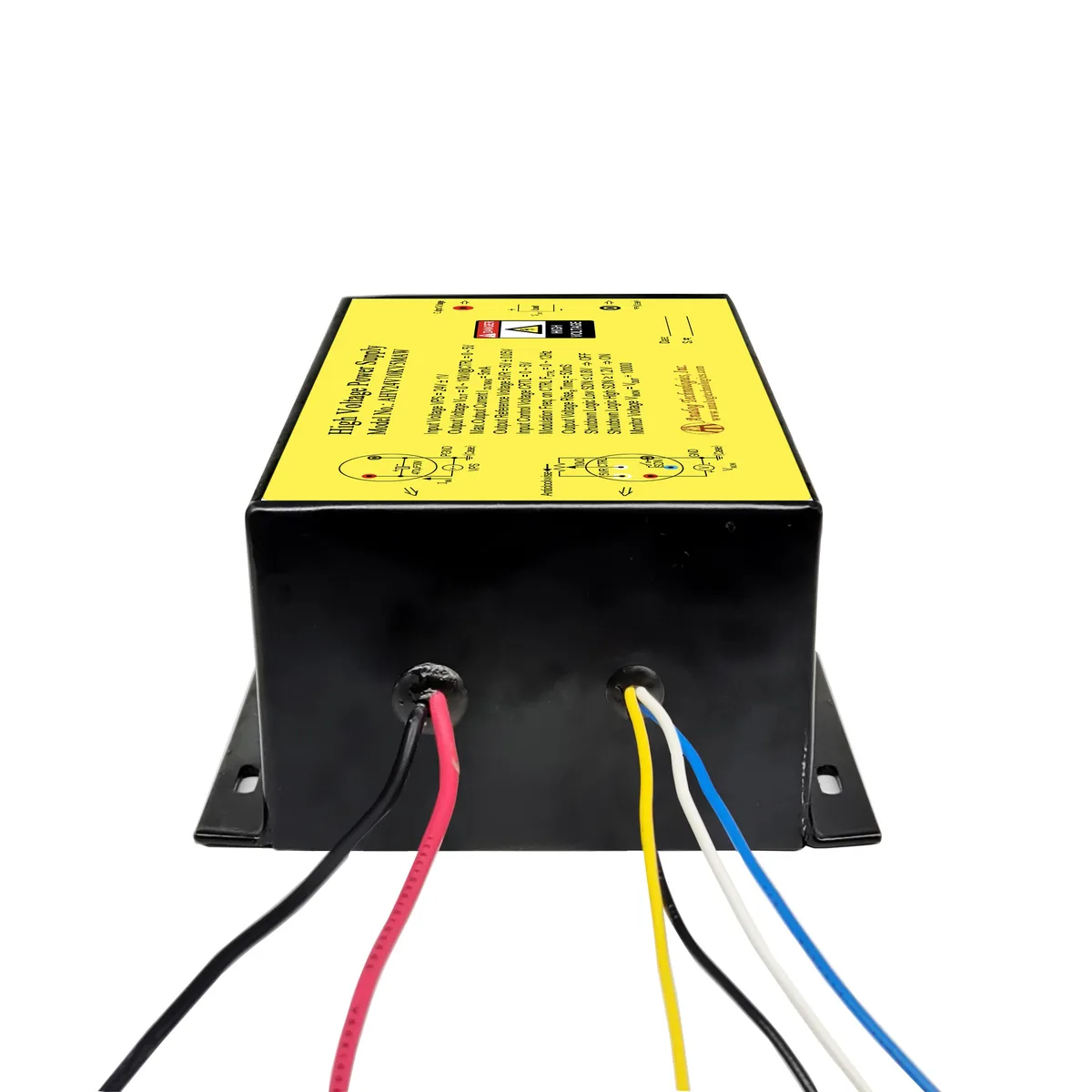

The Analog Technologies AHV24V5KV10MAW converts a 24 V DC input into an adjustable high-voltage output up to 5 kV at 10 mA. It combines a switching step-up stage with linear regulation to deliver low ripple, low drift and high stability in a compact metal enclosure. Overload and short-circuit protection are built in.

Output Voltage Range

Continuous linear adjustment lets you set the output anywhere from zero to the 5 kV maximum, matching the exact bias or acceleration voltage your application requires. The topology keeps output ripple, time drift and temperature drift to a minimum while maintaining high efficiency and low power consumption. Zero EMI emission simplifies integration into sensitive measurement chains.

Suited For Precision High-Voltage Biasing

Engineers powering photomultiplier tubes, optical sensors, nuclear detectors or medical instruments will benefit from the stable, adjustable output and rugged shielded case. The 10 mA current limit makes it unsuitable for loads that demand higher current or for applications requiring a different input voltage range.

Highlights

  • Adjustable 0–5 kV output for flexible high-voltage applications
  • 24 V DC input enables integration into standard industrial power rails
  • 10 mA maximum current supports low-power precision instruments
  • Low power consumption with high efficiency reduces thermal load
  • Overload and short-circuit protection safeguards connected equipment

Specifications

TypeHigh Voltage Power Supply

Questions about this item

What does the 5KV output mean when the unit is installed in a real system?

It provides up to 5 kilovolts of adjustable high voltage for devices such as photomultiplier tubes or precision instruments, with continuous linear control from zero to the maximum.

How does the 24V DC input limit what the supply can deliver?

The 24V DC input feeds a step-up and linear regulation stage that produces the high-voltage output while keeping ripple, drift and EMI very low.

What mounting or clearance does the metal enclosure need?

The compact metal case is moisture-proof and shockproof, designed for direct installation inside equipment without additional shielding.
