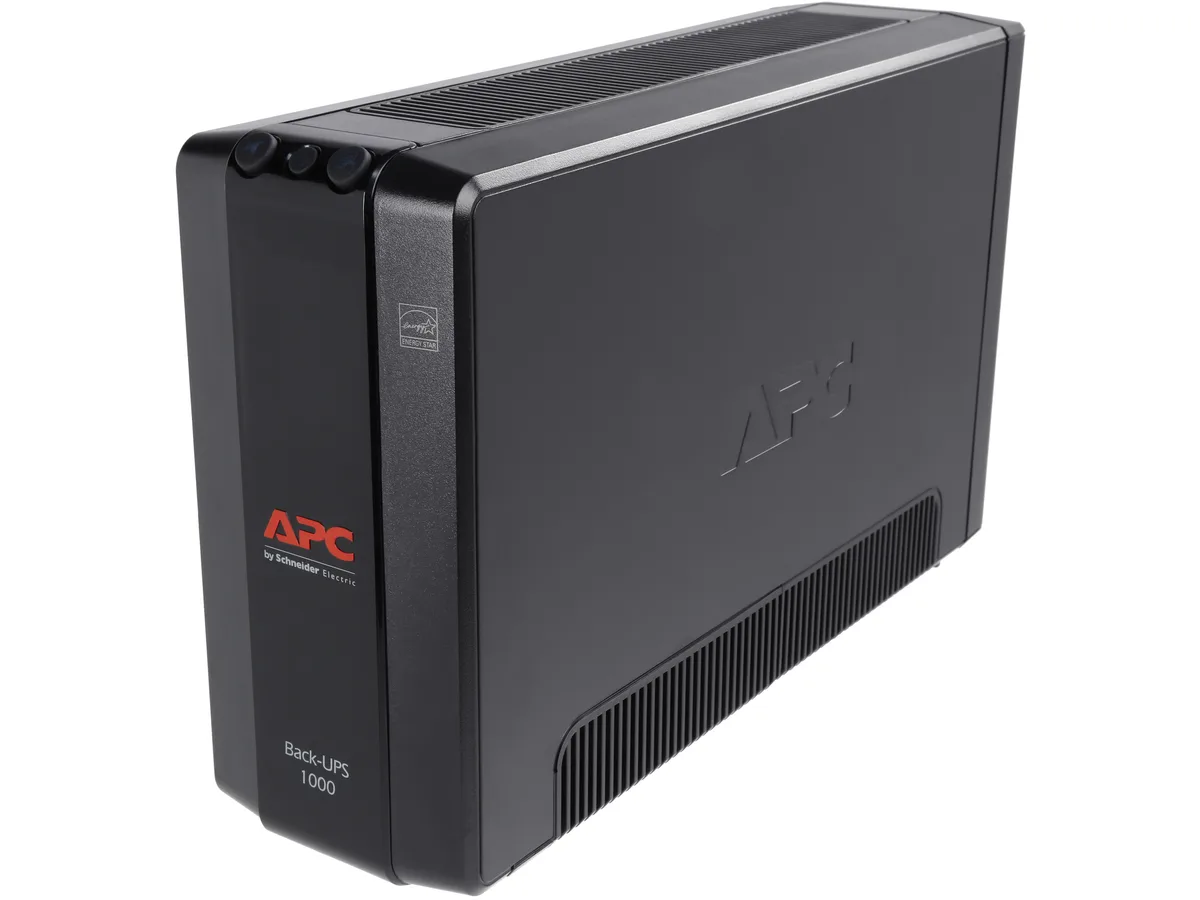

Compact tower UPS with LCD screen and eight NEMA outlets

APC

APC BX1000M 1000VA 600W UPS 8 Outlets LCD AVR

SKU CH-V54A-S56RK MPN BX1000M

Provides 1000 VA / 600 W battery backup with AVR, LCD status, eight NEMA 5-15R outlets and USB management

  • International Version120V
  • Input Voltage Range88 -139V
  • Input Frequency60 Hz +/- 3 Hz
  • Input ConnectionNEMA 5-15P
  • VA Rating1000 VA
  • Watts600 Watts

VA 1000 VA / 600 W / 1103 J

Struck-through versions exist but are not stocked here.

  • 1000 VA capacity backs critical devices during outages
  • Automatic voltage regulation corrects fluctuations without battery use

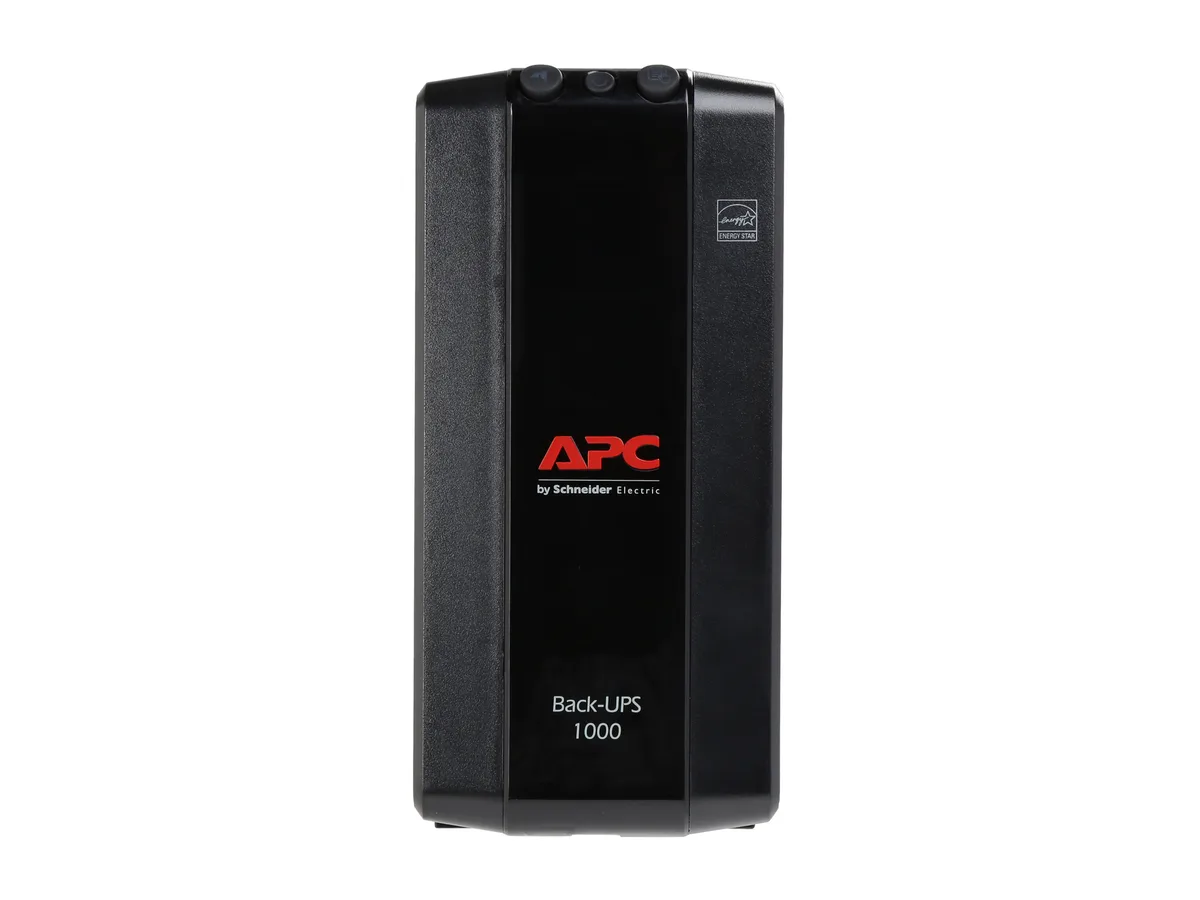

  • LCD screen shows load and battery status at a glance

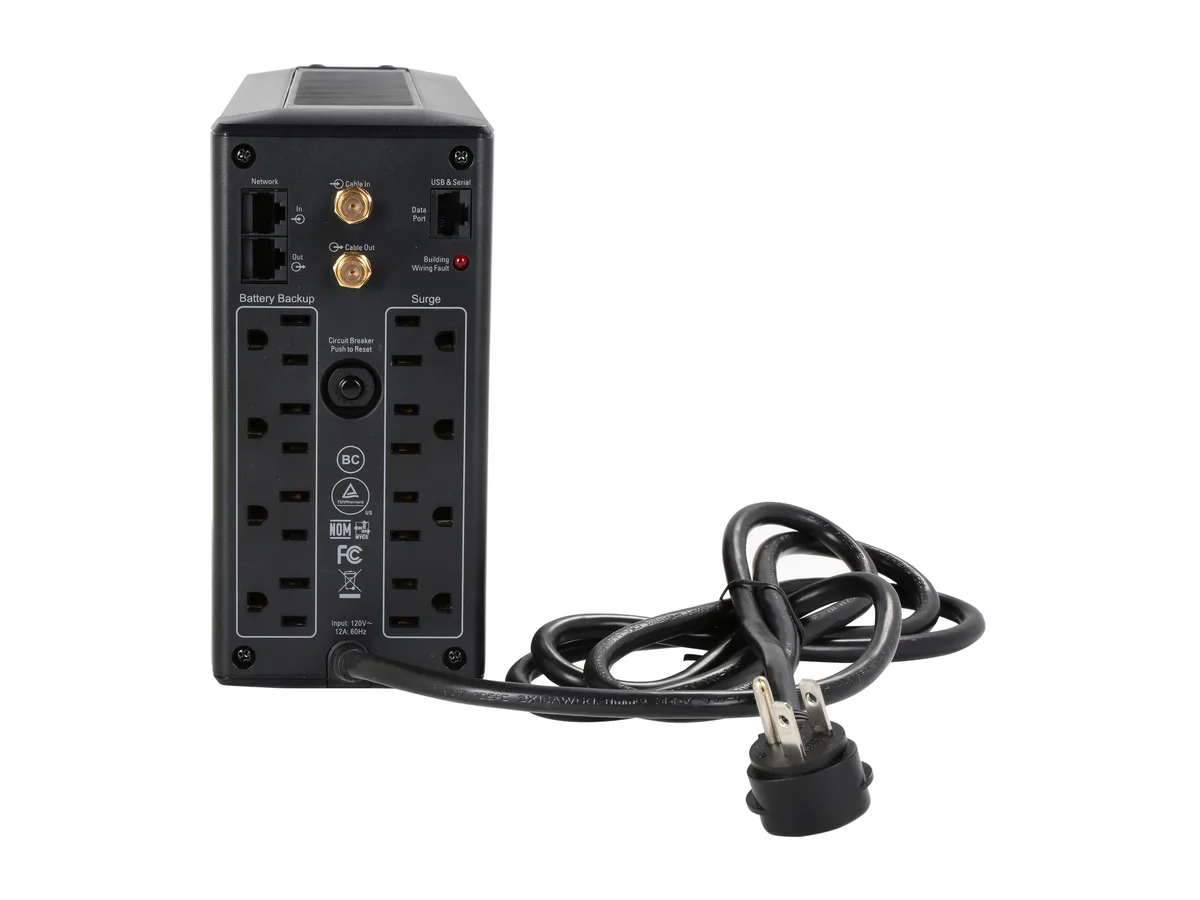

  • Eight NEMA 5-15R outlets split between battery backup and surge protection
  • USB HID port enables automatic graceful shutdown via PowerChute software

Compact Tower UPS for Home and Office

The APC BX1000M is a 1000VA battery backup designed to protect essential electronics in home and small business environments. It provides 600 watts of output power through eight NEMA 5-15R outlets, with four offering battery backup and four providing surge-only protection. Automatic Voltage Regulation corrects minor fluctuations without using battery capacity.

Straightforward Installation with Software Setup

Place the tower on a flat surface, plug the NEMA 5-15P input into a grounded 120V wall outlet, and connect devices to the labelled outlets. The USB port enables HID-compliant communication with PowerChute Personal Edition for automated shutdown configuration. A 12-hour recharge period is required before the unit delivers its full 2.3-minute runtime at full load or 10.6 minutes at half load.

Verify Load Requirements and Outlet Types

Confirm that the total connected draw stays within the 600-watt rating and that critical devices use the four battery-backed outlets. The input voltage window is 88 to 139V at 60 Hz, so ensure your supply falls in that range. Data-line protection covers RJ-45 Ethernet and coaxial connections, but the unit only supplies 120V AC output.

Highlights

  • 1000 VA capacity backs critical devices during outages
  • Automatic voltage regulation corrects fluctuations without battery use
  • LCD screen shows load and battery status at a glance
  • Eight NEMA 5-15R outlets split between battery backup and surge protection
  • USB HID port enables automatic graceful shutdown via PowerChute software

Specifications

BrandAPC
SeriesBack UPS Pro
ModelBX1000M
International Version120V
Input Voltage Range88 -139V
Input Frequency60 Hz +/- 3 Hz
Input ConnectionNEMA 5-15P
VA Rating1000 VA
Watts600 Watts
Output Voltage120V
Output Frequency60 Hz
Outlets8
Outlet Type4 x NEMA 5-15R (Surge Protection)
4 x NEMA 5-15R (Battery Backup)
Battery TypeSealed Lead Acid
Battery Run TimeAt the full load: 2.3 minutes
At the half load: 10.6 minutes
Battery Recharge Time12 Hour(s)
Interface PortUSB
ApprovalsCalifornia (CEC) Battery Charger, ENERGY STAR (USA), FCC Part 15 Class B, UL 1778
Data Line ProtectionNetwork line - 10 / 100 / 1000 Base-T Ethernet (RJ-45 connector)
Coaxial cable for CATV / SATV / modem / Audio-Video (coax connector)
Surge Energy Rating1103 Joules
FeaturesEnergy Management Function
Battery-protected and surge-only outlets
Boost Automatic Voltage Regulation (AVR)
LCD Status Display
Green mode

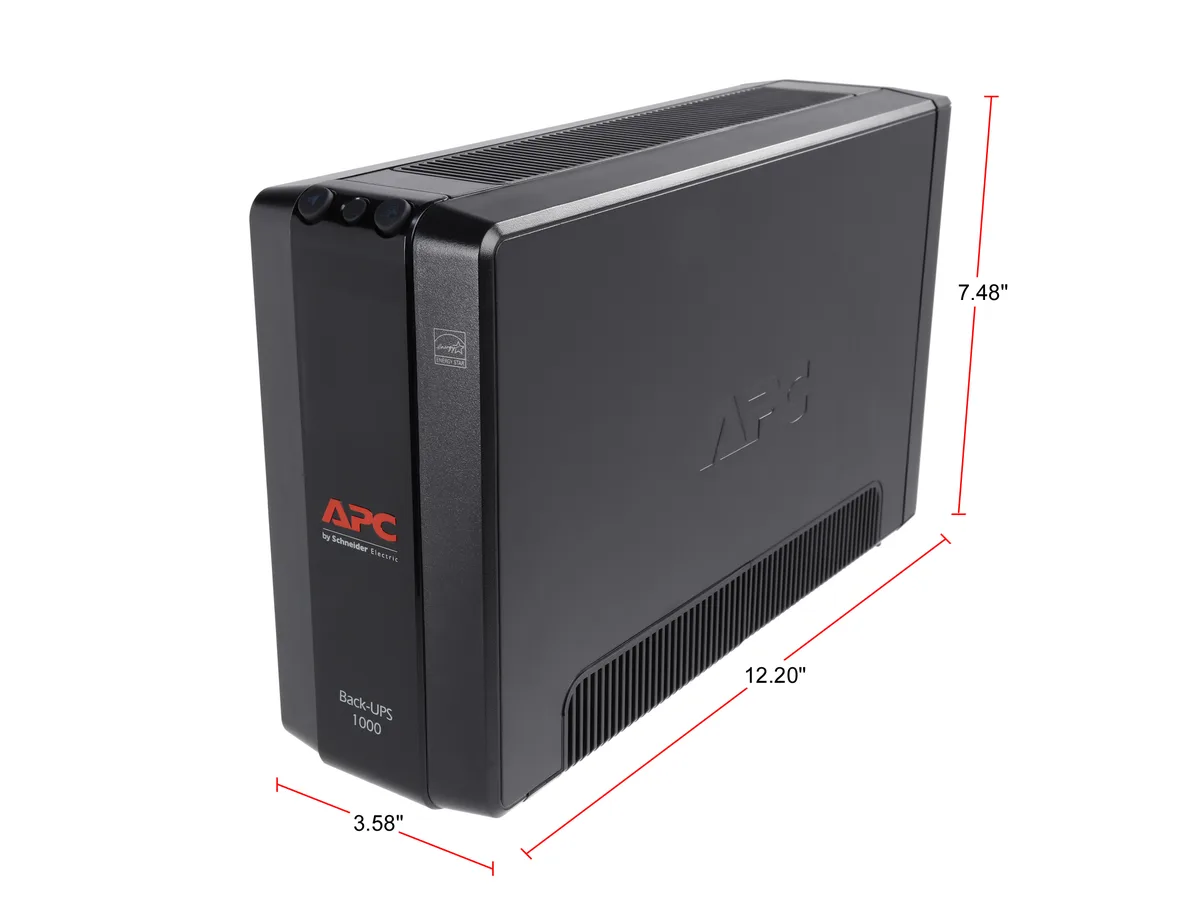

Dimensions7.48" x 3.58" x 12.20"
Weight15.87 lbs.
Shipping weight8.02 kg
Package size439 × 257 × 145 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the APC BX1000M is operating correctly after installation?

The LCD shows load and battery bar graphs plus status icons; press the display button to cycle through input voltage, output voltage, load percentage and estimated runtime.

What ships with the BX1000M and what must I provide separately?

The unit includes the UPS, USB cable, PowerChute software link and documentation; you supply the NEMA 5-15P wall cord and any Ethernet or coaxial cables for data-line protection.

Which capacity should I pick for a typical desktop and monitor?

The 1000 VA / 600 W model delivers 4.3 minutes at full load or 10.6 minutes at half load, enough for a standard PC and display to shut down gracefully.
