APC
APC SMT1500RMI2UC 1500VA 1000W 2U Rackmount UPS 230V
A 2U rackmount line-interactive UPS delivering 1500 VA and 1000 W at 230 V with USB, serial and SmartSlot interfaces
- Input Voltage Range160 - 286V
- Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
- Input ConnectionIEC-320 C14
- VA Rating1500 VA
- Watts1000 Watts
- Output Voltage230V
- 1500 VA capacity supports critical servers and network gear
- 1000 W output handles high-density rack loads efficiently
- 2U rackmount design fits standard cabinets without wasting space
- SmartSlot, USB and RJ-45 serial enable flexible remote management
- User-replaceable APCRBC133 battery cuts downtime during maintenance
Rackmount UPS for network gear
The APC SMT1500RMI2UC is a line-interactive UPS rated at 1500 VA and 1000 Watts in a 2U form factor. It protects servers, routers, switches and point-of-sale equipment from outages and voltage fluctuations. The unit ships new with a replaceable battery cartridge and management software on CD.
Input window and surge capacity
The UPS accepts an input range of 160 to 286 V at 50 or 60 Hz with automatic frequency sensing. It provides 459 Joules of surge energy rating to absorb transient spikes. Battery recharge completes in 3 hours after a discharge event.

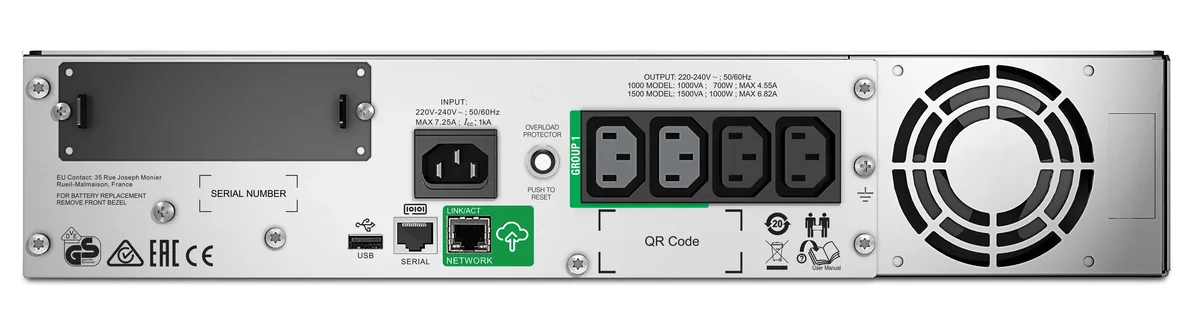

2U chassis with mixed management ports
A 3.39-inch tall rackmount enclosure houses IEC-320 C14 input and multiple communication interfaces: RJ-45 serial, USB and a SmartSlot for optional cards. The unit weighs 63.14 lbs and carries CE, CSA, EAC, RCM, TUV and VDE approvals to EN/IEC 62040 standards.
Highlights
- 1500 VA capacity supports critical servers and network gear
- 1000 W output handles high-density rack loads efficiently
- 2U rackmount design fits standard cabinets without wasting space
- SmartSlot, USB and RJ-45 serial enable flexible remote management
- User-replaceable APCRBC133 battery cuts downtime during maintenance
Specifications
| Brand | APC |
|---|---|
| Model | SMT1500RMI2UC |
| Input Voltage Range | 160 - 286V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Input Connection | IEC-320 C14 |
| VA Rating | 1500 VA |
| Watts | 1000 Watts |
| Output Voltage | 230V |
| Output Frequency | 50/60 Hz +/- 3 Hz |
| Battery Recharge Time | 3 hours |
| Battery Replaceable | APCRBC133 |
| Alarms | Alarm when on battery: distinctive low battery alarm: configurable delay |
| Interface Port | RJ-45 Serial, SmartSlot, USB |
| Approvals | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, VDE |
| Rackmountable | Yes |
| Surge Energy Rating | 459 Joules |
| Features | Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, USB cable |
| Dimensions | 3.39" x 17.01" x 18.78" |
| Weight | 63.14 lbs. |
| Shipping weight | 32.21 kg |
| Package size | 610 × 610 × 254 mm |
Questions about this item
How do I decide between the 1500 VA and 1000 W ratings when sizing this UPS for my rack?
Size the load by watts; the 1000 W limit is the real power ceiling, while 1500 VA reflects apparent power including reactive component.
What does the 1000 W rating actually deliver to my servers during an outage?
It supplies up to 1000 W of real power to connected equipment, with a 230 V pure sine-wave output at 50/60 Hz.
Which management interfaces are on the rear panel and what can each one do?
USB and RJ-45 serial give direct monitoring; the SmartSlot accepts optional network cards for remote management.
