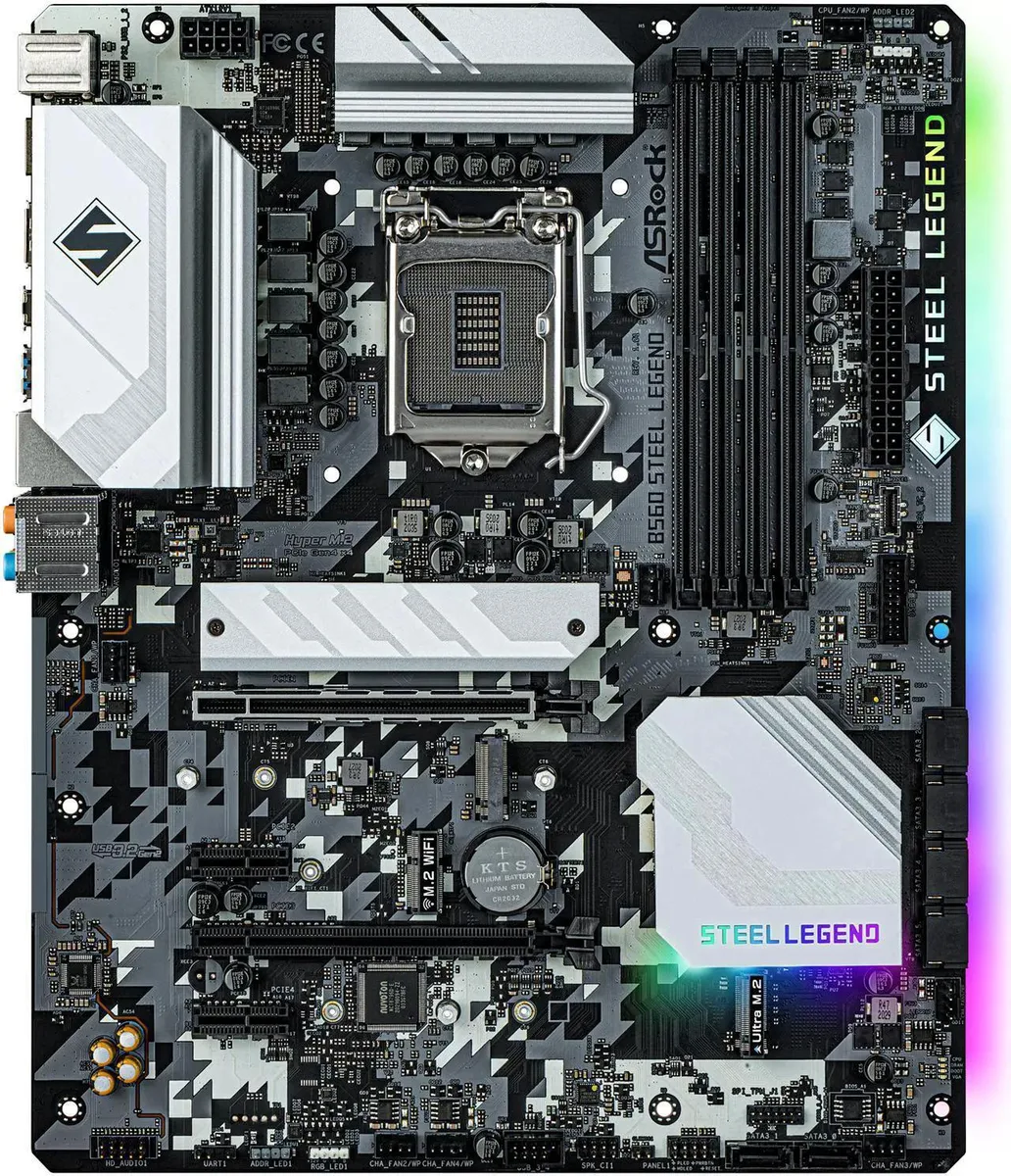

ATX motherboard in silver grey with steel grey heatsinks and white lettering

ASRock

ASRock B560 Steel Legend Intel motherboard

SKU CH-WBXR-Q59HE

ATX motherboard with LGA 1200 socket for 10th and 11th Gen Intel Core CPUs, four DDR4 slots up to 128 GB, PCIe 4.0 x16 with 11th Gen, one Hyper M.2 up to 64 Gb/s, 2.5 Gbps LAN, 7.1 audio.

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors Supports 11th Gen In
  • ChipsetIntel B560
  • Number of Memory Slots4x288pin (DDR4)
  • Memory Standard11th Gen Intel Core Processors support DDR4 non-ECC, un-buff
  • Maximum Memory Supported128GB
  • Supports 10th and 11th Gen Intel Core CPUs on LGA 1200 socket
  • Four DDR4 slots accept up to 128 GB dual-channel memory
  • PCIe 4.0 x16 and M.2 Gen4x4 up to 64 Gb/s with 11th Gen processors
  • 5 Gbps LAN plus USB 3.2 Gen2 Type-C at 10 Gb/s on rear I/O
  • 1-channel Realtek ALC897 audio with optical SPDIF output

LGA 1200 board for 10th and 11th Gen Intel CPUs

The ASRock B560 Steel Legend accepts LGA 1200 processors from both the 10th and 11th generations. Four DDR4 slots support up to 128 GB in dual-channel mode. Memory speeds scale with the installed CPU generation, reaching 4800+(OC) with 11th Gen and 4666+(OC) with 10th Gen parts.

Steel Legend build with 2.5 Gbps LAN

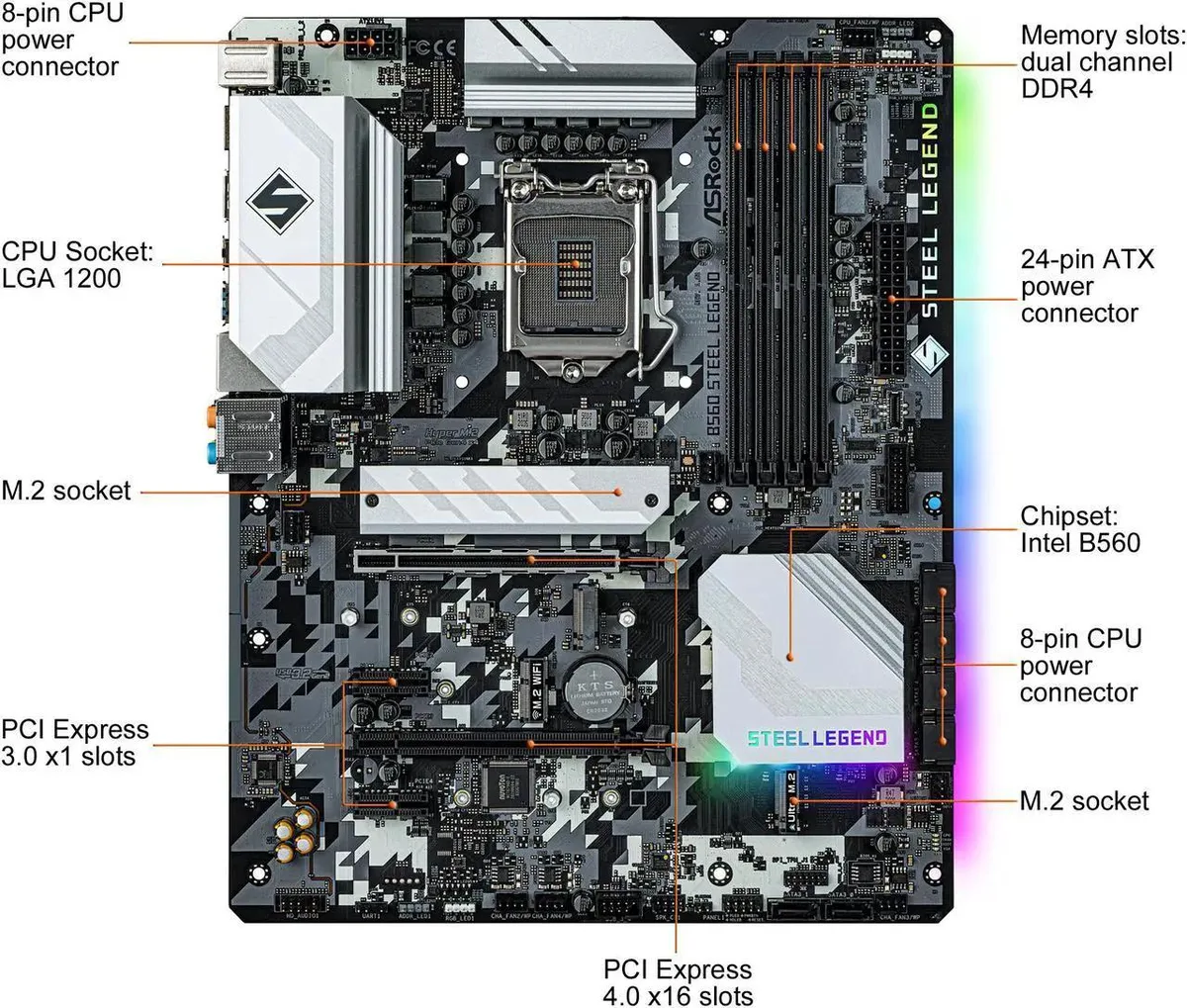

The board uses an ATX layout with reinforced PCIe slots and a full-coverage heatsink design. A Dragon RTL8125BG controller provides 2.5 Gbps Ethernet. One Hyper M.2 socket runs at Gen4x4 when paired with an 11th Gen processor, while a second M.2 socket and six SATA 6Gb/s ports handle additional storage. Rear I/O includes HDMI, DisplayPort 1.4, USB 3.2 Gen2 Type-C, four USB 3.2 Gen1 ports and 7.1-channel audio via Realtek ALC897.

Polychrome SYNC headers and updated BIOS

Two RGB LED headers and two addressable LED headers support Polychrome SYNC lighting control for strips up to 36 W and 15 W respectively. An SPI TPM header and chassis intrusion header are provided for security features. The BIOS ships updated to the latest version for immediate compatibility with supported processors.

Highlights

  • Supports 10th and 11th Gen Intel Core CPUs on LGA 1200 socket
  • Four DDR4 slots accept up to 128 GB dual-channel memory
  • PCIe 4.0 x16 and M.2 Gen4x4 up to 64 Gb/s with 11th Gen processors
  • 5 Gbps LAN plus USB 3.2 Gen2 Type-C at 10 Gb/s on rear I/O
  • 1-channel Realtek ALC897 audio with optical SPDIF output

Specifications

BrandASRock
ModelB560 Steel Legend
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors
Supports 11th Gen Intel Core Processors
ChipsetIntel B560
Number of Memory Slots4x288pin (DDR4)
Memory Standard11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
* 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
* 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x1611th Gen Intel Core Processors: 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x2 (PCIE3))*
10th Gen Intel Core Processors: 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x2 (PCIE3))*
* Supports NVMe SSD as boot disks
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x12 x PCI Express 3.0 x1 Slots
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel Core Processors)**
1 x M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**
1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
** Supports Intel Optane Technology (M2_3)
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps

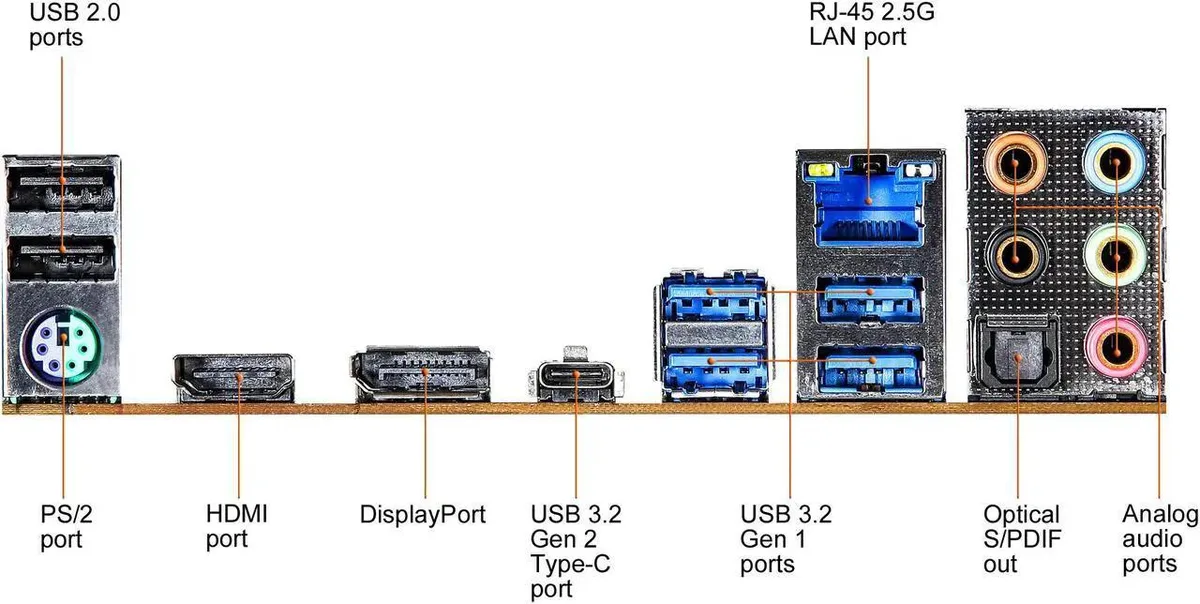

Back I/O Ports3 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Other Connectors1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
2 x RGB LED Headers
* Support in total up to 12V/3A, 36W LED Strip
2 x Addressable LED Headers
* Support in total up to 5V/3A, 15W LED Strip
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan
Windows 11Supported
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
FeaturesASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- 50A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Matte Black PCB
- High Density Glass Fabric PCB
2.5G LAN
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Package ContentsQuick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket

Questions about this item

What PCIe generation does the M.2 slot support with an 11th Gen CPU, and what bandwidth does that cap at?

With an 11th Gen Intel Core processor the Hyper M.2 socket runs at PCIe 4.0 x4, capping theoretical bandwidth at 64 Gb/s.

What physical space and mounting points does the board need inside a case?

The board uses the ATX form factor with standard ATX mounting holes and an LGA 1200 socket keep-out zone; it also provides three antenna mounting points on the rear I/O panel.

How is the M.2 drive installed, and what step do builders often miss?

Insert the 2260 or 2280 M-key module into the M2_1 slot at an angle, press it flat, and secure it with the supplied screw; the step often missed is confirming the CPU is an 11th Gen model, otherwise the slot runs at PCIe 3.0 speeds.
