All-black 360 mm AIO with three 120 mm fans and 394 mm radiator

ASRock

ASRock Challenger Pure 360 liquid cooler

SKU CH-X876-XXFZJ MPN Challenger Pure 360

A 360 mm all-black AIO with a copper cold plate, three 120 mm PWM fans and a 27 mm thick radiator for AM4, AM5, LGA 1700 and LGA 1851 sockets

  • TypeAIO
  • Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1700 / Intel LGA
  • Block Dim.85 x 84.1 x 53.5 mm
  • Block MaterialCopper
  • Pump Speed0 - 1800 ± 10% RPM
  • Radiator Size394 mm

Option Challenger Pure 360

  • Clean all-black aesthetic with no LEDs for minimalist builds
  • 360 mm radiator with 27 mm thickness for high-capacity cooling
  • Copper cold plate transfers heat efficiently from the CPU
  • Pump runs up to 1800 RPM with 3-phase motor for strong circulation

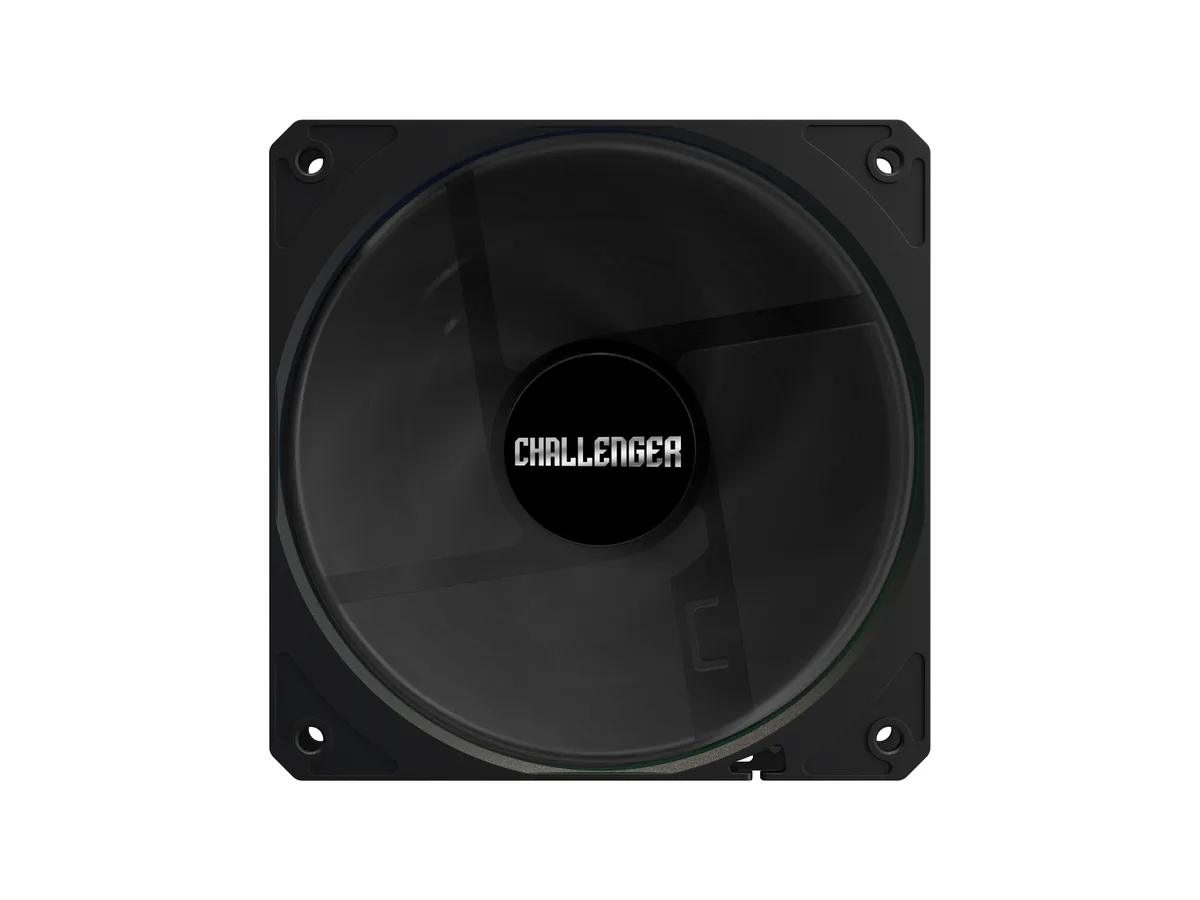

  • Fans reach 53.9 CFM airflow while staying at 27 dB(A) max noise

Unlit 360 mm AIO for clean builds

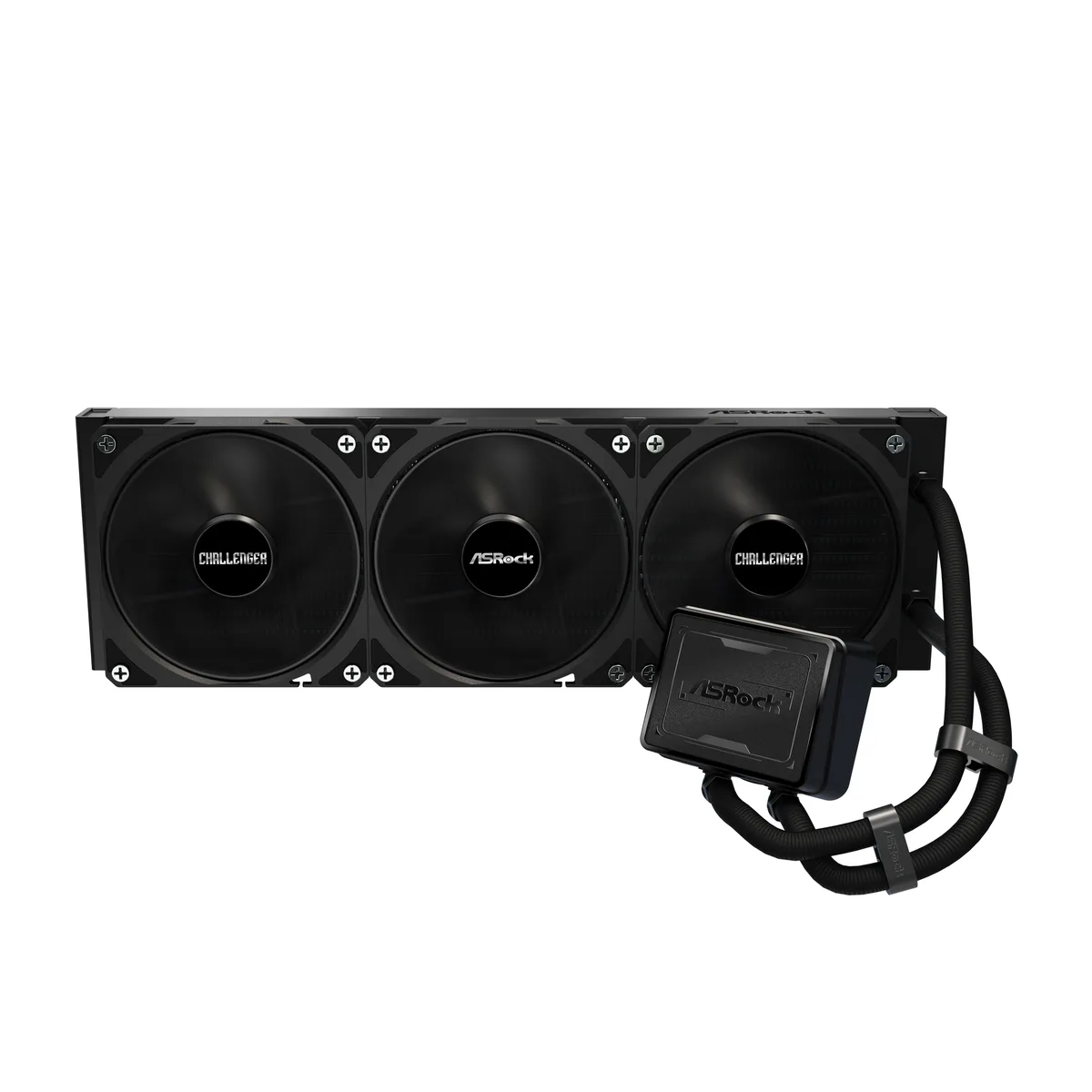

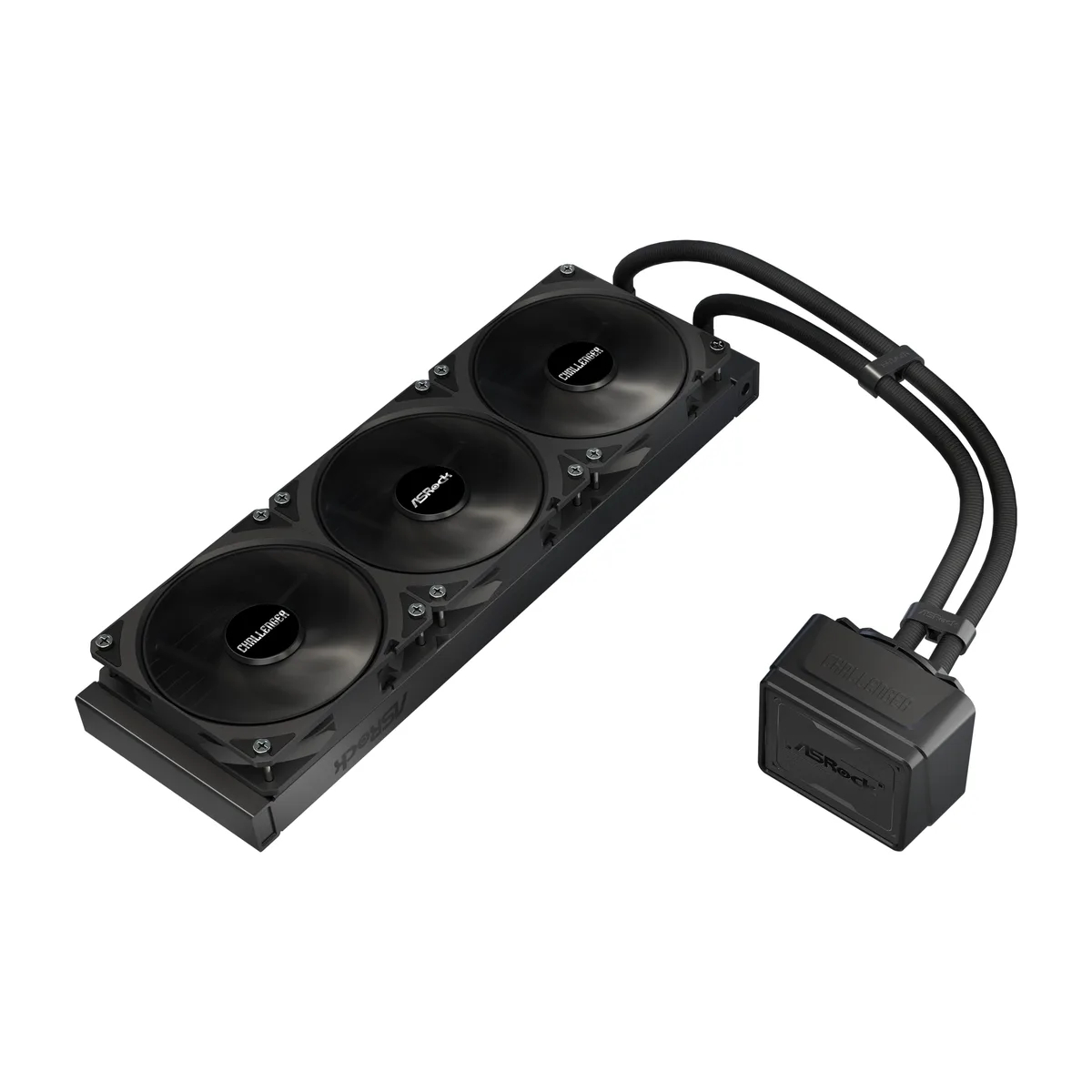

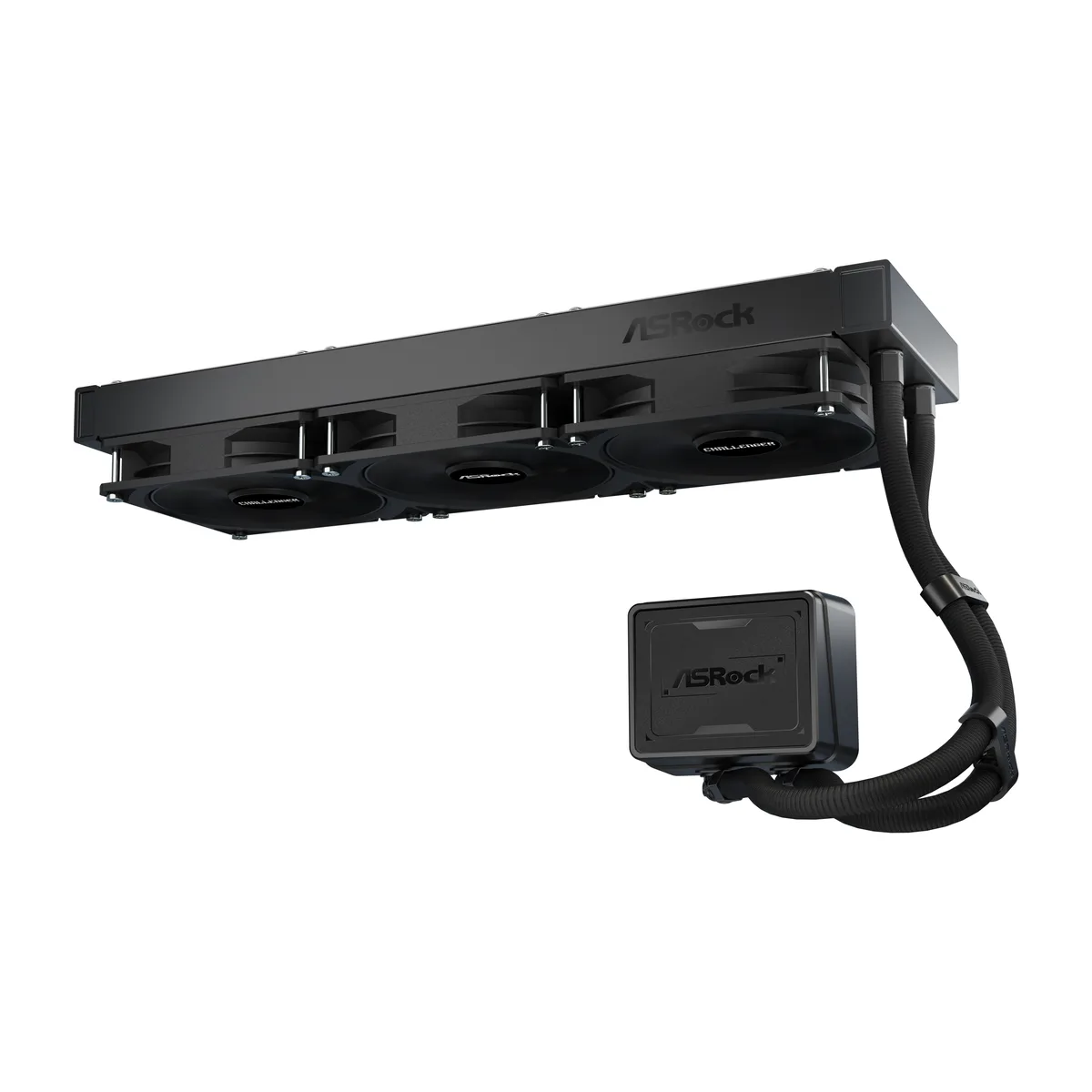

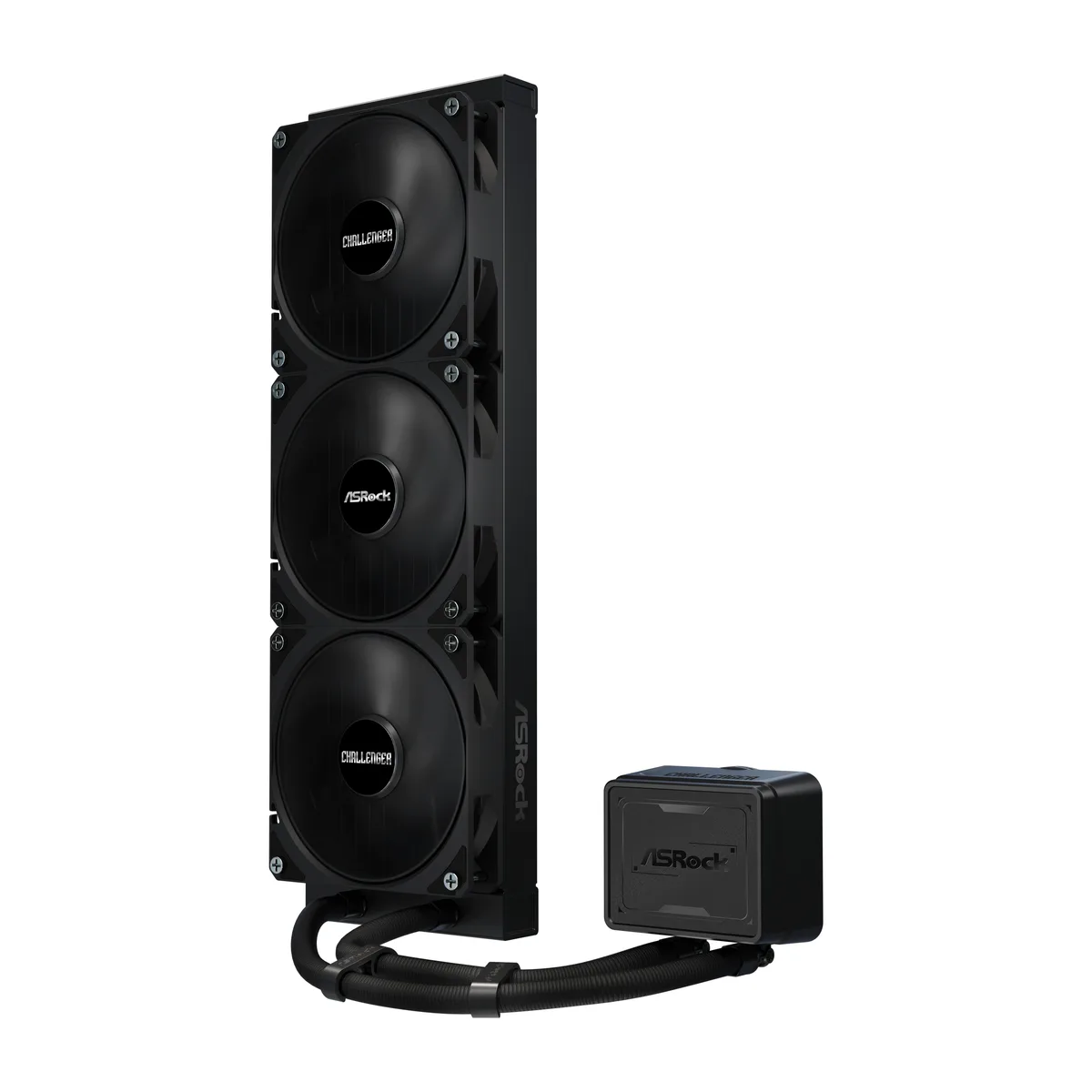

The ASRock Challenger Pure 360 is an all-in-one liquid cooler with a 394 mm radiator, three 120 mm PWM fans and a copper cold plate. It fits AMD Socket AM4, AM5 and Intel LGA 1700, 1851 platforms. The block measures 85 x 84.1 x 53.5 mm and the fans run at 0 to 1800 RPM with a maximum airflow of 53.9 CFM and 27 dB(A) noise. No LEDs are present on the block or fans.

Replaces air coolers when silence matters

Moving from a tower air cooler to this 360 mm loop is worthwhile when the CPU sustains high loads and case airflow is limited. The pump operates at 0 to 1800 RPM with a 3-phase, 6-slot, 4-pole motor designed for low torque ripple. Radiator thickness is 27 mm and tube length is 450 mm, allowing flexible routing without sharp bends that restrict flow.

Fits standard three-fan mounts

The radiator occupies three 120 mm fan slots measuring 394 x 119.6 x 27 mm, so the case must support that length and thickness. Fan connectors are 4-pin PWM for motherboard speed control. The compact water block leaves clearance around the CPU socket for tall memory modules and large VRM heatsinks. IIR plus EPDM tubing resists permeation for long-term reliability.

Highlights

  • Clean all-black aesthetic with no LEDs for minimalist builds
  • 360 mm radiator with 27 mm thickness for high-capacity cooling
  • Copper cold plate transfers heat efficiently from the CPU
  • Pump runs up to 1800 RPM with 3-phase motor for strong circulation
  • Fans reach 53.9 CFM airflow while staying at 27 dB(A) max noise

Specifications

BrandASRock
ModelChallenger Pure 360
Part Number90-ACLA36-BDKGA6
TypeAIO
Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1700 / Intel LGA 1851
Block Dim.85 x 84.1 x 53.5 mm
Block MaterialCopper
Pump Speed0 - 1800 ± 10% RPM
Radiator Size394 mm
Radiator Material394 x 119.6 x 27 mm
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25.4 mm
Fan RPM0 - 1800 ± 10% RPM
Fan Air FlowMax: 53.9 CFM
Fan NoiseMax: 27 dB(A)
Fan ConnectorPWM (4-Pin)
ColorBlack
LED ColorNon LED
Tube Dim.Length: 450 mm
Tube MaterialIIR + EPDM
Shipping weight2.40 kg
Package size457 × 216 × 146 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What case clearance is needed for the 394 mm radiator and 27 mm thickness?

The radiator measures 394 mm long, 119.6 mm wide and 27 mm thick, so the case must provide a 360 mm three-fan mounting area with at least 27 mm depth plus fan thickness.

How do I connect the pump and three 120 mm fans to the motherboard?

The pump uses a 3-phase 4-pole motor running up to 1800 RPM; each fan has a PWM 4-pin connector and also runs up to 1800 RPM, so plug the pump into the CPU_FAN header and the fans into SYS_FAN headers.

When should the IIR + EPDM tubes and copper cold plate be inspected or replaced?

The 450 mm tubes are IIR plus EPDM rubber and the cold plate is precision-machined copper; check for permeation or corrosion every 2 to 3 years and replace if coolant loss or temperature rise appears.
