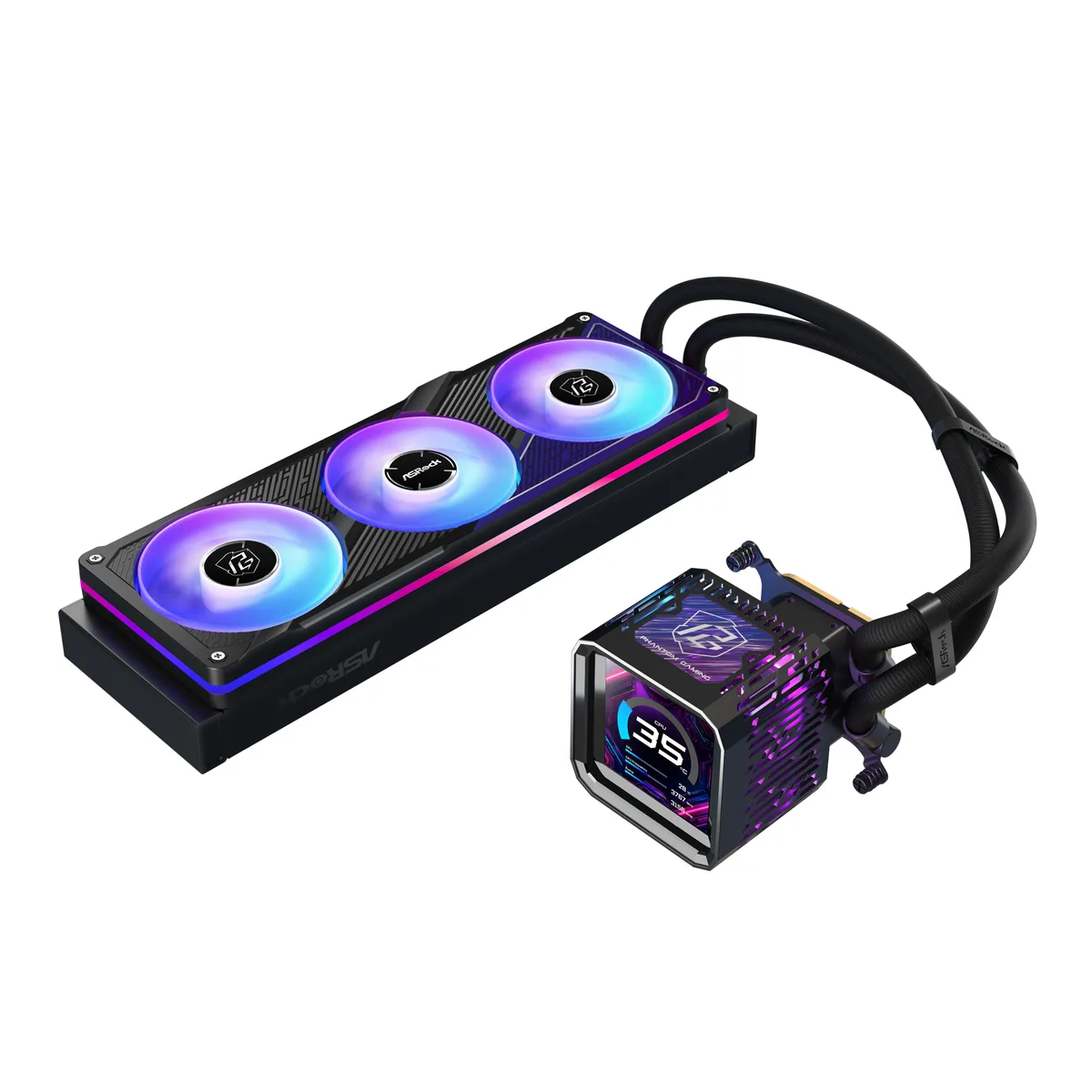

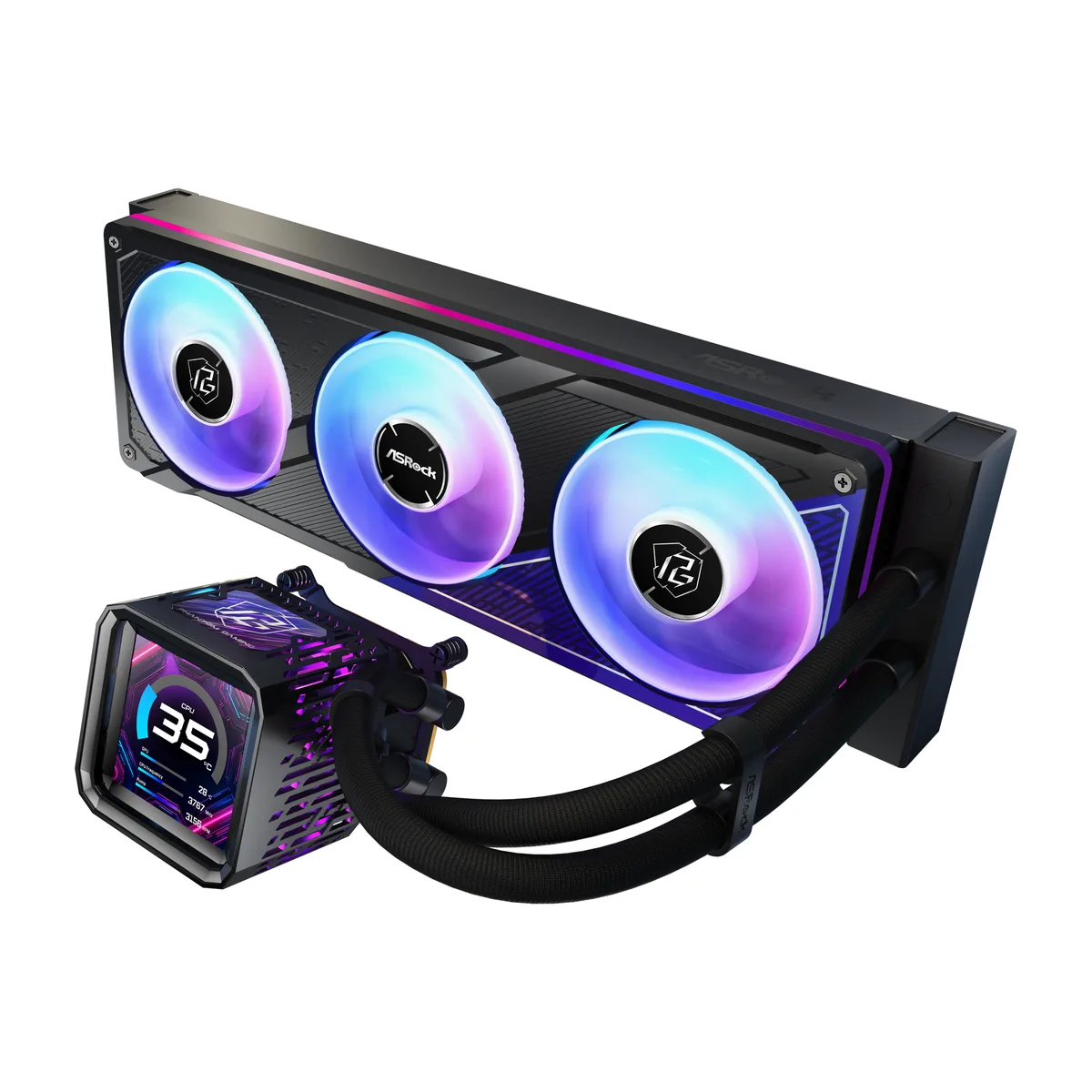

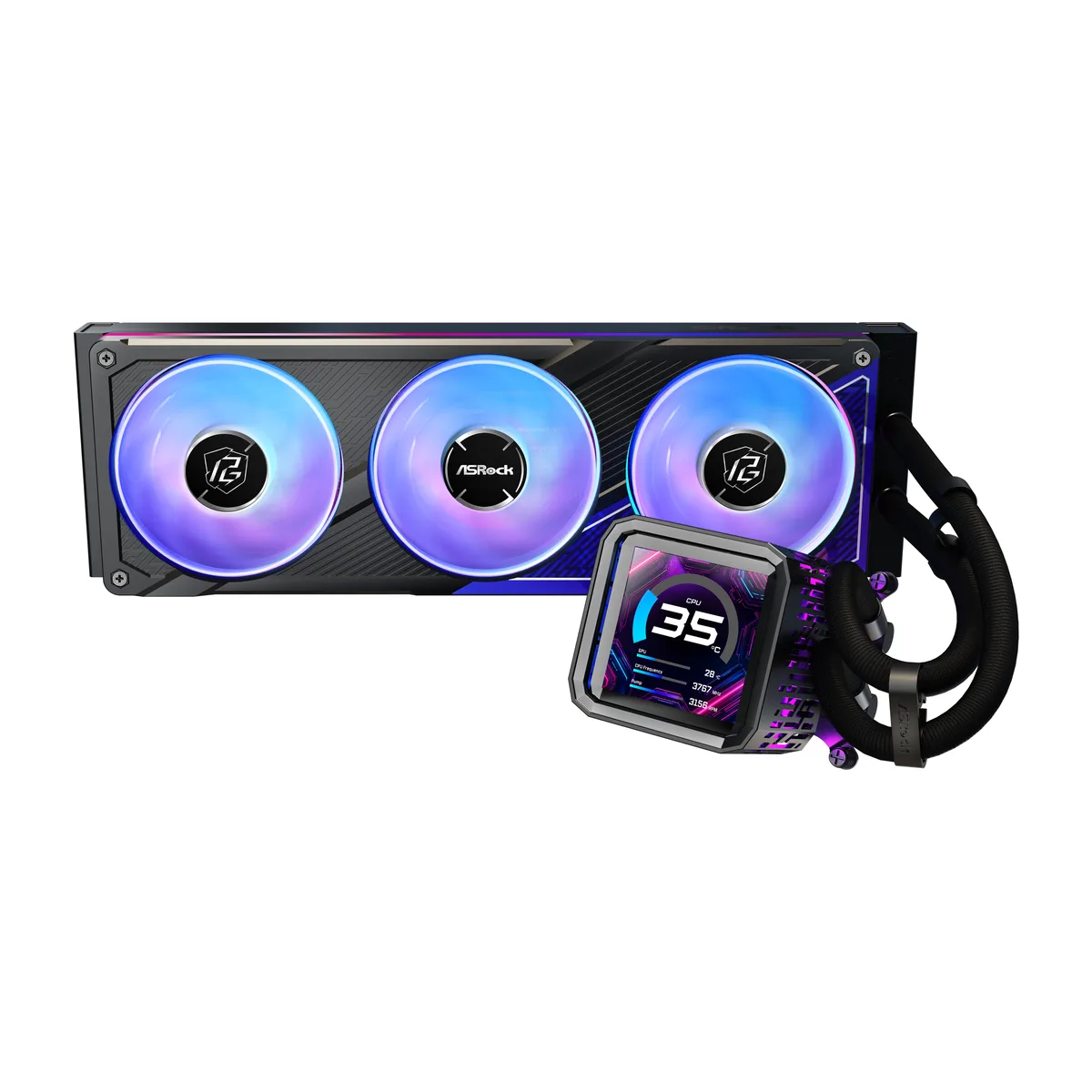

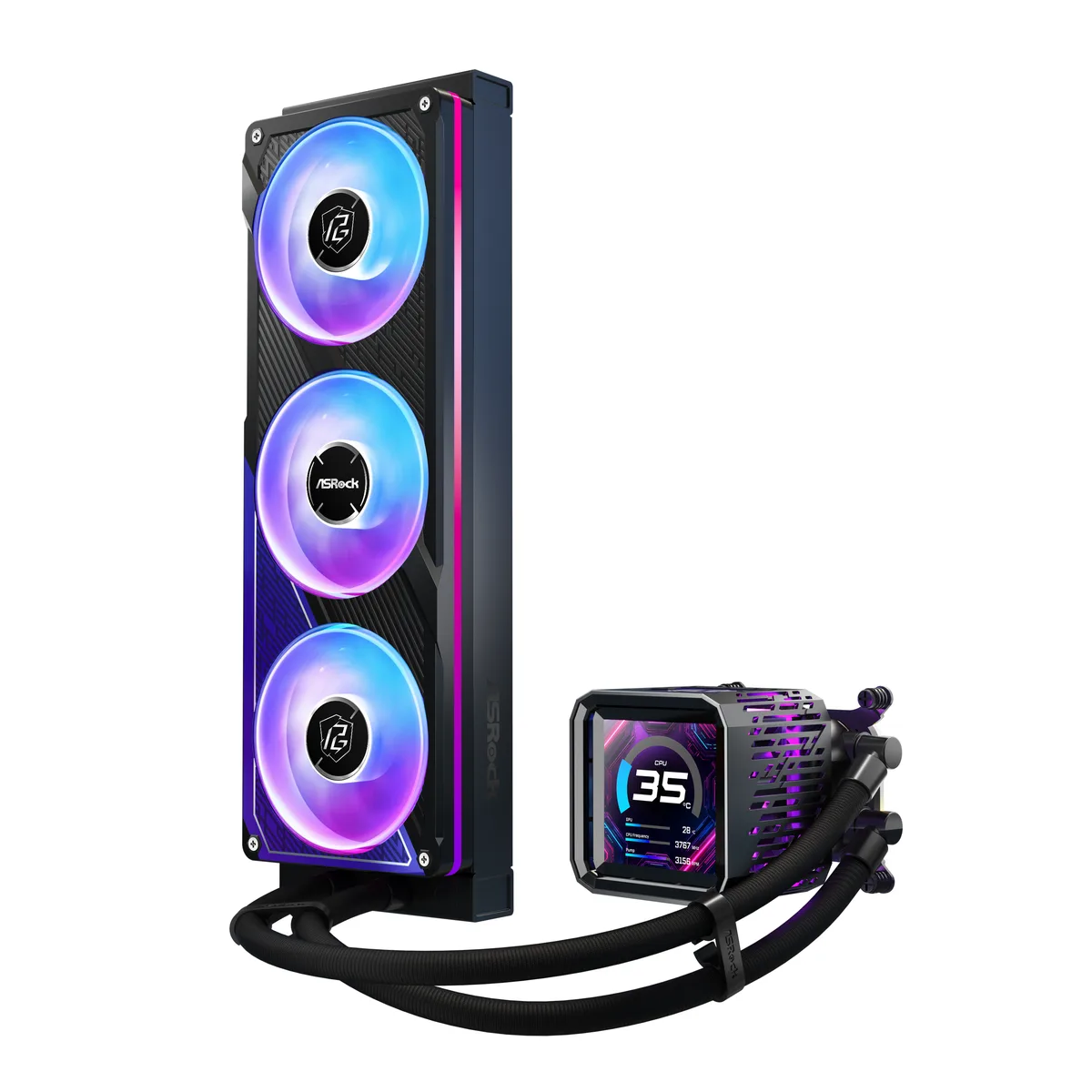

Black AIO liquid cooler with 360 mm radiator, 3.4 inch LCD pump block and three 120 mm ARGB fans

ASRock

ASRock Phantom Gaming 360 LCD liquid cooler

SKU CH-D8S2-NJ892 MPN Phantom Gaming 360 LCD

A 360 mm AIO liquid cooler with a 3.4" IPS LCD, three 120 mm ARGB fans and a copper cold plate for AMD AM4, AM5 and Intel LGA 1700, 1851 sockets

  • TypeAIO
  • Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1700 / Intel LGA
  • Block Compatibility - AMDAM5 /AM4
  • Block Compatibility - Intel1851 /1700
  • Block Dim.(L)100.4 x (W)86 x (H)107.6 mm
  • Block MaterialCopper

Option PHANTOM GAMING 360 LCD

  • 4" LCD shows live stats and custom animations
  • Three-phase pump runs 1200-3100 RPM for strong coolant flow
  • Dual-side inlets with 32mm radiator maximise heat dissipation
  • Three 120mm fluid-dynamic fans reach 2400 RPM at 31.4 dB(A)
  • Supports AMD AM4/AM5 and Intel LGA 1700/1851 sockets

360 mm LCD liquid cooler for mainstream sockets

The ASRock Phantom Gaming 360 LCD is an all-in-one liquid cooler with a 360 mm radiator and a 3.4 inch IPS LCD on the pump block. It fits AMD Socket AM4, AM5 and Intel LGA 1700, 1851 platforms. The copper cold plate and 32 mm thick aluminum radiator target builders who want integrated system monitoring and ARGB lighting in a single unit.

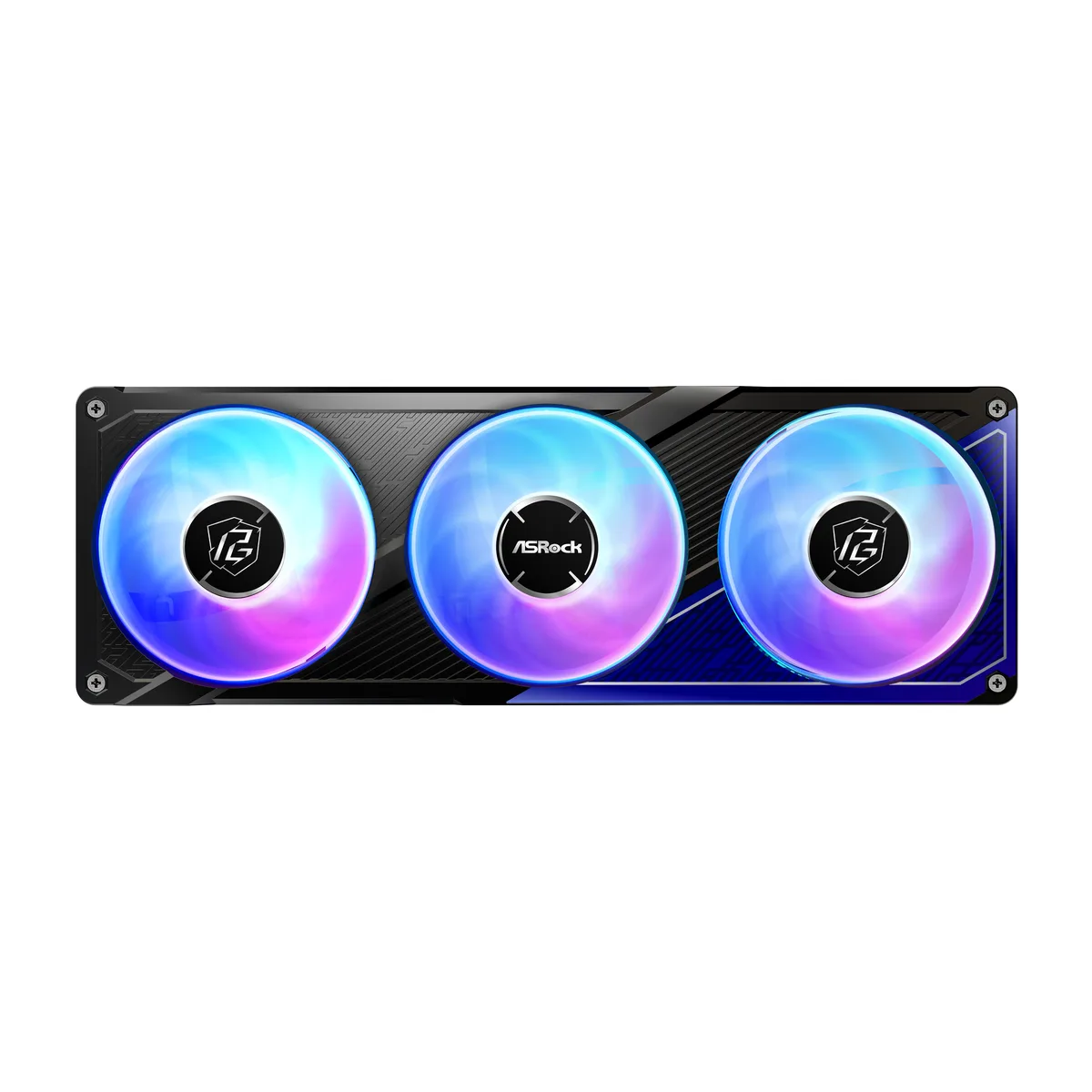

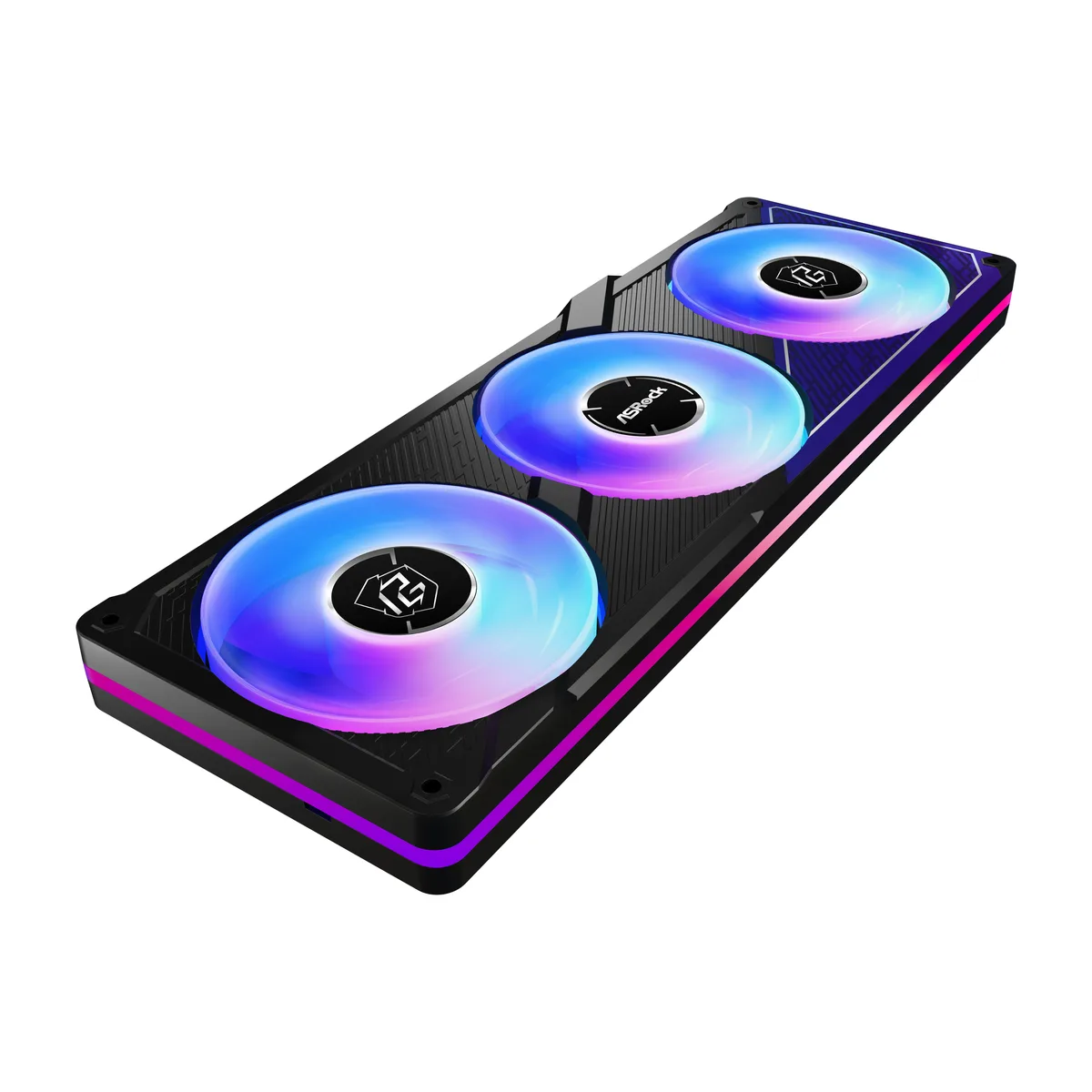

32 mm radiator and 2400 RPM fan ceiling

The 397 mm long radiator occupies three 120 mm fan slots and is 32 mm thick, limiting case compatibility to chassis that accept that width. Three unified-frame fans spin from 0 to 2400 RPM with a maximum airflow of 61.28 CFM and 31.4 dB(A) noise. The pump runs between 1200 and 3100 RPM, so thermal headroom is bounded by the fan speed limit and radiator thickness.

Socket AM4, AM5, LGA 1700 and 1851 support

The mounting kit covers exactly four socket types: AMD AM4, AMD AM5, Intel LGA 1700 and Intel LGA 1851. If the build uses any other socket — such as LGA 1700 predecessor platforms, TR4, sTRX4 or future Intel sockets — this cooler cannot be installed. Verify the motherboard socket against that list before purchase.

Highlights

  • 4" LCD shows live stats and custom animations
  • Three-phase pump runs 1200-3100 RPM for strong coolant flow
  • Dual-side inlets with 32mm radiator maximise heat dissipation
  • Three 120mm fluid-dynamic fans reach 2400 RPM at 31.4 dB(A)
  • Supports AMD AM4/AM5 and Intel LGA 1700/1851 sockets

Specifications

BrandASRock
ModelPhantom Gaming 360 LCD
Part Number90-APGA36-BAAGA5
TypeAIO
Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1700 / Intel LGA 1851
Block Compatibility - AMDAM5 /AM4
Block Compatibility - Intel1851 /1700
Block Dim.(L)100.4 x (W)86 x (H)107.6 mm
Block MaterialCopper
DisplayIPS LCD
Pump Speed1200 - 3100 ± 10% RPM
Radiator Size397 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Bearing TypeFluid Dynamic Bearing
Fan RPM0 - 2400 ± 10% RPM
Fan Air Flow(Max.) 61.28 CFM
Fan Noise(Max.) 31.4 dB(A)
Fan Connector4 Pin
ColorARGB
LED ColorARGB
Shipping weight2.65 kg
Package size414 × 230 × 140 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 360 mm radiator version or a smaller size?

This model only comes with a 360 mm radiator measuring 397 mm in length, so there is no smaller capacity to choose.

What does the 3100 RPM pump speed mean for my CPU temperatures?

The three-phase six-pole pump runs between 1200 and 3100 RPM, delivering stronger coolant flow through the 32 mm thick radiator for lower CPU temperatures under load.

Which motherboard sockets does the 4-pin fan connector and block support?

The copper cold plate fits AMD AM4, AM5 and Intel LGA 1700, 1851 sockets, while the 4-pin PWM fans connect to any standard motherboard fan header.
