ASRock
ASRock H310CM-HDV LGA 1151 Intel Motherboard
Micro ATX board for 8th and 9th Gen Intel Core CPUs with dual-channel DDR4 up to 2666 MHz, one PCIe 3.0 x16 slot, four SATA 6.0 Gb/s ports, 7.1-channel audio and gigabit LAN
- CPU Socket TypeLGA 1151 (300 Series)
- CPU TypeSupports 9th and 8th Gen Intel Core Processors (Socket 1151)
- Supported CPU TechnologiesTurbo Boost Technology 2.0
- ChipsetIntel H310
- Onboard Video ChipsetSupports Intel UHD Graphics Built-in Visuals: Intel Quick Sy
- Number of Memory Slots2x288pin (DDR4)
- Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
- Intel H310 chipset provides stable platform for everyday computing
- Dual-channel DDR4 memory up to 2666 MT/s with 32 GB maximum capacity
- PCIe 3.0 x16 slot accepts NVMe SSD as boot device
- Realtek ALC887 codec delivers 7.1-channel high-definition audio
Socket 1151 300 Series board

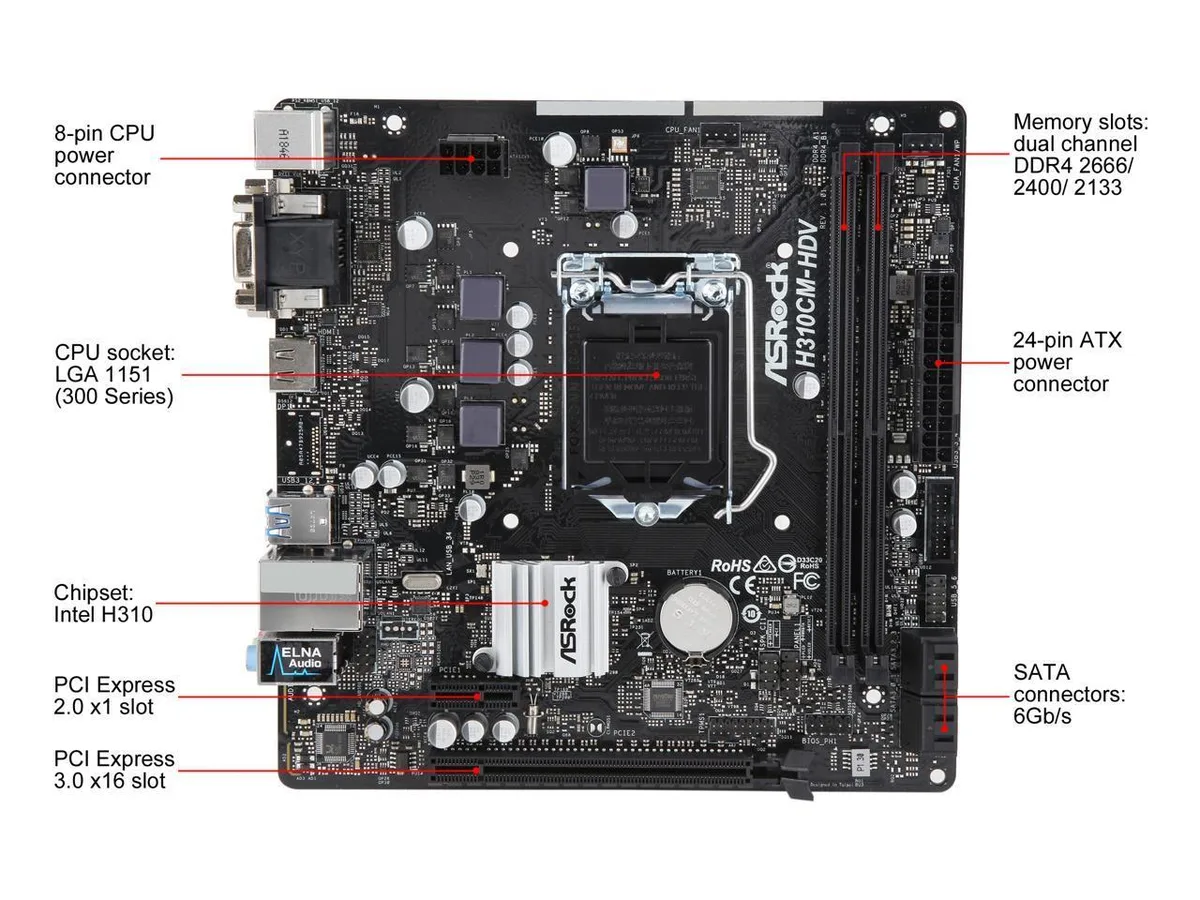

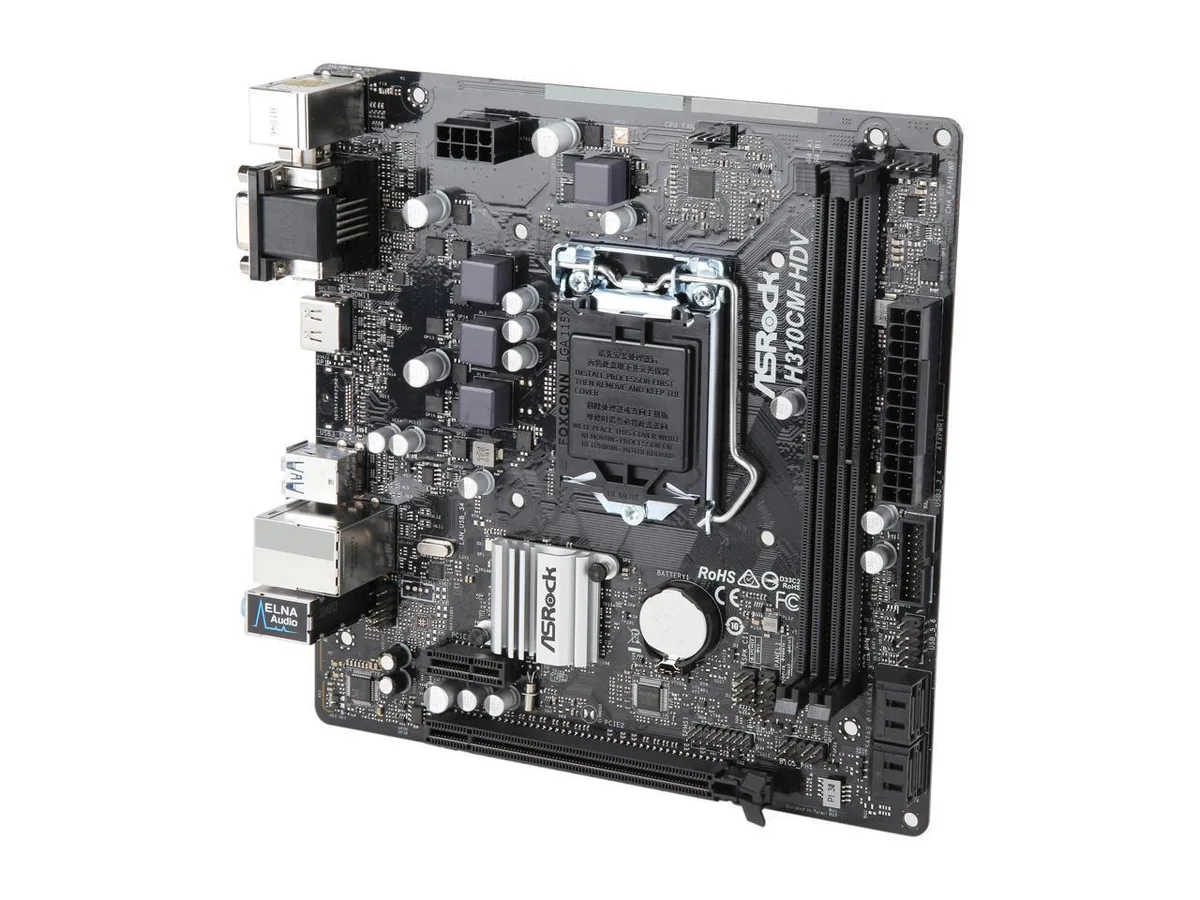

The ASRock H310CM-HDV is a micro ATX motherboard built on the Intel H310 chipset. It accepts 8th and 9th generation Intel Core processors in the LGA 1151 300 Series socket. Two 288 pin DDR4 slots support dual channel memory up to 32GB at 2666, 2400 or 2133 MT/s. A single PCI Express 3.0 x16 slot and one PCI Express 2.0 x1 slot handle expansion cards.
Upgrade from older LGA 1151 CPUs
This board is not backward compatible with older LGA 1151 processors, so it replaces platforms that used 6th or 7th generation chips. The jump is worth it when moving to 8th or 9th generation CPUs that support Turbo Boost Technology 2.0. Four SATA3 6.0Gb/s ports with NCQ, AHCI and hot plug connect storage drives, and the PCI Express 3.0 x16 slot supports NVMe SSD boot devices.
Sustained load behaviour

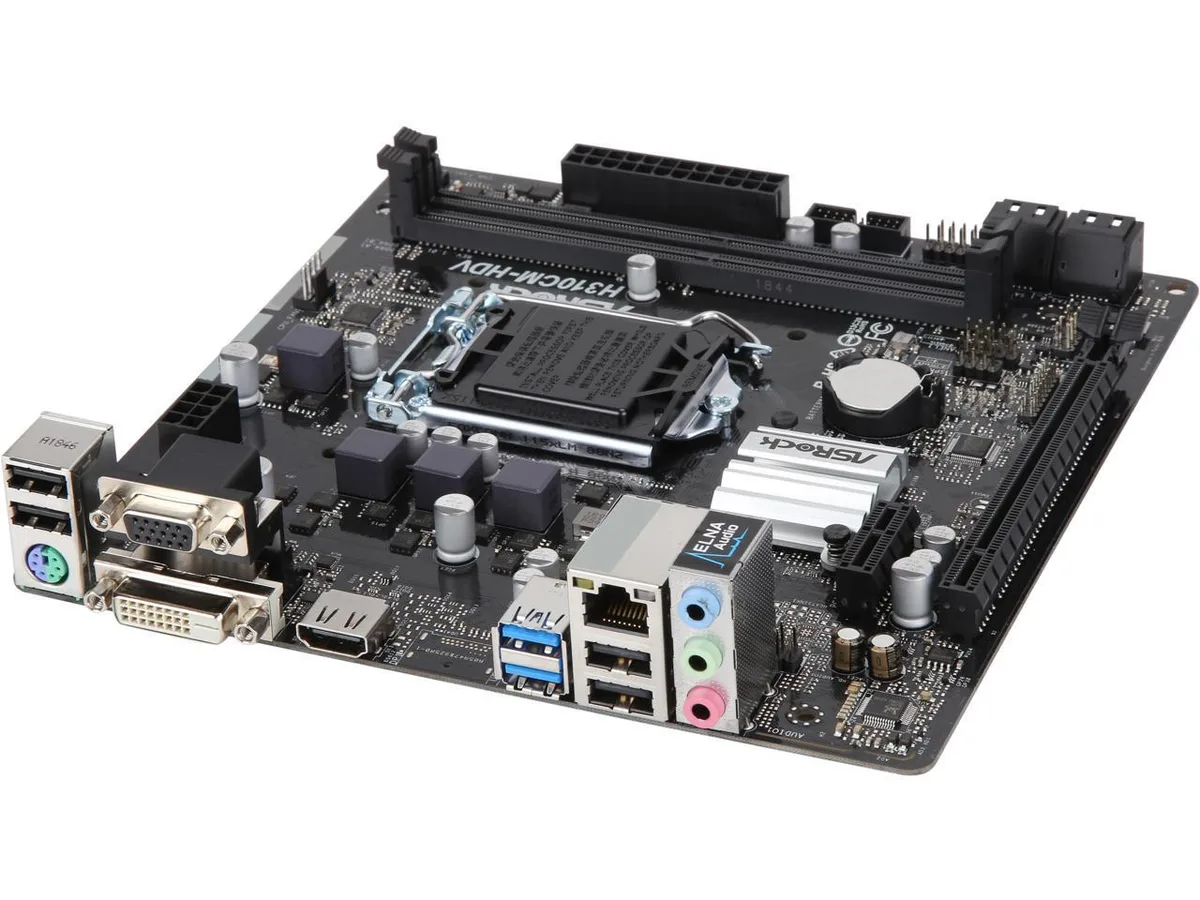

The Realtek RTL8111H LAN controller provides 1Gbps wired networking for steady data transfers. Realtek ALC887 audio delivers 7.1 channel output when paired with an HD front panel audio module and the appropriate driver. Video output is handled by the processor integrated graphics through a D-Sub port and a DVI-D port, supporting DirectX 12 and Intel Quick Sync Video for hardware accelerated encoding. A PS/2 keyboard and mouse port remains available for legacy input devices.
Highlights
- Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
- Intel H310 chipset provides stable platform for everyday computing
- Dual-channel DDR4 memory up to 2666 MT/s with 32 GB maximum capacity
- PCIe 3.0 x16 slot accepts NVMe SSD as boot device
- Realtek ALC887 codec delivers 7.1-channel high-definition audio
Specifications
| Brand | ASRock |
|---|---|
| Model | H310CM-HDV |
| CPU Socket Type | LGA 1151 (300 Series) |
| CPU Type | Supports 9th and 8th Gen Intel Core Processors (Socket 1151) * Not backward compatible with older generation of LGA 1151 CPUs |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel H310 |
| Onboard Video Chipset | Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics DirectX 12 HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only) Three graphics output options: D-Sub, DVI-D and HDMI** Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096 x 2160) @ 30 Hz Supports DVI-D with max. resolution up to 1920 x 1200 @ 60 Hz Supports D-Sub with max. resolution up to 192 |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | DDR4 2666/ 2400/ 2133 |
| Maximum Memory Supported | 32GB * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* * Supports NVMe SSD as boot disks |
| PCI Express x1 | 1 x PCI Express 2.0 x1 Slot |
| Serial ATA (SATA) | 4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 7.1 Channels * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN Chipset | Realtek RTL8111H |
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub Port 1 x DVI-D Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 3.1 | 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
| USB 1.1/2.0 | 4 x USB 2.0 Ports (Supports ESD Protection) |
| Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
| Other Connectors | 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Windows 11 | Supported |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 7.5" x 7.4" |
| Power Pin | 1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector |
| Features | Unique Feature: ASRock Super Alloy - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS: - 128MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - DRAM, PCH 1.05V Voltage Multi-adjustment Software and UEFI: Software - ASRock A-Tuning - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash * These utilities can be downloaded from ASRock Live Update & |
| Package Contents | Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
Questions about this item
What case and mounting holes does the H310CM-HDV require?
The board uses the Micro ATX form factor with standard mounting holes that align to any Micro ATX or ATX case standoffs.
How is the CPU installed in the LGA 1151 socket, and what step is often missed?
Lift the socket lever, align the processor notches with the socket keys, place the CPU gently without force, lower the lever fully until it clicks, then apply thermal paste and mount the cooler before powering on.
When will the DDR4 memory slots need attention or replacement?
The two 288-pin DDR4 slots are rated for the life of the board; no scheduled replacement is needed unless a slot is physically damaged or a module fails testing.
