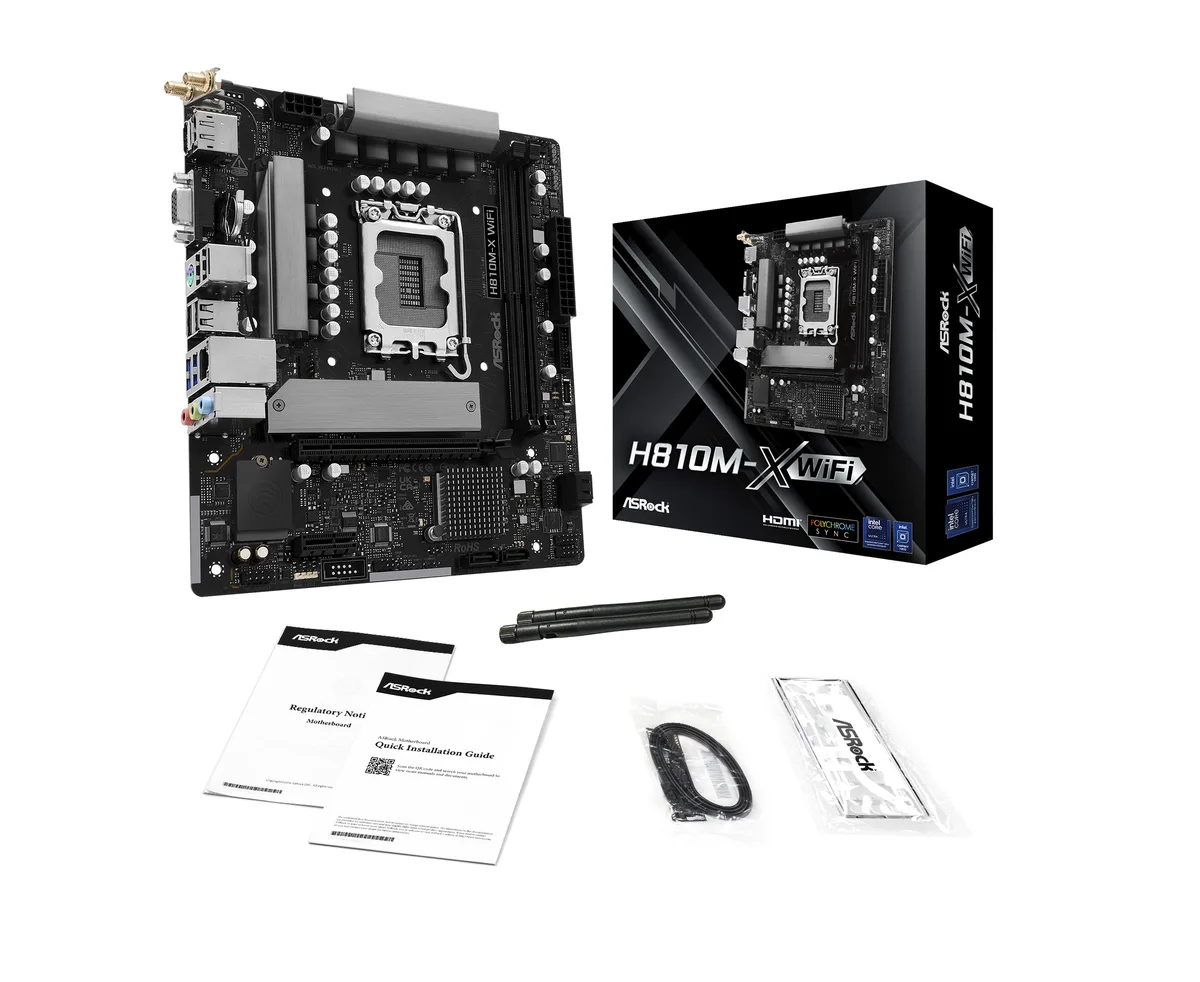

Micro ATX motherboard, black PCB, aluminium heatsink, LGA 1851 socket, DDR5 slots, HDMI DisplayPort D-Sub, 2.5G LAN

ASRock

ASRock H810M-X WIFI Intel motherboard

SKU CH-JD53-SNZP6 MPN H810M-X WIFI

Micro-ATX board with LGA 1851 socket for Intel Core Ultra Series 2 processors, dual-channel DDR5 up to 6400, 2.5 GbE LAN, Wi-Fi, and a Gen4 M.2 slot

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel H810
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardUp to DDR5 6400
  • Maximum Memory Supported128GB
  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • Dual-channel DDR5 memory up to 6400 with two 288-pin slots and 128 GB maximum
  • Hyper M.2 socket for PCIe 4.0 x4 NVMe SSDs in 2280 form factor
  • 5 Gbps LAN and Realtek ALC897 7.1-channel audio for fast networking and clear sound
  • 6+1+1+1+1 power phase design with aluminum heatsink for stable delivery and cooling

LGA 1851 micro-ATX motherboard

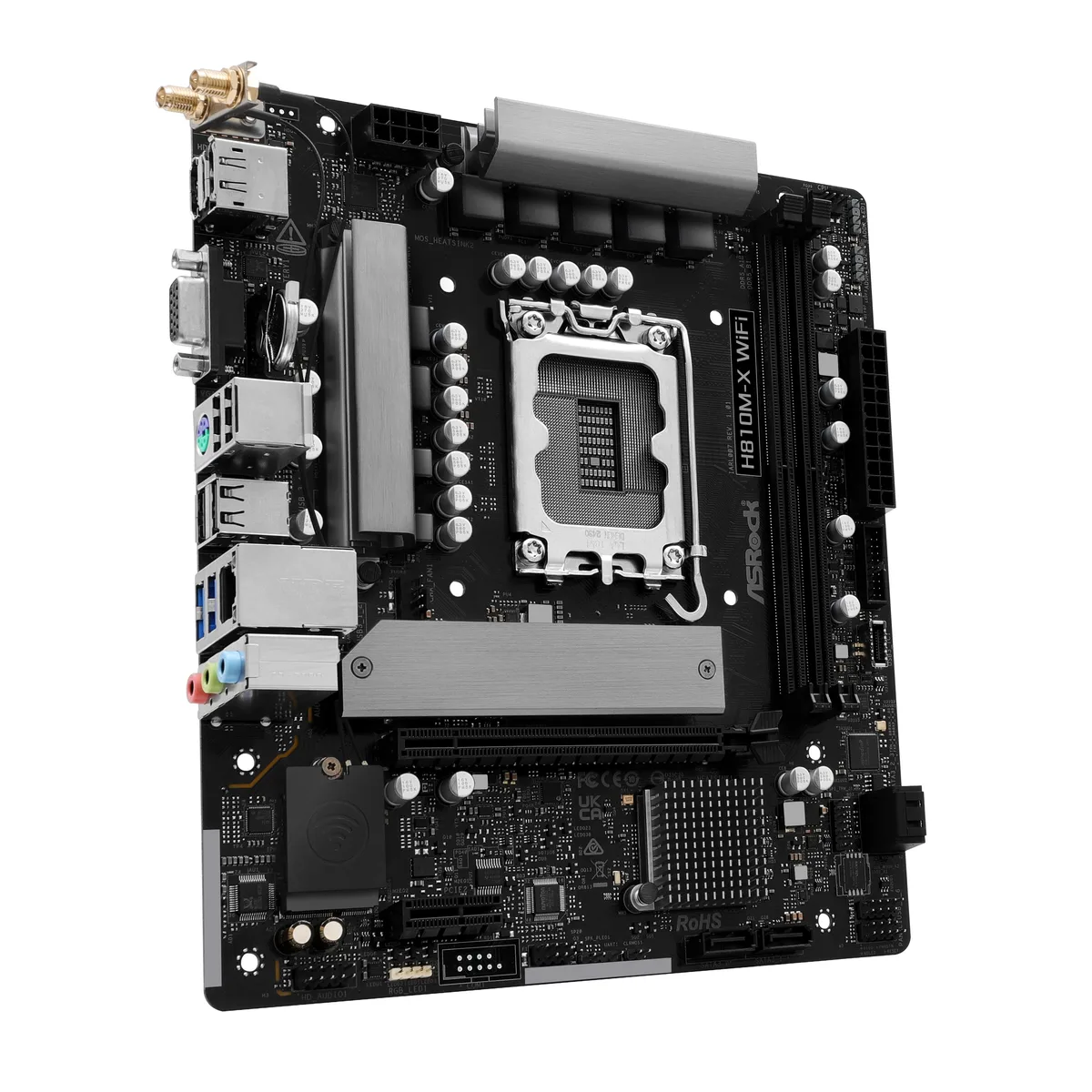

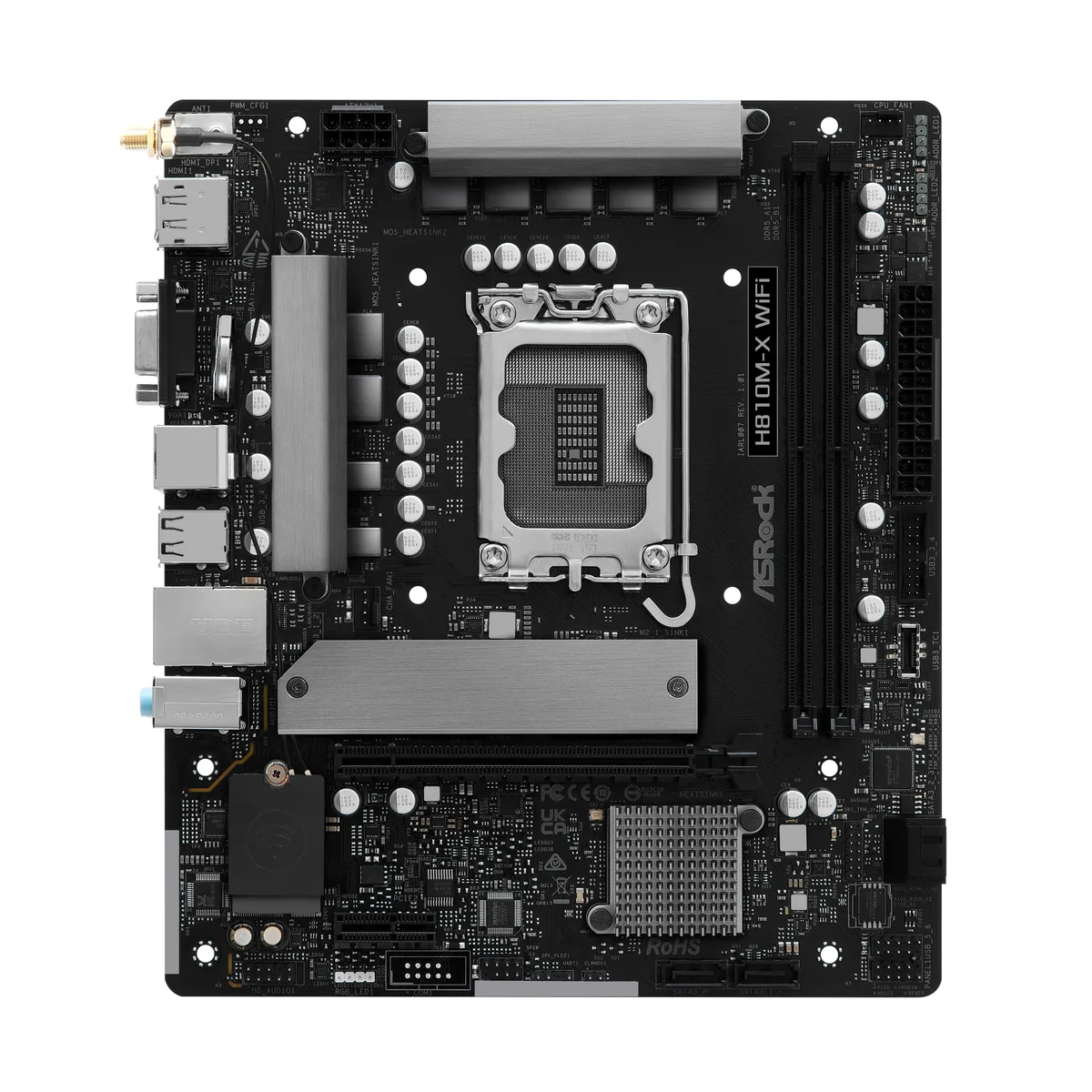

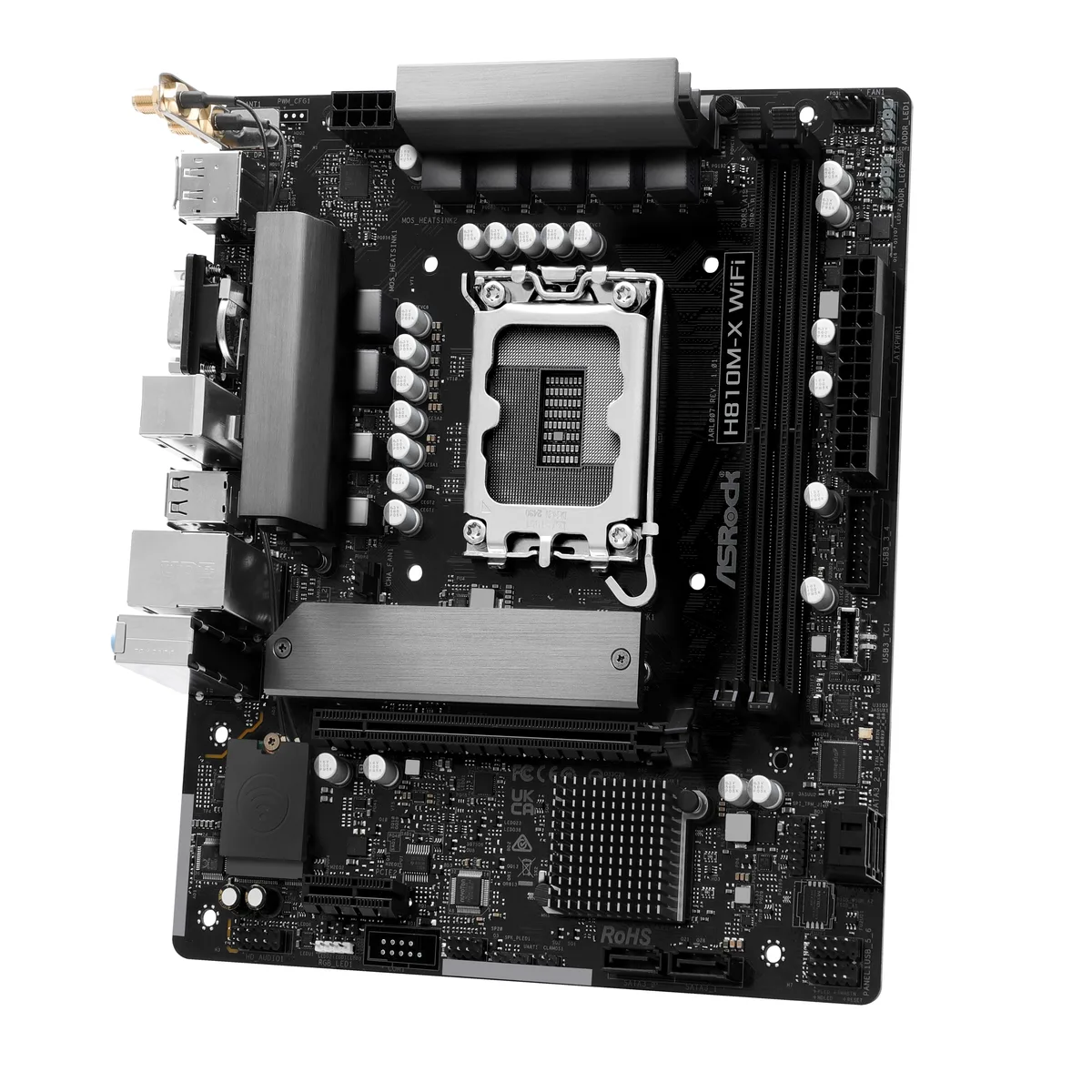

The ASRock H810M-X WIFI is a micro-ATX board built for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It uses the Intel H810 chipset and provides two DDR5 DIMM slots supporting up to 128 GB of memory. Integrated 2.5 Gbps LAN and Wi-Fi connectivity handle networking needs.

Ideal for compact workstations

This board suits users assembling a small-form-factor PC for office work, home productivity or a budget gaming rig that relies on integrated graphics. It offers one PCIe 4.0 x16 slot and a single PCIe 4.0 x1 slot, so multi-GPU setups or large add-in card arrays are not possible. Builders needing more expansion lanes or overclocking headroom should consider a different chipset.

DDR5 6400 dual-channel memory limit

The two 288-pin slots run in dual-channel mode with a maximum rated speed of DDR5 6400 via Intel XMP 3.0 profiles. Non-ECC unbuffered modules are required. This memory ceiling determines the practical performance ceiling for the platform.

Highlights

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • Dual-channel DDR5 memory up to 6400 with two 288-pin slots and 128 GB maximum
  • Hyper M.2 socket for PCIe 4.0 x4 NVMe SSDs in 2280 form factor
  • 5 Gbps LAN and Realtek ALC897 7.1-channel audio for fast networking and clear sound
  • 6+1+1+1+1 power phase design with aluminum heatsink for stable delivery and cooling

Specifications

BrandASRock
ModelH810M-X WIFI
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel H810
Number of Memory Slots2x288pin (DDR5)
Memory StandardUp to DDR5 6400
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express x11 x PCIe 4.0 x1 Slot (PCIE2)*
* Supports NVMe SSD as boot disks
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
* Supports NVMe SSD as boot disks
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ac
BluetoothBluetooth 5.0

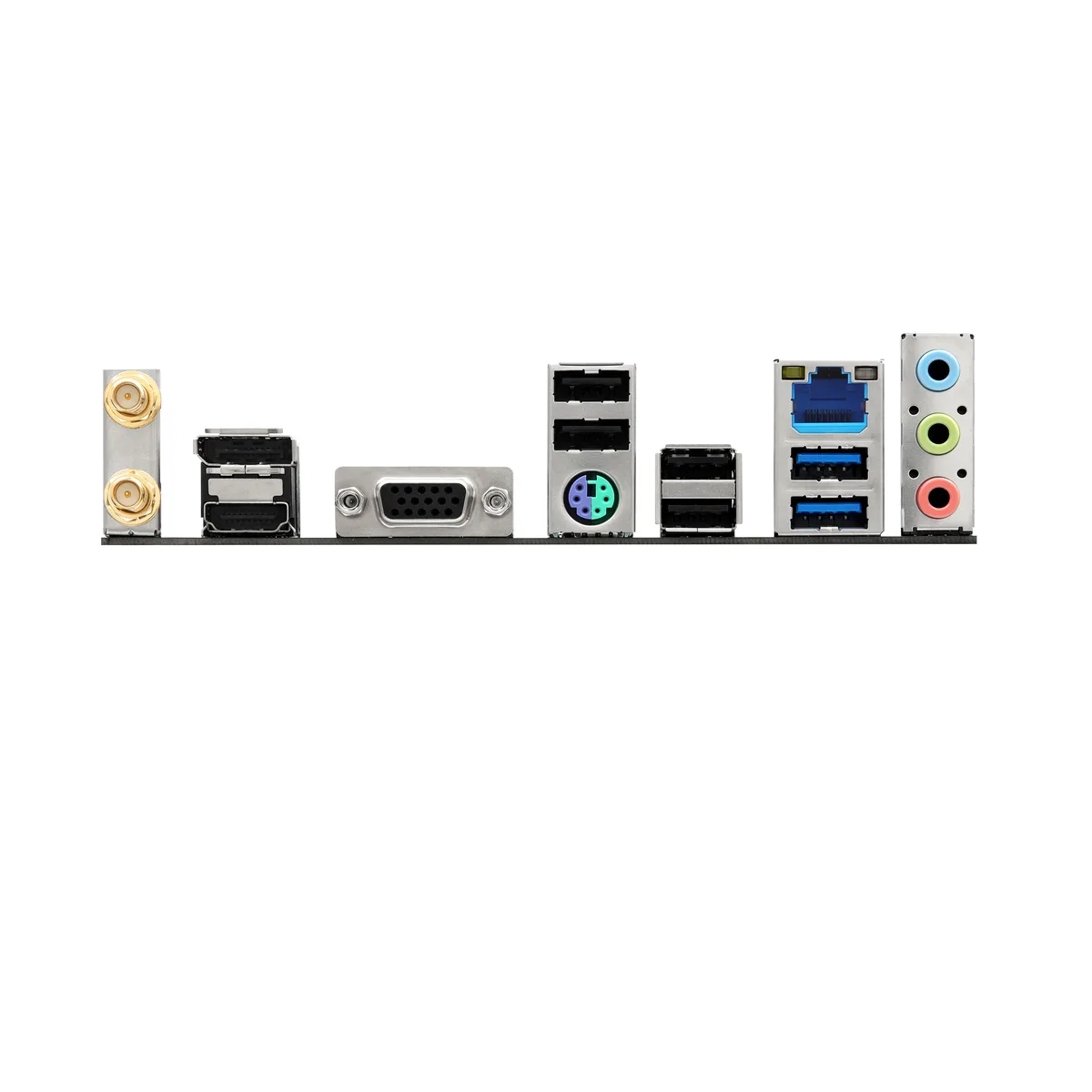

Back I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Other Connectors1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)****
1 x Front Panel Audio Connector
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CHA_FAN1 supports the fan power up to 3A (36W).
**** CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.
BIOS Feature256Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Form FactorMicro ATX
Dimensions (W x L)8.6" x 7.6"
Power Pin1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
FeaturesSuperb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 6+1+1+1+1 Power Phase
- ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
Ultrafast Connectivity
- 2.5G LAN
EZ Update
- ASRock Auto Driver Installer
Shipping weight0.91 kg
Package size274 × 244 × 61 mm

Questions about this item

Will my existing DDR5-6400 memory kits run at their rated speed on the H810M-X WIFI?

The board supports dual-channel DDR5 up to 6400 and Intel XMP 3.0 profiles, so compatible kits will operate at their advertised frequency when XMP is enabled in BIOS.

How can I confirm the 2.5 Gbps LAN is actually negotiating at full speed after I build the system?

Open the network adapter properties in Windows or run ethtool in Linux; the link speed should read 2.5 Gbps when connected to a 2.5 Gbps switch or router port.

Does the box include Wi-Fi antennas and SATA cables, or do I need to buy them separately?

The package supplies the I/O shield, Wi-Fi antenna, and two SATA 6 Gb/s cables; no extra cables or antennas are required for basic operation.
