Green Micro ATX motherboard with silver heatsinks and black slots

ASRock

ASRock H97M Pro4 Intel motherboard

SKU CH-F66N-C1CFG

Micro-ATX board for LGA 1150 CPUs with four DDR3 slots up to 32 GB, one PCIe 3.0 x16 and one PCIe 2.0 x4 slot, six SATA 6.0 Gb/s ports with RAID, Intel I218V gigabit LAN, Realtek ALC892 7.1 audio.

  • CPU Socket TypeLGA 1150
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel H97
  • Onboard Video Chipset- Supports Intel HD Graphics Built-in Visuals: Intel Quick S
  • Number of Memory Slots4x240pin
  • Memory StandardDDR3/DDR3L 1600/ 1333/ 1066
  • Supports 4th and 5th Gen Intel Core processors via LGA 1150 socket
  • Up to 32 GB DDR3 or DDR3L memory across four slots at 1600, 1333 or 1066 MHz
  • One PCIe 3.0 x16 slot plus one PCIe 2.0 x16 slot at x4 mode for graphics and add-in cards
  • Six SATA 6.0 Gb/s ports with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology
  • Realtek ALC892 7.1-channel audio and Intel I218V Gigabit LAN for media and networking

Socket and chipset

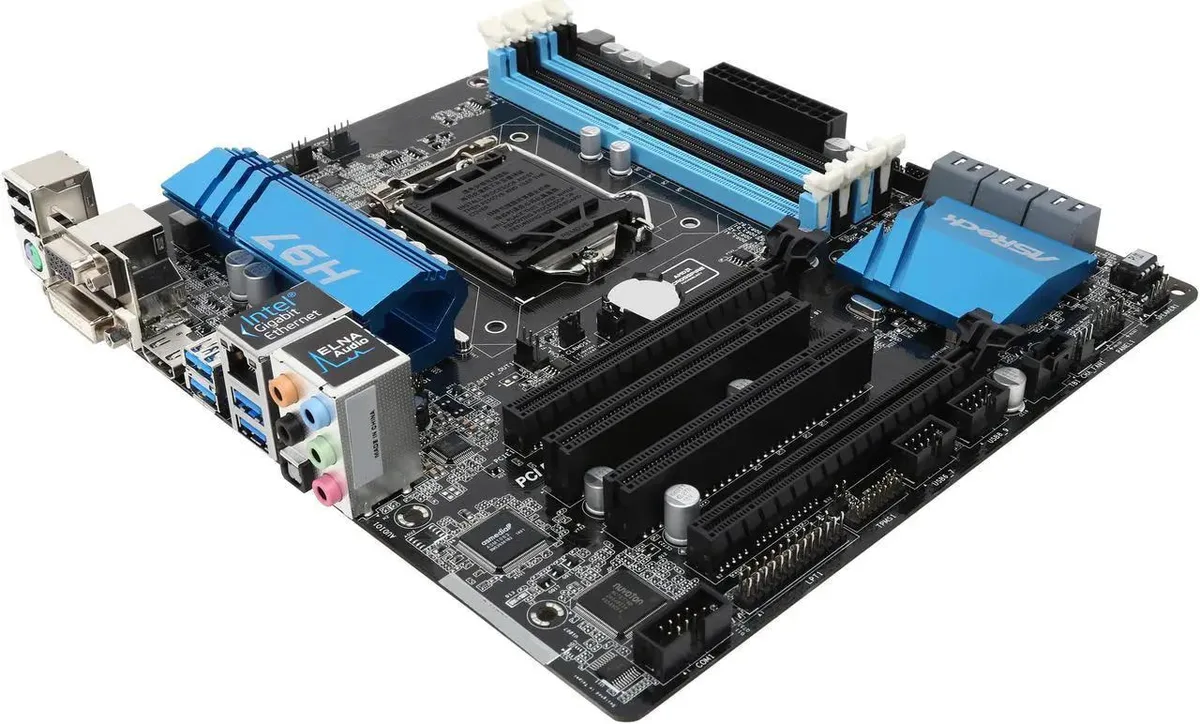

The ASRock H97M Pro4 is a Micro ATX motherboard built around the Intel H97 chipset and LGA 1150 socket. It accepts 4th and 5th Generation Intel Core i3, i5 and i7 processors as well as Celeron and Pentium models. Turbo Boost Technology 2.0 is supported on compatible CPUs.

Memory and storage headroom

Four 240-pin slots take DDR3 or DDR3L modules at 1600, 1333 or 1066 MT/s in dual-channel mode up to 32 GB total. Six SATA3 6.0 Gb/s ports provide RAID 0, 1, 5 and 10 support through Intel Rapid Storage Technology 13 and Intel Smart Response Technology. A single PCI Express 3.0 x16 slot runs at x16; a second x16 slot operates at x4 mode, and two legacy PCI slots remain available.

Integrated I/O and bundled updates

Onboard video uses the processor's Intel HD Graphics 4400 or 4600 with Quick Sync Video, InTru 3D and Clear Video HD. Audio is handled by the Realtek ALC892 codec delivering 7.1 channels. Networking comes from the Intel I218V controller at 1 Gbps. A PS/2 combo port is included. The BIOS will be upgraded to the latest version before dispatch.

Highlights

  • Supports 4th and 5th Gen Intel Core processors via LGA 1150 socket
  • Up to 32 GB DDR3 or DDR3L memory across four slots at 1600, 1333 or 1066 MHz
  • One PCIe 3.0 x16 slot plus one PCIe 2.0 x16 slot at x4 mode for graphics and add-in cards
  • Six SATA 6.0 Gb/s ports with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology
  • Realtek ALC892 7.1-channel audio and Intel I218V Gigabit LAN for media and networking

Specifications

BrandASRock
ModelH97M Pro4
CPU Socket TypeLGA 1150
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel H97
Onboard Video Chipset- Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 4400/4600
- Pixel Shader 5.0, DirectX 11.1
- Max. shared memory 1792MB
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 1920x1200 @ 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
Number of Memory Slots4x240pin
Memory StandardDDR3/DDR3L 1600/ 1333/ 1066
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
PCI Express 2.0 x161 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode)
PCI Slots2 x PCI Slots
Serial ATA (SATA)6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 13 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC892
Audio Channels7.1 Channels
LAN ChipsetIntel I218V
Max LAN Speed1Gbps

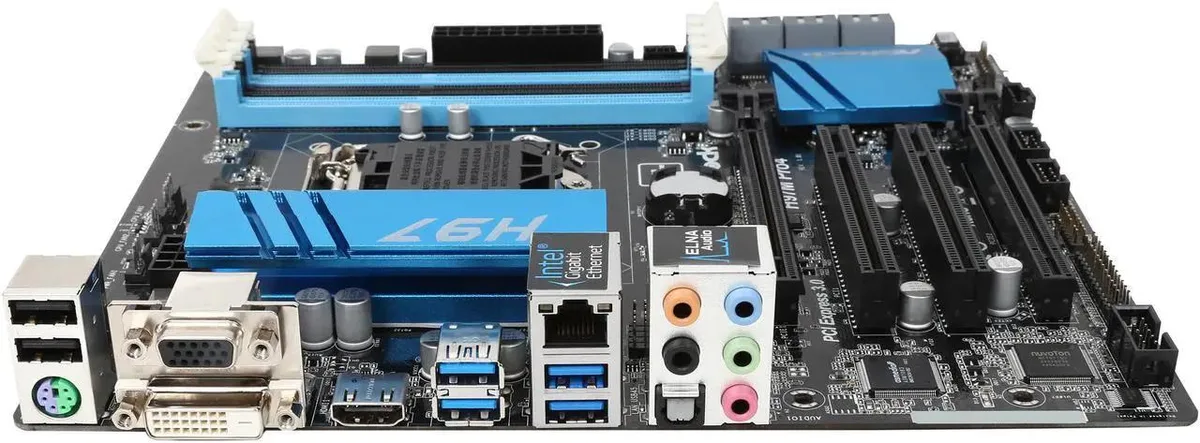

PS/21 x PS/2 keyboard/mouse port
Video Ports1 x D-Sub
1 x DVI-D
HDMI1 x HDMI
RJ451 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.04 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
USB 1.1/2.02 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
S/PDIF Out1 x Optical
Audio PortsHD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Other Connectors1 x Print Port Header
1 x COM Port Header
1 x Chassis Intrusion Header
1 x TPM Header
2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
1 x Power Fan Connector (3-pin)
1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector*
*Please update to the latest BIOS to support Thunderbolt technology.
Form FactorMicro ATX
Power Pin24 Pin
FeaturesUnique Feature
ASRock Super Alloy
- Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- NexFET MOSFET
- Sapphire Black PCB
ASRock Full Spike Protection
ASRock Cloud
ASRock APP Shop
BIOS
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 1.1 Compliant wake up events
- SMBIOS 2.3.1 support
- CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjustment
Software and BIOS
Software
- ASRock A-Tuning
- ASRock Disk Health Report
- ASRock USB Key
- ASRock System Browser
- ASRock APP Charger
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Restart to UEFI
UEFI
-
Package ContentsAccessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables

Questions about this item

Will my existing LGA 1150 DDR3 memory modules work in the four 240-pin slots on this H97M Pro4?

Yes, the board accepts DDR3 and DDR3L modules at 1600, 1333 or 1066 speeds across four 240-pin slots, up to 32 GB total in dual-channel mode.

Which on-screen indicators confirm the Intel I218V LAN and Realtek ALC892 audio are active after first boot?

Device Manager should list an Intel I218V Gigabit Ethernet adapter and a Realtek High Definition Audio device with 7.1-channel support, both without warning icons.

What cables and accessories ship with the H97M Pro4, and what must I source separately for a minimal build?

The box contains the motherboard, an I/O shield, SATA cables and a driver disc; you will need to supply an LGA 1150 CPU, DDR3/DDR3L memory, a power supply with 24-pin and 4-pin connectors, storage drives and a case.
