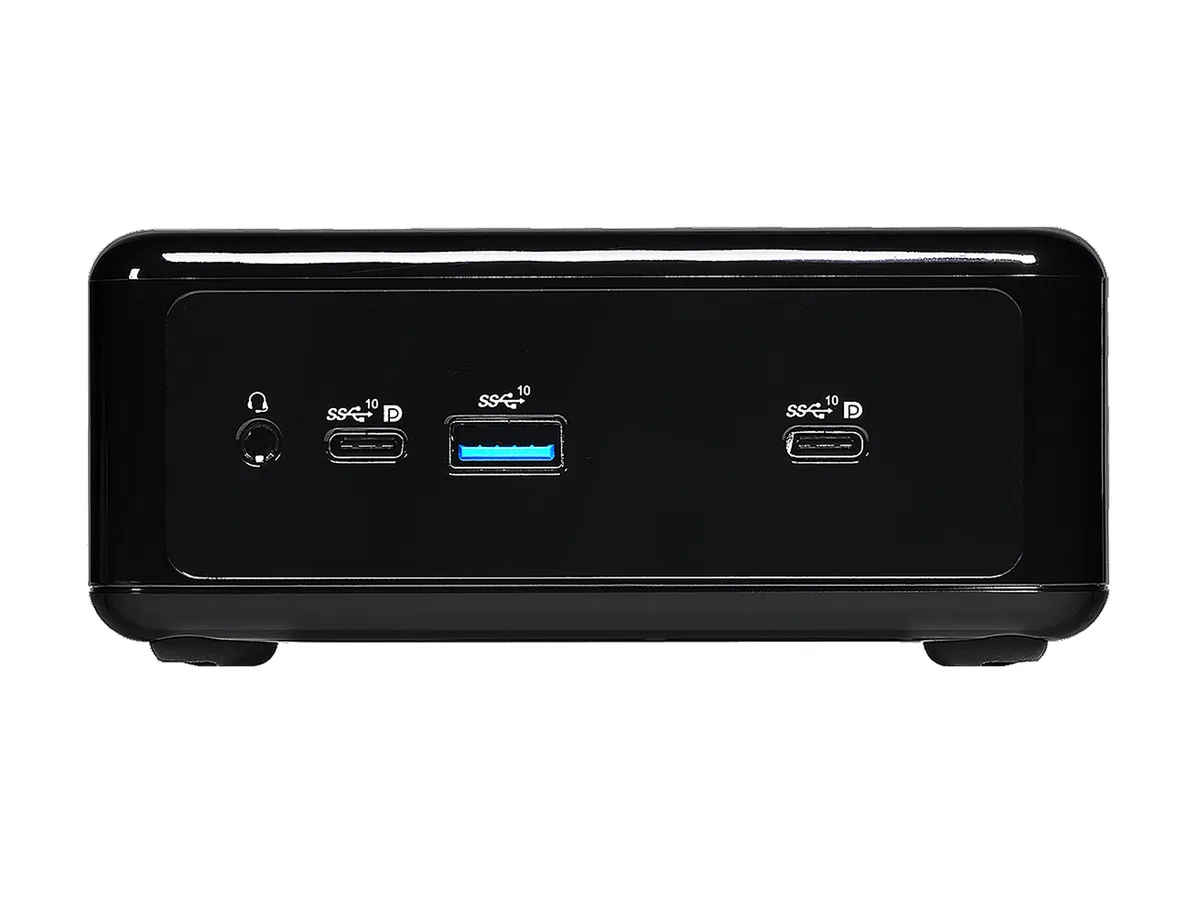

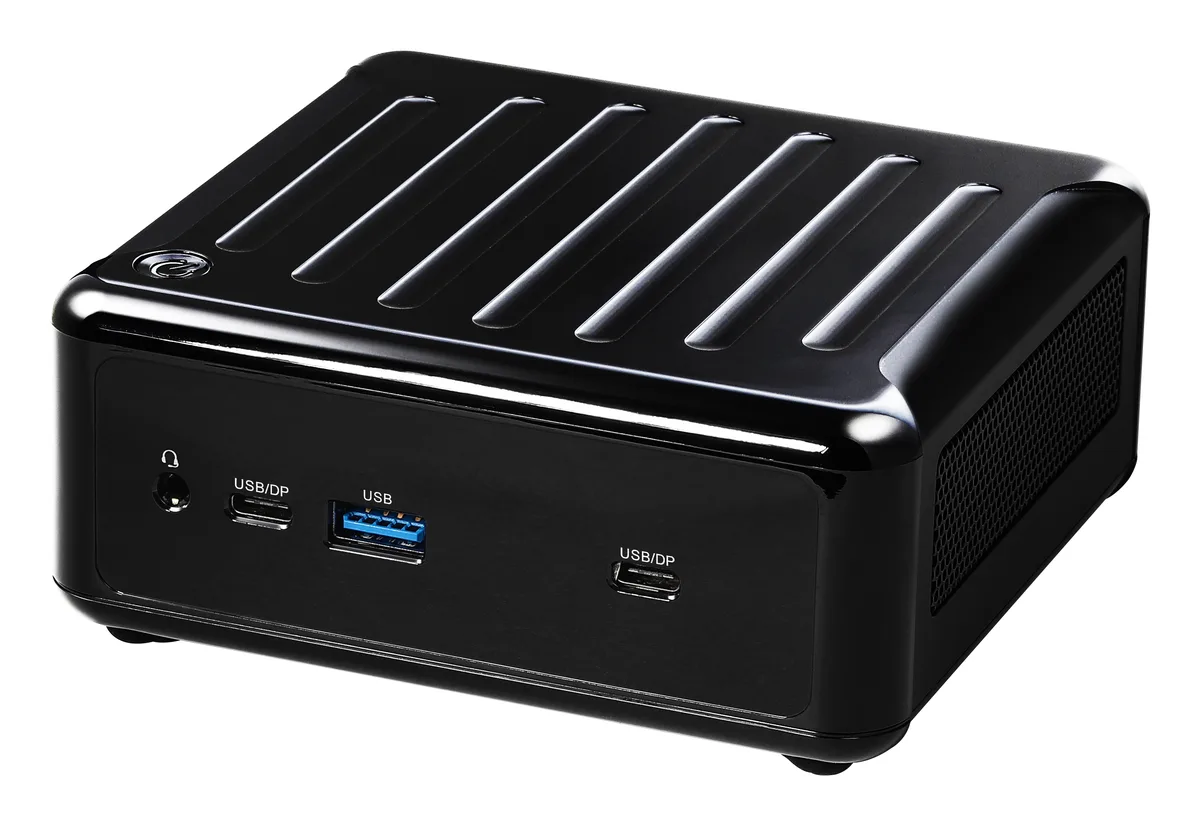

Small black square mini PC with front USB-C ports

ASRock Industrial

ASRock Industrial NUC BOX-1165G7 barebone mini PC i7-1165G7 4.7 GHz DDR4 64 GB

SKU CH-QJZP-S6TT3 MPN NUC BOX-1165G7

Fanned barebone mini PC with an Intel Core i7-1165G7 up to 4.7 GHz, dual DDR4 3200 SO-DIMM slots for up to 64 GB, M.2 Key M for SSD, dual Intel LAN up to 2.5 Gbps, Wi-Fi 6, Bluetooth 5.2.

  • ColorBlack
  • CPU TypeIntel Core i7-1165G7, QC, Max Speed up to 4.7 GHz
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported64GB

Options NUC Box-1165G7

  • Quad-core i7-1165G7 reaches 4.7 GHz for responsive compute
  • Dual SO-DIMM slots accept DDR4 3200 up to 64 GB
  • M.2 Key M supports 2242 2260 2280 SSDs with PCIe x4 and SATA 6.0 Gbps
  • Dual Intel LAN delivers 2.5 Gbps and 1 Gbps wired throughput
  • Wi-Fi 6 AX200 and Bluetooth 5.2 provide modern wireless connectivity

Compact barebone with Core i7-1165G7

The ASRock Industrial NUC BOX-1165G7 is a fanned mini PC barebone built around an Intel Core i7-1165G7 quad-core processor reaching 4.7 GHz. It targets system integrators and advanced users who want a small-footprint platform for embedded, signage or light workstation tasks and prefer to supply their own DDR4 memory and storage.

Installing memory and storage

Two 260-pin SO-DIMM slots accept DDR4 3200 modules up to 64 GB in dual-channel mode. A Key M M.2 slot takes 2242, 2260 or 2280 SSDs via PCIe x4 or SATA 6.0 Gb/s, while a Key E 2230 slot is reserved for the included Wi-Fi 6 AX200 module; a single SATA 6.0 Gb/s port supports one 2.5-inch drive. The 2280 M.2 form factor requires the supplied mounting bracket, and no memory or drives ship with the unit.

Interface and expansion limits

Front I/O provides one USB 3.2 Gen 2 Type-A port and two USB 3.2 Gen 2 Type-C ports that also carry DisplayPort 1.4 video; USB4 compliance is still pending certification. Dual Intel LAN delivers 2.5 Gbps and 1 Gbps wired throughput, while wireless uses Wi-Fi 6 and Bluetooth 5.2. Builders needing more than two display outputs, additional high-speed USB lanes or PCIe add-in cards must look elsewhere.

Highlights

  • Quad-core i7-1165G7 reaches 4.7 GHz for responsive compute
  • Dual SO-DIMM slots accept DDR4 3200 up to 64 GB
  • M.2 Key M supports 2242 2260 2280 SSDs with PCIe x4 and SATA 6.0 Gbps
  • Dual Intel LAN delivers 2.5 Gbps and 1 Gbps wired throughput
  • Wi-Fi 6 AX200 and Bluetooth 5.2 provide modern wireless connectivity

Specifications

BrandASRock Industrial
ModelNUC BOX-1165G7
ColorBlack
CPU TypeIntel Core i7-1165G7, QC, Max Speed up to 4.7 GHz
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Other1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless
Storage InstalledNo Hard Drive
Serial ATA1 x SATA 6.0Gb/s
M.2 Slot1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
* M.2 Key M 2280 (Supported by bracket)
Integrated GraphicsIntel Iris Xe Graphics
Onboard AudioRealtek ALC233
LANLAN1: Intel I219V with 10/100/1000 Mbps
LAN2: Intel I225LM with 10/100/1000/2500 Mbps
Max LAN Speed2.5Gbps + 1Gbps
Wireless LAN1 x Intel Wi-Fi 6 AX200 module
BluetoothBluetooth 5.2

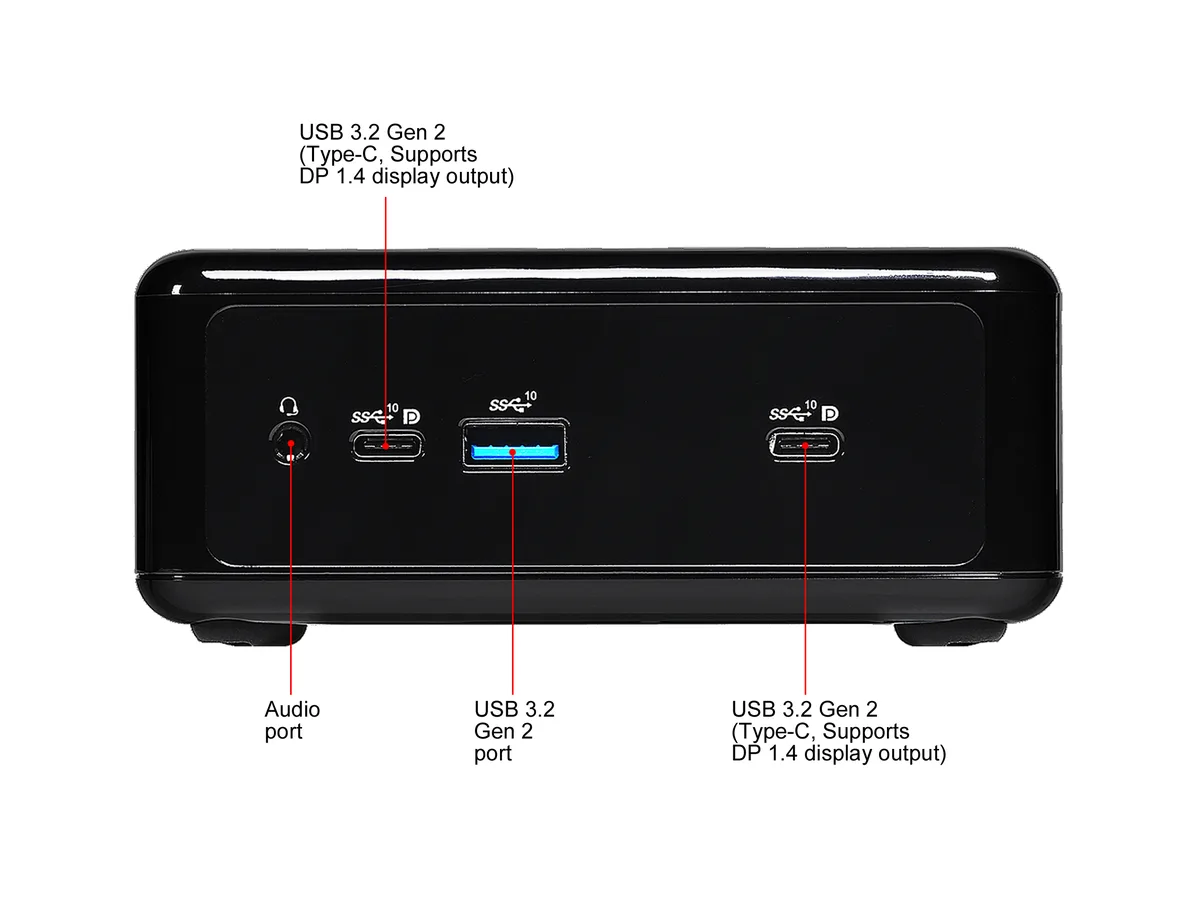

Front USB1 x USB 3.2 Gen2 (Type A)
2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4 display output)
* USB4 Compliance Test is pending for certification
Front Audio Ports1 (headphone & microphone jack)

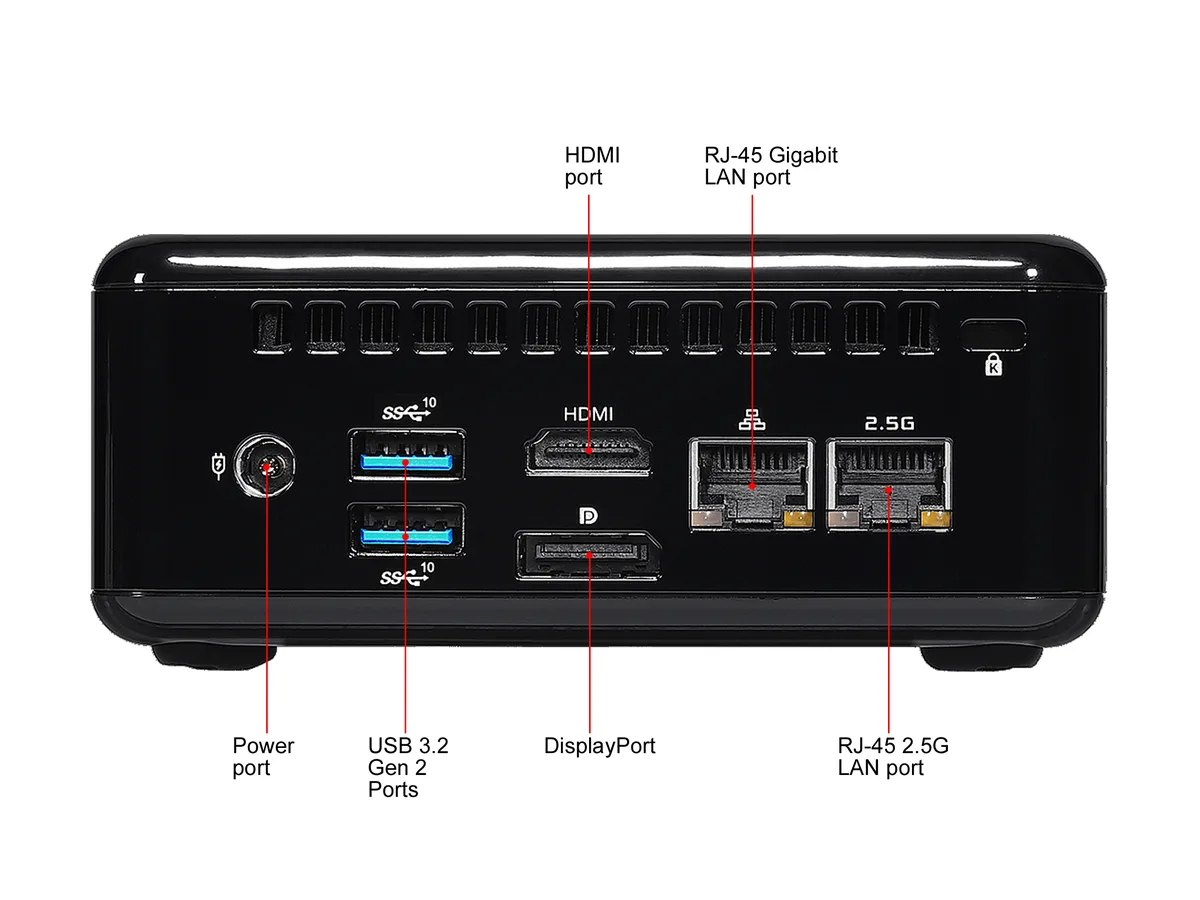

HDMI1 x HDMI 2.0a
Max resolution up to 4096x2160@60Hz
DisplayPort1 x DisplayPort 1.4, DP++
Max resolution up to 4096x2160@60Hz

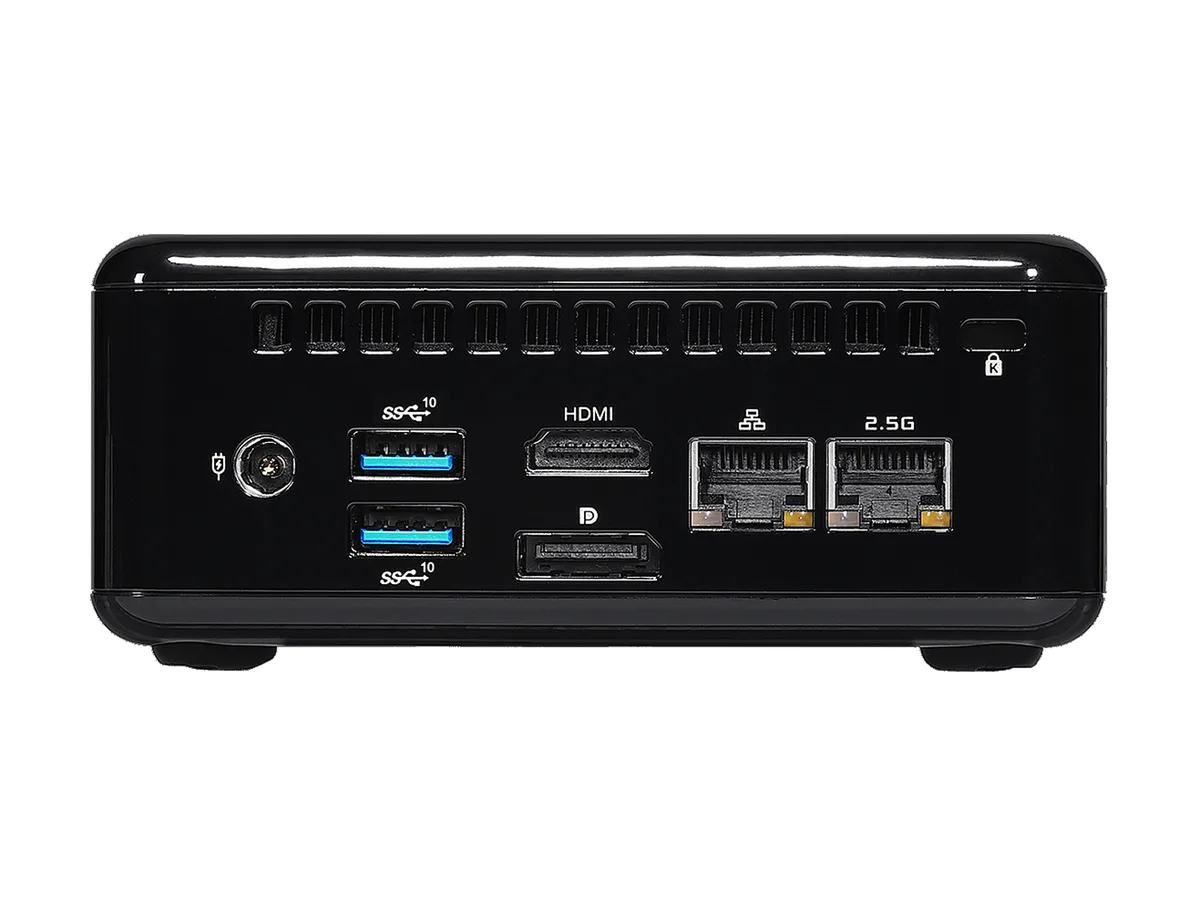

Rear USB2 x USB 3.2 Gen2 (Type-A)
RJ451 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
Other Rear Ports1 x DC Jack
Power Supply19V/90W Power Adapter

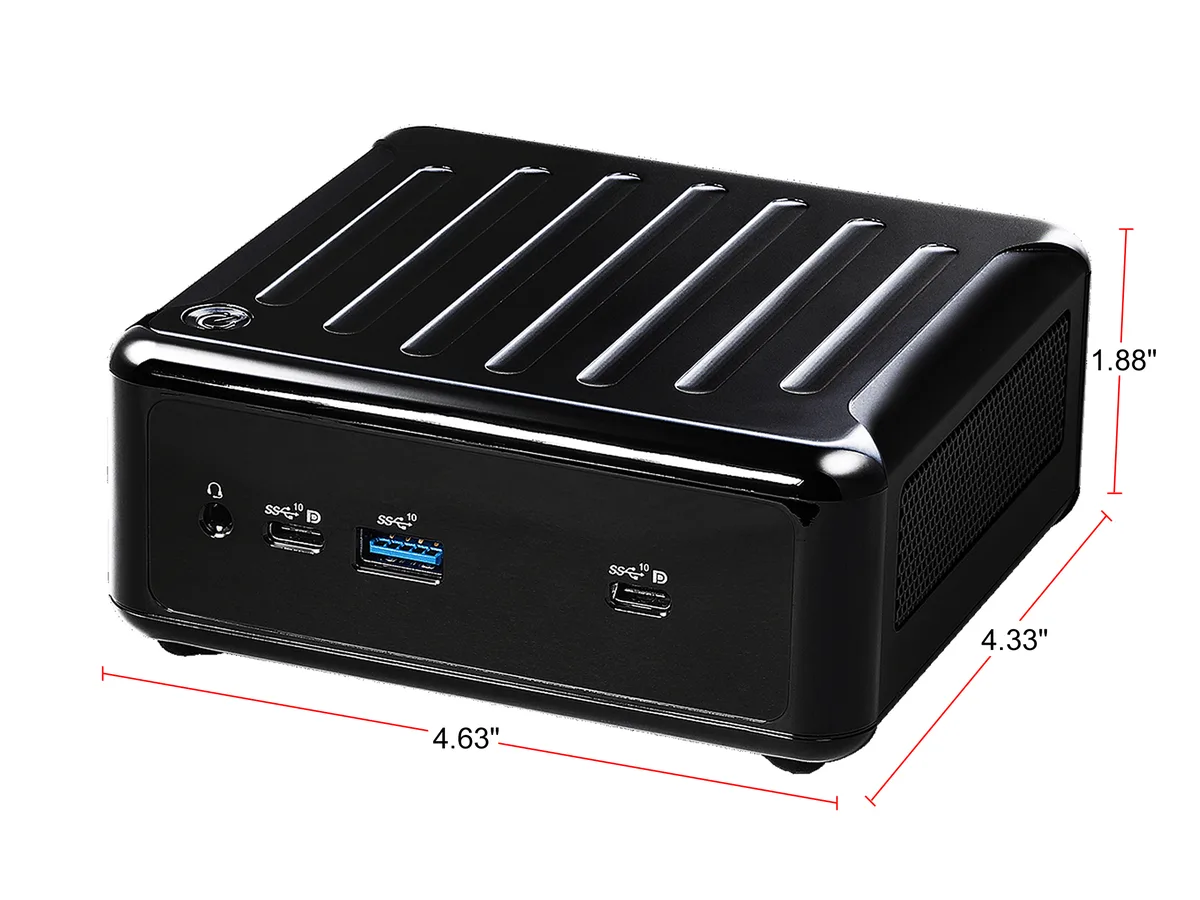

Dimensions1.88" x 4.63" x 4.33"
Weight2.20 lbs.
FeaturesIntel 11th Gen (Tiger Lake-UP3) Core Processors
2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6 AX200), 1 x SATA3
1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.4 (2 from Type C)
TPM onboard
19V/90W Power Adapter
110.0 x 117.5 x 47.85mm, Fanned Barebone
PackagingAccessories:
1 x 19V/90W Power Adapter
1 x Screw Package
1 x VESA mounting bracket
Shipping weight1.45 kg
Package size224 × 137 × 117 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the Intel Core i7-1165G7 is reaching its 4.7 GHz maximum speed after assembly?

Enter the BIOS or use a monitoring utility in Windows to observe the CPU frequency under load; the processor should report up to 4.7 GHz when thermal and power limits allow.

Which components are included and which must be purchased separately for this barebone unit?

The box contains the chassis with the soldered i7-1165G7, the Intel Wi-Fi 6 AX200 module and Bluetooth 5.2 antenna; you must add two DDR4 3200 SO-DIMMs (up to 64 GB total) and an M.2 2242/2260/2280 SSD or a 2.5" SATA drive.

Should I choose a single 64 GB module or two 32 GB modules for the dual-channel DDR4 3200 slots?

Install two 32 GB DDR4 3200 SO-DIMMs to enable dual-channel operation; a single 64 GB stick would run in single-channel mode and reduce memory bandwidth.
