Black compact barebone mini PC, rectangular with rounded edges

ASRock Industrial

ASRock Industrial NUC BOX-J6412 barebone mini PC

SKU CH-QQH6-EC0MD MPN NUC BOX-J6412

Barebone mini PC with Intel Celeron J6412, dual-channel DDR4 3200 up to 32 GB, dual 1 Gbps LAN, HDMI 2.0b and DisplayPort 1.4, plus M.2 Key M and SATA storage options

  • ColorBlack
  • CPU TypeIntel Celeron J6412
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported32GB

Options NUC Box-J6412

  • Intel Celeron J6412 powers efficient everyday computing
  • Dual DDR4 3200 SO-DIMM slots support up to 32 GB
  • M.2 Key M plus SATA 6.0Gb/s give flexible SSD and HDD options
  • Dual 1Gbps LAN ports provide reliable wired connectivity
  • Two USB 3.2 Gen2 Type-C and one Type-A on the front enable fast peripheral access

Ready-to-build barebone for embedded tasks

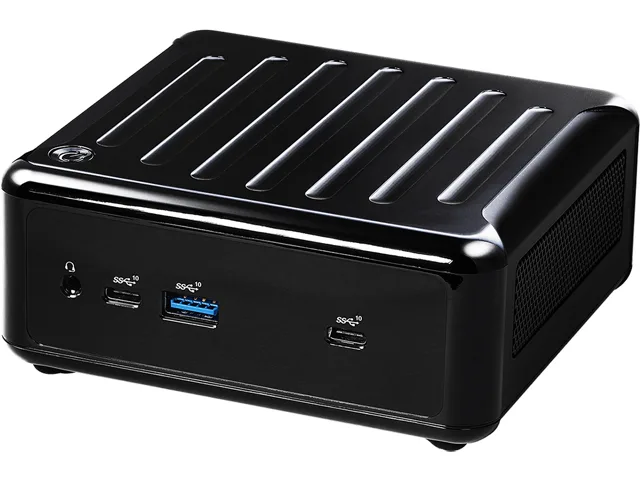

The ASRock Industrial NUC BOX-J6412 arrives as a compact black barebone with an Intel Celeron J6412 processor already fitted. It targets system integrators and hobbyists who want a fanless-class platform for digital signage, kiosks or lightweight edge workloads. No memory or storage is included, so the builder chooses capacity and speed.

Fits a 1.88 x 4.63 x 4.33 inch footprint

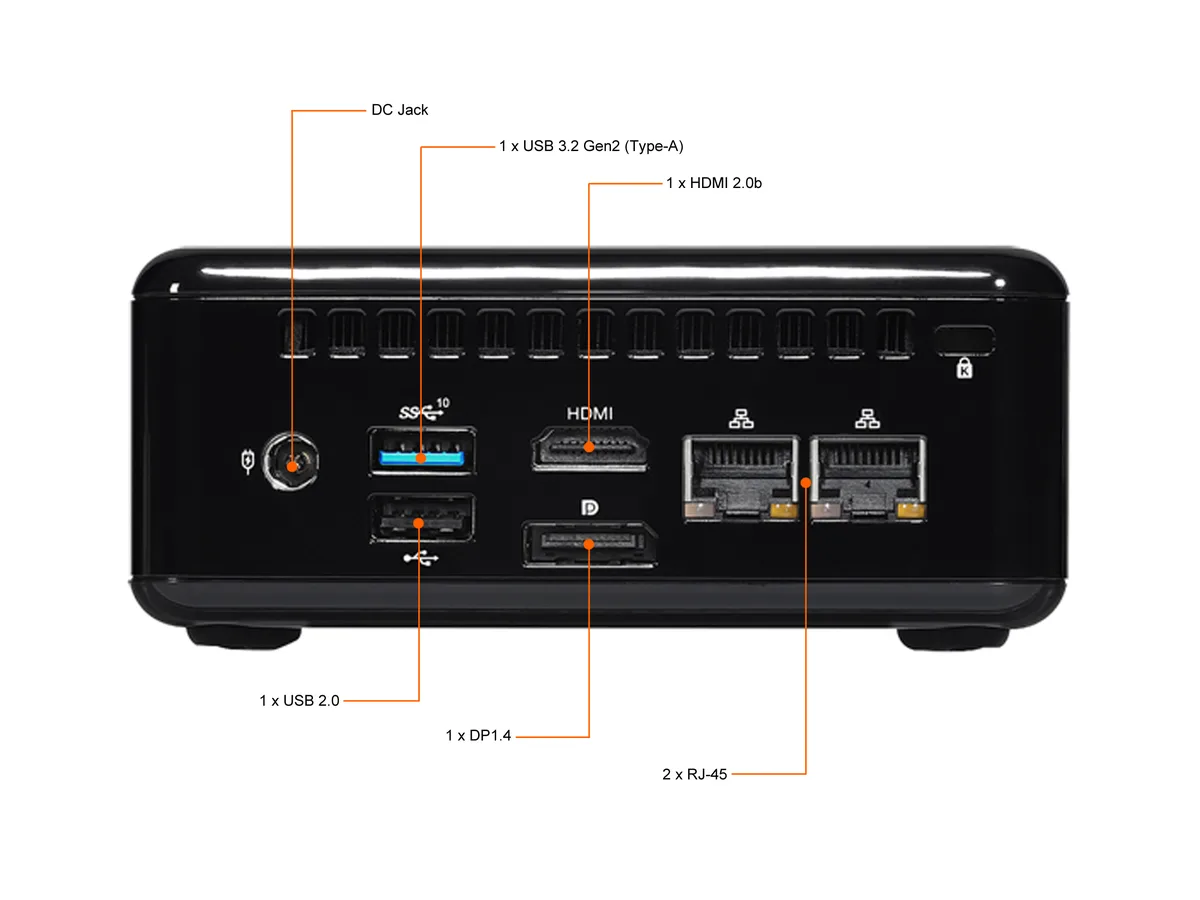

Two 260-pin SO-DIMM slots accept DDR4 3200 modules up to 32 GB total, enabling dual-channel bandwidth for the integrated Intel UHD Graphics. A single SATA 6.0 Gb/s port and an M.2 Key M slot (2242, 2260 or 2280 with bracket) handle SSD or hard-drive storage. Dual Realtek 1 Gbps LAN ports and HDMI 2.0b plus DisplayPort 1.4 drive two independent displays. The 19 V 65 W adapter powers the whole assembly.

Front USB 3.2 Gen2 Type-C

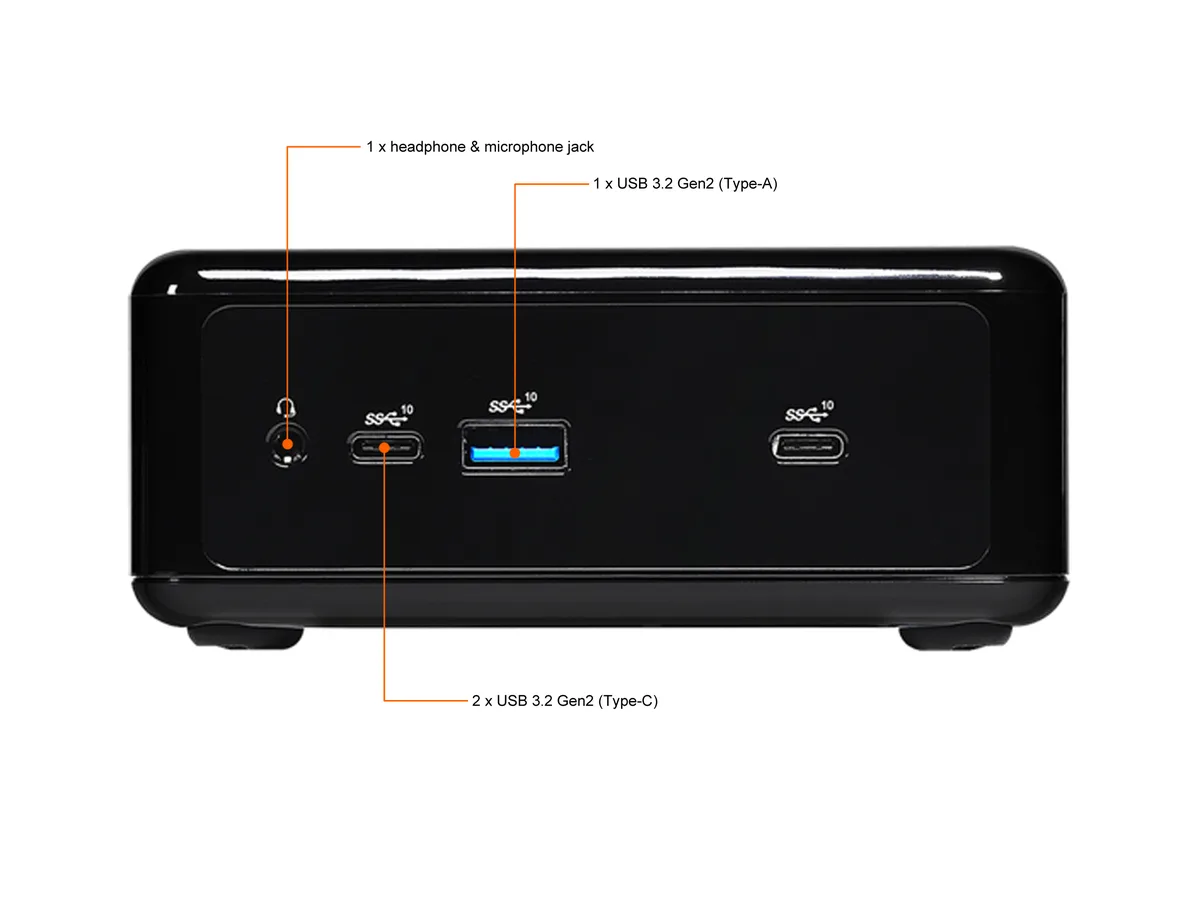

Three front-facing USB 3.2 Gen2 ports — one Type-A and two Type-C — give high-speed access for flash drives, dongles or a keyboard and mouse without reaching behind the chassis. A combined headphone and microphone jack sits beside them. An M.2 Key E 2230 slot with PCIe x1 and USB 2.0 is reserved for a wireless module if the deployment later requires Wi-Fi or Bluetooth.

Highlights

  • Intel Celeron J6412 powers efficient everyday computing
  • Dual DDR4 3200 SO-DIMM slots support up to 32 GB
  • M.2 Key M plus SATA 6.0Gb/s give flexible SSD and HDD options
  • Dual 1Gbps LAN ports provide reliable wired connectivity
  • Two USB 3.2 Gen2 Type-C and one Type-A on the front enable fast peripheral access

Specifications

BrandASRock Industrial
ModelNUC BOX-J6412
ColorBlack
CPU TypeIntel Celeron J6412
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported32GB
Dual Channel Memory SupportedYes
Other1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0
Storage InstalledNo Hard Drive
Serial ATA1 x SATA 6.0Gb/s
M.2 Slot1 x M.2 (KEY M, 2242/2260/2280) with PCIe x1 and SATA3 for SSD
* M.2 Key M 2280(Supported by bracket).
Integrated GraphicsIntel UHD Graphics
Onboard AudioRealtek ALC233
LANRealtek RTL8111G-CG/RTL8111H-CG
Max LAN SpeedDual 1Gbps
Front USB1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C)
Front Audio Ports1 (headphone & microphone jack)
HDMI1 x HDMI 2.0b
DisplayPort1 x DP1.4
Rear USB1 x USB 2.0
1 x USB 3.2 Gen2 (Type-A)
RJ452
Other Rear PortsDC Jack
Power Supply1 x 19V/65W Power Adapter
Dimensions1.88" x 4.63" x 4.33"
FeaturesIntel ElkHart Lake SoC Processors
2 x 260-pin SO-DIMM up to 32GB DDR4 3200 MHz
4 x USB 3.2 Gen2, 1 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x SATA3
2 x Realtek 1 Gigabit LAN
Supports Dual display, 1 x HDMI 2.0b, 1 x DP 1.4
TPM 2.0 onboard IC
19V/65W Power Adapter
110.0 x 117.5 x 47.85mm, Fanned Barebone
PackagingAccessory:
1 x 19V/65W Power Adapter
1 x Screw Package
1 x VESA mounting bracket
Shipping weight2.27 kg
Package size152 × 152 × 76 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much DDR4 3200 SO-DIMM memory can the J6412 barebone accept?

The board has two 260-pin slots and supports up to 32 GB of DDR4 3200 in dual-channel mode.

What noise or heat should I expect from the included 19 V 65 W adapter and fanless chassis during all-day operation?

The 65 W adapter runs silently; the passively cooled chassis stays warm but has no fan noise under continuous load.

Which storage and memory parts do I need to add before the NUC BOX-J6412 will boot?

You must supply one or two DDR4 3200 SO-DIMMs and either a 2.5" SATA drive or an M.2 2242/2260/2280 SSD (SATA or PCIe x1).
