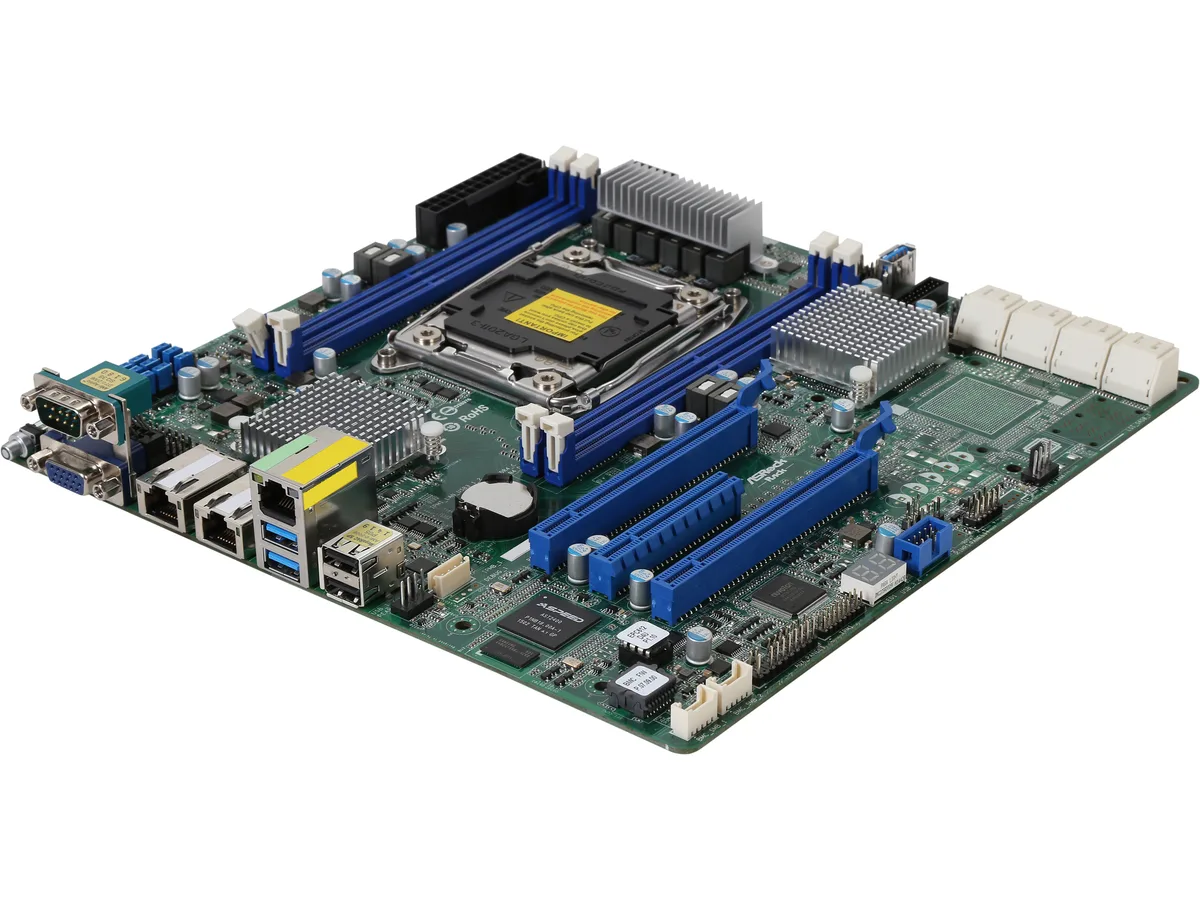

Green micro-ATX server board with LGA 2011 socket, four DDR4 slots, eight SATA ports, dual gigabit LAN, IPMI port

ASRock Rack

ASRock Rack EPC612D4U server motherboard LGA 2011 R3 Intel C612

SKU CH-WS7W-FAC83 MPN EPC612D4U

Micro-ATX server board with LGA 2011 R3 socket, quad-channel DDR4, eight SATA 6.0Gb/s ports, dual 1GbE LAN and IPMI 2.0

  • CPU Socket TypeR3 (LGA 2011)
  • CPU TypeSupports Intel Xeon processor E5-1600 / 2600 v3 / v4 series
  • North BridgeIntel C612
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 StandardDDR4 2400 / 2133 / 1866 / 1600 RDIMM and LRDIMM
  • Maximum Memory SupportedMax. Capacity per DIMM - RDIMM: 32GB, 16GB, 8GB, 4GB - LRDIM
  • Supports Intel Xeon E5-1600 and E5-2600 v3/v4 processors
  • Quad-channel DDR4 2400/2133/1866/1600 with RDIMM and LRDIMM support
  • Eight SATA 6.0Gb/s ports with RAID 0/1/5/10 via C612 chipset
  • Two PCIe 3.0 x16 and one PCIe 3.0 x8 expansion slots
  • Integrated IPMI 2.0 with KVM over dedicated LAN using ASPEED AST2400

Micro-ATX server board for Xeon E5 v3 and v4

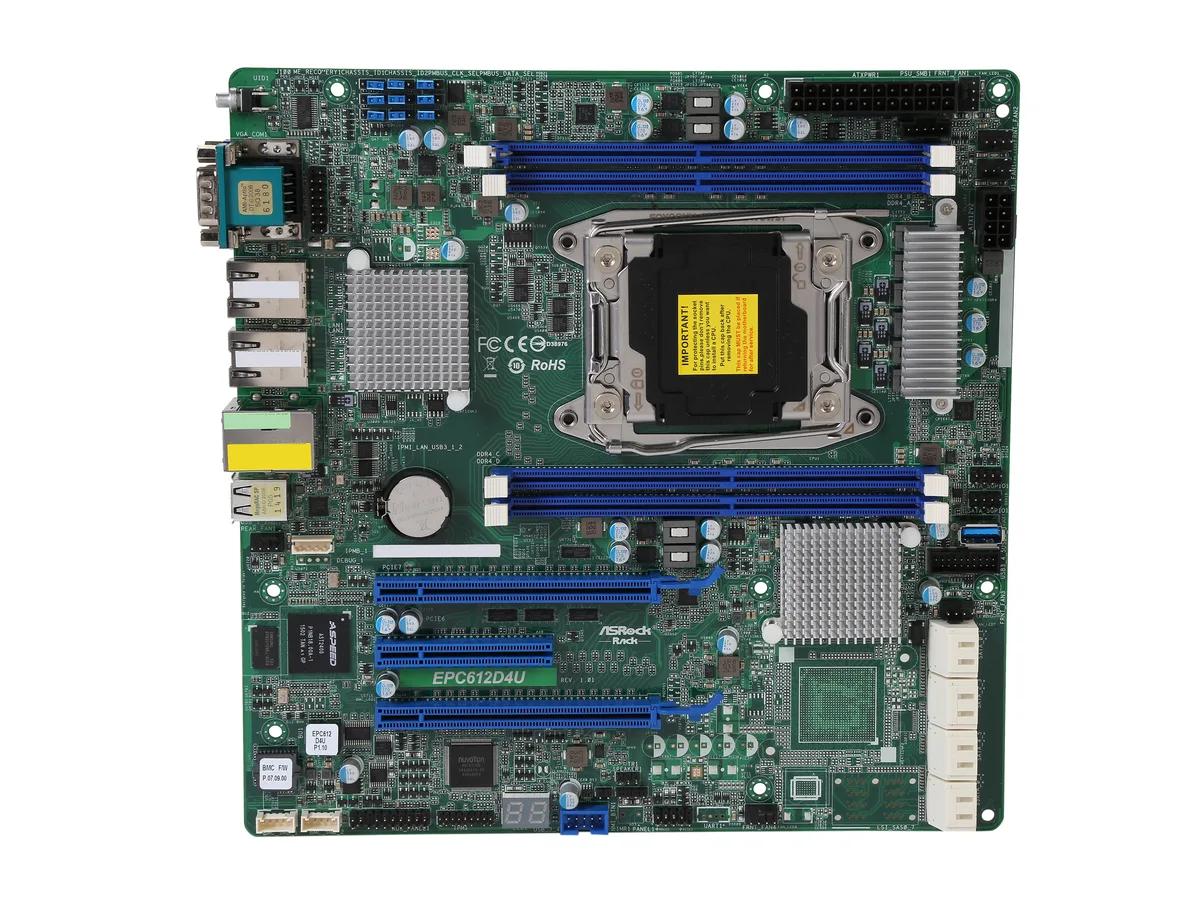

The ASRock Rack EPC612D4U is a Micro-ATX motherboard built around the Intel C612 chipset and the LGA 2011 R3 socket. It accepts single Intel Xeon E5-1600 and E5-2600 v3 or v4 processors, with BIOS version 2.0 or above required for v4 chips. The board targets compact 1U or 2U server builds that need workstation-class compute density.

Quad-channel DDR4 with RDIMM and LRDIMM headroom

Four 288-pin slots run DDR4 at 2400, 2133, 1866 or 1600 MT/s in quad-channel mode. Registered DIMMs scale to 32 GB per module, while load-reduced DIMMs reach 64 GB per module, giving substantial memory capacity for virtualization or in-memory workloads. The eight SATA 6.0 Gb/s ports from the C612 plus two additional SATA 6.0 Gb/s ports provide ten drive connections with RAID 0, 1, 5 and 10 on the primary set and RAID 0 and 1 on the secondary set.

IPMI 2.0 management with dual gigabit LAN

An ASPEED AST2400 controller delivers IPMI 2.0 with KVM-over-IP and a dedicated RTL8211E management LAN port for out-of-band access. Dual Intel I350 gigabit controllers handle production traffic at 10, 100 or 1000 Mbps. Expansion includes two PCIe 3.0 x16 slots — the second drops to x8 when the third x8 slot is populated — and the first x16 slot switches to x8 when an LSI 3008 controller is installed, letting builders balance GPU, storage or networking cards within the power envelope of a Micro-ATX chassis.

Highlights

  • Supports Intel Xeon E5-1600 and E5-2600 v3/v4 processors
  • Quad-channel DDR4 2400/2133/1866/1600 with RDIMM and LRDIMM support
  • Eight SATA 6.0Gb/s ports with RAID 0/1/5/10 via C612 chipset
  • Two PCIe 3.0 x16 and one PCIe 3.0 x8 expansion slots
  • Integrated IPMI 2.0 with KVM over dedicated LAN using ASPEED AST2400

Specifications

BrandASRock
ModelEPC612D4U

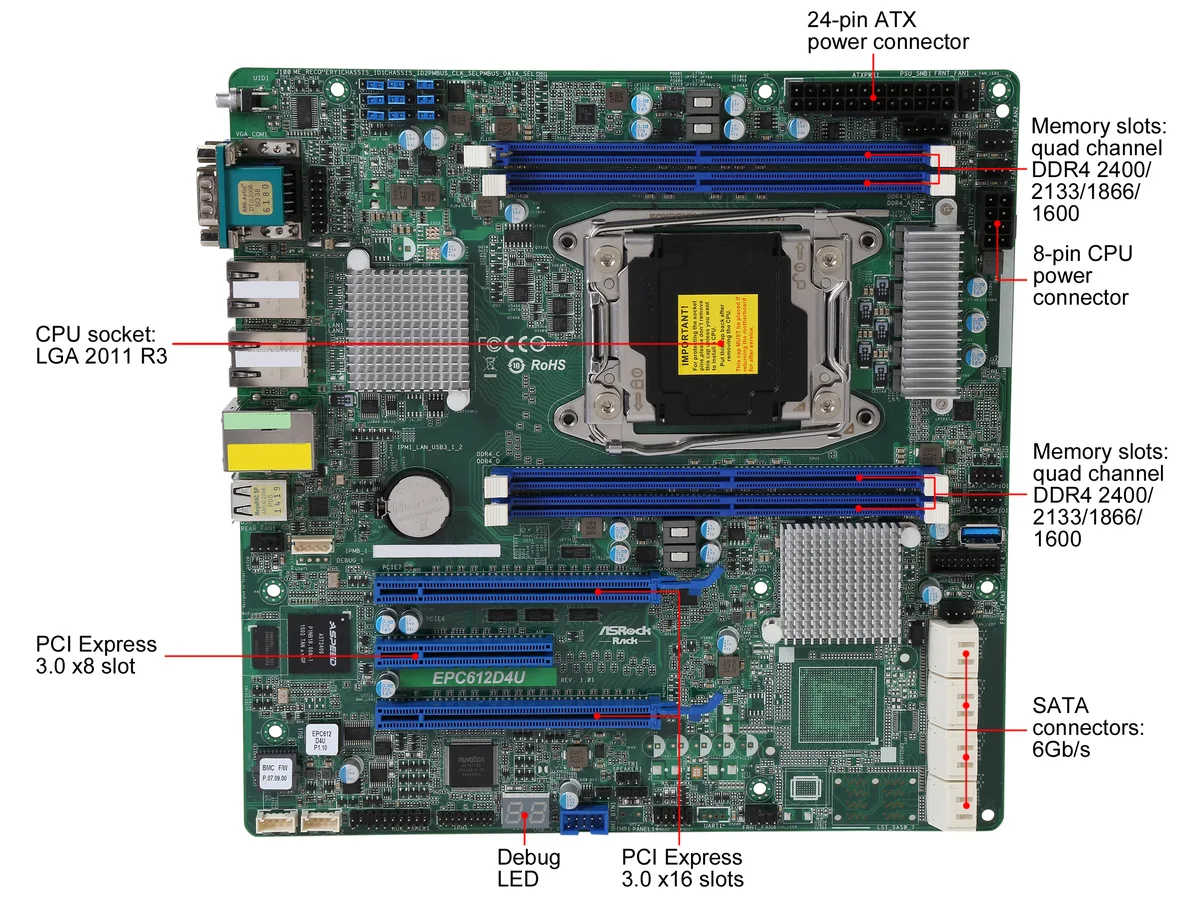

CPU Socket TypeR3 (LGA 2011)
CPU TypeSupports Intel Xeon processor E5-1600 / 2600 v3 / v4 series
*BIOS version 2.0 or above is required for v4 series.
North BridgeIntel C612
Number of DDR4 Slots4 x 288-pin
DDR4 StandardDDR4 2400 / 2133 / 1866 / 1600 RDIMM and LRDIMM
Maximum Memory SupportedMax. Capacity per DIMM
- RDIMM: 32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB
Channel SupportedQuad Channel
RegisteredYes
PCI Express 3.0 x16SLOT7: PCIe3.0 x16, auto switch to x8 when SLOT6 is occupied
SLOT5: PCIe3.0 x16, auto switch to x8 when LSI3008 is populated
PCI Express x8SLOT6: PCIe3.0 x8
SATA8 x SATA 6.0Gb/s
SATA RAID0/1/5/10
Additional SATA2 x SATA 6.0Gb/s
Additional SATA RAID0/1
Onboard Video ChipsetAspeed AST2400
LAN ChipsetIntel I350
LAN Speed10/100/1000Mbps
Max LAN Speed1Gbps

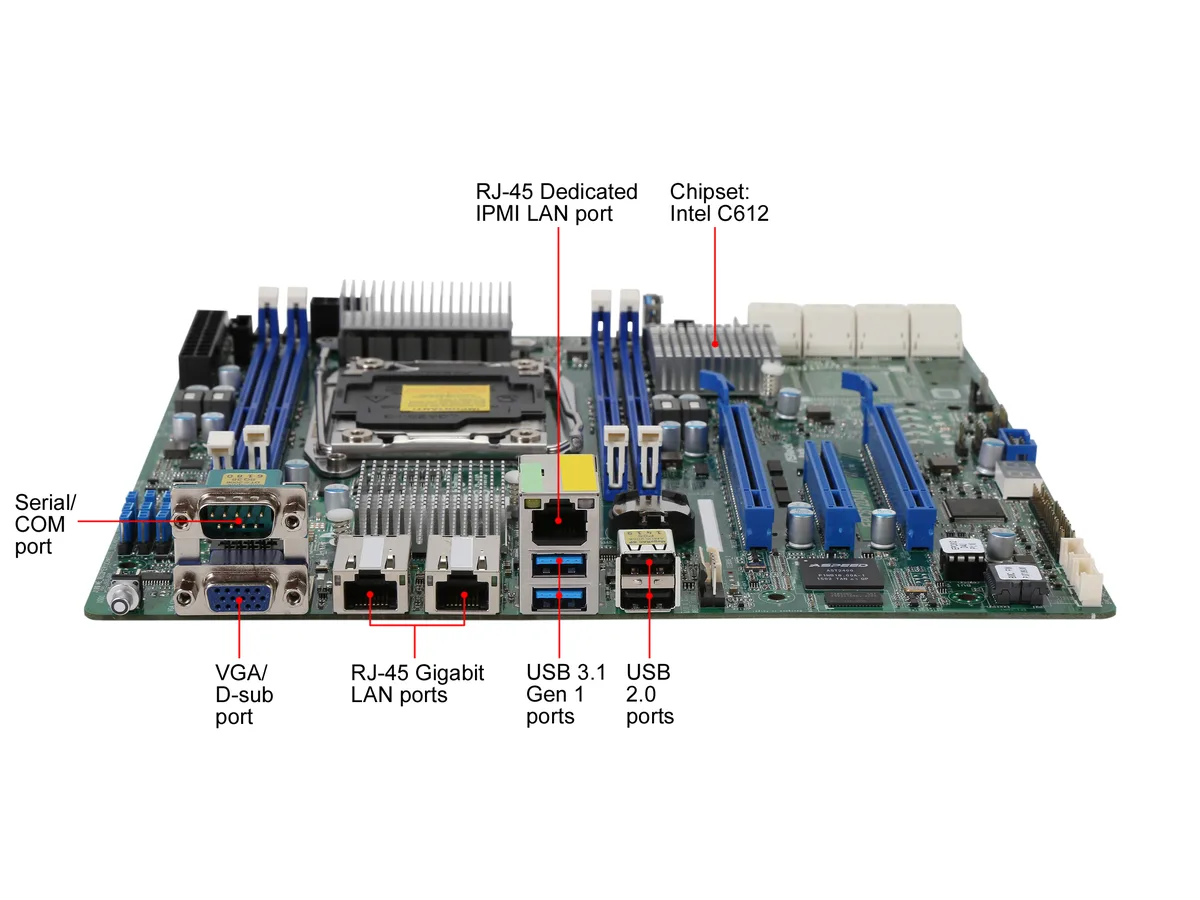

Back I/O PortsUID Button/LED: 1
VGA Port: 1 x D-Sub
Serial Port: 1 (COM1)
USB 2.0 Port: 2
USB 3.2 Gen1 Port: 2
RJ45: RJ45: 2 + 1 (IPMI)
LAN Ports with LED (ACT/LINK LED and SPEED LED)
Onboard USBUSB 3.2 (Gen1) Header: 1 (support 2 USB 3.0 ports)
USB 2.0 Header: 1 (support 2 USB 2.0 ports)
Type A USB 3.2 (Gen1) Port: 1
Other ConnectorsPower Connector: 1 (24-pin) + 1 (8-pin)
Auxiliary Panel Header: 1 (include chassis intrusion, location button & LED, front LAN LED)
Fan Header: 1 x CPU Fan, 5x system Fan (4-pin)
TPM Header: 1
SMBus header: 2
IPMB Header: 1
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Shipping weight1.41 kg
Package size305 × 290 × 71 mm

Questions about this item

Will my existing DDR4-2133 RDIMMs work in the EPC612D4U's four 288-pin slots?

Yes, the board supports DDR4 2400, 2133, 1866 and 1600 RDIMMs in quad-channel mode across its four 288-pin slots.

How can I confirm the IPMI 2.0 KVM and dedicated RTL8211E LAN are active after first power-on?

Connect the dedicated LAN port, log into the ASPEED AST2400 web interface and verify KVM console launch and network settings.

What cables or brackets must I add to use all eight C612 SATA 6.0Gb/s ports and the two extra SATA ports?

The board provides ten SATA 6.0Gb/s headers; you need ten SATA data cables and drive power connections for full population.
