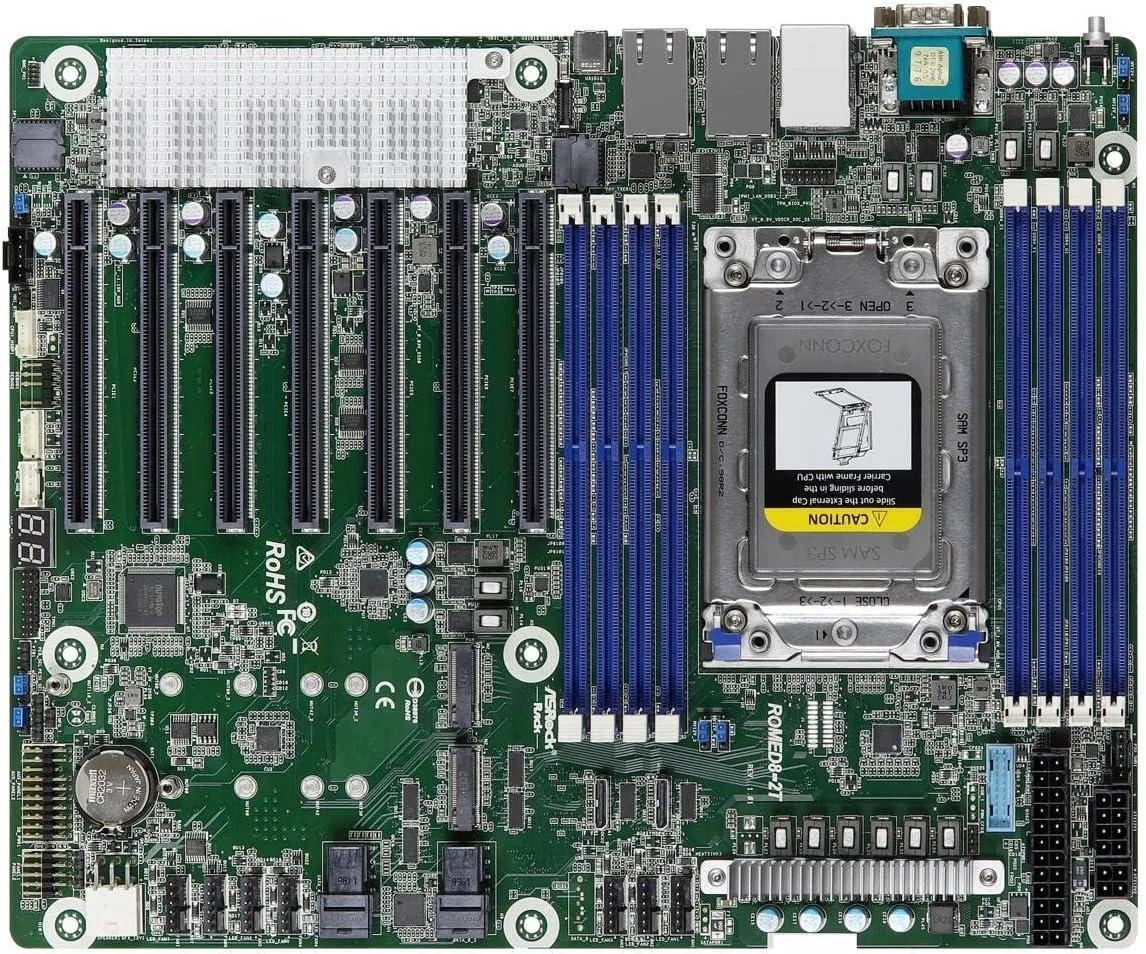

Green ATX server motherboard with large SP3 socket, eight DDR4 DIMM slots, seven PCIe x16 slots, dual RJ45 10GbE ports, VGA

ASRock Rack

ASRock Rack ROMED8-2T ATX server motherboard EPYC SP3 Dual 10GbE

SKU CH-QHZ6-TR2W4

ATX server motherboard for single AMD EPYC SP3 processors with eight DDR4 channels, seven PCIe 4.0 x16 slots, ten SATA 6.0 Gb/s ports and dual 10 GbE LAN

  • CPU Socket TypeSocket SP3
  • CPU TypeSupports AMD EPYC 7003 (with AMD 3D V-Cache Technology*) / 7
  • Number of Processor Support1
  • Number of DDR4 Slots8 DIMM slots (1DPC) DDR4 288-pin
  • DDR4 StandardRDIMM/ LRDIMM/NVDIMM-N: max. 3200MHz
  • Maximum Memory SupportedMax. Capacity per DIMM - RDIMM: up to 64GB - LRDIMM: up to 1
  • Supports AMD EPYC 7003 and 7002 series processors via SP3 socket
  • Eight-channel DDR4 memory with up to 256 GB per DIMM using 3DS modules
  • Seven PCIe 4.0 x16 slots for high-bandwidth add-in cards
  • Dual 10 GbE Intel X550-AT2 ports plus dedicated management LAN
  • Ten SATA 6 Gb/s ports and two M.2 slots for flexible storage

ATX server board for EPYC SP3

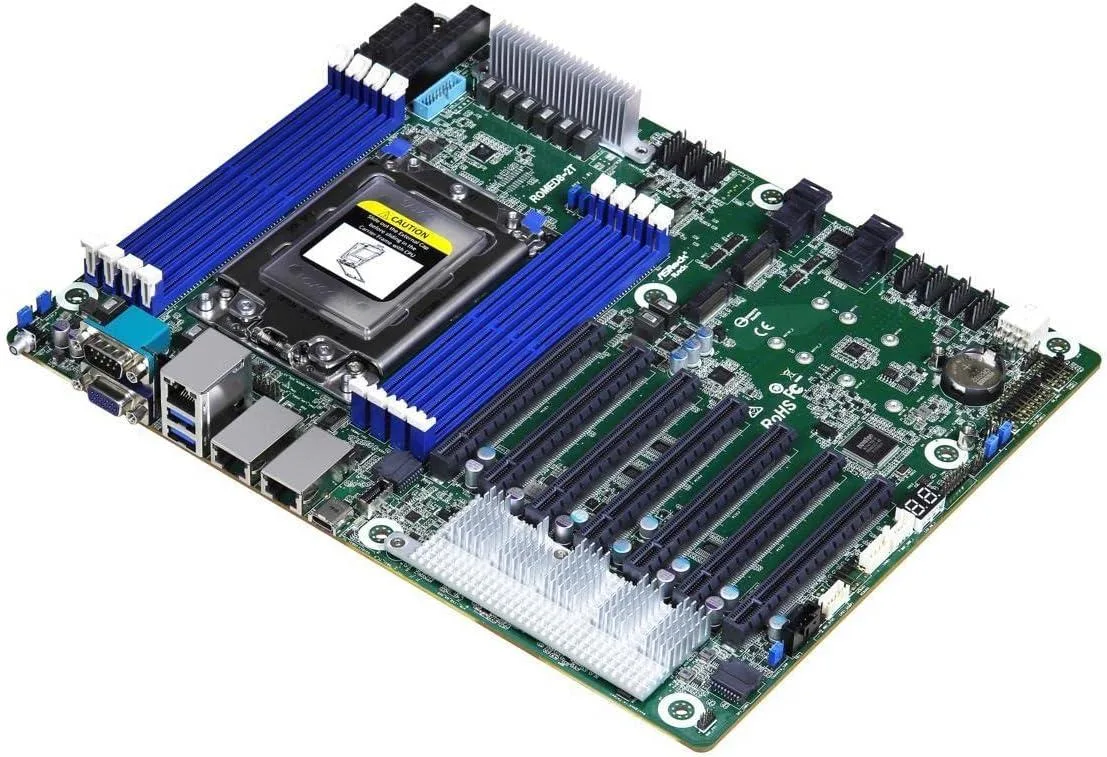

The ROMED8-2T is an ATX form-factor server motherboard designed for a single AMD EPYC processor in the SP3 socket. It targets system builders who need high core counts and eight-channel memory in a standard 12.0 by 9.6 inch layout. The board supports EPYC 7002 and 7003 series CPUs, including models with 3D V-Cache technology when a BIOS update is applied.

Eight DIMM slots and flexible PCIe layout

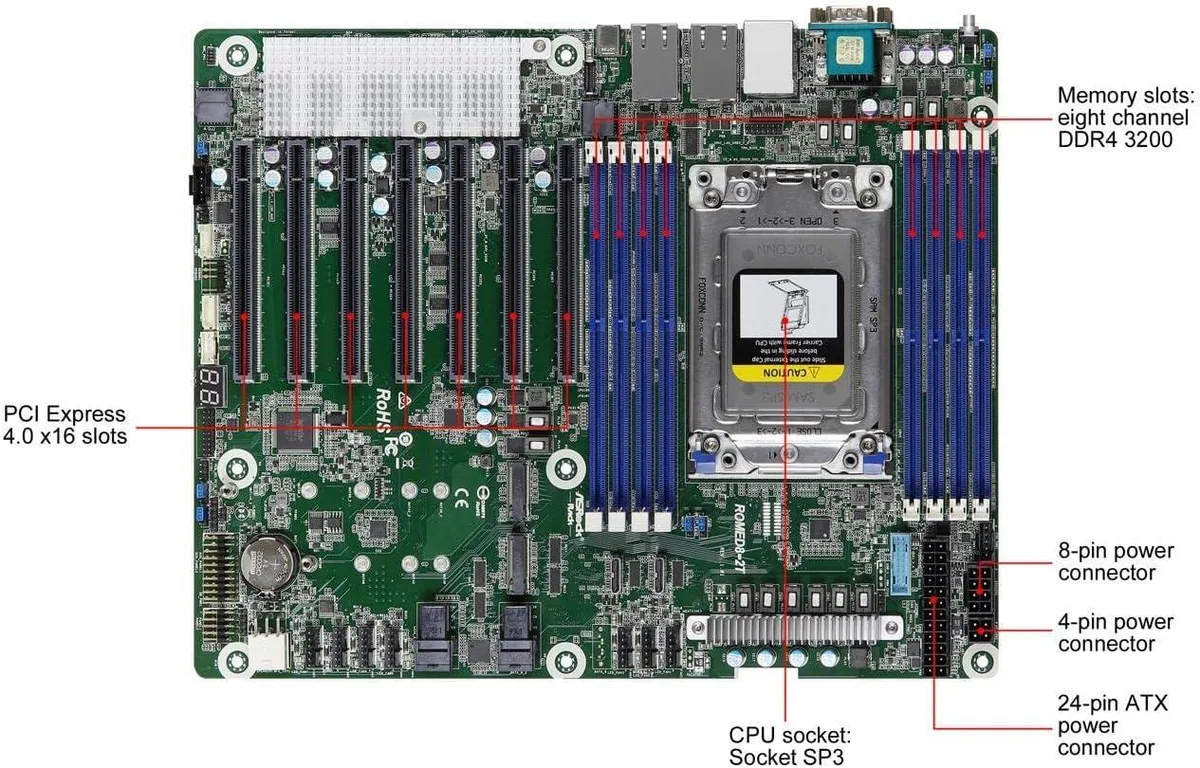

Eight 288-pin DDR4 slots accept RDIMM, LRDIMM, 3DS and NVDIMM-N modules up to 256 GB per DIMM with ECC across eight channels. Seven PCIe 4.0 x16 slots provide dense accelerator or networking capacity, while two OCuLink ports and two M.2 slots share bandwidth with the second PCIe slot via jumpers. Ten SATA 6.0 Gb/s ports and two Mini-SAS HD connectors handle high-volume storage. Dual 10 GbE RJ45 ports use an Intel X550-AT2 controller, and a dedicated IPMI LAN port enables remote management.

Single SP3 socket limits CPU choice to one processor

Only one EPYC CPU can be installed, so workloads requiring dual-socket memory capacity or PCIe lane count must look elsewhere. The board delivers up to 3200 MHz DDR4 speeds and 10 GbE networking out of the box, but buyers needing two CPUs or a different socket type cannot use this platform.

Highlights

  • Supports AMD EPYC 7003 and 7002 series processors via SP3 socket
  • Eight-channel DDR4 memory with up to 256 GB per DIMM using 3DS modules
  • Seven PCIe 4.0 x16 slots for high-bandwidth add-in cards
  • Dual 10 GbE Intel X550-AT2 ports plus dedicated management LAN
  • Ten SATA 6 Gb/s ports and two M.2 slots for flexible storage

Specifications

BrandAsRock Rack
ModelROMED8-2T
CPU Socket TypeSocket SP3
CPU TypeSupports AMD EPYC 7003 (with AMD 3D V-Cache Technology*) / 7002 Series Processors
*A BIOS update is required to support AMD EPYC 7003 series processors with AMD 3D V-Cache Technology
Number of Processor Support1
Number of DDR4 Slots8 DIMM slots (1DPC) DDR4 288-pin
DDR4 StandardRDIMM/ LRDIMM/NVDIMM-N: max. 3200MHz
Maximum Memory SupportedMax. Capacity per DIMM
- RDIMM: up to 64GB
- LRDIMM: up to 128GB
- RDIMM/LRDIMM-3DS: up to 256GB
- NVDIMM-N: up to 32GB
Channel SupportedEight Channel
ECC SupportedYes
PCI Express 4.0 x16PCIE1: Gen4 x16 link
PCIE2: Gen4 x16 link or Gen4x8 link+2x M.2+2x miniSASHD or no PCIE slot +2x OCulink+2xM.2+2x miniSASHD(by jumper)
PCIE3: Gen4 x16 link
PCIE4: Gen4 x16 link
PCIE5: Gen4 x16 link
PCIE6: Gen4 x16 link
PCIE7: Gen4 x16 link
(SLOT7 close to CPU)
Other Slots2 OCuLink* (PCIe4.0 x4)
*Shared with SLOT2 by jumper
SATA10 x SATA 6.0Gb/s
SAS2 x Mini-SAS HD, 2 M.2
M.21 M-key* (PCIe4.0 x4 or SATA 6Gb/s), supports 2280/2260/2242/2230 form factor
1 M-key* (PCIe4.0 x4 or SATA 6Gb/s), supports 22110/2280/2260/2242/2230 form factor
*Share with SLOT2 by jumper
Onboard Video ChipsetAspeed AST2500
LAN ChipsetIntel X550-AT2
LAN Speed10Gbps
Max LAN Speed10Gbps
Back I/O PortsUID Button/LED: 1
VGA Port: 1 DB15
Serial Port: 1 DB9
USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1)
USB 3.2 Gen2 Port: 1 Type-C (USB3.2 Gen2)
RJ45: 2 RJ45 (10GbE)
1 dedicated IPMI
Onboard USBUSB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1)
USB 3.2 (Gen2) Header: 1 (Type-C, 1 USB3.2 Gen2)
Other ConnectorsPower Connector: 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V)
Auxiliary Panel Header: 1 (includes chassis intrusion, location button & LED, and front LAN LED)
System Panel: 1 (rst, pwrbtn, hddled, pwrled)
Speaker Header: 1 (4-pin)
Fan Header: 7 (6-pin) [1CPU/4Front/2Rear]
Thermal Sensor Header: 1
TPM Header: 1 (17-pin, LPC), 1 (13-pin, SPI)
SMBus header: 1
PMBus header: 1
IPMB Header: 1
Clear CMOS: 1 (contact pads)
NMI Header: 1
Form FactorATX
Dimensions (W x L)12.0" x 9.6"

Questions about this item

What PCIe generation does the SP3 socket provide for the seven x16 slots, and what bandwidth does that cap each slot at?

The SP3 socket delivers PCIe 4.0 across seven x16 slots, capping each at 4.0 x16 bandwidth.

What chassis clearance and power connectors does the ATX 12.0 x 9.6 inch board require to fit and start?

It needs an ATX chassis with 12.0 x 9.6 inch clearance plus 24-pin, 8-pin, 4-pin and 6-pin power connectors.

How do you enable the second M.2 slot and the two OCuLink ports, and which jumper is often missed?

Move the jumper on slot 2 to share its lanes; the slot-2 jumper is the step most builders overlook.
