Green rectangular server motherboard with large silver CPU socket, eight black memory slots, multiple PCIe slots and two M.2 connectors

ASRock Rack

ASRock Rack TURIND8X-2T/500W server motherboard

SKU CH-WBMP-VKHTA MPN TURIND8X-2T/500W

EEB server motherboard for single AMD EPYC 9004 or 9005 CPUs up to 500W TDP, eight DDR5 DIMM slots, seven PCIe 5.0 x16 slots plus one x8, and two M.2 sockets

  • CPU Socket TypeSocket SP5 (LGA 6096)
  • CPU TypeAMD EPYC 9004 Series / AMD EPYC 9005 Series
  • Memory Slots8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • Maximum Memory Supported128GB
  • PCI Express 5.0 x16SLOT6: PCIe5.0 / CXL2.0* x16 SLOT5: PCIe5.0 x16 SLOT4: PCIe5
  • PCI Express x8SLOT7***: PCIe5.0 x8
  • Supports AMD EPYC 9004 and 9005 series CPUs with up to 500W TDP
  • Eight DDR5 DIMM slots deliver 128GB maximum memory capacity
  • Seven PCIe 5.0 x16 slots plus one x8 slot for high-bandwidth expansion
  • Two M.2 slots with PCIe 5.0 x4 or SATA 6Gb/s for fast storage
  • EEB form factor at 12.63 by 13 inches fits standard server chassis

SP5 socket EEB server motherboard

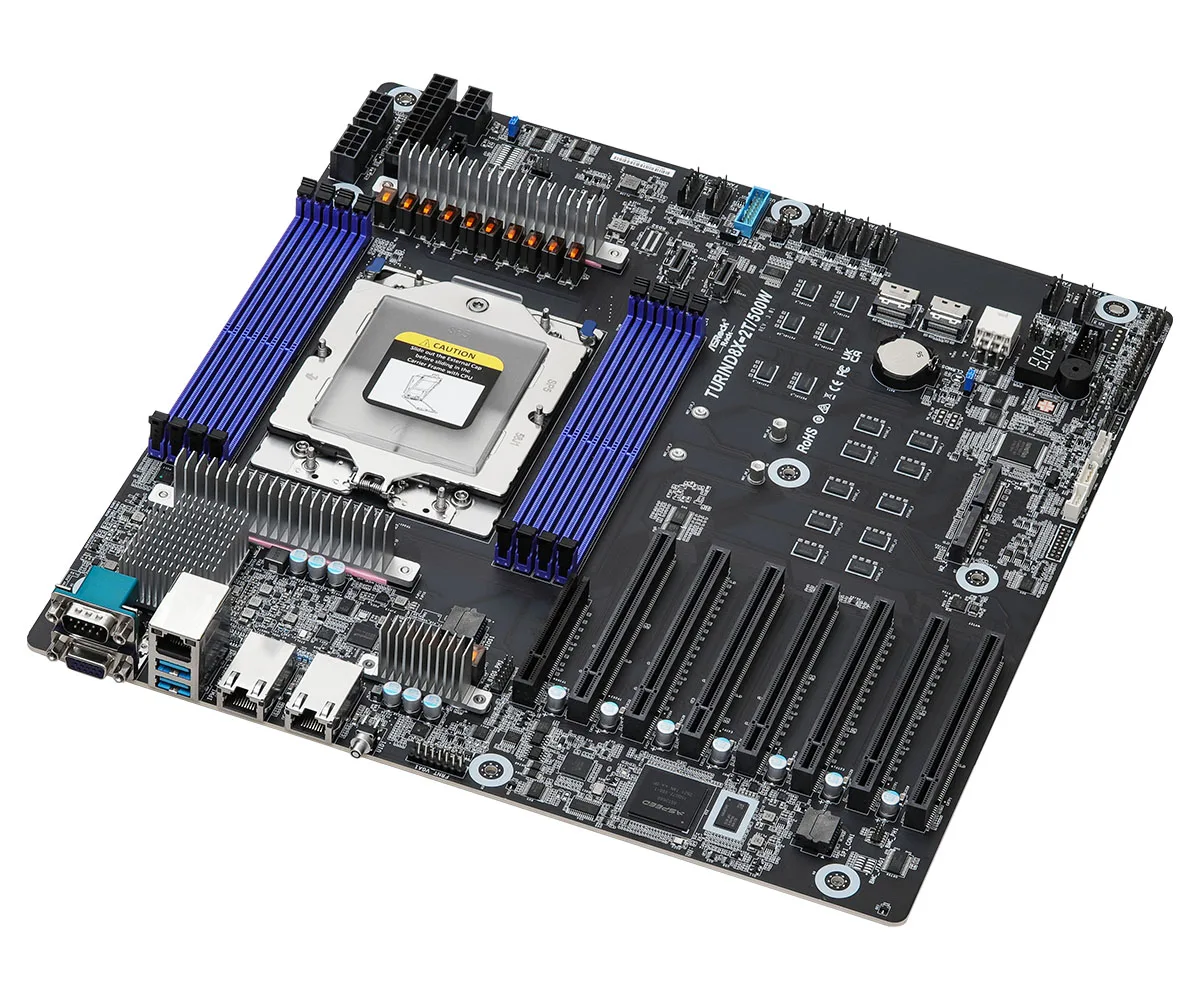

The ASRock Rack TURIND8X-2T/500W is an EEB form-factor server motherboard measuring 12.63 by 13 inches. It uses the SP5 socket (LGA 6096) and accepts AMD EPYC 9004 and 9005 series processors with TDPs up to 500 watts. Eight DDR5 RDIMM slots operate in a 1DPC layout and support RDIMM-3DS modules for a maximum of 128GB of memory.

Seven PCIe 5.0 x16 slots plus x8 and dual M.2

Seven full-length PCIe 5.0 x16 slots are provided, four of which also carry CXL 2.0 signalling, alongside one PCIe 5.0 x8 slot. Two M-key M.2 sockets accept 2280 or 22110 modules; one runs at PCIe 5.0 x4 or four SATA 6Gb/s lanes, the other at PCIe 5.0 x4 only. This density suits GPU-heavy or accelerator-heavy builds but leaves no room for legacy PCIe 3.0 or 4.0-only add-in cards.

Verify CPU cooler clearance and chassis depth

The 500-watt TDP ceiling demands a cooler rated for that thermal load and a chassis with sufficient airflow depth for the EEB footprint. Confirm that your power distribution can deliver the required EPS connectors and that the backplane or drive cage wiring matches the six MCIO ports offering up to sixteen SATA 6Gb/s connections.

Highlights

  • Supports AMD EPYC 9004 and 9005 series CPUs with up to 500W TDP
  • Eight DDR5 DIMM slots deliver 128GB maximum memory capacity
  • Seven PCIe 5.0 x16 slots plus one x8 slot for high-bandwidth expansion
  • Two M.2 slots with PCIe 5.0 x4 or SATA 6Gb/s for fast storage
  • EEB form factor at 12.63 by 13 inches fits standard server chassis

Specifications

BrandASRock
ModelTURIND8X-2T/500W
Part NumberTURIND8X-2T/500W
CPU Socket TypeSocket SP5 (LGA 6096)
CPU TypeAMD EPYC 9004 Series / AMD EPYC 9005 Series
Memory Slots8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
Maximum Memory Supported128GB
PCI Express 5.0 x16SLOT6: PCIe5.0 / CXL2.0* x16
SLOT5: PCIe5.0 x16
SLOT4: PCIe5.0 / CXL2.0* x16
SLOT3: PCIe5.0 x16
SLOT2: PCIe5.0 / CXL2.0* x16
SLOT1**: PCIe5.0 x16
SLOT0: PCIe5.0 / CXL2.0* x16
PCI Express x8SLOT7***: PCIe5.0 x8
M.21 M-key (PCIe5.0 x4 or 4 SATA 6Gb/s), supports 22110/2280 form factor
1 M-key** (PCIe5.0 x4), supports 22110/2280 form factor
Shipping weight2.18 kg
Package size413 × 394 × 70 mm

Questions about this item

Which DDR5 modules must I already have to populate the 8 DIMM slots on this TURIND8X-2T/500W board?

The board accepts DDR5 RDIMM and RDIMM-3DS modules in a 1 DIMM per channel layout across 8 slots, with a total capacity limit of 128GB.

Will my existing PCIe 4.0 add-in cards work in the seven PCIe 5.0 expansion slots of this motherboard?

Yes, the seven PCIe 5.0 slots — six x16 and one x8 — are backward compatible with PCIe 4.0 cards, which will operate at their native 4.0 speeds.

How can I confirm the M.2 storage is running at PCIe 5.0 x4 after installing a 2280 or 22110 drive?

Check the BIOS or operating system device manager to verify the M.2 slot reports a PCIe 5.0 x4 link width for the installed drive.
