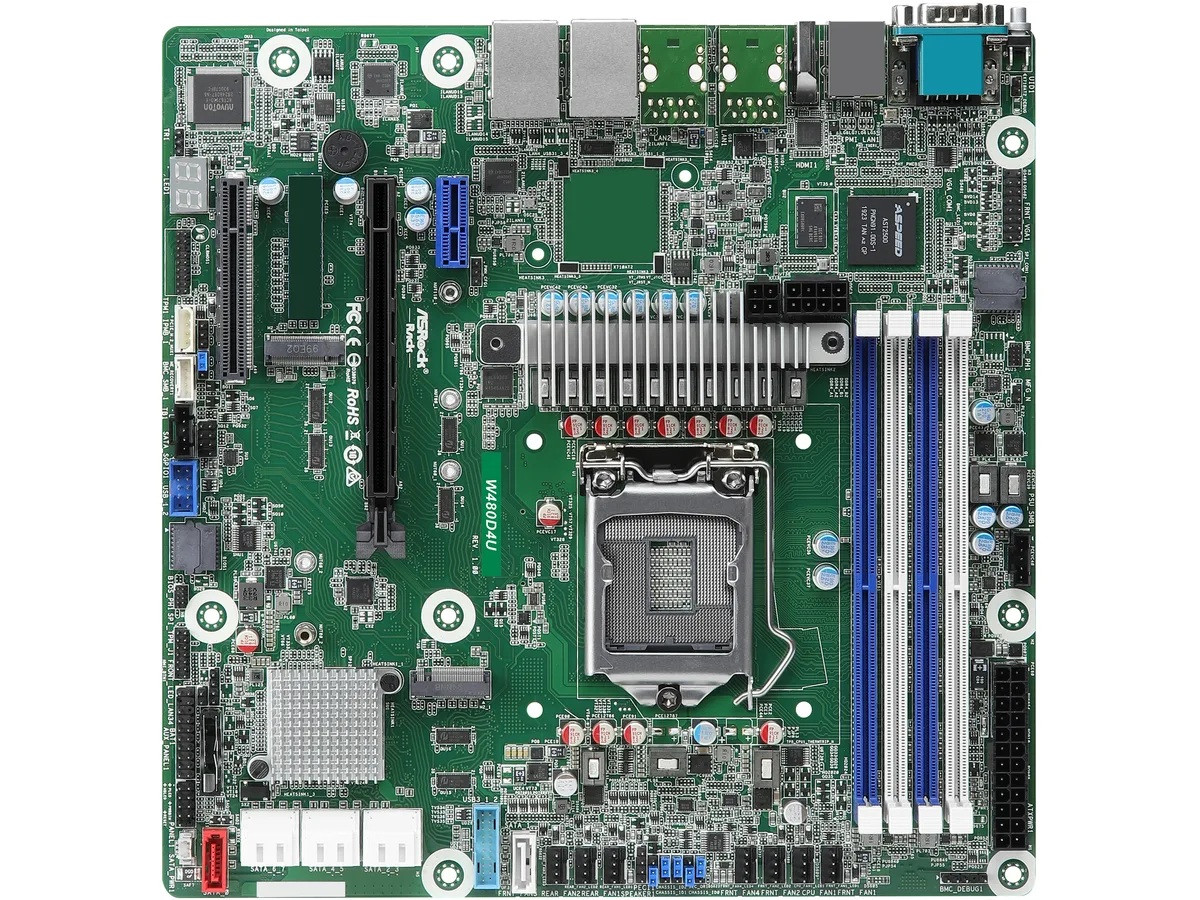

Green mATX server board, LGA 1200 socket, four DDR4 slots, eight SATA ports, two M.2 slots, dual RJ45 LAN, HDMI and D-Sub video

ASRock Rack

ASRock Rack W480D4U mATX server motherboard LGA 1200 Xeon W-1200 4×288-pin DDR4 8 SATA 2 M.2

SKU CH-H9AD-WPSDH MPN W480D4U

mATX server board for LGA 1200 Xeon W-1200 with 4 DDR4 slots, 8 SATA ports, 2 M.2 slots and dual 1 GbE LAN

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports Intel Xeon W-1200, Intel 10th Gen Intel Core Proces
  • North BridgeIntel W480
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 Standard2933*/2666/2400 MHz *2933 MHz support varies by CPU.
  • Channel SupportedDual Channel
  • Supports Intel Xeon W-1200 and 10th Gen Core processors
  • Four DDR4 288-pin slots with dual-channel ECC up to 2933 MHz
  • Eight SATA 6Gb/s ports including one SATA DOM connector
  • Two M.2 slots supporting 22110 2280 2260 form factors PCIe 3.0 x4
  • Dual 1GbE LAN via Intel I210 plus dedicated IPMI management

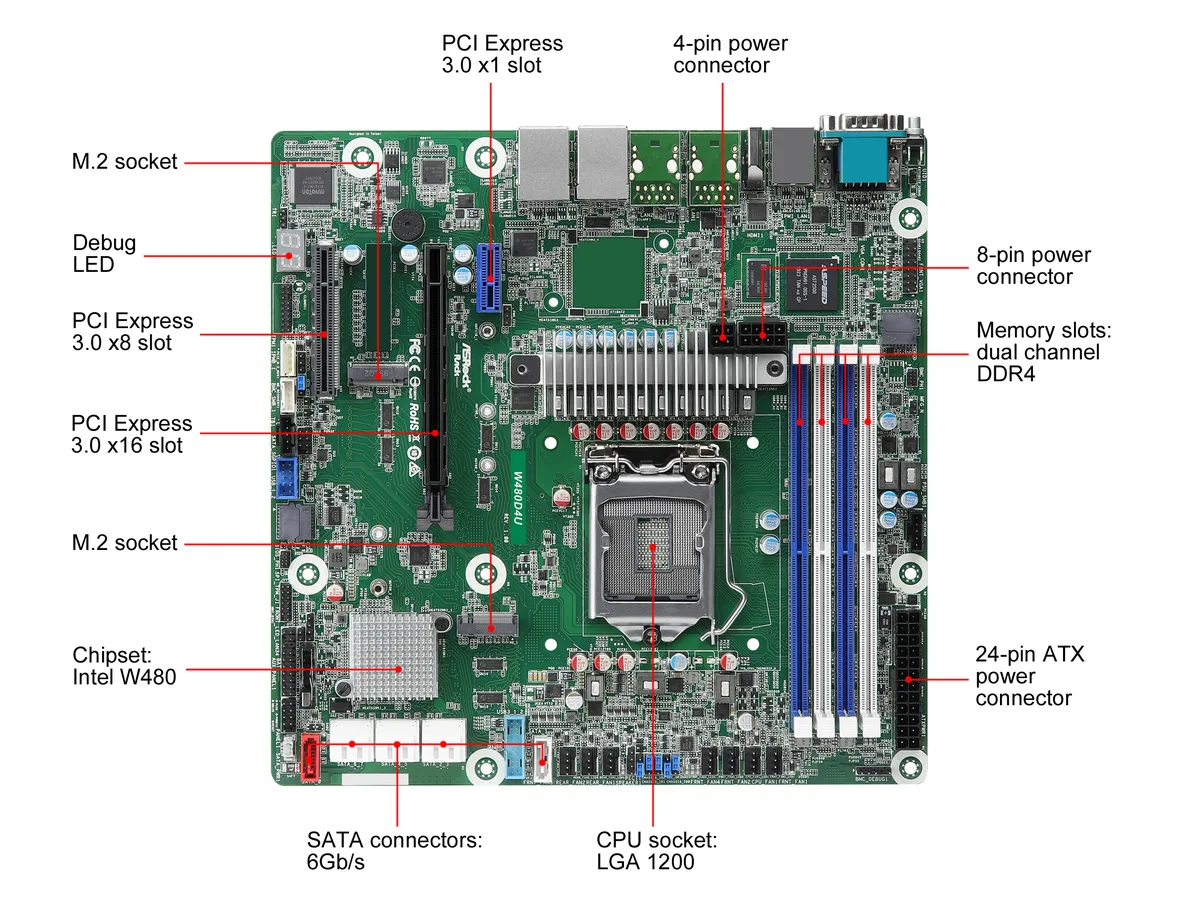

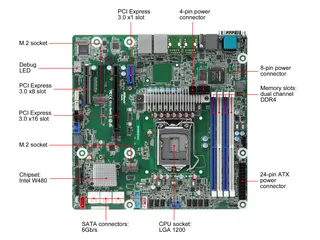

Server board with LGA 1200 socket

The ASRock Rack W480D4U is a micro-ATX server motherboard built around the Intel W480 chipset. It accepts Intel Xeon W-1200 and 10th Generation Intel Core processors in an LGA 1200 socket. Four 288-pin DDR4 slots provide dual-channel memory up to 2933 MHz with ECC support depending on the installed CPU. The board measures 9.6 by 9.6 inches.

Builders needing dense storage and remote management

This board suits builders who want eight SATA 6 Gb/s ports and two PCIe 3.0 x4 M.2 slots in a compact server chassis. Dual 1 GbE LAN ports plus a dedicated IPMI interface handle data and out-of-band management simultaneously. Buyers who require 10 GbE networking, more than three PCIe expansion slots or support for newer processor generations should look elsewhere.

PCIe slot layout decides expansion plans

The primary x16 slot (Slot 6) drops to x8 electrical when the x8 slot (Slot 4) is populated because both connect to the CPU. A third x1 slot (Slot 7) runs from the chipset. This sharing arrangement determines whether a full-length GPU and an additional x8 add-in card can run at full speed together.

Highlights

  • Supports Intel Xeon W-1200 and 10th Gen Core processors
  • Four DDR4 288-pin slots with dual-channel ECC up to 2933 MHz
  • Eight SATA 6Gb/s ports including one SATA DOM connector
  • Two M.2 slots supporting 22110 2280 2260 form factors PCIe 3.0 x4
  • Dual 1GbE LAN via Intel I210 plus dedicated IPMI management

Specifications

BrandAsRock Rack
ModelW480D4U
CPU Socket TypeLGA 1200
CPU TypeSupports Intel Xeon W-1200, Intel 10th Gen Intel Core Processors
North BridgeIntel W480
Number of DDR4 Slots4 x 288-pin
DDR4 Standard2933*/2666/2400 MHz
*2933 MHz support varies by CPU.
Channel SupportedDual Channel
ECC SupportedECC Memory (ECC mode) support varies by CPU.
PCI Express 3.0 x16Slot 6: Gen3 x16 link, auto switch to x8 link if Slot 4 is occupied (Physical x16, EE x16/x8 (from CPU), shared with Slot 4)
PCI Express x8Slot 4: Gen3 x8 link (Physical x8, EE x0/x8 (from CPU), shared with Slot 6)
PCI Express x1Slot 7: Gen3 x1 link (Physical x1, EEx1 (from PCH))
SATA8 x SATA 6Gb/s (SATA0-7, SATA_0 supports SATA DOM)
M.22 (M2_1: 22110/2280/2260, Supports PCIe 3.0(x4); M2_2:2280/2260, Supports PCIe 3.0(x4))
Onboard Video ChipsetAspeed AST2500
LAN ChipsetIntel I210
LAN Speed10/100/1000Mbps
Second LAN ChipsetRTL8211E
Second LAN Speed10/100/1000Mbps

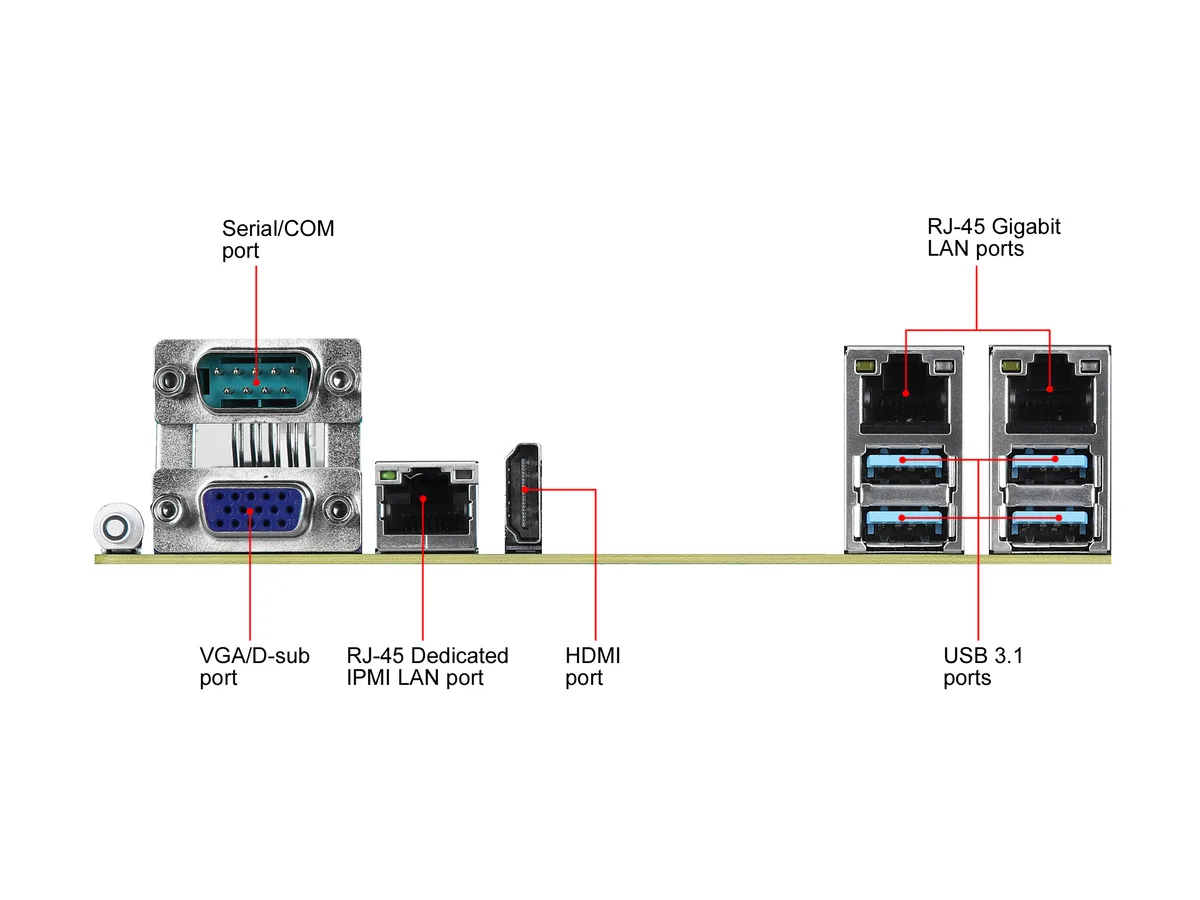

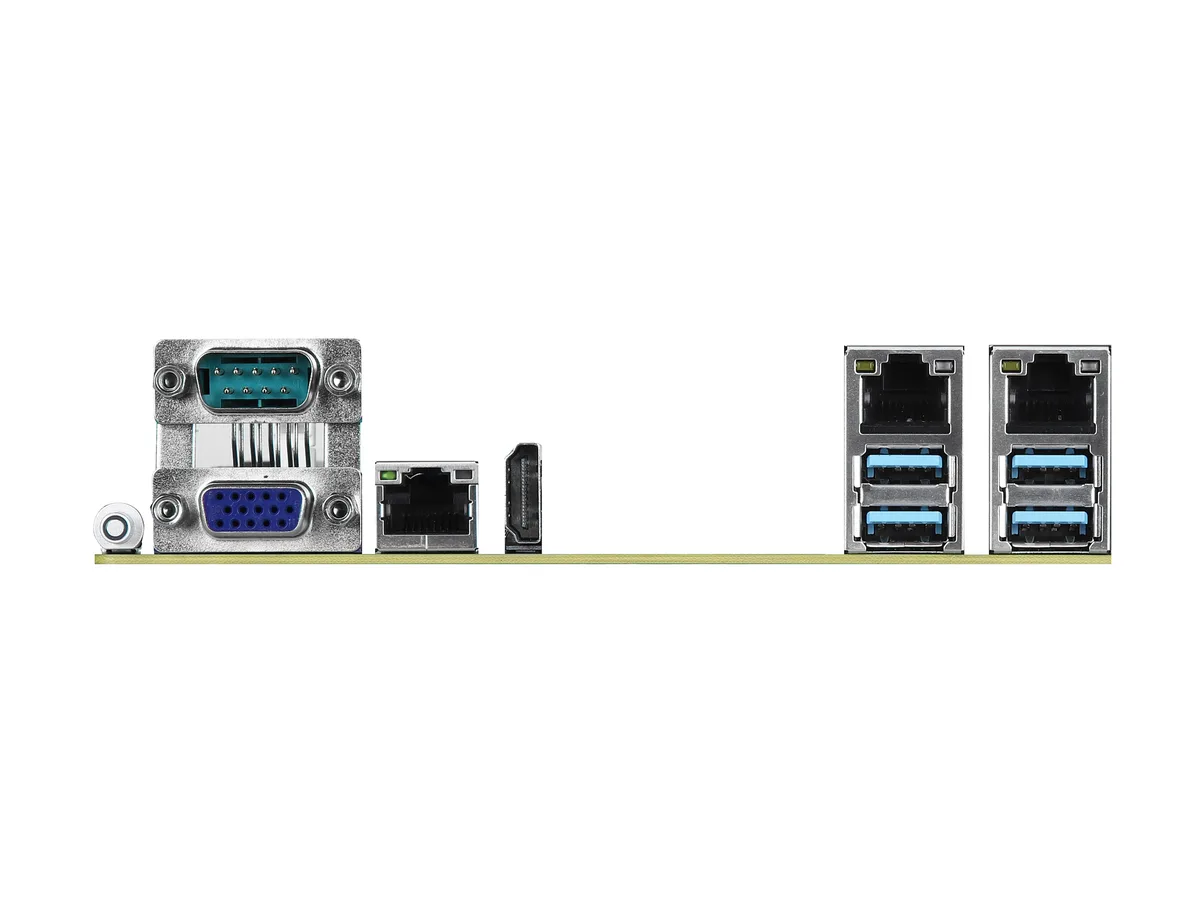

Video Ports1 x HDMI, 1 x D-Sub
RJ453 x RJ45
USB 3.12 x USB 3.1 Gen1 Port Type-A (5Gbps)
2 x USB 3.1 Gen2 Port Type-A (10Gbps)
Other ConnectorsSATA DOM: 1
Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
TPM Header: 1 (17-pin, LPC)*, 1 (13-pin, SPI)
*support LPC interface TPM module by default. Please contact ASRock Rack sales for SPI interface TPM module support.
Thermal Sensor Header: 1
IPMB Header: 1
VGA Header: 1
PMBus CONN: 1
Buzzer: 1
Fan Header: 7 (4-pin)
USB 3.1 (Gen1) Header: 1 (supports 2 USB 3.2 Gen1 ports)
USB 2.0 Header: 1 (supports 2 USB 2.0 ports)
Thunderbolt AIC Connector: 1 (BTO)
System Panel: 1 (9-pin): power switch, reset switch, system power L
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Shipping weight1.20 kg
Package size302 × 283 × 70 mm

Questions about this item

What CPU socket and memory type do I need to populate this motherboard?

The board requires an LGA 1200 processor from the Intel Xeon W-1200 or 10th Gen Intel Core families and four 288-pin DDR4 UDIMMs running at up to 2933 MHz.

Will my existing PCIe 3.0 add-in cards fit the available expansion slots?

The board provides one PCIe 3.0 x16 slot, one PCIe 3.0 x8 slot and one PCIe 3.0 x1 slot; the x16 slot drops to x8 when the x8 slot is occupied.

How can I verify the board is operating correctly after assembly?

Connect a monitor to the HDMI or D-Sub port driven by the Aspeed AST2500 controller; a successful POST screen and IPMI interface confirm basic operation.
