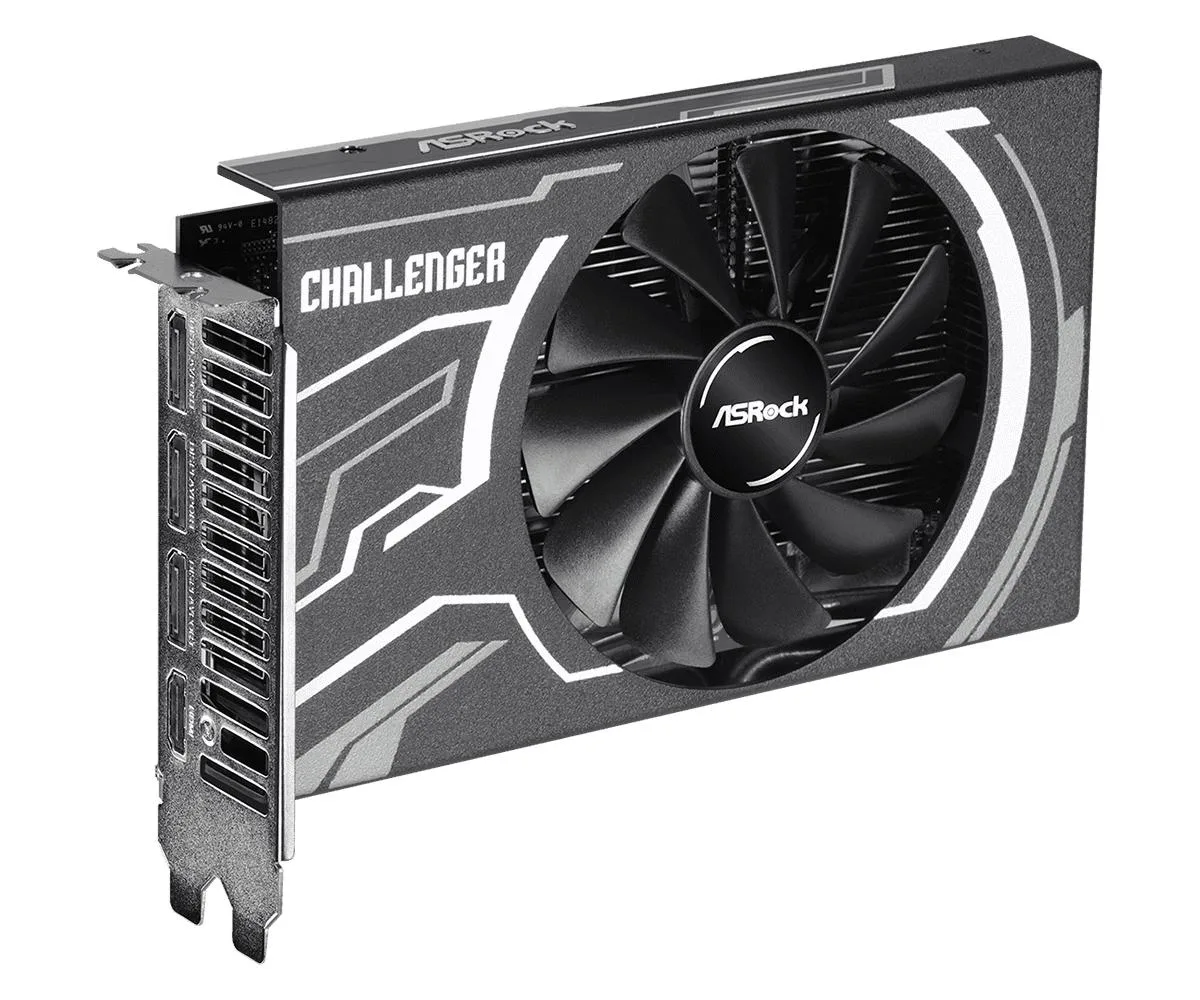

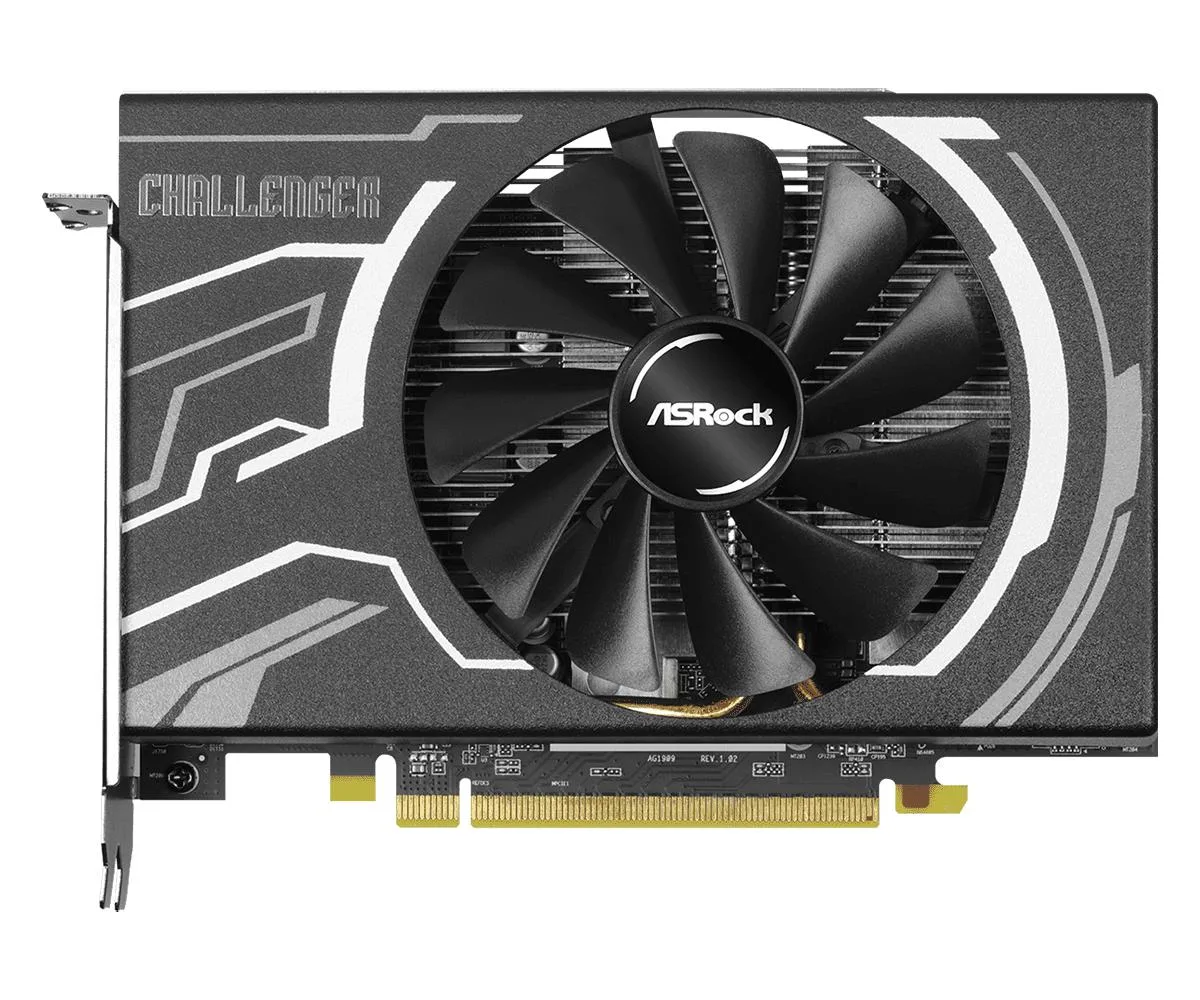

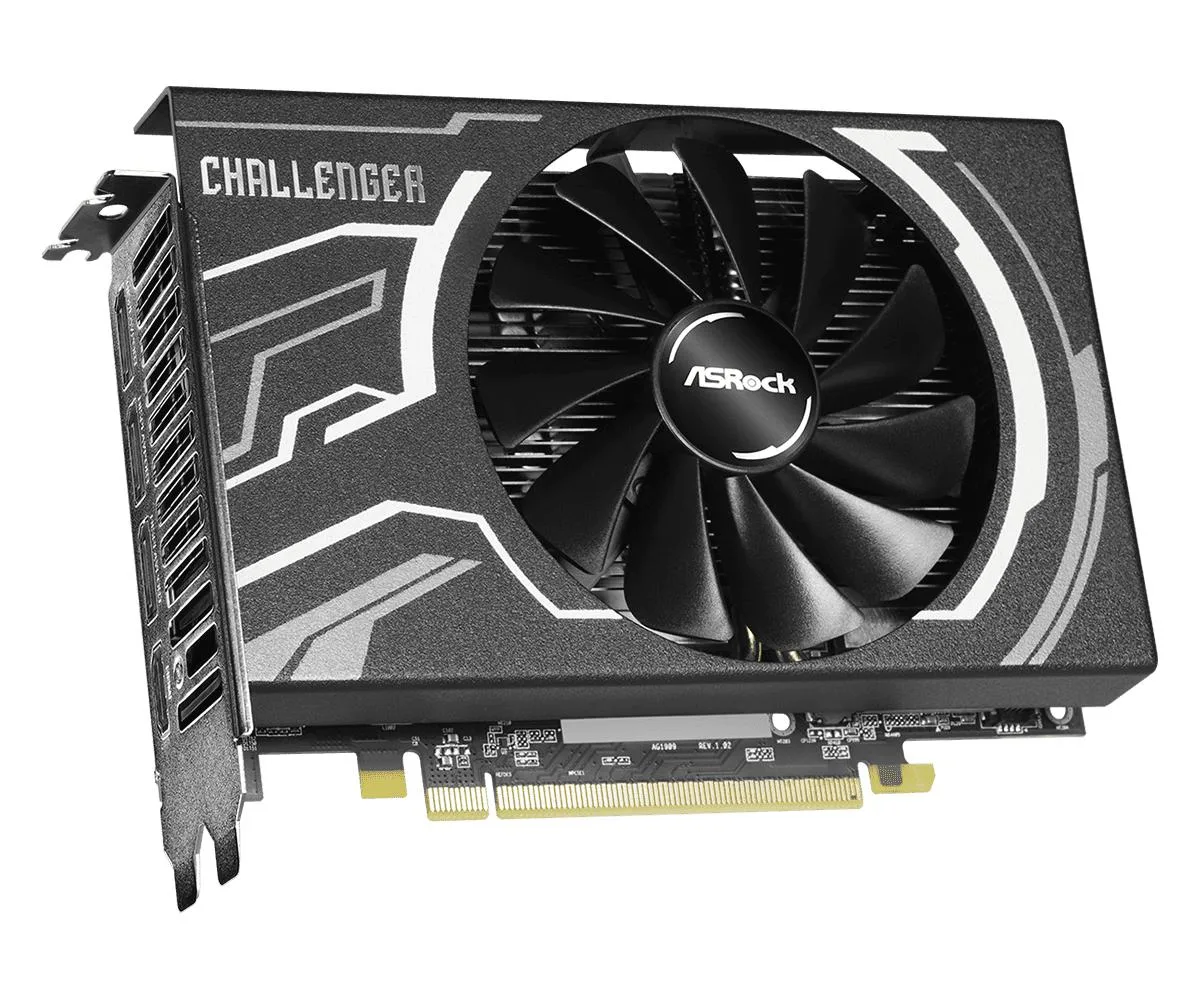

Compact graphics card with single fan and short PCB

ASRock

ASRock Radeon RX 5500 XT Challenger ITX graphics card

SKU CH-G7C2-4S35F

Compact graphics card with 8GB GDDR6 memory, 1408 stream processors and 128-bit bus for small-form-factor builds

  • Memory Size8GB
  • Memory TypeGDDR6
  • Fits small cases with a 178 mm card length
  • Single 10 cm fan keeps temperatures in check
  • 8 GB GDDR6 memory handles modern textures
  • PCI Express 4.0 x8 bus delivers high bandwidth
  • Four displays via one HDMI 2.0 b and three DisplayPort 1.4 outputs

Small-form-factor graphics card

The ASRock Radeon RX 5500 XT Challenger ITX is a compact graphics card built for mini-ITX systems. It uses the RDNA architecture with 1408 stream processors and 8GB of GDDR6 memory on a 128-bit bus. The card measures 190 x 139 x 42 mm with its bracket and 178 x 124 x 36 mm without. A single 10 cm fan handles cooling for the 845 MHz base / 14 Gbps memory configuration.

PCIe 4.0 x8 buyers needing four-display output

This card suits builders using a PCIe 4.0 x8 slot and a 500 W power supply who want up to four monitors via one HDMI 2.0b and three DisplayPort 1.4 connectors. It supports 8K HDR at 60 Hz, DirectX 12 and OpenGL 4.6. Users requiring more memory bandwidth, dual 8-pin power or a full-height bracket should consider other models.

Straightforward 8-pin installation

Installation requires a single 8-pin power connector and a standard PCIe x16 slot wired for x8 operation. The low-profile bracket fits tight chassis clearances. Common issues include forgetting the supplementary power cable, exceeding the 500 W system budget, or driver conflicts when upgrading from an older Radeon generation.

Highlights

  • Fits small cases with a 178 mm card length
  • Single 10 cm fan keeps temperatures in check
  • 8 GB GDDR6 memory handles modern textures
  • PCI Express 4.0 x8 bus delivers high bandwidth
  • Four displays via one HDMI 2.0 b and three DisplayPort 1.4 outputs

Specifications

Memory Size8GB
Memory TypeGDDR6

Questions about this item

Does this card need a separate 8-pin power cable from my PSU?

Yes, the card draws power through one 8-pin connector and ASRock recommends a 500W supply.

Will it run at full speed in a PCIe 3.0 slot on my older motherboard?

The card uses a PCIe 4.0 x8 interface and will operate at PCIe 3.0 speeds when installed in a 3.0 slot.

How can I verify the card is hitting its 1845 MHz boost clock in games?

Monitor the GPU frequency with Radeon Software or a third-party overlay; it should report up to 1845 MHz under load.
