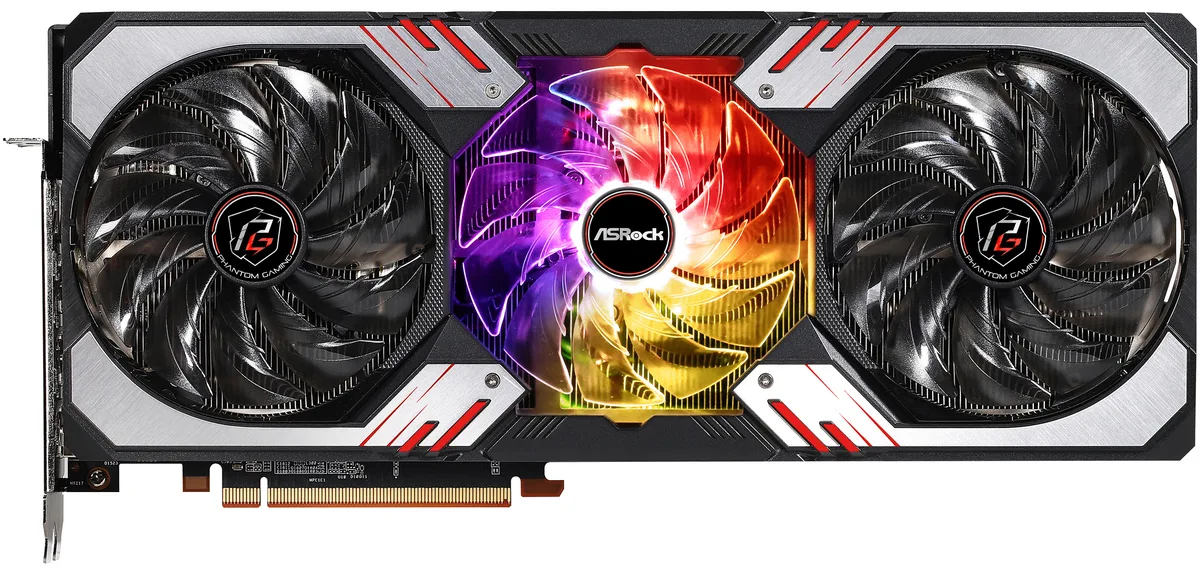

ASRock Radeon RX 6800 XT Phantom Gaming D graphics card, triple-fan cooler, metal backplate, 2.8-slot ATX form factor

ASRock

ASRock RX6800XT PGD 16GO graphics card

SKU CH-MA9N-9XJBM MPN RX6800XT PGD 16GO

Refurbished Radeon RX 6800 XT with 16GB GDDR6, 4608 stream processors, boost clock 2310 MHz, triple-fan cooler, HDMI 2.1 VRR and three DisplayPort 1.4 outputs

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6800 XT
  • Core Clock1875 MHz
  • Boost Clock2310 MHz
  • 16GB GDDR6 memory at 16 Gbps fuels high-resolution textures
  • 4608 stream processors on AMD RDNA 2 architecture deliver strong compute performance
  • Boost clock reaches 2310 MHz for responsive gaming frame rates
  • HDMI 2.1 VRR plus three DisplayPort 1.4 outputs drive four 8K displays
  • Triple-fan Phantom Gaming 3X cooler with 0dB silent mode keeps thermals in check

Phantom Gaming D 16GB graphics card

The ASRock Radeon RX 6800 XT Phantom Gaming D is a refurbished ATX graphics card with 16GB GDDR6 memory on a 256-bit interface. It targets enthusiasts who want high-frame-rate gaming at 1440p or entry-level 4K. The board uses the AMD RDNA 2 GPU with 4608 stream processors and a PCI Express 4.0 x16 connection.

Sustained load behaviour with 300W TDP

Under continuous load the card draws up to 300W through three 8-pin power connectors, so an 800W power supply is recommended. The Phantom Gaming 3X cooling system uses three striped axial fans and a reinforced metal frame to move heat away from the GPU. A 0dB silent mode stops the fans completely when temperatures are low, reducing noise during lighter workloads.

Compatibility checks before ordering

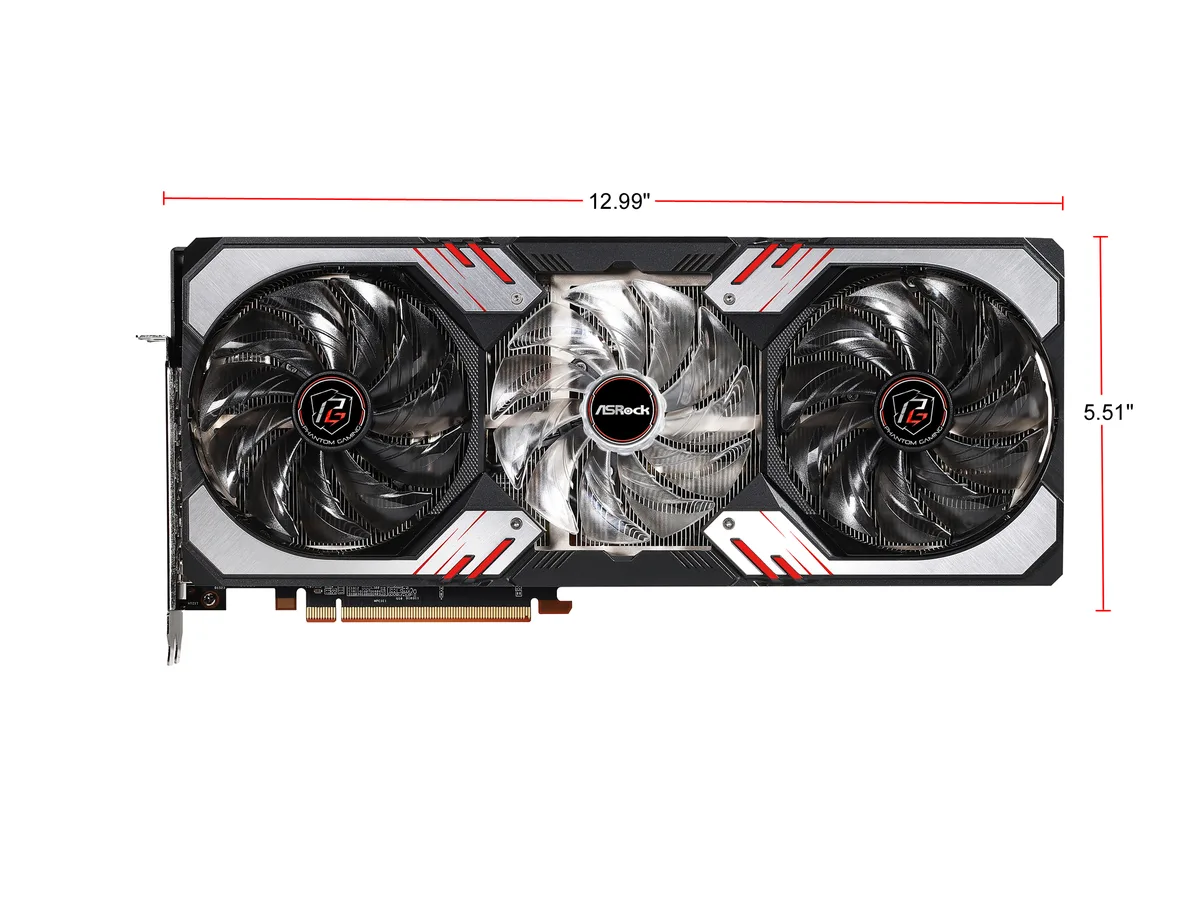

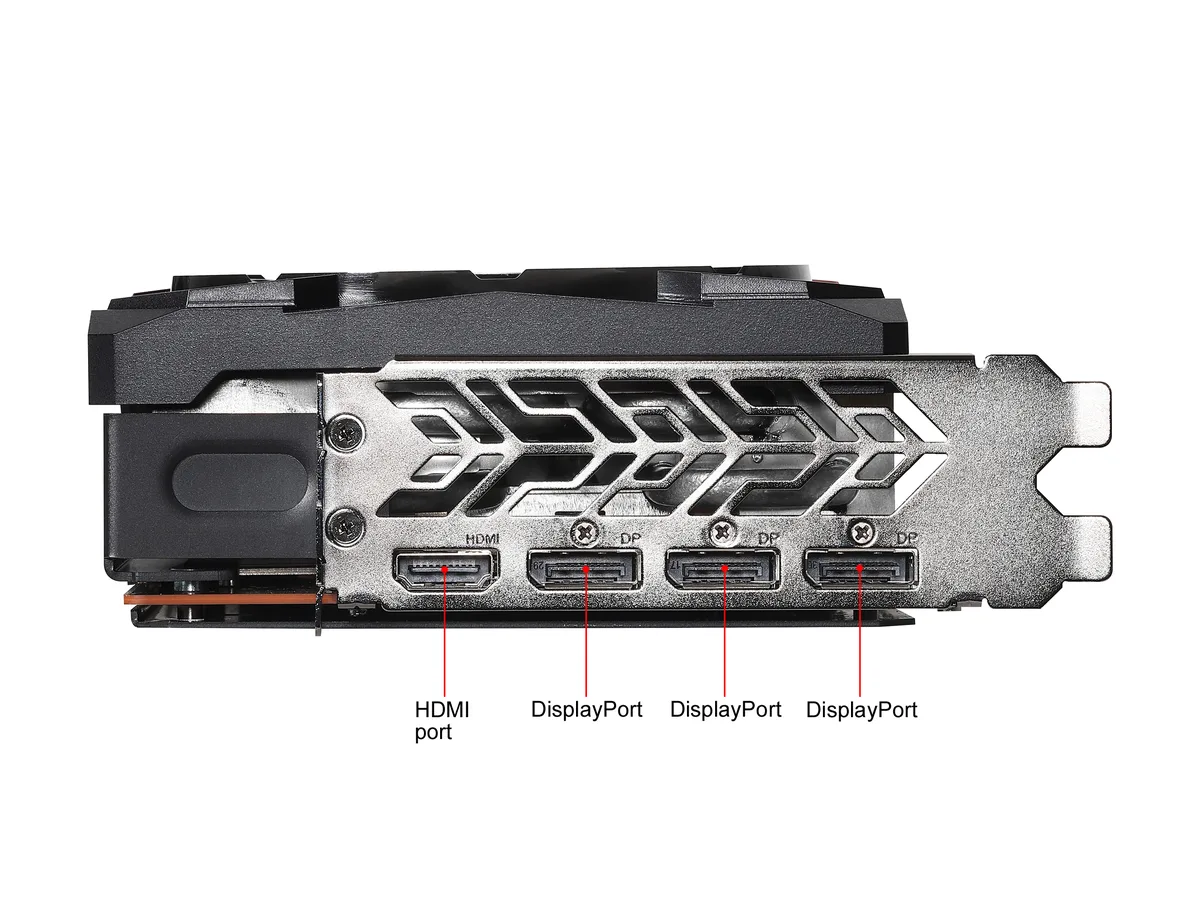

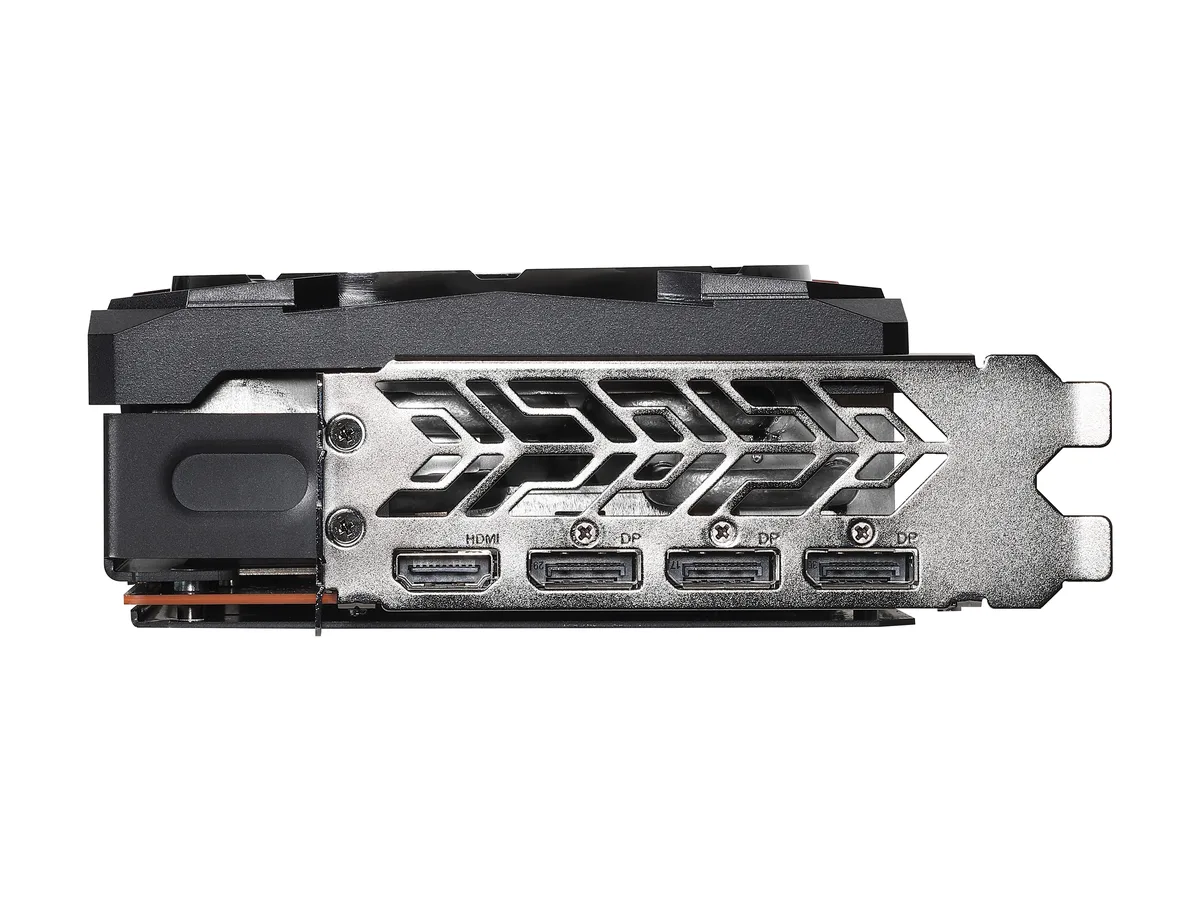

Verify that your case can fit a 330mm long card that occupies 2.8 slots and measures 12.99 by 5.51 inches. Ensure the motherboard has a free PCI Express 4.0 x16 slot and that the power supply provides three 8-pin PCIe connectors. The rear bracket offers one HDMI 2.1 VRR port and three DisplayPort 1.4 with DSC outputs for up to four monitors at 7680 x 4320 resolution.

Highlights

  • 16GB GDDR6 memory at 16 Gbps fuels high-resolution textures
  • 4608 stream processors on AMD RDNA 2 architecture deliver strong compute performance
  • Boost clock reaches 2310 MHz for responsive gaming frame rates
  • HDMI 2.1 VRR plus three DisplayPort 1.4 outputs drive four 8K displays
  • Triple-fan Phantom Gaming 3X cooler with 0dB silent mode keeps thermals in check

Specifications

BrandASRock
SeriesPhantom Gaming D
ModelRX6800XT PGD 16GO
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6800 XT
Core Clock1875 MHz
Boost Clock2310 MHz
Stream Processors4608
Effective Memory Clock16 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1 VRR
DisplayPort3 x DisplayPort 1.4 with DSC
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power300W
System RequirementsRecommended PSU - 800W
Recommended PSU Wattage800W
Power Connector3 x 8-Pin
HDCP ReadyYes
FeaturesPolychrome SYNC
Phantom Gaming 3X Cooling System
Striped Axial Fan
Reinforced Metal Frame
Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card
Form FactorATX
Max GPU Length330 mm
Card Dimensions (L x H)12.99" x 5.51"
Slot Width2.8-slot
Shipping weight2.63 kg
Package size425 × 248 × 140 mm

Questions about this item

How loud and hot does the Phantom Gaming 3X cooling system run with its 300W thermal design power during all-day loads?

The triple-fan design includes 0dB silent cooling that stops the fans at low temperatures, while the striped axial fans and reinforced metal frame move heat off the 300W GPU through a 2.8-slot heatsink.

What power supply and connectors must my system already have to run this card?

An 800W PSU with three 8-pin PCIe power cables is required to feed the 300W board power.

Will the PCI Express 4.0 x16 interface and 330mm length work in my older ATX case and motherboard?

The card fits a standard ATX slot and needs 330mm clearance; it runs at PCIe 4.0 speeds but is backward compatible with PCIe 3.0 motherboards.
