ASRock Taichi Radeon RX 9070 XT graphics card in grey with triple fans and three-slot ATX form factor

ASRock

ASRock RX9070XT TC 16GO graphics card

SKU CH-V7X7-3CPS7 MPN RX9070XT TC 16GO

Radeon RX 9070 XT GPU with 16 GB GDDR6 memory on a 256-bit bus and a boost clock up to 3100 MHz

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9070 XT
  • ArchitectureRDNA 4
  • Game Clock2570 MHz

Option Taichi

Struck-through versions exist but are not stocked here.

Edition RX 9070 XT

Struck-through versions exist but are not stocked here.

  • 16 GB GDDR6 memory on a 256-bit bus for high-resolution textures
  • Boost clock up to 3100 MHz with 4096 stream processors for demanding workloads
  • PCI Express 5.0 x16 interface for maximum host bandwidth

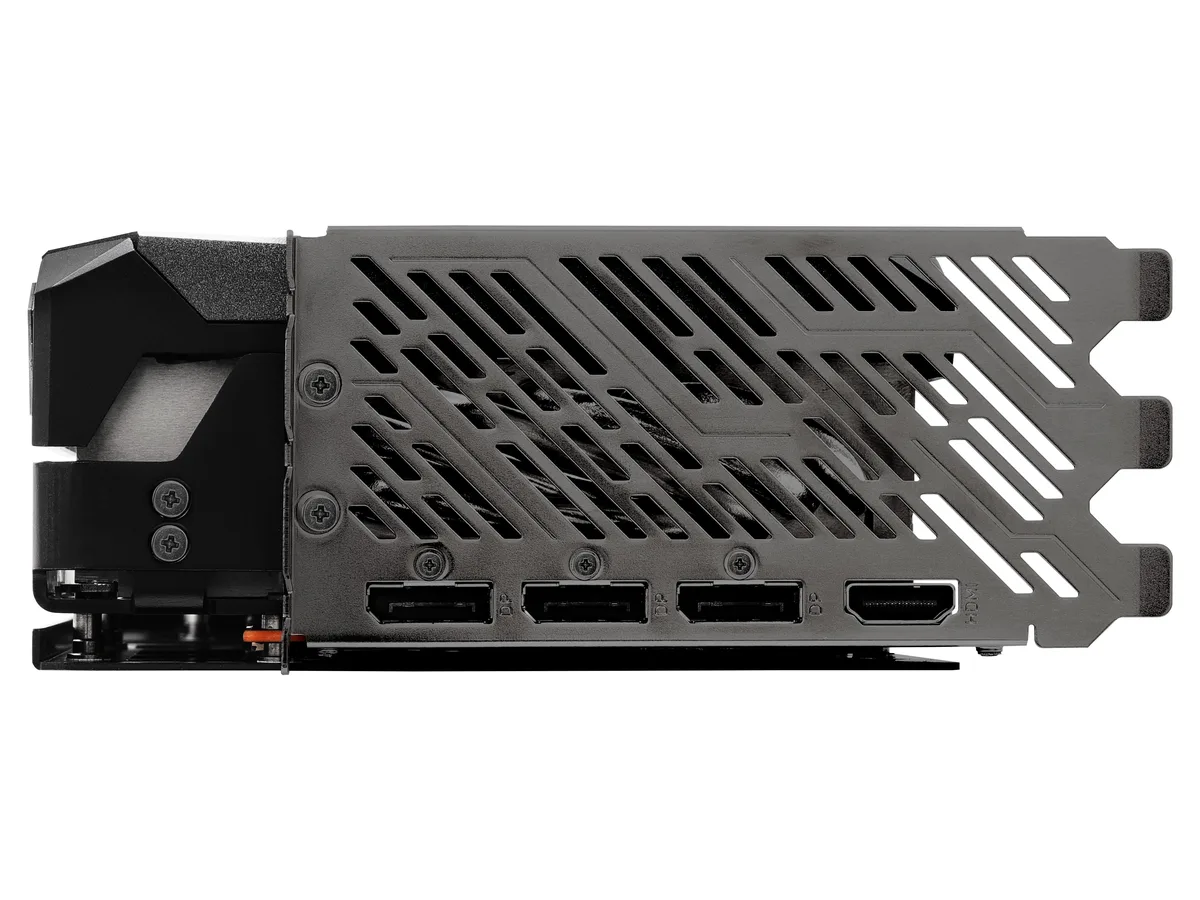

  • HDMI 2.1b and three DisplayPort 2.1a outputs driving four displays at 7680 x 4320
  • Triple-fan cooler on a 330 mm ATX card with 304 W TDP and 850 W PSU recommendation

Taichi RX 9070 XT overview

The ASRock Taichi RX 9070 XT is a PCI Express 5.0 x16 graphics card built on AMD RDNA 4 architecture with 4096 stream processors and 16GB of 256-Bit GDDR6 memory. It targets enthusiasts who need high frame rates at 4K and compute headroom for content creation. A game clock of 2570 MHz and boost clock up to 3100 MHz deliver strong raster and ray-tracing performance. The 20 Gbps effective memory clock supports large textures and high-resolution assets.

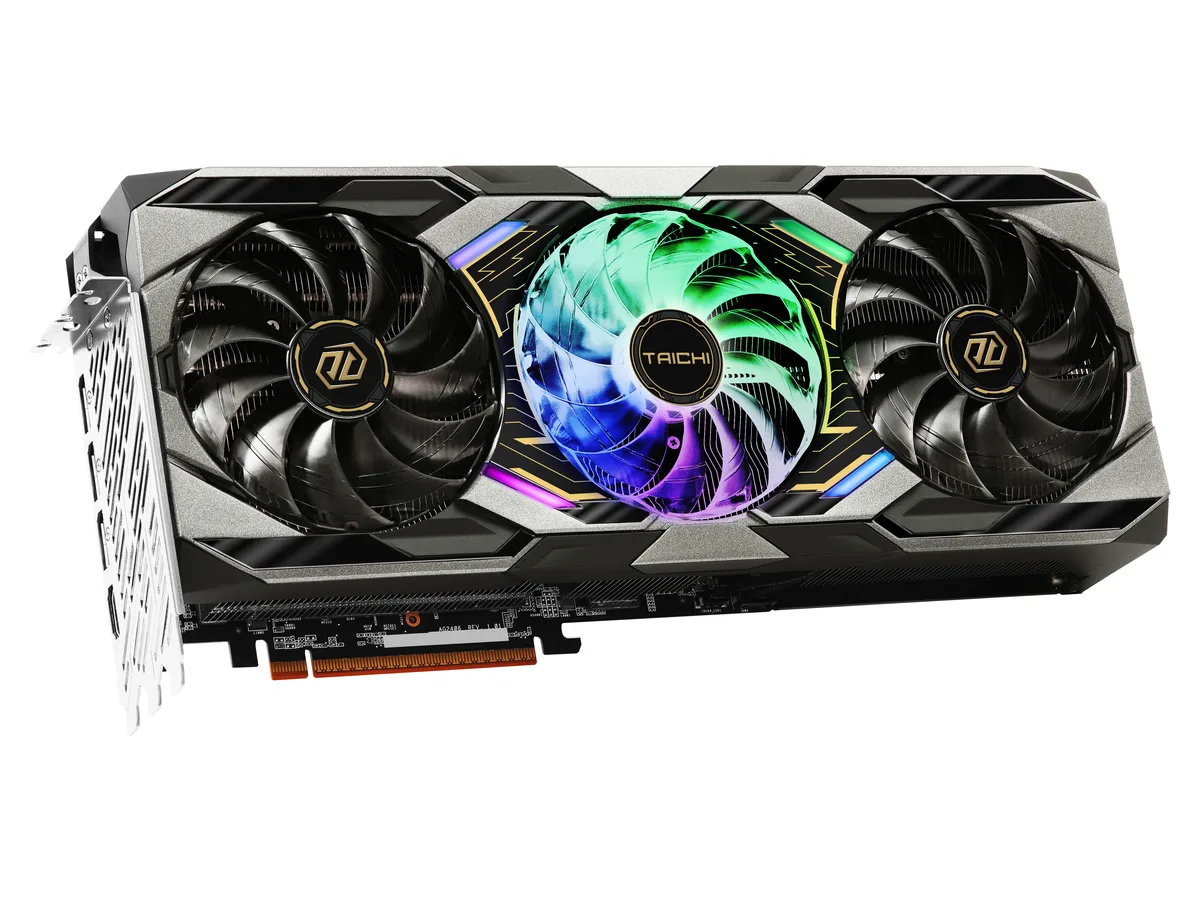

304 W TDP and triple-fan cooling

Thermal design power is rated at 304 W with a recommended 850 W power supply and a single 12V-2x6 connector. The triple-fan cooler dissipates heat across a 330 mm long ATX board that occupies three slots. Under typical gaming loads the fans spin up to manage the 304 W envelope while keeping acoustic output in check. Power draw scales with the 3100 MHz boost ceiling and 20 Gbps memory interface.

Stand cable guide and quick install

The package includes a graphics card stand to prevent PCB sag in the 330 mm form factor, a 16-pin to triple 8-pin adapter cable for PSUs without a native 12V-2x6 connector, and a quick installation guide. The stand braces the rear corner of the card inside the case while the adapter ensures compatibility with existing power supplies. No additional software utilities are bundled beyond standard AMD drivers.

Highlights

  • 16 GB GDDR6 memory on a 256-bit bus for high-resolution textures
  • Boost clock up to 3100 MHz with 4096 stream processors for demanding workloads
  • PCI Express 5.0 x16 interface for maximum host bandwidth
  • HDMI 2.1b and three DisplayPort 2.1a outputs driving four displays at 7680 x 4320
  • Triple-fan cooler on a 330 mm ATX card with 304 W TDP and 850 W PSU recommendation

Specifications

BrandASRock
SeriesTaichi
ModelRX9070XT TC 16GO
Part NumberRX9070XT TC 16GO
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9070 XT
ArchitectureRDNA 4
Game Clock2570 MHz
Boost ClockUp to 3100 MHz
Stream Processors4096
Effective Memory Clock20000 MHz (20 Gbps)
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1a
ColorGray
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power304W
Recommended PSU Wattage850W
Power Connector1 x 12V-2x6-pin
HDCP ReadyYes
Form FactorATX
Max GPU Length330 mm
Card Dimensions (L x H)330 x 140 x 61mm
Slot Width3 Slots
Package Contents1 x Quick Installation Guide
1 x 16Pin to 3x8 Pin Power Cable
1 x Graphics Card Stand
Shipping weight2.20 kg
Package size413 × 241 × 114 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the ASRock RX9070XT TC 16GO and which step is often missed?

Seat the 330 mm, 3-slot card into a PCI Express 5.0 x16 slot, attach the included 16-pin to 3x8-pin cable to the single 12V-2x6 connector, secure the bundled graphics card stand to prevent sag, then install drivers.

What maintenance or replacement will this card need later?

Clean dust from the triple-fan cooler and heatsink fins periodically to maintain the 304W thermal design power limit; the 16GB GDDR6 memory and GPU are not user-serviceable.

What limit appears first during sustained heavy use?

The 304W thermal design power ceiling is reached before the 12V-2x6 connector or 850W PSU recommendation become bottlenecks, causing clocks to throttle back from the 3100 MHz boost.
