ASRock RX9070XT TCW 16GO graphics card

ASRock Radeon RX 9070 XT 16GB graphics card

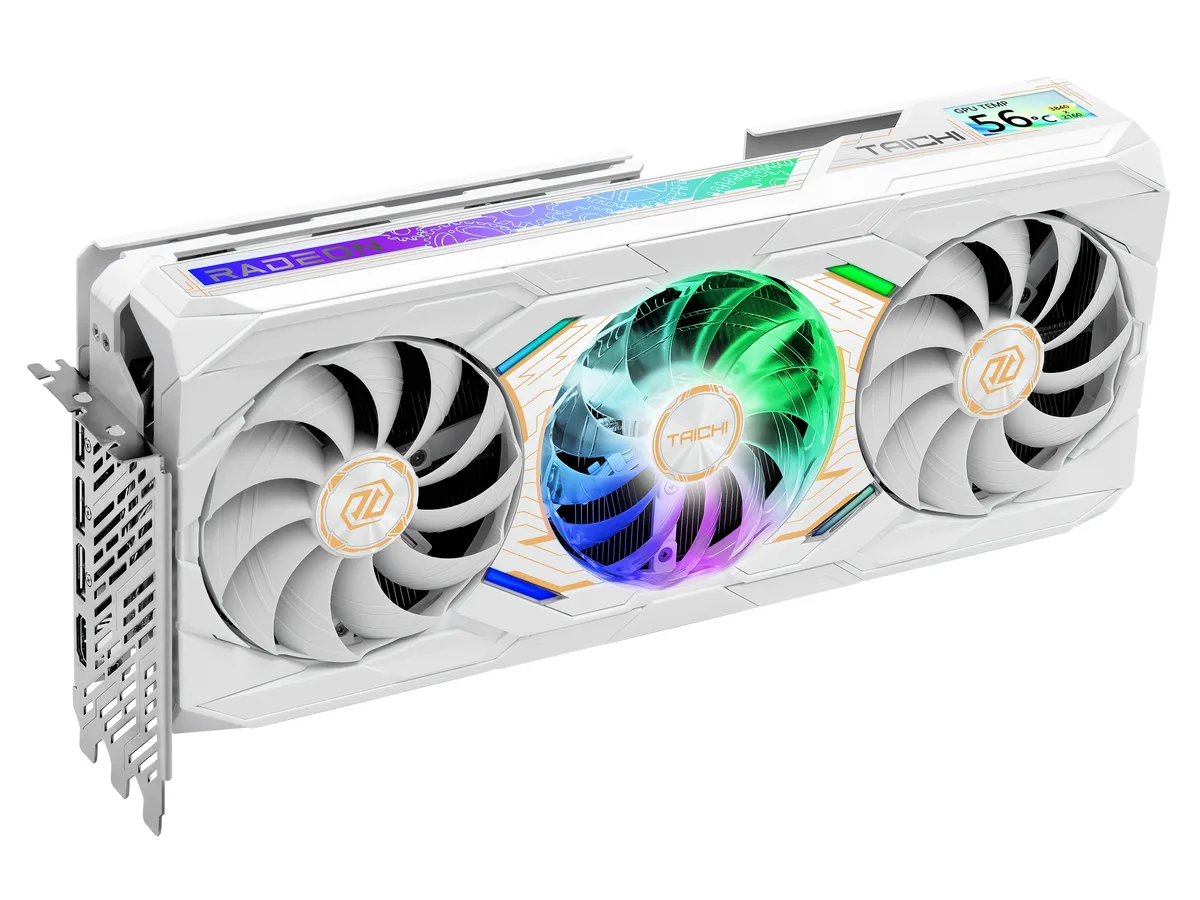

The ASRock Radeon RX 9070 XT Taichi is a 16GB graphics card built on the RDNA 4 architecture. It targets enthusiasts who need high frame rates at 4K resolution and want headroom for future titles. The 256-bit GDDR6 memory runs at 20 Gbps, feeding 4096 stream processors. A game clock of 2570 MHz and a boost clock up to 3100 MHz keep throughput consistent in heavy scenes.

PCI Express 5.0 x16 installation and 12V-2x6 power

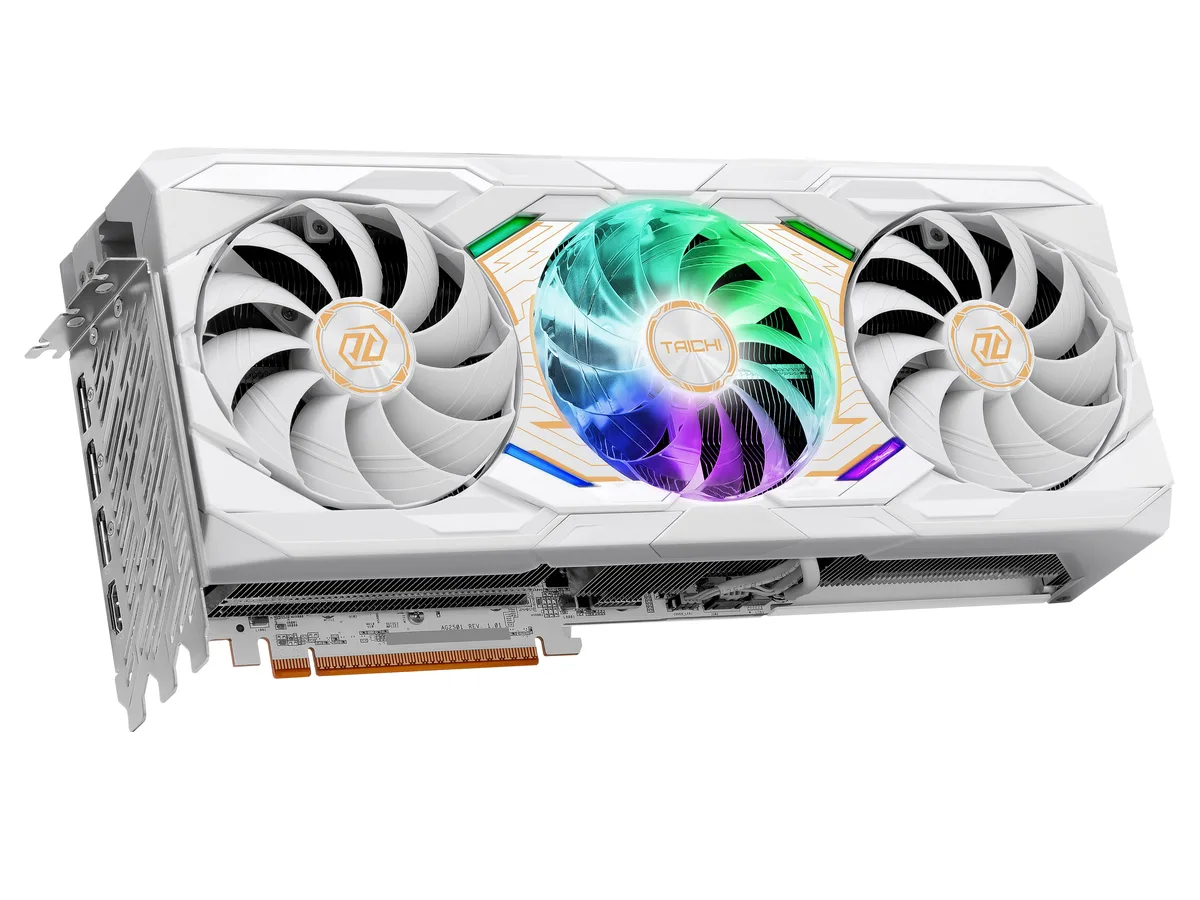

The card uses a standard PCI Express 5.0 x16 slot and draws auxiliary power through a single 12V-2x6 connector. A triple-fan cooler occupies three expansion slots and extends to 330 mm, so verify case clearance before fitting. The manufacturer recommends an 850 W power supply to sustain the GPU and the rest of the system. No low-profile bracket is included, limiting use to full-height chassis.

16GB GDDR6 capacity for 4K and 8K workloads

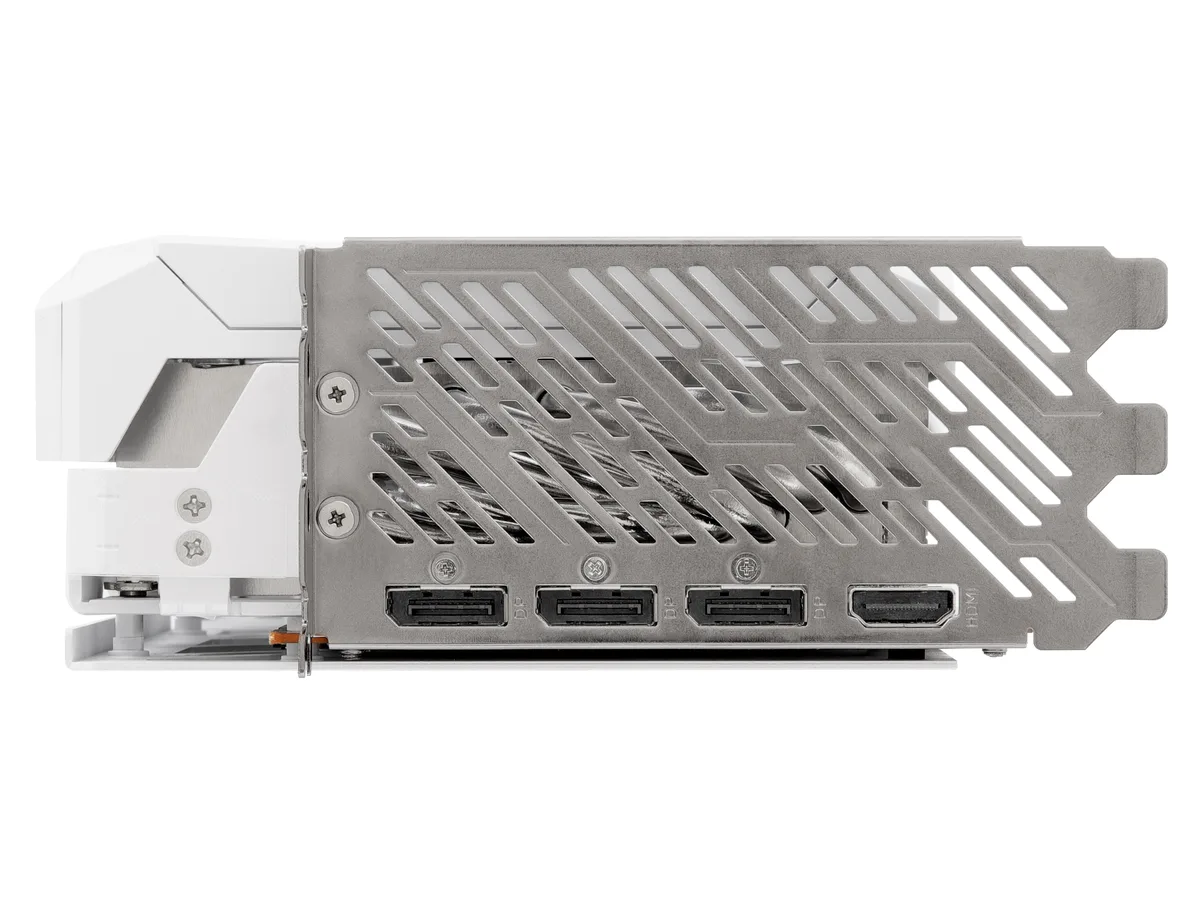

The 16 GB frame buffer handles modern 4K gaming with high texture settings and supports a maximum digital resolution of 7680 x 4320. Display outputs comprise one HDMI 2.1b and three DisplayPort 2.1a ports, enabling up to four simultaneous monitors. In compute tasks that exceed 16 GB of VRAM, the driver will spill to system memory, reducing performance. The 256-bit bus and 20 Gbps memory clock keep bandwidth high for rasterisation and ray-tracing workloads.
