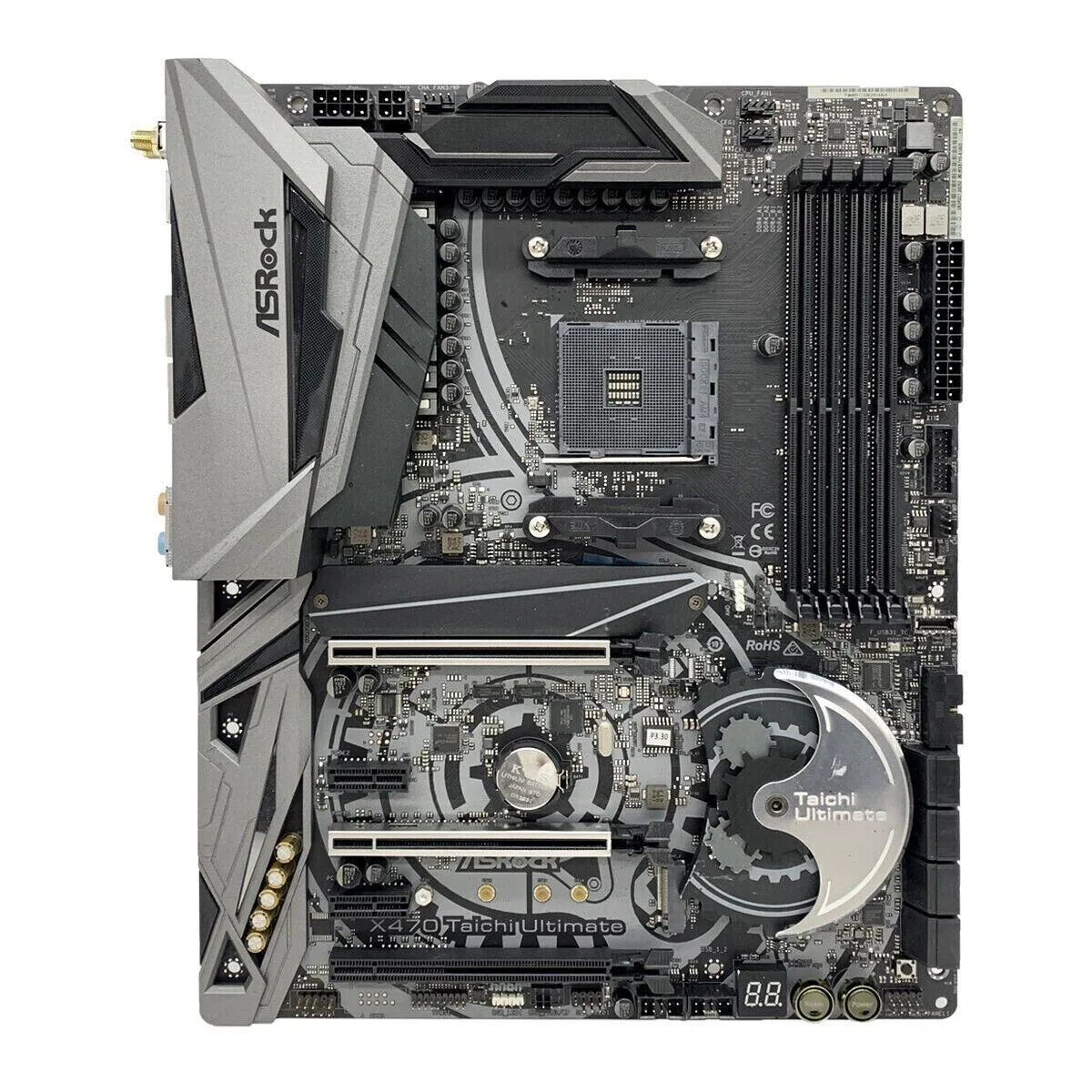

ATX motherboard in metallic grey with gear-patterned heatsinks and rear I/O shield

ASRock

ASRock X470 Taichi Ultimate AMD motherboard

SKU CH-DDPF-RB4G0

ATX AMD X470 board for Ryzen 2000 to 5000 G-Series CPUs with DDR4 3466 OC, 16 power phases, 10 Gigabit LAN, Intel Gigabit LAN, 7.1 audio, 8 SATA3, dual M.2, 13 USB 3.1 ports

  • CPU Socket TypeAM4
  • CPU TypeRyzen 5000 Series
  • Supports Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series desktop processors
  • DDR4 memory up to 3466 (OC) for high-speed performance
  • 16 power phase design capable of providing extra 300W for CPU
  • 10 Gigabit LAN plus Intel Gigabit LAN and Intel 802.11ac + BT 4.2 connectivity
  • 1 CH HD Audio with Realtek ALC1220, Purity Sound 4 and DTS Connect

AM4 socket with 16-phase power

The board fits AMD AM4 processors from the Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series families. A 16-phase digital PWM design is rated to supply an extra 300W to the CPU, and the Hyper BCLK Engine II adds base-clock tuning headroom. Builders who need a newer socket or a different chipset must look elsewhere.

PCIe 3.0 and Gen 3 M.2 limits

Two full-length slots run at PCIe 3.0 x16 while a third operates at PCIe 2.0 x16, and two more x1 slots use PCIe 2.0. The primary M.2 socket connects through PCIe Gen3 x4 or SATA3; the second M.2 socket is limited to PCIe Gen2 x4. Systems that require PCIe 4.0 bandwidth or more than two M.2 drives at Gen3 speed cannot be satisfied here.

64 GB DDR4 ceiling

Four DIMM slots support dual-channel DDR4 up to 64 GB total, with validated speeds including 3466+ (OC), 3200, 2933, 2667, 2400 and 2133 depending on the installed processor. Memory controllers on Ryzen 2000 through 5000 G-Series CPUs determine the actual ceiling. Users who need more than 64 GB or a different memory type cannot use this board.

Highlights

  • Supports Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series desktop processors
  • DDR4 memory up to 3466 (OC) for high-speed performance
  • 16 power phase design capable of providing extra 300W for CPU
  • 10 Gigabit LAN plus Intel Gigabit LAN and Intel 802.11ac + BT 4.2 connectivity
  • 1 CH HD Audio with Realtek ALC1220, Purity Sound 4 and DTS Connect

Specifications

CPU Socket TypeAM4
CPU TypeRyzen 5000 Series

Questions about this item

Should I pick the 64 GB DDR4 limit or plan for a smaller kit?

The board has four DDR4 slots and supports up to 64 GB total, so a 2 × 16 GB kit leaves room to double later while a 4 × 16 GB kit fills every slot at once.

What does the DDR4 3466+ (OC) figure mean once the board is built?

It shows the highest memory speed the board can reach when overclocked; actual speed depends on the CPU — Ryzen 5000 and 3000 series officially top out at 3200, while older Summit Ridge and Pinnacle Ridge chips can push higher with manual tuning.

How fast is the 10 Gigabit LAN in practice?

The AQUANTIA / Marvell controller provides a 10 Gbps wired link, so real-world throughput is limited by the switch, cabling and client hardware rather than the motherboard itself.
