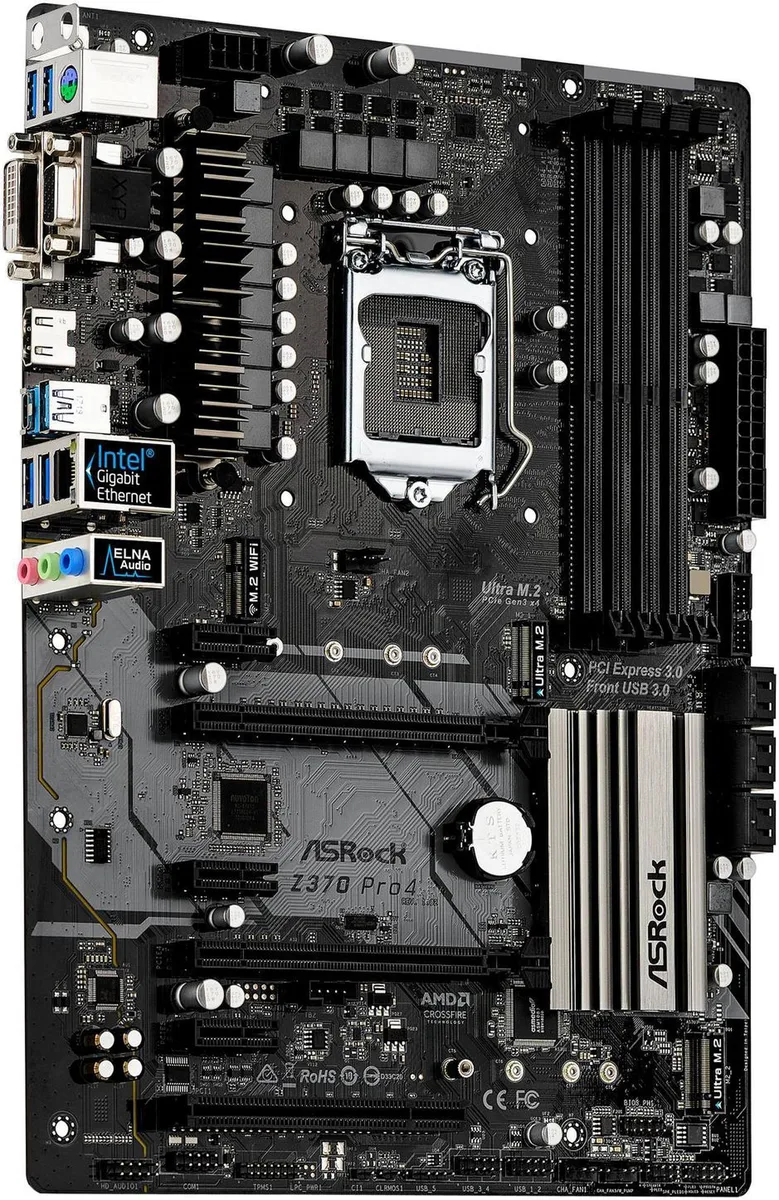

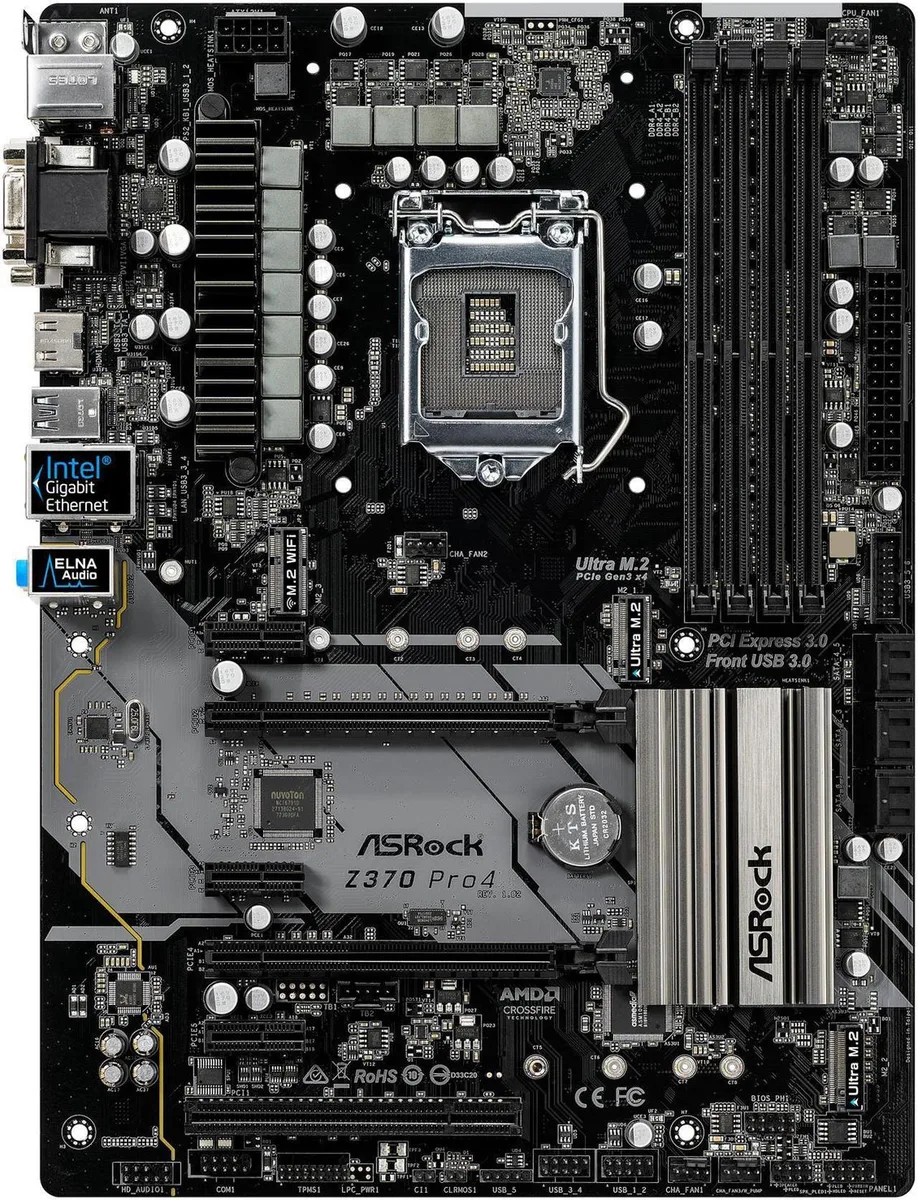

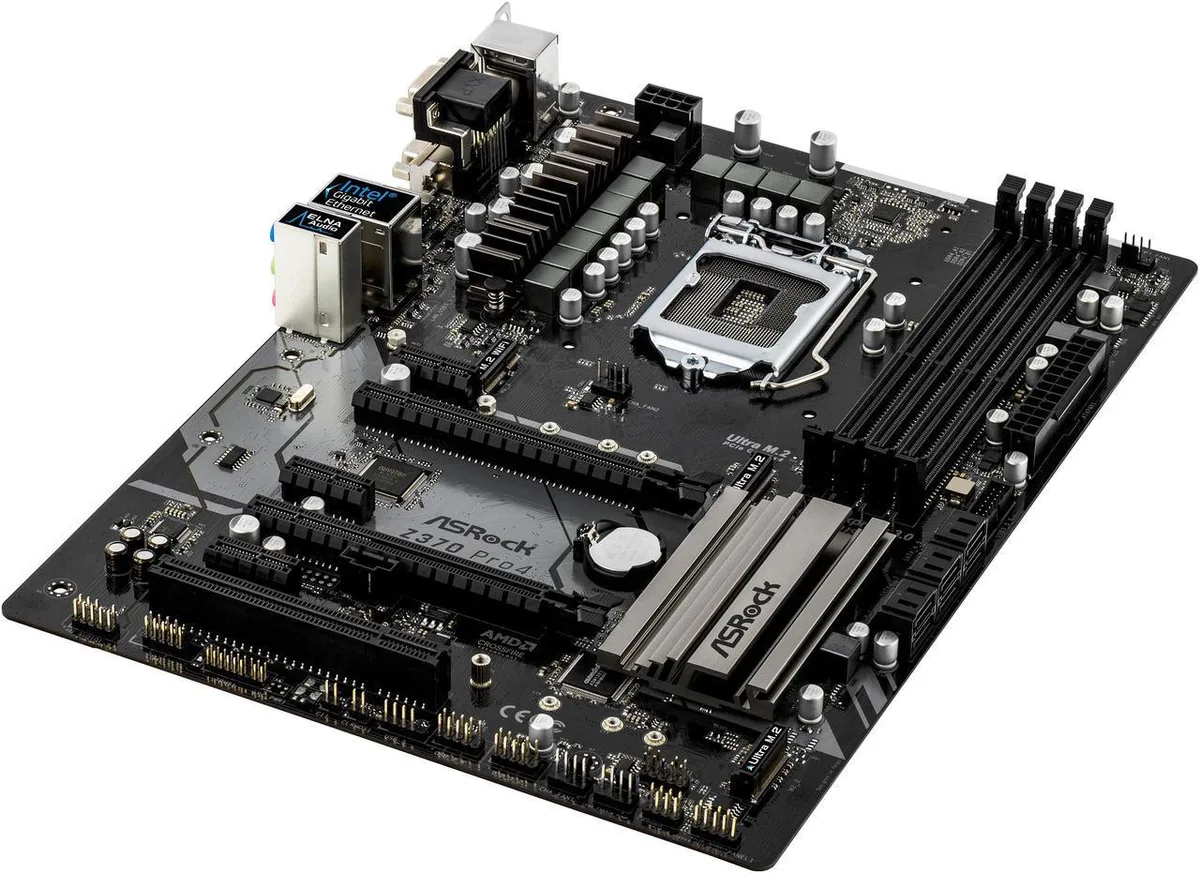

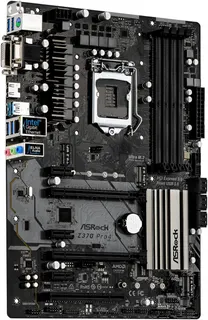

Rectangular ATX motherboard with dark PCB and silver heatsinks

ASRock

ASRock Z370 Pro4 Intel motherboard

SKU CH-7QE7-T6ZJM

Supports 8th Gen Intel Core CPUs on LGA 1151 socket with DDR4 memory up to 4266 OC and dual M.2 NVMe slots

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupports 8th Generation Intel Core Processors, and Intel Pen
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel Z370
  • Onboard Video ChipsetIntel UHD Graphics Built-in Visuals and the VGA outputs can
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 8th Gen Intel Core CPUs via LGA 1151 socket
  • DDR4 memory up to 4266 MHz overclocked across four slots
  • Dual Ultra M.2 sockets with PCIe Gen3 x4 speed
  • Six SATA3 ports plus RAID 0 1 5 10 support
  • Realtek ALC892 delivers 7.1 channel high-definition audio

Intel Z370 ATX board for 8th Gen Core

The ASRock Z370 Pro4 uses the LGA 1151 (300 Series) socket and Intel Z370 chipset to support 8th Generation Intel Core, Pentium and Celeron processors. It is not backward compatible with older LGA 1151 CPUs. Four 288-pin DDR4 slots provide dual-channel memory up to 64 GB.

Sustained-load behaviour with PCIe 3.0 layout

Two PCI Express 3.0 x16 slots run at x16 and x4 modes, while three x1 slots and one PCI slot remain available. If the PCIe x4 slot or PCI slot is occupied, the second x16 slot drops to x2 mode. Two Ultra M.2 sockets accept M-key 2230 to 2280 modules at Gen3 x4 speeds and support Intel Optane Technology. Six SATA3 6.0 Gb/s ports offer RAID 0, 1, 5, 10, though SATA ports can be disabled when M.2 SATA devices are installed.

Thermals noise and power in normal use

The board relies on standard ATX power delivery and case airflow for cooling the Z370 chipset and voltage regulators. Realtek ALC892 provides 7.1-channel audio without adding active cooling. Onboard video outputs function only with processors that include integrated graphics, leaving discrete GPU thermal management to the graphics card itself. No fan headers or radiator specifications are provided in the data.

Highlights

  • Supports 8th Gen Intel Core CPUs via LGA 1151 socket
  • DDR4 memory up to 4266 MHz overclocked across four slots
  • Dual Ultra M.2 sockets with PCIe Gen3 x4 speed
  • Six SATA3 ports plus RAID 0 1 5 10 support
  • Realtek ALC892 delivers 7.1 channel high-definition audio

Specifications

BrandASRock
ModelZ370 Pro4
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151
* Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel Z370
Onboard Video ChipsetIntel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
- Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
- DirectX 12
- HWAEncode/Decode: VP9 8-bit, VP9 10-bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG,VC-1
- Max. shared memory 1024MB
* The size of maximum shared memory may vary from different operating systems.
-
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4266+(OC)*/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133
* Please refer to Memory Support List on ASRock's website for more information.
* 8th Gen Intel CPU supports DDR4 up to 2666.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*
* Supports NVMe SSD as boot disks
* If PCIE5 slot or PCI slot is occupied, PCIE4 slot will run at x2 mode.
PCI Express x13 x PCI Express 3.0 x1 Slots (Flexible PCIe)
PCI Slots1 x PCI Slot
Other Slots1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module
Serial ATA (SATA)6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA_5 will be disabled.
* If M2_2 is occupied by a SATA-type M.2 device, SATA_0 will be disabled.
M.22 x Ultra M.2 Sockets (M2_1 and M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
** Supports Intel Optane Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC892
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x D-Sub Port
1 x DVI-D Port
HDMI1 x HDMI
RJ451 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.15 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection)
1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
Audio PortsHD Audio Jacks: Line in / Front Speaker / Microphone
Antenna Connectors2 x Antenna Ports
Onboard USB3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion Header
1 x Power LED and Speaker Header
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
* CHA_FAN2 and CHA_FAN3/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-
Form FactorATX
Dimensions (W x L)12.0" x 8.8"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
FeaturesUnique Feature:
ASRock Super Alloy
- Premium 45A Power Choke
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS Feature:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VPPM Voltage Multi-adjust
Package ContentsAccessories:
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets

Questions about this item

How much power does the Z370 Pro4 draw when running all day?

The board itself consumes very little power; total system draw depends on the 8th Gen Intel CPU and DDR4 memory you install.

Which components must I already own for the Z370 Pro4 to work?

You need an 8th Generation Intel Core, Pentium or Celeron processor for LGA 1151 (300 Series) and DDR4 memory modules.

Will my older LGA 1151 CPU work in the Z370 Pro4?

No, the socket is not backward compatible with previous-generation LGA 1151 processors.
