ASRock

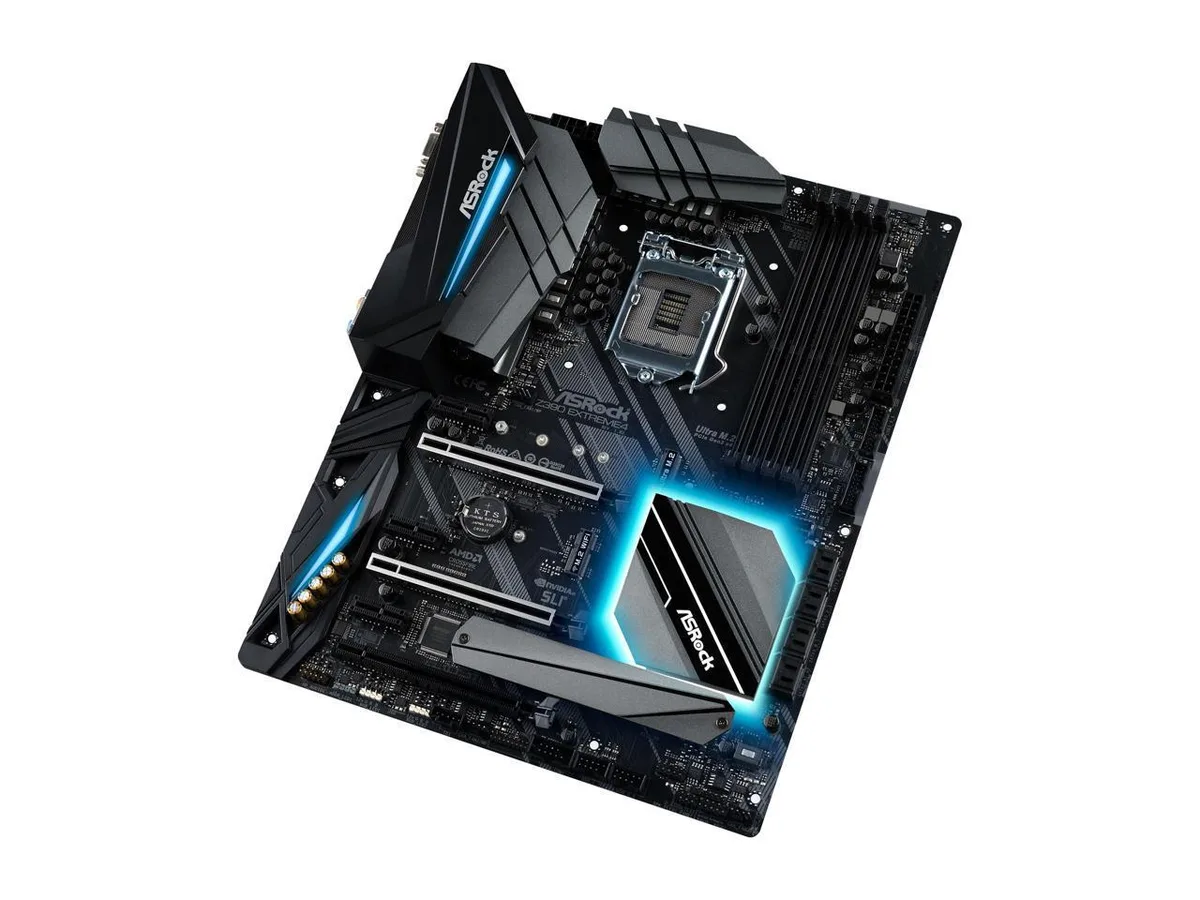

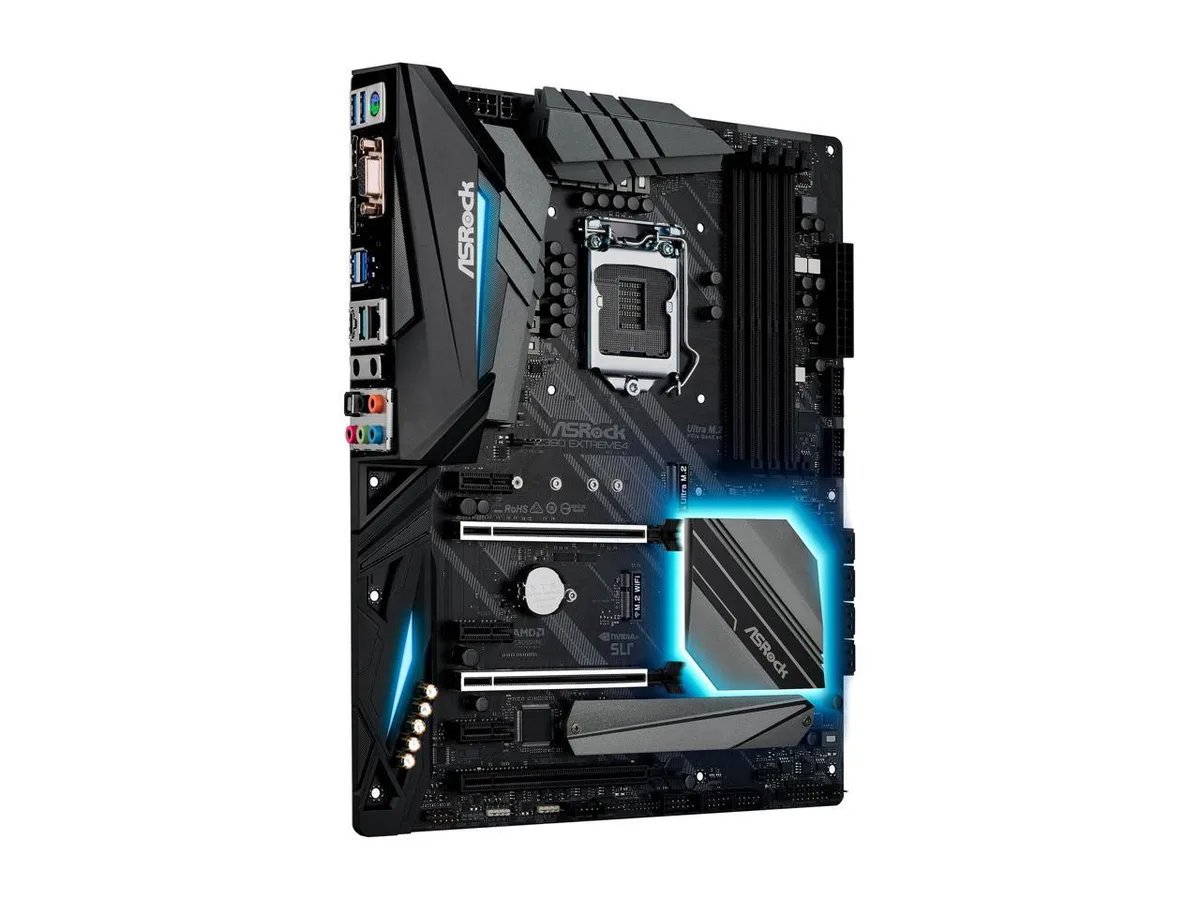

ASRock Z390 Extreme4 LGA 1151 Intel motherboard
ATX board for 8th and 9th Gen Intel Core CPUs with dual-channel DDR4 up to 64 GB, three PCIe 3.0 x16 slots, two Ultra M.2 sockets, six SATA3 plus two ASMedia SATA3.
- CPU Socket TypeLGA 1151 (300 Series)
- CPU TypeSupports 9th and 8th Gen Intel Core processors (Socket 1151)
- Supported CPU TechnologiesTurbo Boost Technology 2.0
- ChipsetIntel Z390
- Onboard Video Chipset* Intel UHD Graphics Built-in Visuals and the VGA outputs ca
- Number of Memory Slots4x288pin (DDR4)
- Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
- DDR4 memory speeds up to 4300 MHz overclocked across four slots
- Dual Ultra M.2 sockets with PCIe Gen3 x4 for fast storage
- Intel I219-V Gigabit LAN for reliable wired networking
- Realtek ALC1220 codec delivers 7.1 channel high-definition audio
Socket LGA 1151 300 Series platform

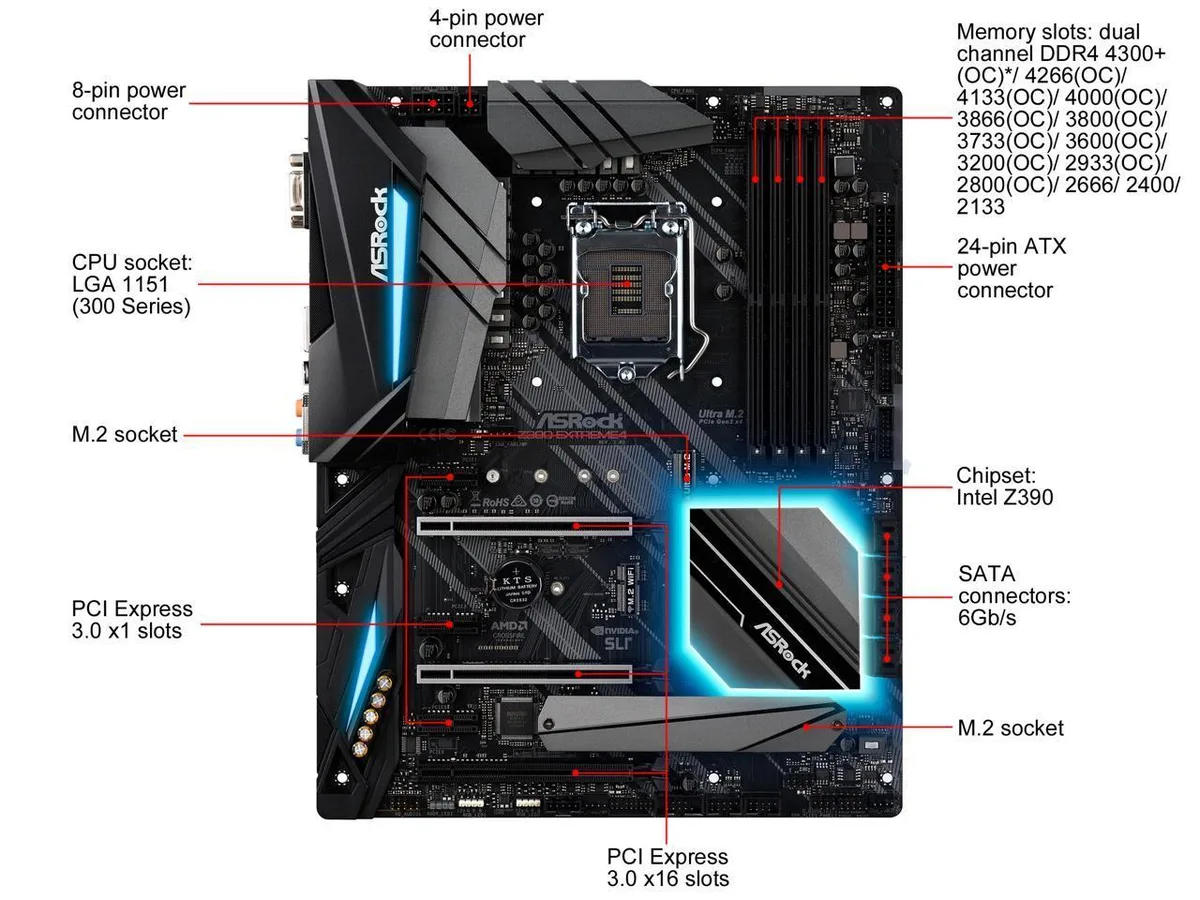

The ASRock Z390 Extreme4 is an ATX motherboard built on the Intel Z390 chipset for 8th and 9th generation Intel Core processors using the LGA 1151 socket. It is not backward compatible with older LGA 1151 CPUs. The board targets builders who need a full-size layout with multiple expansion slots and high-speed storage options.
12 power phase digital PWM design
A 12 power phase digital PWM arrangement delivers stable current to the CPU during extended workloads. This design helps maintain consistent frequencies when all cores are under sustained load rather than short bursts. The layout supports Turbo Boost Technology 2.0 across compatible 8th and 9th generation processors without throttling caused by voltage droop.
Dual Ultra M.2 sockets with Gen3 x4 lanes
Two Ultra M.2 sockets accept M Key modules up to 2280 length. The primary M2_1 slot operates at PCIe 3.0 x4 for 32Gb/s throughput with NVMe or SATA drives. M2_1 shares bandwidth with two SATA3 ports so only one of the three can be active at a time. The second M.2 socket adds further high-speed storage flexibility.
Highlights
- Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
- DDR4 memory speeds up to 4300 MHz overclocked across four slots
- Dual Ultra M.2 sockets with PCIe Gen3 x4 for fast storage
- Intel I219-V Gigabit LAN for reliable wired networking
- Realtek ALC1220 codec delivers 7.1 channel high-definition audio
Specifications
| Brand | ASRock |
|---|---|
| Model | Z390 Extreme4 |
| CPU Socket Type | LGA 1151 (300 Series) |
| CPU Type | Supports 9th and 8th Gen Intel Core processors (Socket 1151) * Not backward compatible with older generation of LGA 1151 CPUs |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel Z390 |
| Onboard Video Chipset | * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics DirectX 12 HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only) Three graphics output options: D-Sub, HDMI and DisplayPort 1.2 Supports Triple Monitor Supports HDMI with max. resol |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 4300+(OC)*/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))* * Supports NVMe SSD as boot disks |
| PCI Express x1 | 3 x PCI Express 3.0 x1 Slots (Flexible PCIe) |
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT) 15µ Gold Contact in VGA PCIe Slot (PCIE2) |
| Serial ATA (SATA) | 6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* 2 x SATA3 6.0Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug * M2_1, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled. * M2_2, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled. |
| M.2 | 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)** 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)** ** Supports Intel Optane Technology ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit |
| SATA RAID | RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16 |
| Audio Chipset | Realtek ALC1220 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| DisplayPort | 1 x DisplayPort 1.2 |
| USB 3.1 | 1 x USB 3.1 Gen2 Type-A Port (10Gb/s) (ReDriver) (Supports ESD Protection) 4 x USB 3.1 Gen1 Ports (Intel Z390) (Supports ESD Protection) |
| USB Type-C | 1 x USB 3.1 Gen2 Type-C Port (10Gb/s) (ReDriver) (Supports ESD Protection) |
| S/PDIF Out | 1 x Optical |
| Audio Ports | HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Antenna Connectors | 1 x Antenna Bracket |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel Z390) (Supports ESD Protection) 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) 1 x Front Panel Type C USB 3.1 Gen1 Header (Intel Z390) (Supports ESD Protection) |
| Other Connectors | 1 x COM Port Header 1 x TPM Header 1 x Power LED and Speaker Header 2 x RGB LED Headers * Support in total up to 12V/3A, 36W LED Strip 1 x Addressable LED Header * Supports in total up to 5V/3A, 15W LED Strip 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water co |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX Power Connector (Hi-Density Power Connector) 1 x 8-pin 12V Power Connector (Hi-Density Power Connector) 1 x 4-pin 12V Power Connector (Hi-Density Power Connector) |
Questions about this item
How much power do the 12-phase digital PWM and Intel I219-V LAN draw when the board runs all day?
The 12-phase digital PWM delivers efficient CPU power, and the Intel I219-V Gigabit LAN is designed for low-power operation during continuous use.
Which 8th or 9th Gen Intel Core processor must I already have for the LGA 1151 socket to work?
This board requires a 9th or 8th Gen Intel Core CPU with integrated graphics if you plan to use the HDMI, DisplayPort or D-Sub outputs.
Will my existing DDR4-2666 memory run at its rated speed alongside the Z390 chipset?
Yes, DDR4-2666 is natively supported without overclocking, and the four 288-pin slots run in dual-channel mode up to 64 GB total.
