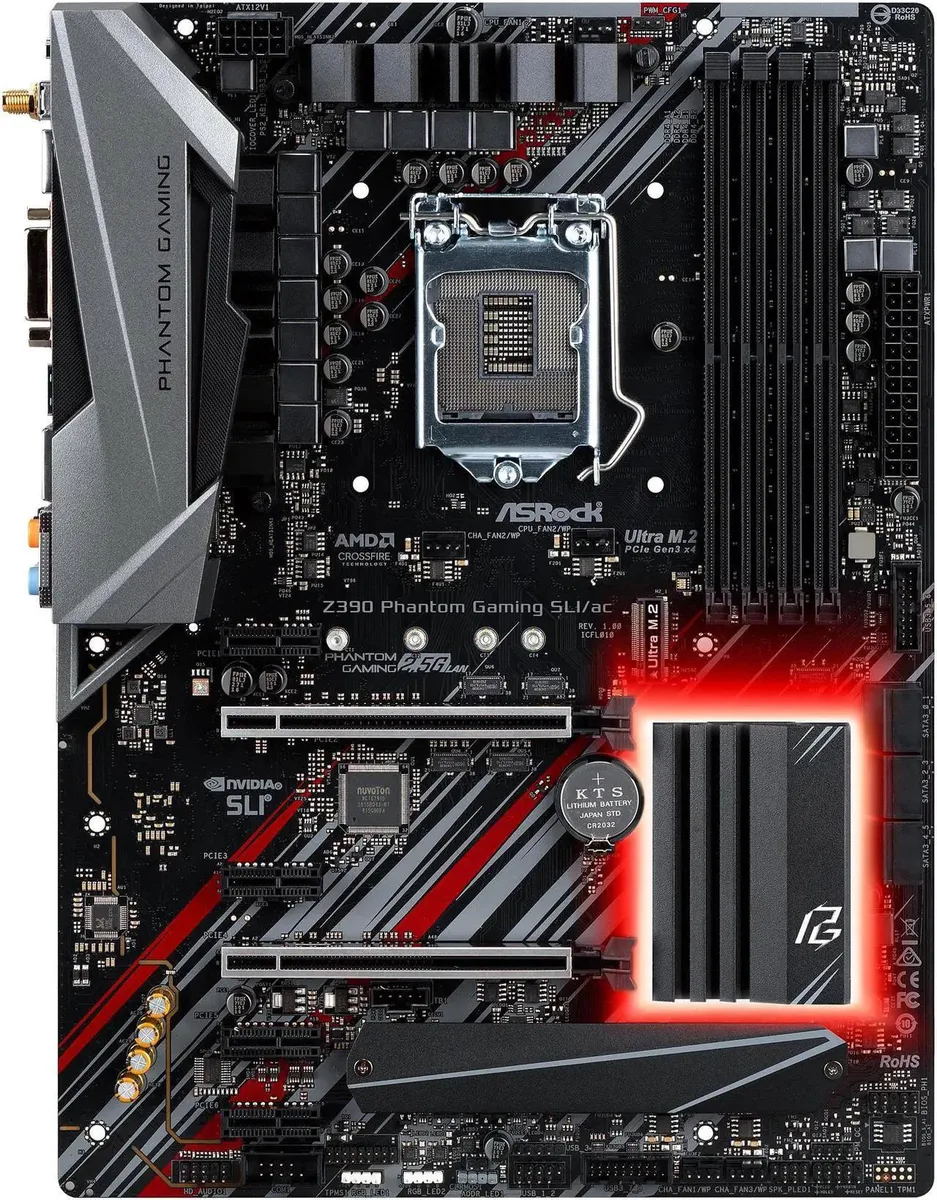

Black ATX motherboard with silver heatsinks and red accents on a dark PCB

ASRock

ASRock Z390 Phantom Gaming SLI/ac Intel motherboard

SKU CH-NRRN-0EV25

Supports 8th and 9th Gen Intel Core CPUs, DDR4 up to 4300 MHz, dual M.2 slots, 2500 Mbps LAN and 7.1 audio

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupports 9th and 8th Gen Intel Core processors (Socket 1151)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel Z390
  • Onboard Video ChipsetSupports Intel UHD Graphics Built-in Visuals: Intel Quick Sy
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • DDR4 memory up to 4300 MHz overclocked across four slots
  • Dual Ultra M.2 sockets with up to 32 Gb/s bandwidth for NVMe storage
  • 2500 Mbps LAN plus bundled Wi‑Fi 802.11 ac module
  • 1‑channel Realtek ALC892 audio with dual PCIe x16 slots for SLI

Z390 Phantom Gaming SLI/ac motherboard

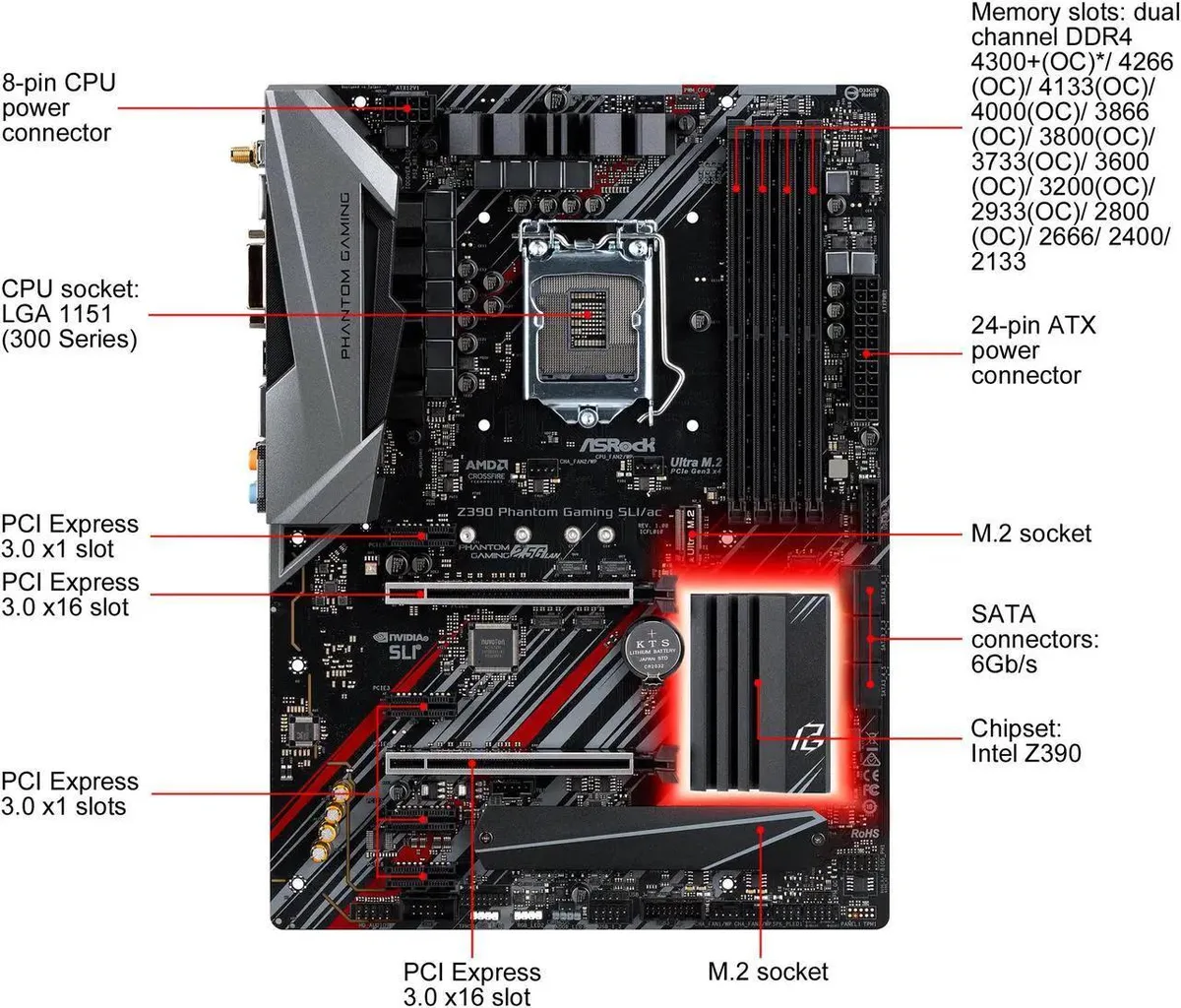

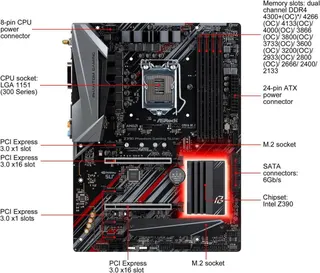

This ATX board uses the Intel Z390 chipset and the LGA 1151 (300 Series) socket. It accepts 8th and 9th Generation Intel Core processors only. Older LGA 1151 CPUs are not supported. The layout provides four 288-pin DDR4 slots and dual-channel memory architecture for mainstream and enthusiast builds.

Bundled Wi-Fi 802.11 ac module

A vertical M.2 Key E socket on the rear I/O comes populated with an 802.11 ac Wi-Fi module. This adds wireless networking and Bluetooth without consuming a PCIe expansion slot. The module uses gold-plated contacts for reliable connectivity. The board also includes a Realtek ALC892 codec delivering 7.1-channel audio for integrated sound.

PCI Express 3.0 and SATA 6.0Gb/s limits

Two full-length PCIe 3.0 x16 slots operate at x16 when one is used or x8/x8 when both are populated. Four PCIe 3.0 x1 slots provide additional expansion. Two Ultra M.2 sockets support PCIe 3.0 x4 (32Gb/s) and SATA 6.0Gb/s drives in 2230 to 2280 lengths. Six SATA3 ports support RAID 0, 1, 5 and 10, though M.2 SATA devices disable specific SATA ports.

Highlights

  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • DDR4 memory up to 4300 MHz overclocked across four slots
  • Dual Ultra M.2 sockets with up to 32 Gb/s bandwidth for NVMe storage
  • 2500 Mbps LAN plus bundled Wi‑Fi 802.11 ac module
  • 1‑channel Realtek ALC892 audio with dual PCIe x16 slots for SLI

Specifications

BrandASRock
ModelZ390 PHANTOM GAMING SLI/ac
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupports 9th and 8th Gen Intel Core processors (Socket 1151)
* Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel Z390
Onboard Video ChipsetSupports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
DirectX 12
HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
Dual graphics output: Support DVI-D and HDMI ports by independent display controllers
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30 Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60 Hz
Supports Auto Lip
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4300+(OC)*/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported128GB
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4))*
* Supports NVMe SSD as boot disks
PCI Express x14 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Other Slots1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O)
15µ Gold Contact in VGA PCIe Slot (PCIE2)
Serial ATA (SATA)6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
* If M2_2 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.
M.21 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
** Supports Intel Optane Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Intel Optane ReadyYes
SATA RAIDRAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16
Audio ChipsetRealtek ALC892
Audio Channels7.1 Channels
LAN ChipsetRealtek RTL8125AG
Max LAN Speed2.5Gbps
Wireless LANIntel 802.11 ac Wi-Fi Module
Supports IEEE 802.11 a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433 Mbps
BluetoothSupports Bluetooth 4.2 / 3.0 + High speed class II
Back I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x DVI-D Port
1 x HDMI Port
1 x Optical SPDIF Out Port
1 x USB 3.1 Gen2 Type-A Port (ReDriver) (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-C Port (ReDriver) (Supports ESD Protection)
4 x USB 3.1 Gen1 Ports (Intel Z390) (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Onboard USB2 x USB 2.0 Headers (Supports 3 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
1 x Addressable LED Header**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin)
1 x Performance Mode / Easy OC Header
* Support in total up to 12V/3A, 36W LED Strip.
** Supports in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 8.8"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
