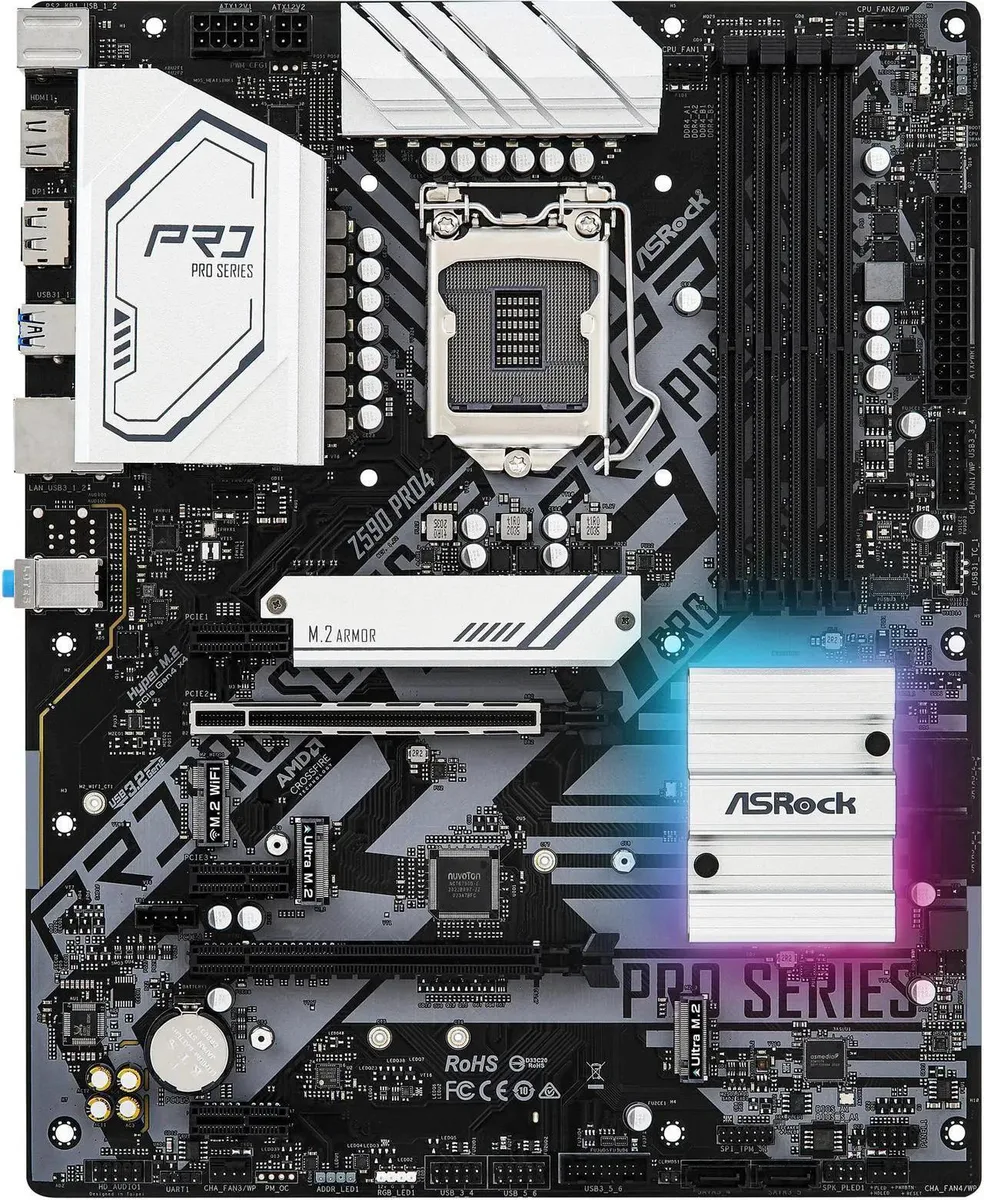

Rectangular ATX motherboard with black PCB, silver heatsinks, four DDR4 slots, multiple PCIe slots, M.2 sockets and rear I/O panel

ASRock

ASRock Z590 PRO4 Intel motherboard

SKU CH-C6B0-FR16F

ATX board for 10th and 11th Gen Intel Core CPUs with DDR4 up to 4800 OC, PCIe 4.0 x16, dual M.2 and six SATA ports

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors Supports 11th Gen In
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel Z590
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 10th and 11th Gen Intel Core CPUs on LGA 1200 socket
  • PCI Express 4.0 x16 slot for latest GPUs and NVMe SSDs
  • Four DDR4 slots up to 4800 MT/s OC with 128 GB max
  • Three M.2 sockets including Gen4x4 Hyper M.2 and Ultra M.2
  • Realtek ALC897 audio with 15 µ gold PCIe contacts

Socket and generation support

The ASRock Z590 PRO4 fits LGA 1200 processors from the 10 and 11 generations. It runs on the Intel Z590 chipset and relies on the CPU for integrated graphics output. Turbo Boost Technology 3.0 is supported when the installed processor offers it.

Memory capacity and speed headroom

Four 288 pin DDR4 slots accept up to 128 GB in dual channel mode. With 11 generation Core i9, i7 or i5 chips the board reaches 4800 MT/s when overclocked, while 10 generation parts top out at 4666 MT/s. Core i3, Pentium and Celeron CPUs only run memory at 3200 MT/s natively.

PCIe and storage interface limits

One PCI Express 4.0 x16 slot and one PCI Express 3.0 x16 slot are available, plus three PCI Express 3.0 x1 slots. The primary M.2 socket delivers Gen4 x4 speeds up to 64 Gb/s but only with 11 generation processors. Six SATA 6 Gb/s ports are provided, though M.2 occupancy can disable specific SATA connectors.

Highlights

  • Supports 10th and 11th Gen Intel Core CPUs on LGA 1200 socket
  • PCI Express 4.0 x16 slot for latest GPUs and NVMe SSDs
  • Four DDR4 slots up to 4800 MT/s OC with 128 GB max
  • Three M.2 sockets including Gen4x4 Hyper M.2 and Ultra M.2
  • Realtek ALC897 audio with 15 µ gold PCIe contacts

Specifications

BrandASRock
ModelZ590 PRO4
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors
Supports 11th Gen Intel Core Processors
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel Z590
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4800+(OC) (11th Gen Intel Core Processors support)*
DDR4 4666+(OC) (10th Gen Intel Core Processors support)*
* 11th Gen Intel Core (i9/i7/i5) support DDR4 3200 natively; Core (i3), Pentium and Celeron support DDR4 2666 natively.
* 10th Gen Intel Core (i9/i7) support DDR4 2933 natively; Core (i5/i3), Pentium and Celeron support DDR4 2666 natively.
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16 (PCIE2)
* Actual support may vary by CPU.
* Supports NVMe SSD as boot disks.
PCI Express 3.0 x161 x PCI Express 3.0 x16 (PCIE4)
* Supports NVMe SSD as boot disks.
PCI Express x13 x PCI Express 3.0 x1
Other Slots1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
15µ Gold Contact in VGA PCIe Slot (PCIE2)
Serial ATA (SATA)6 x SATA 6Gb/s*
* If M2_2 is occupied by a SATA-type M.2 device, SATA3_2 will be disabled.
* If M2_3 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
* If M2_3 is occupied by a PCIe-type M.2 device, SATA3_0 will be disabled.
M.21 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (Only supported with 11th Gen Intel Core Processors)*
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*
1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*
* Supports Intel Optane Technology.
* Supports NVMe SSD as boot disks.
* Supports ASRock U.2 Kit.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps

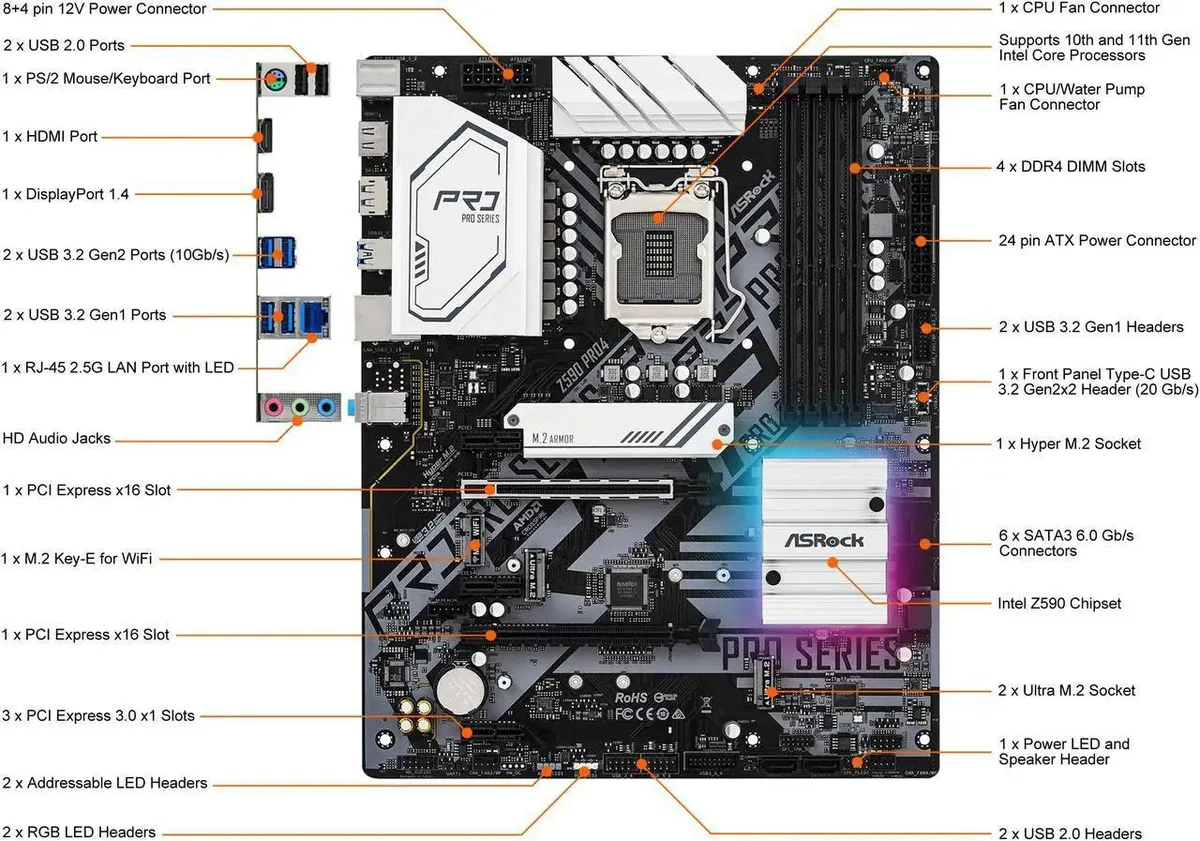

Back I/O Ports1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 3.2 Gen2 Ports (10Gb/s) (ReDriver) (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x Front Panel Type C USB 3.2 Gen2x2 Header (20Gb/s) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
Other Connectors1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
* Support in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The CPU/Water Pu
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
1 x 4-pin 12V Power Connector (Hi-Density Power Connector)
FeaturesUnique Feature:
ASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10Gb/s)
ASRock Super Alloy
- Premium 50A Power Choke
- 50A Dr.MOS
- Sapphire Black PCB
- High Density Glass Fabric PCB
2.5G LAN
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS:
- 128 MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- C
Package ContentsAccessories:
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
1 x Graphics Card Holder

Questions about this item

Will this board run an 11th-generation Core i5 with DDR4-4800 memory?

Yes, 11th Gen Core processors support DDR4 up to 4800+(OC) on the four 288-pin slots, with a maximum capacity of 128 GB in dual-channel mode.

Can I install a PCIe 4.0 NVMe drive as my boot device?

The Hyper M.2 socket (M2_1) supports PCIe Gen4 x4 up to 64 Gb/s when an 11th Gen CPU is installed and can be used as a boot disk.

Does the board provide integrated graphics output without a discrete GPU?

Video outputs are driven only by a CPU that includes integrated graphics; the board itself has no onboard video chipset.
