ATX motherboard in dark grey and black with large heatsink armor and four DDR5 slots

ASRock

ASRock Z790 PRO RS WIFI Intel motherboard

SKU CH-49GK-RSEF2 MPN Z790 PRO RS WIFI

ATX board for LGA 1700 CPUs with four DDR5 slots, one PCIe 5.0 x16 slot, four M.2 sockets, 2.5 GbE LAN and WiFi 6E

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports DDR5 non-ECC, un-buffered memory up to 6800+(OC)* 1

Option Z790 PRO RS WiFi

  • Z790 PG LIGHTNING
  • Z790 PRO RS
  • Z790M-ITX WIFI
  • Z790 PG RIPTIDE
  • Z790 TAICHI CARRARA
  • Z790 PRO RS WiFi

Struck-through versions exist but are not stocked here.

  • Supports 12th, 13th and 14th Gen Intel Core CPUs on LGA 1700 socket
  • Four DDR5 slots reach 6800 MHz overclocked with XMP 3.0 profiles
  • PCIe 5.0 x16 slot plus four Gen4 M.2 sockets for fast storage
  • Realtek ALC897 7.1 channel audio with Nahimic enhancement
  • Dragon 2.5G LAN and WiFi 6E with Bluetooth built in

Z790 ATX board for LGA 1700 CPUs

The ASRock Z790 PRO RS WIFI is an ATX motherboard built around the Intel Z790 chipset and LGA 1700 socket. It supports 12th, 13th and 14th generation Intel Core processors with hybrid architecture, Turbo Boost Max 3.0 and Thermal Velocity Boost. A 14+1+1 Dr.MOS power phase design with enlarged heatsink armour delivers stable current for high-core-count CPUs.

Four DDR5 slots, four Gen4 M.2 sockets.

Four 288-pin DDR5 slots accept non-ECC un-buffered memory up to 128 GB with XMP 3.0 profiles reaching 6800 MHz when overclocked. Four Hyper M.2 sockets (two CPU-attached, two chipset-attached) each take 2260 or 2280 NVMe drives at PCIe 4.0 x4 speeds. The Dragon RTL8125BG controller provides 2.5 Gb/s wired LAN with bandwidth-control software, while integrated WiFi 6E and Bluetooth handle wireless connectivity.

Realtek ALC897 7.1 audio, eight SATA ports.

The Realtek ALC897 codec drives 7.1-channel HD audio enhanced by Nahimic processing. Eight SATA 6 Gb/s ports support RAID 0, 1, 5 and 10 for hard drives or SATA SSDs. A full-size PCIe 5.0 x16 slot carries the primary graphics card, a second PCIe 4.0 x16 slot runs at x4 for add-in cards, and two PCIe 3.0 x1 slots round out expansion. Rear I/O includes HDMI, DisplayPort and eDP video outputs for integrated graphics.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core CPUs on LGA 1700 socket
  • Four DDR5 slots reach 6800 MHz overclocked with XMP 3.0 profiles
  • PCIe 5.0 x16 slot plus four Gen4 M.2 sockets for fast storage
  • Realtek ALC897 7.1 channel audio with Nahimic enhancement
  • Dragon 2.5G LAN and WiFi 6E with Bluetooth built in

Specifications

BrandASRock
ModelZ790 PRO RS WiFi
CPU Socket TypeLGA 1700
CPU TypeSupports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
- Supports Intel Hybrid Technology
- Supports Intel Turbo Boost Max 3.0 Technology
- Supports Intel Thermal Velocity Boost (TVB)
- Supports Intel Adaptive Boost Technology (ABT)
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
1DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
- Max. capacity of system memory: 128GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0
* Please refer to Memory Support List on ASRock's website for more information.
(http://www.asrock.com/
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
PCI Express 5.0 x161 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode*
* Supports NVMe SSD as boot disks
- Supports AMD CrossFire
PCI Express 4.0 x161 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
* Supports NVMe SSD as boot disks
PCI Express x12 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)*
* Supports NVMe SSD as boot disks
Serial ATA (SATA)8 x SATA 6Gb/s
M.2CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
* Supports Intel Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Audio Chipset7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
Audio Channels7.1 Channels
LAN Chipset2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
Max LAN Speed2.5Gbps
Wireless LAN802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band* support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth + High speed class II
- Supports MU-MIMO
* Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region.
It will be activated (for supported countries) through Windows Update and software updates once available.
* A 6GHz compatible router is required for 6E functionality.
BluetoothYes

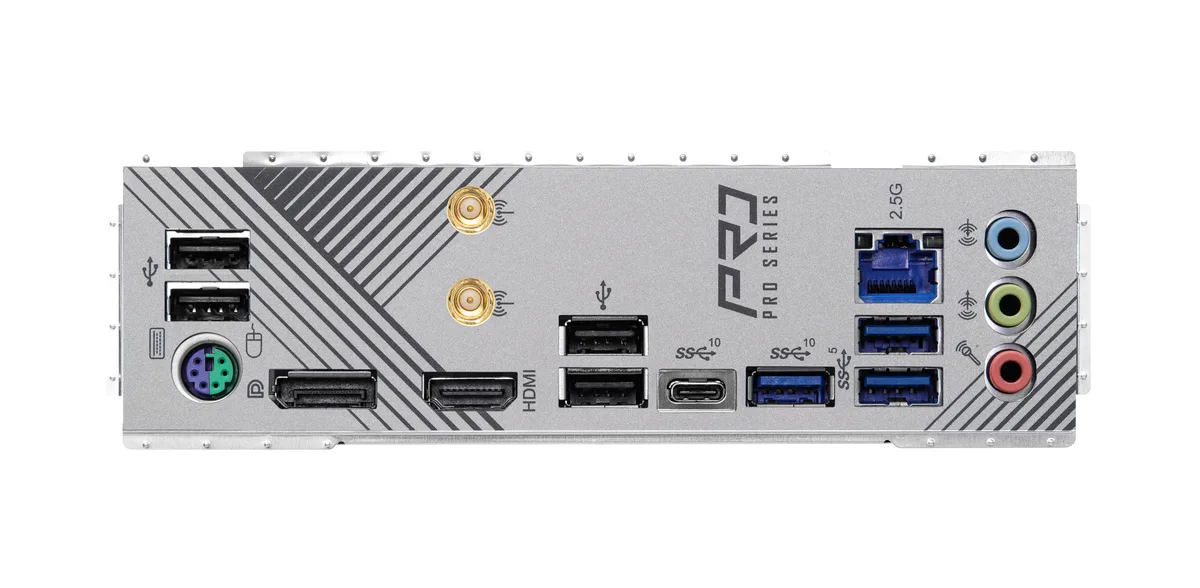

Back I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Other Connectors1 x eDP Signal Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP support
Windows 11Microsoft Windows OS 10 64-bit / 11 64-bit
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Power Pin1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
FeaturesSuperb Productivity
- PCIe Gen5 (Graphics)
- Dual Channel DDR5
Rock-Solid Durability
- 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
Ultrafast Connectivity
- 2.5G LAN, 802.11ax Wi-Fi 6E Module
EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Package Contents1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Shipping weight2.00 kg
Package size381 × 320 × 97 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this board run a 14th-generation Intel Core processor without a BIOS update?

A BIOS update may be required for some 14th-generation Intel Core processors; check the manufacturer support page before installing.

How many NVMe drives can I install and what speeds do the slots provide?

Four M.2 sockets support PCIe Gen4x4 at up to 64 Gb/s for 2260 or 2280 drives; two connect to the CPU and two to the chipset.

What memory speeds are supported natively and with XMP?

Native DDR5 speeds reach 4800 MHz; with Intel XMP 3.0 the board supports up to 6800 MHz depending on DIMM population and rank.
