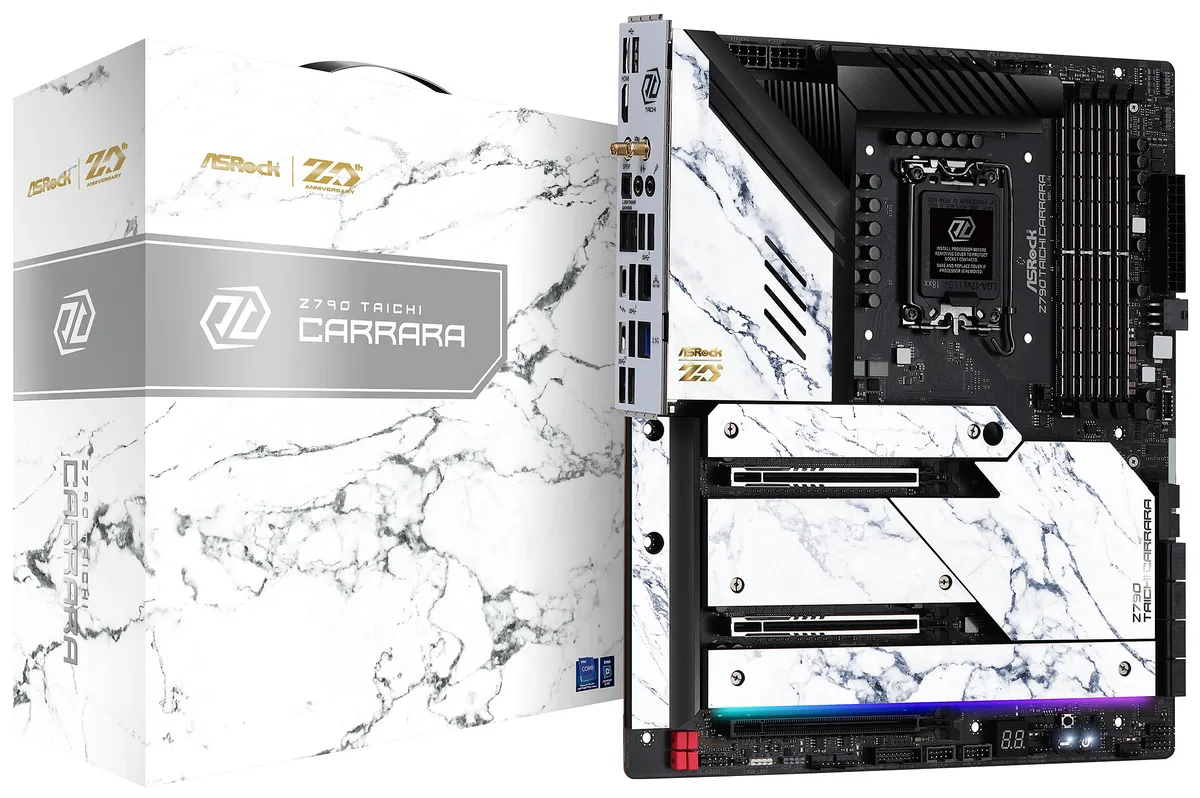

White EATX motherboard with silver heatsinks and black PCB

ASRock

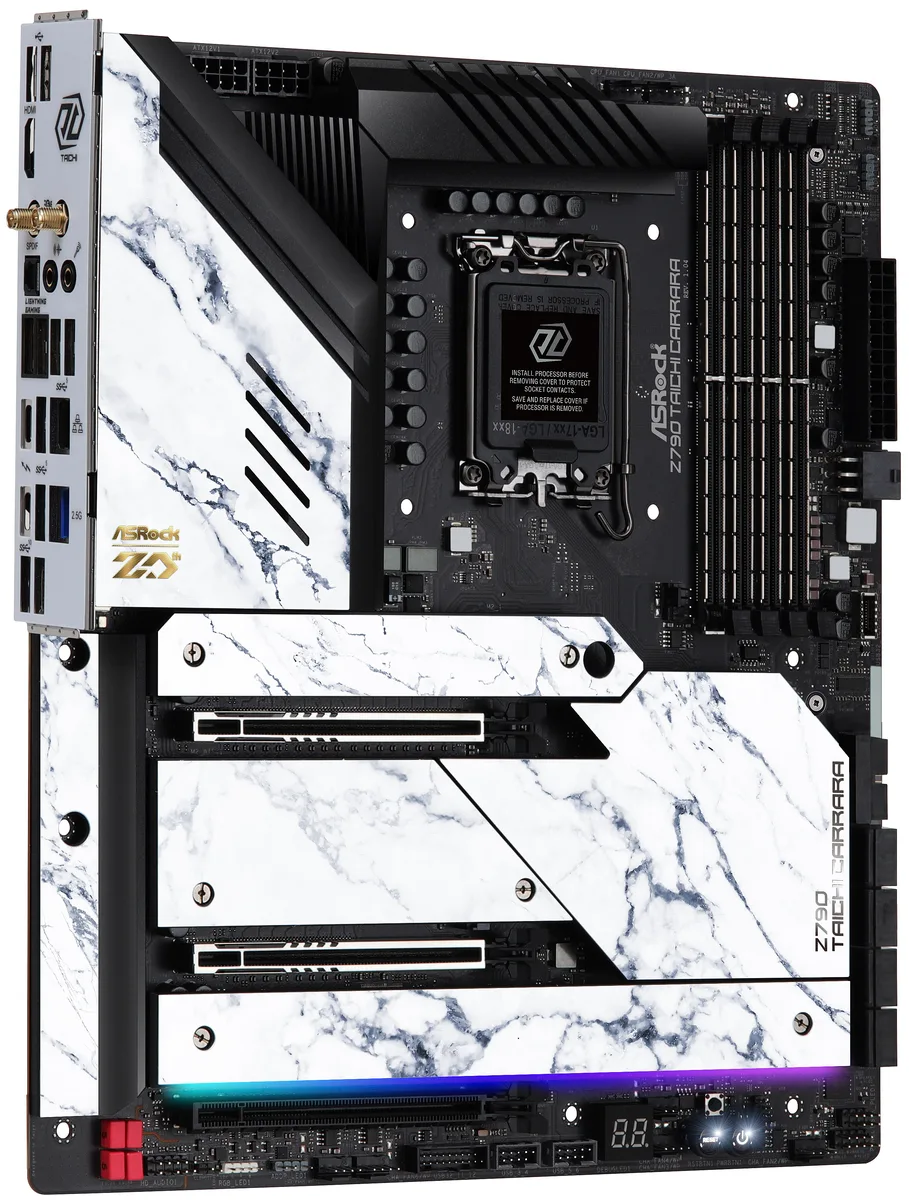

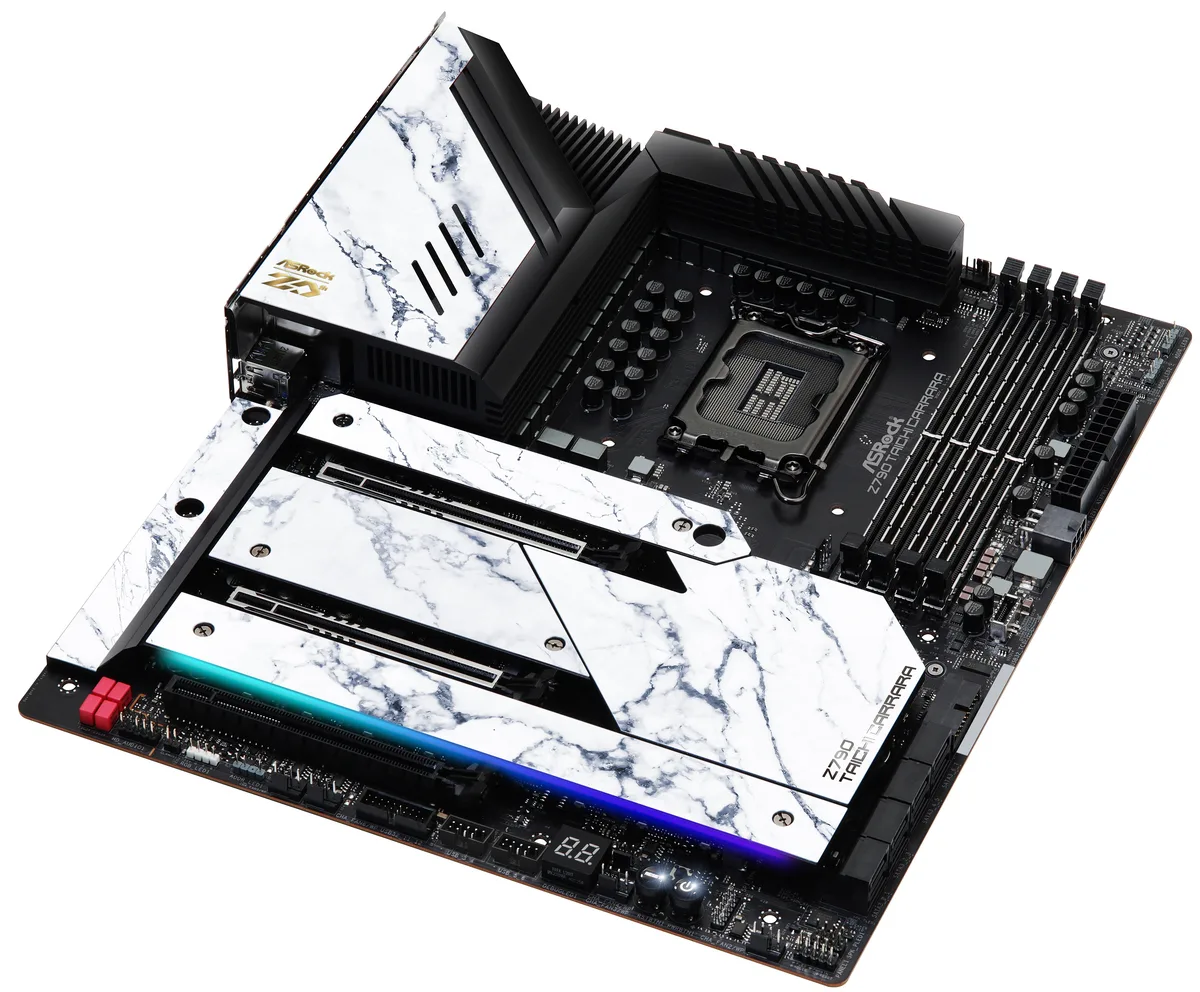

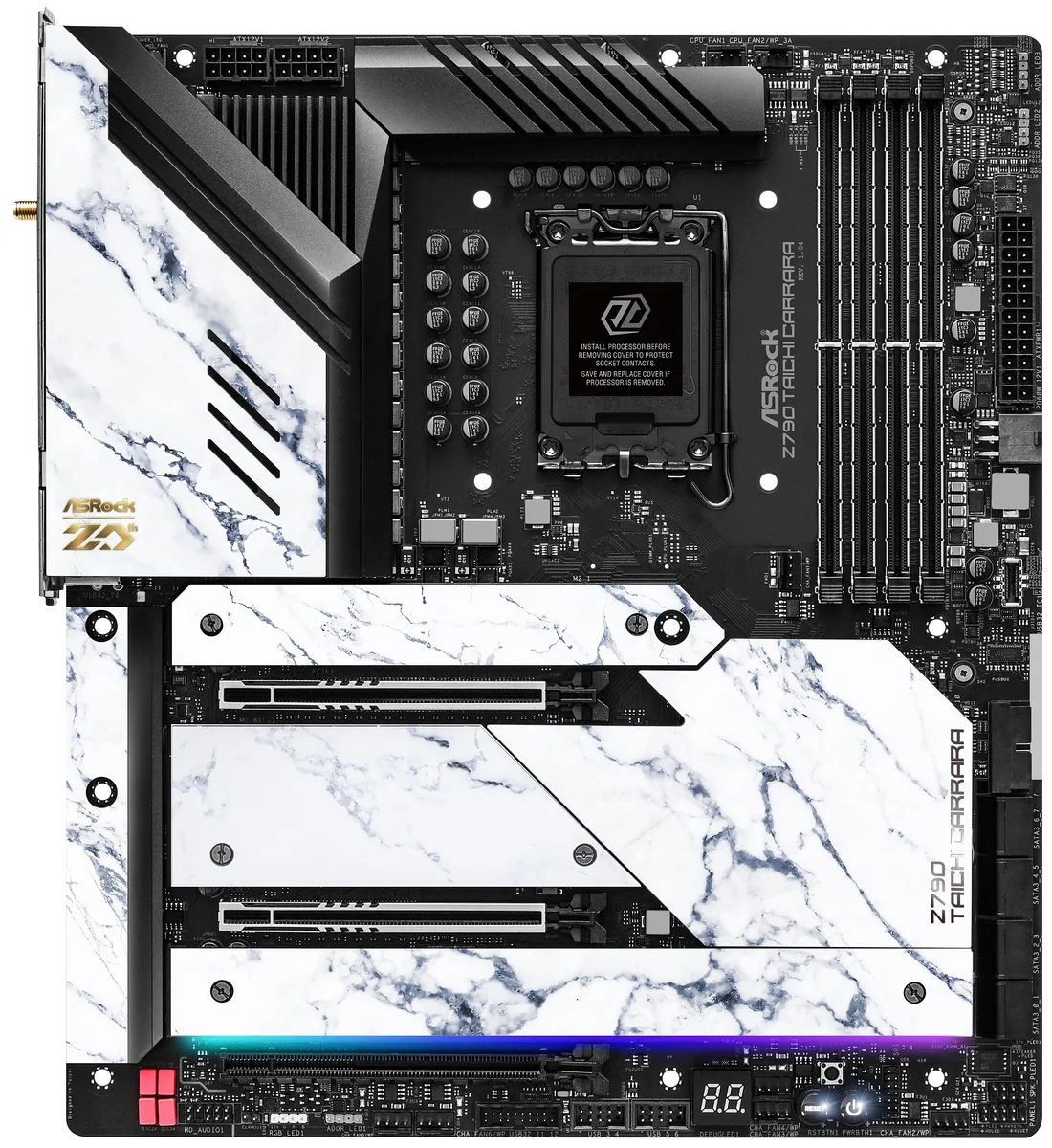

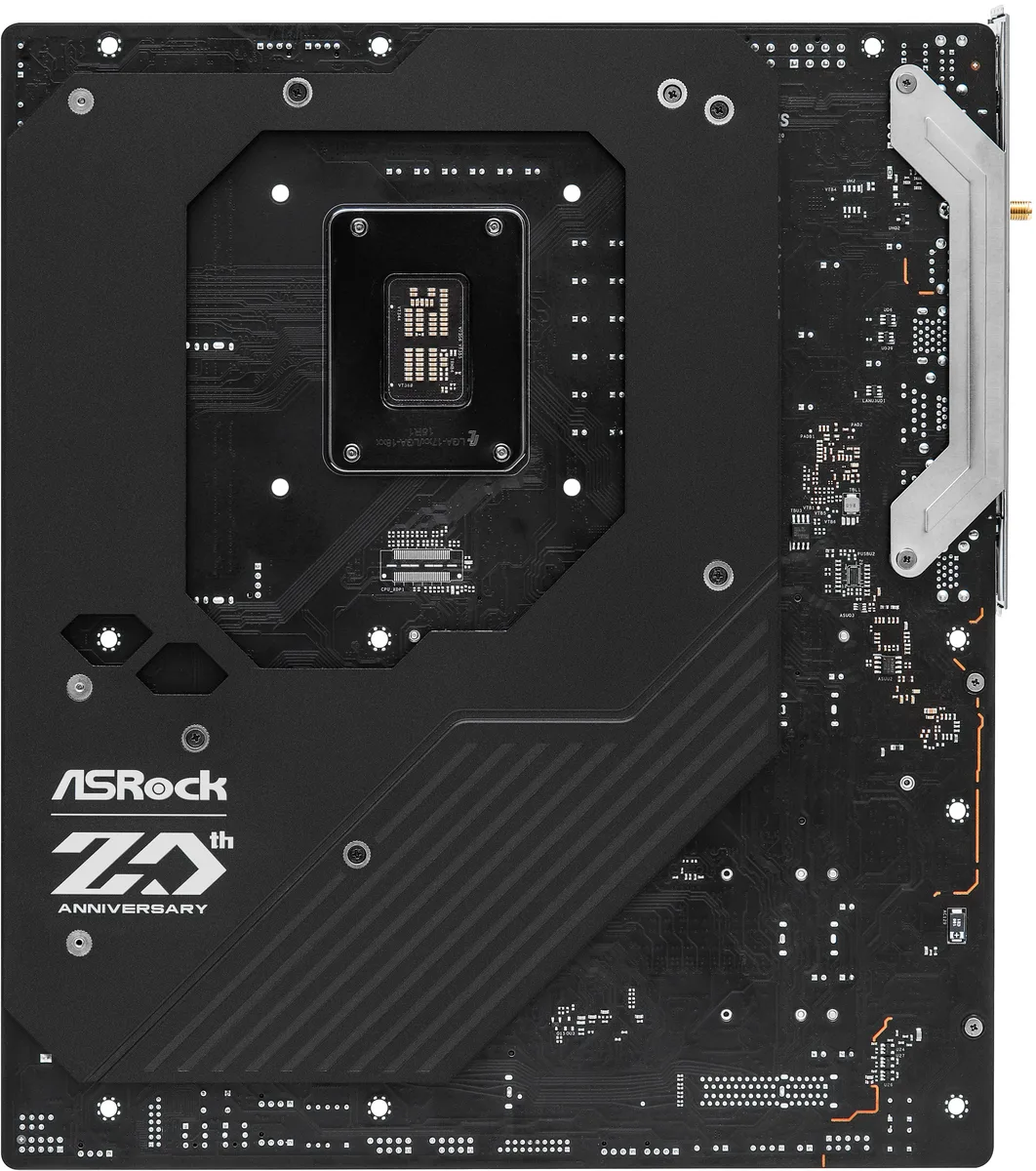

ASRock Z790 TAICHI CARRARA Intel motherboard

SKU CH-2GBE-Y8195 MPN Z790 TAICHI CARRARA

Supports 12th, 13th and 14th Gen Intel Core CPUs with DDR5 memory, two PCIe 5.0 x16 slots, five M.2 sockets, 2.5Gb LAN, WIFI 6E, 5.1 audio and two USB4 Thunderbolt Type‑C ports

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 13th / 12th Gen Intel Core Processors, Intel Pentiu
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4800
  • Maximum Memory Supported128GB

Option Z790 TAICHI CARRARA

  • Z790 PG LIGHTNING
  • Z790 PRO RS
  • Z790M-ITX WIFI
  • Z790 PG RIPTIDE
  • Z790 TAICHI CARRARA

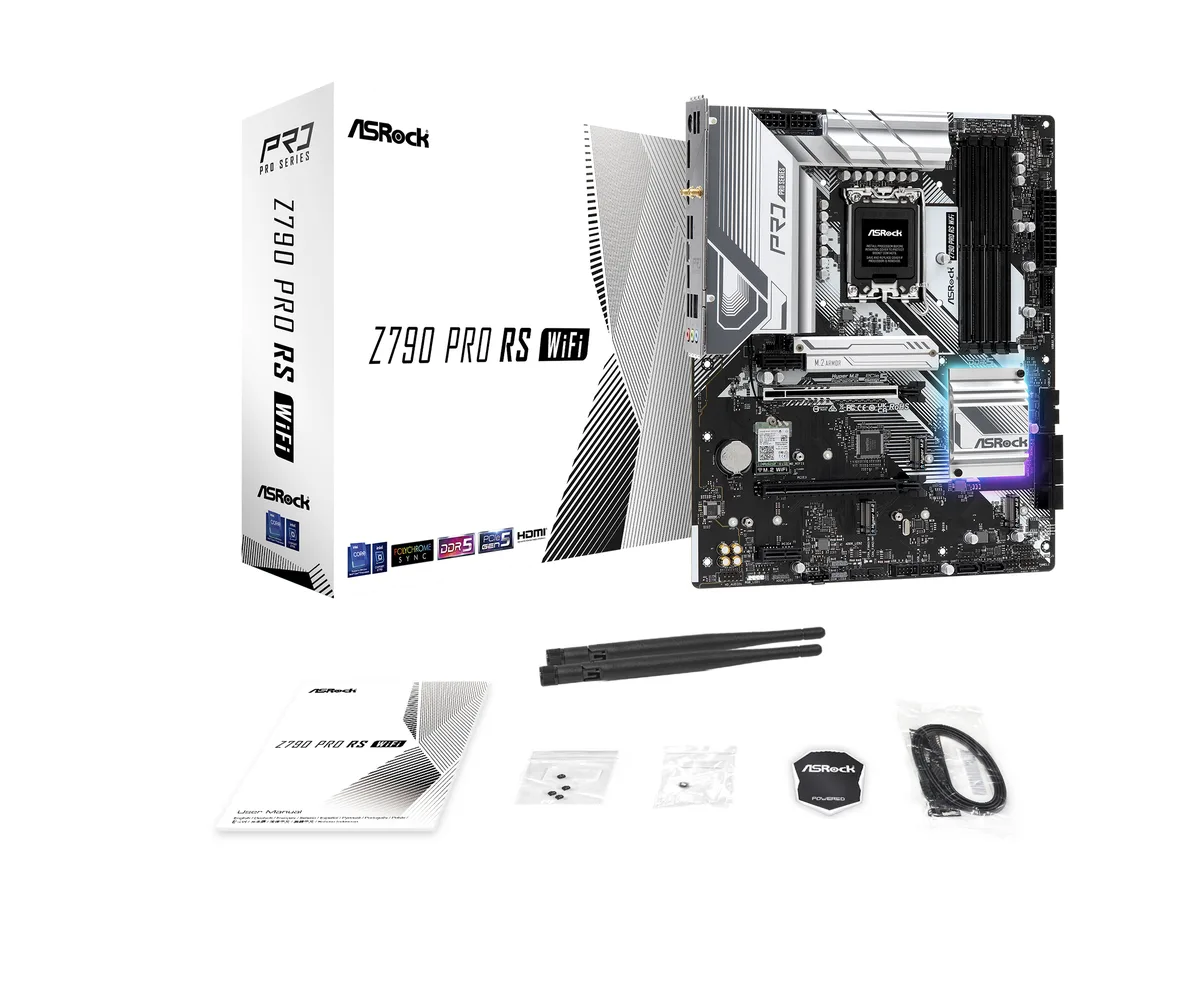

  • Z790 PRO RS WiFi

Struck-through versions exist but are not stocked here.

  • Supports 12th, 13th and 14th Gen Intel Core CPUs on LGA 1700 socket
  • 24+1+2 power phase design with 105A SPS for stable VCore delivery
  • Four DDR5 slots up to 128GB with Intel XMP 3.0 support
  • Two PCIe 5.0 x16 slots plus one PCIe 4.0 x16 slot for graphics and add-in cards
  • Five M.2 sockets including one Gen5 x4 and four Gen4 x4 for high-speed storage

LGA 1700 platform support

This motherboard fits Intel Core processors from the 12th, 13th and 14th generations on the LGA 1700 socket. The Z790 chipset unlocks overclocking headroom for enthusiasts and content creators who need sustained multi-core throughput. Four DDR5 slots accept up to 128 GB of memory running at 4800 MHz stock speeds with XMP 3.0 profiles available.

DDR5 capacity and expansion limits

Dual-channel memory tops out at 128 GB, giving ample room for heavy multitasking and large datasets. Two PCIe 5.0 x16 slots operate at x16 or x8/x8, while a third slot runs at PCIe 4.0 x4. Five M.2 sockets include one Gen5 x4 and four Gen4 x4 drives, though populating the second PCIe 5.0 slot disables the top M.2 and using the third slot disables five SATA ports.

Bundled connectivity and audio upgrades

Two USB4 Thunderbolt Type-C ports add 40 Gb/s external bandwidth for docks and high-speed storage. Killer E3100G 2.5 Gb Ethernet and Wi-Fi 6E handle wired and wireless traffic. The Realtek ALC4082 codec paired with an ESS SABRE 9218 DAC and WIMA capacitors drives 5.1-channel output with Nahimic software processing.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core CPUs on LGA 1700 socket
  • 24+1+2 power phase design with 105A SPS for stable VCore delivery
  • Four DDR5 slots up to 128GB with Intel XMP 3.0 support
  • Two PCIe 5.0 x16 slots plus one PCIe 4.0 x16 slot for graphics and add-in cards
  • Five M.2 sockets including one Gen5 x4 and four Gen4 x4 for high-speed storage

Specifications

BrandASRock
ModelZ790 TAICHI CARRARA
CPU Socket TypeLGA 1700
CPU TypeSupports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4800
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
PCI Express 5.0 x162 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*
PCI Express 4.0 x161 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
* If PCIE2 is occupied, M2_1 will be disabled.
* If PCIE3 is occupied, SATA3_0~4 will be disabled.
* Supports NVMe SSD as boot disks
Serial ATA (SATA)8 x SATA 6Gb/s **
** If PCIE3 is occupied, SATA3_0~4 will be disabled.
M.21 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
* Supports Intel Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
* If PCIE2 is occupied, M2_1 will be disabled.
* Either M2_1 or M2_2 can be
SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Additional RAID ControllerSupports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Audio ChipsetRealtek ALC4082
Audio Channels5.1 Channels
LAN ChipsetKiller E3100G
Max LAN Speed2.5Gbps
Wireless LAN802.11ax Wi-Fi 6E Module
BluetoothYes

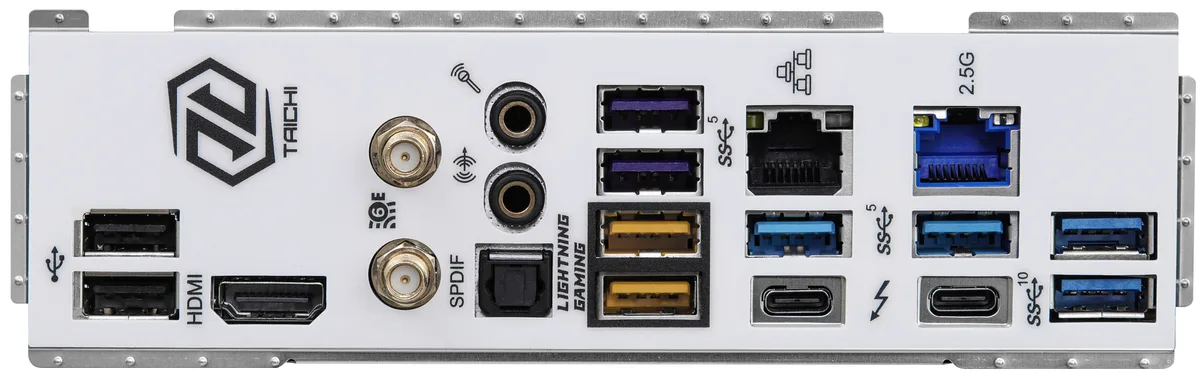

Back I/O Ports2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x USB4 Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*
2 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
6 x USB 3.2 Gen1 Ports (USB32_12 are Lightning Gaming Ports. USB32_34 support Ultra USB Power.)
2 x USB 2.0 Ports
2 x RJ-45 LAN Ports
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)******
Other Connectors1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
1 x Clear CMOS Button
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
****
Windows 11Supported
Form FactorEnhanced Extended ATX
Dimensions (W x L)Length: 10.5 inch
Width: 12 inch
Power Pin1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x 12V 6 pin Power Connector for Fast Charging (Hi-Density Power Connector)
Shipping weight3.43 kg
Package size375 × 337 × 127 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will a 14th Gen Intel Core CPU work out of the box?

A BIOS update may be required before the board recognises 14th Gen processors.

How many M.2 drives can run at full speed simultaneously?

One Gen5 x4 drive in the Blazing slot and up to four Gen4 x4 drives in the Hyper slots, provided the second PCIe 5.0 x16 slot stays empty.

What memory speeds are supported beyond the base specification?

DDR5 7000 MHz is listed as an overclocked target via Intel XMP 3.0 profiles.
