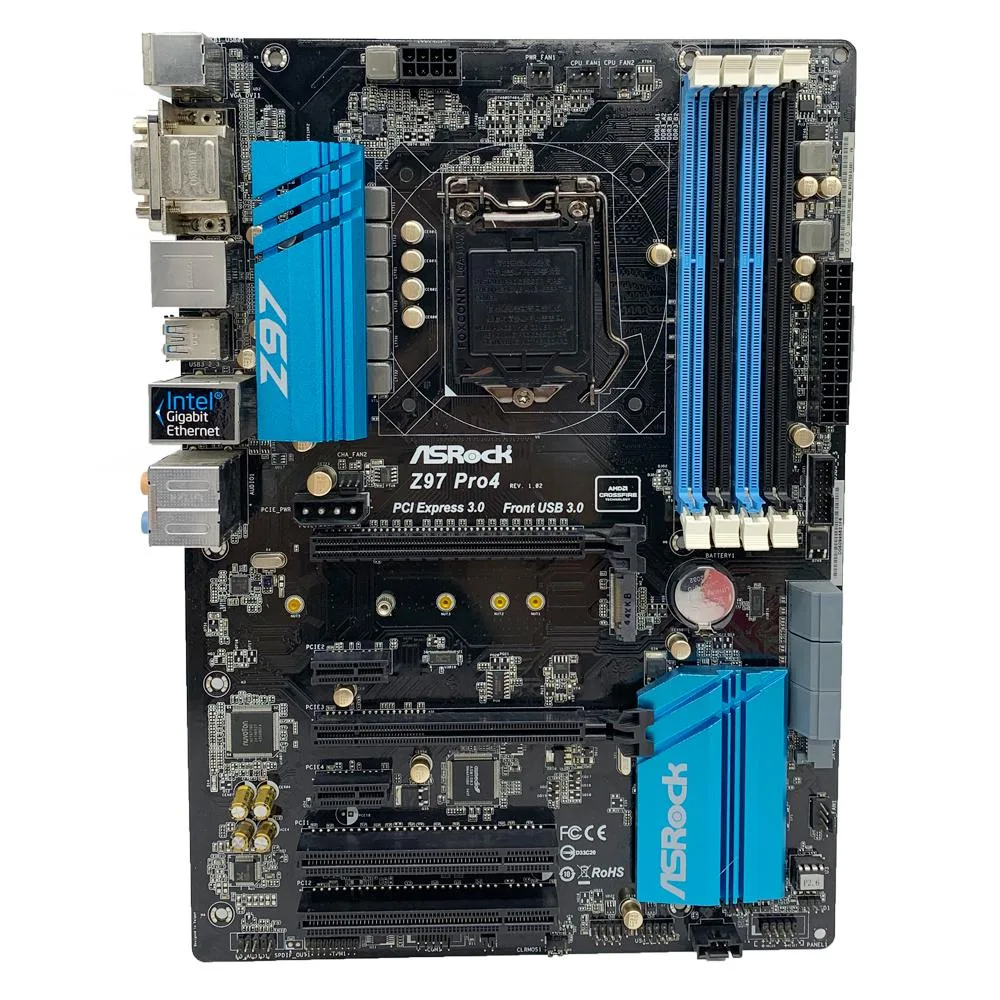

Rectangular ATX board with black PCB, silver heatsinks, blue memory slots, and rear I/O panel

ASRock

ASRock Z97 Pro4 Intel motherboard LGA 1150 DDR3 32GB

SKU CH-BSAD-HAQHX

An ATX Intel Z97 motherboard for LGA 1150 CPUs with four DDR3 slots up to 32GB, six SATA 6Gb/s ports, one M.2 slot and 7.1 audio

  • CPU Socket TypeLGA 1150
  • CPU TypeIntel Core 5th Gen (LGA 1150)
  • ChipsetIntel Z97
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x240pin
  • Memory StandardDDR3 3100+(OC)/2933+(OC)/ 2800(OC)/2400(OC)/2133(OC)/1866(OC
  • Supports 5th Gen Intel Core CPUs on LGA 1150 socket
  • Dual-channel DDR3 memory up to 32 GB at 3100 MT/s OC
  • 6 SATA 6 Gb/s ports plus M.2 and SATA Express storage
  • Realtek ALC892 codec delivers 7.1 channel high-definition audio
  • Premium alloy chokes cut core loss by 70 percent with Japan-made capacitors

Z97 Pro4 Platform

The ASRock Z97 Pro4 is an ATX motherboard built for LGA 1150 processors. It supports 4th and 5th Generation Intel Core i7, i5, i3, Pentium and Celeron CPUs as well as Xeon models. The board targets builders who need a full-size layout with legacy PCI slots alongside modern expansion.

32 GB DDR3 Headroom

Four DDR3 DIMM slots accept up to 32 GB of system memory in dual-channel mode. Supported speeds range from 1066 to 3100 MHz with overclocking profiles. Six SATA 6 Gb/s ports plus one SATA Express and one M.2 slot provide storage connectivity. The memory ceiling is reached when all four slots are populated with 8 GB modules.

Alloy Power Delivery

The 6-phase Digi Power design uses Premium Alloy Chokes and NexFET MOSFETs to reduce core loss. Nichicon 12K Platinum capacitors and a Sapphire Black PCB complete the power circuitry. Realtek ALC892 drives 7.1-channel audio. The board draws power through standard ATX and CPU connectors with no active cooling on the VRM heatsinks.

Highlights

  • Supports 5th Gen Intel Core CPUs on LGA 1150 socket
  • Dual-channel DDR3 memory up to 32 GB at 3100 MT/s OC
  • 6 SATA 6 Gb/s ports plus M.2 and SATA Express storage
  • Realtek ALC892 codec delivers 7.1 channel high-definition audio
  • Premium alloy chokes cut core loss by 70 percent with Japan-made capacitors

Specifications

BrandASRock
ModelZ97 Pro4
CPU Socket TypeLGA 1150
CPU TypeIntel Core 5th Gen (LGA 1150)
ChipsetIntel Z97
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x240pin
Memory StandardDDR3 3100+(OC)/2933+(OC)/ 2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express 2.0 x161 (x4 mode)
PCI Express x12 x PCI Express x1
PCI Slots2 x PCI Slots
Serial ATA (SATA)6 x SATA 6Gb/s
SATA Express1 x SATA Express
M.21 x M.2
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC892
Audio Channels7.1 Channels
LAN ChipsetIntel I218V
Max LAN Speed1Gbps
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x D-Sub
1 x DVI-D
HDMI1 x HDMI
USB 3.04 x USB 3.0
USB 1.1/2.04 x USB 2.0
S/PDIF Out1 x Optical
Audio Ports5 Ports
Onboard USB2 x USB 3.0 + 4 x USB 2.0
Other Connectors1 x COM Port Header
1 x Chassis Intrusion Header
1 x TPM Header
1 x Power LED Header
2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
1 x Power Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x PCIe Power Connector
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector
Form FactorATX
Dimensions (W x L)12.0" x 8.6"
Power Pin24 Pin
FeaturesASRock Super Alloy
-Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
-NexFET MOSFET
-12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
-Sapphire Black PCB
ASRock Full Spike Protection
ASRock APP Shop
Package ContentsASRock Z97 Pro4 Motherboard
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
1 x Screw for M.2_SSD (NGFF) Socket 3

Questions about this item

Will my existing DDR3 memory work at its rated speed without overclocking?

The board runs DDR3 at 1066, 1333 and 1600 MHz natively. Speeds above 1600 such as 1866, 2133, 2400, 2800, 2933 or 3100 require enabling an XMP profile or manual overclocking in the UEFI.

Can I install a 5th generation Core i5 and use the onboard video outputs?

Yes. The HDMI, DVI-D and VGA ports are driven by the processor's integrated graphics, so a 5th generation Core i5 with Intel HD Graphics will activate them.

How many SATA 6 Gb/s devices can I connect alongside an M.2 drive?

Six SATA 6 Gb/s ports are available. The M.2 slot shares bandwidth with the single SATA Express connector, so using an M.2 drive does not reduce the six standard SATA ports.
