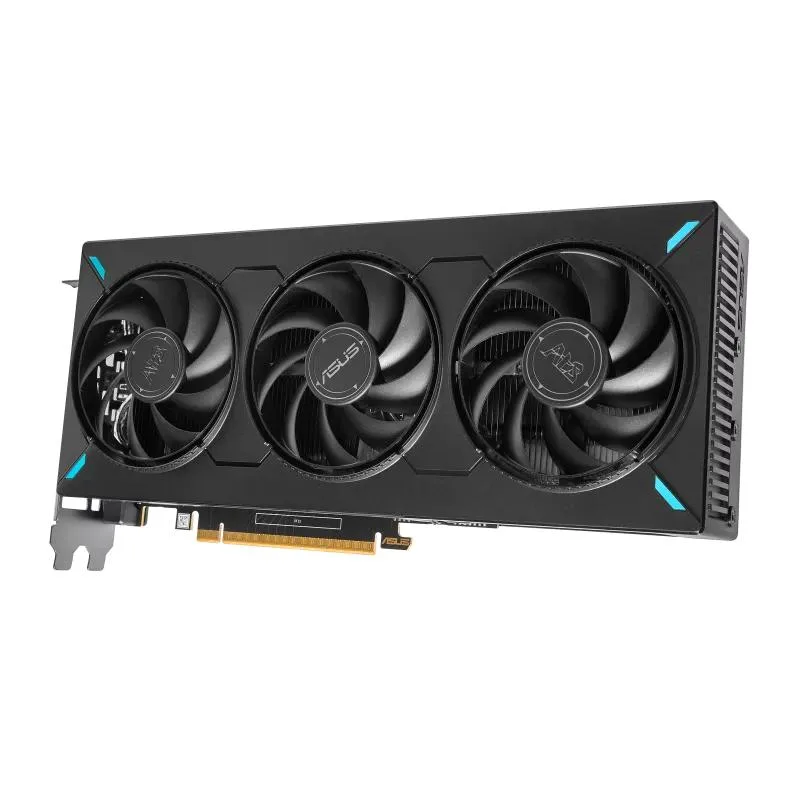

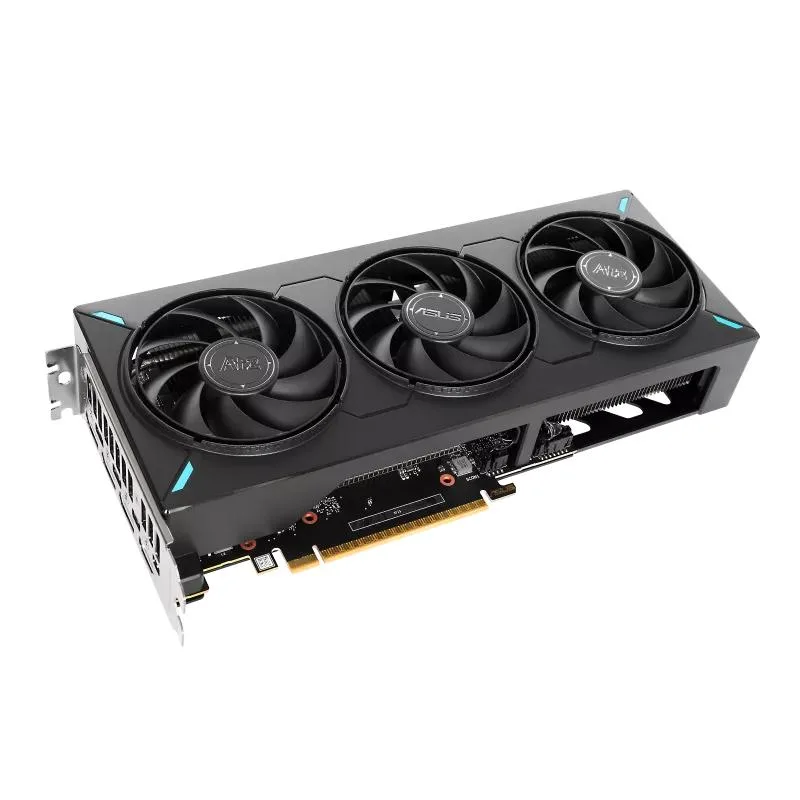

Black dual-slot graphics card with three axial fans, silver heatsink visible, HDMI and three DisplayPort outputs on metal bracket

ASUS

ASUS ATS GeForce RTX 5060 8GB graphics card

SKU CH-5A4W-GJCGX

A GeForce RTX 5060 with 8 GB of GDDR7 memory on a 128-bit bus, 3840 CUDA cores, and boost clocks up to 2595 MHz in OC mode

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060
  • ArchitectureBlackwell
  • Boost ClockOC mode: 2595MHz Default mode: 2565MHz (Boost Clock)

model ATS

Struck-through versions exist but are not stocked here.

  • 8GB GDDR7 memory delivers 28 Gbps bandwidth for high-speed texture streaming
  • Boost clock reaches 2595 MHz in OC mode for responsive gaming performance
  • 3840 CUDA cores accelerate parallel workloads in creative and compute tasks
  • PCI Express 5.0 x8 interface doubles lane throughput versus previous standards
  • HDMI 2.1b and three DisplayPort 2.1b outputs drive up to four displays simultaneously

ATS GeForce RTX 5060 8GB overview

The ASUS ATS GeForce RTX 5060 8GB is a graphics card built on the Blackwell architecture for 1440p gaming and creative workloads. It features 3840 CUDA cores and 8GB of GDDR7 memory on a 128-bit bus. The boost clock reaches 2595MHz in OC mode and 2565MHz in default mode. It targets builders who want current-generation performance in a compact form.

PCI Express 5.0 x8 build fit

The card connects through a PCI Express 5.0 x8 interface, compatible with current and previous platform generations. Its x8 link width leaves additional lanes available for high-speed storage or capture devices. The 128-bit memory interface and 28 Gbps effective clock keep data flowing without demanding extreme power delivery. A single 12VHPWR or dual 8-pin connection typically satisfies the board power requirement.

HDMI 2.1b and DisplayPort 2.1b outputs

One HDMI 2.1b port and three DisplayPort 2.1b ports drive up to four displays simultaneously. The modern display standards enable 4K at high refresh rates and 8K at 60Hz with DSC. DirectX 12 Ultimate and OpenGL 4.6 support unlock the latest rendering features for games and professional applications. No proprietary software bundle is included beyond the standard driver package.

Highlights

  • 8GB GDDR7 memory delivers 28 Gbps bandwidth for high-speed texture streaming
  • Boost clock reaches 2595 MHz in OC mode for responsive gaming performance
  • 3840 CUDA cores accelerate parallel workloads in creative and compute tasks
  • PCI Express 5.0 x8 interface doubles lane throughput versus previous standards
  • HDMI 2.1b and three DisplayPort 2.1b outputs drive up to four displays simultaneously

Specifications

BrandASUS
SeriesATS
ModelATS-RTX5060-8G
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060
ArchitectureBlackwell
Boost ClockOC mode: 2595MHz
Default mode: 2565MHz (Boost Clock)
CUDA Cores3840
Effective Memory Clock28 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length269 mm
Card Dimensions (L x H)268.3 x 120 x 50 mm
10.56 x 4.72 x 1.97 inches
Slot Width2.5 Slots

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the first limit reached when the RTX 5060 runs at its 2595 MHz OC boost clock for extended periods?

The 128-bit memory interface and 8 GB GDDR7 capacity become the bottleneck before the GPU core hits its maximum throughput.

How much heat and noise does the card produce when it draws full power all day?

The 128-bit GDDR7 design keeps total board power moderate, so the dual-fan cooler stays quiet and exhaust temperatures remain low during continuous loads.

Which motherboard slot and power connectors must already be present for this ATS model to work?

A PCI Express 5.0 x8 slot and a single 8-pin PCIe power cable from the PSU are required for the RTX 5060 to operate.
