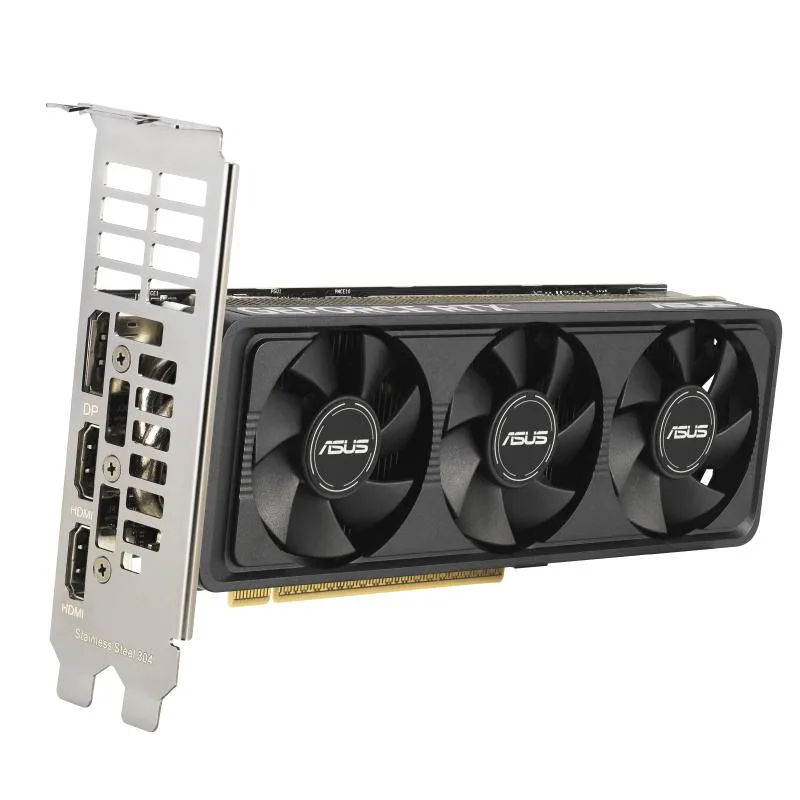

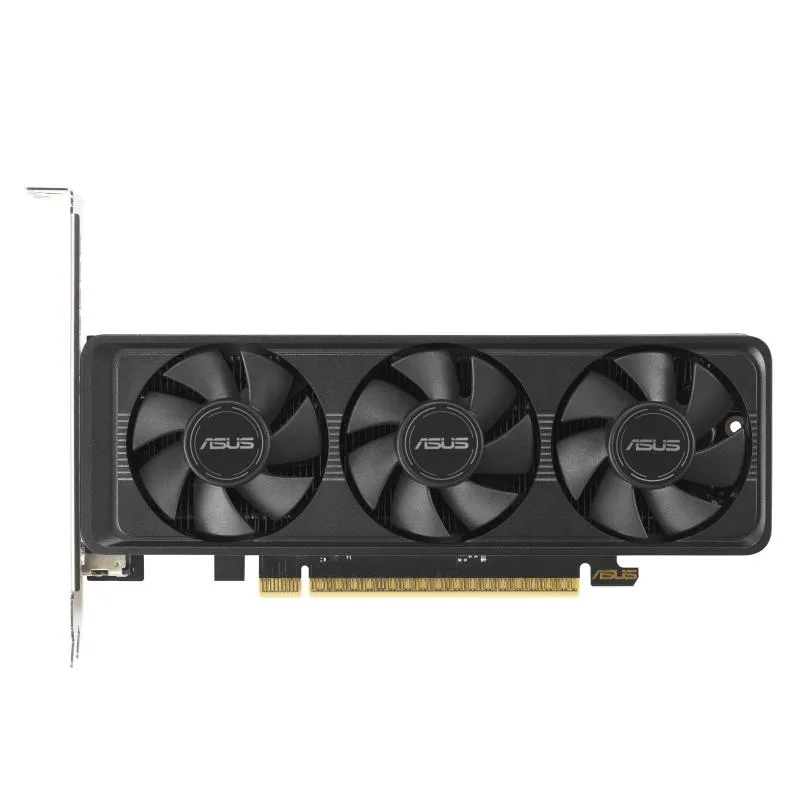

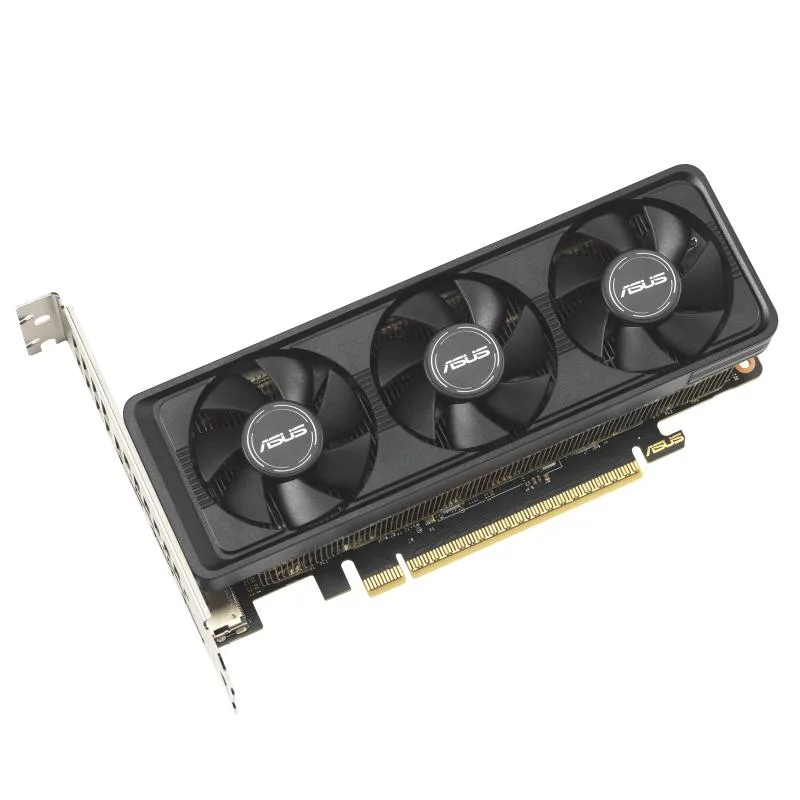

Low-profile black graphics card with dual fans and metal backplate

ASUS

ASUS GeForce RTX 5060 LP BRK OC 8GB GDDR7 graphics card

SKU CH-W1H3-0TPGX

Low-profile GeForce RTX 5060 with 8 GB GDDR7, 3840 CUDA cores, OC boost to 2565 MHz and IP5X dust resistance

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060
  • ArchitectureBlackwell
  • Boost ClockOC mode: 2565MHz Default mode: 2535MHz (Boost Clock)

model LP-BRK

Struck-through versions exist but are not stocked here.

  • 8GB GDDR7 memory delivers 28 Gbps bandwidth for high-speed texture streaming
  • OC boost clock reaches 2565 MHz for responsive 1440p gaming
  • Low-profile design fits compact cases while leaving room for cable routing
  • IP5X dust resistance and dual ball fan bearings extend cooler lifespan
  • PCI Express 5.0 x8 interface and DisplayPort 2.1b outputs support modern displays

Low-profile RTX 5060 for compact builds

The ASUS GeForce RTX 5060 LP BRK OC fits small chassis with a low-profile bracket and PCI Express 5.0 x8 interface. It targets builders who need NVIDIA Blackwell performance in space-constrained systems. Dual ball fan bearings and IP5X dust resistance support long-term reliability. GPU Tweak III software adds monitoring and tuning control.

Upgrade from older low-profile cards

Moving from an earlier-generation low-profile GPU brings the Blackwell architecture, DLSS 4 support and 627 AI TOPS for modern workloads. The jump is worthwhile when your current card cannot drive four displays or lacks HDMI 2.1b and DisplayPort 2.1b connectivity. OC mode reaches 2565 MHz boost versus a 2535 MHz default for extra headroom.

8 GB GDDR7 on a 128-bit bus

The 8 GB frame buffer at 28 Gbps effective clock handles 1440p gaming and creative tasks with DLSS 4 upscaling. 3840 CUDA cores deliver compute throughput for AI-assisted workflows. Memory capacity becomes the limit in heavy 4K texture loads or large batch inference, where a wider bus or larger pool would be needed.

Highlights

  • 8GB GDDR7 memory delivers 28 Gbps bandwidth for high-speed texture streaming
  • OC boost clock reaches 2565 MHz for responsive 1440p gaming
  • Low-profile design fits compact cases while leaving room for cable routing
  • IP5X dust resistance and dual ball fan bearings extend cooler lifespan
  • PCI Express 5.0 x8 interface and DisplayPort 2.1b outputs support modern displays

Specifications

BrandASUS
SeriesLP BRK
ModelRTX5060-8G-LP-BRK
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060
ArchitectureBlackwell
Boost ClockOC mode: 2565MHz
Default mode: 2535MHz (Boost Clock)
CUDA Cores3840
Effective Memory Clock28 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length228 mm
Card Dimensions (L x H)228 x 123 x 50 mm
8.98 x 4.84 x 1.97 inches
Slot Width2.5 Slots
Package Contents1 x Speedsetup Manual
1 x Thank You Card

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the low-profile bracket fit my small-form-factor case?

The card uses a low-profile design that leaves space for cables and airflow in compact chassis.

What is the correct way to seat the PCI Express 5.0 x8 connector without damaging the shorter edge?

Align the x8 gold fingers with the slot, press straight down until the retention clip clicks, and avoid rocking the card which can bend the reduced pin count.

How often should I clean the IP5X dust-resistant fans to maintain cooling performance?

The IP5X rating limits particle ingress, and dual ball bearings last up to twice as long as sleeve designs, so a light compressed-air clean every six to twelve months is sufficient.
