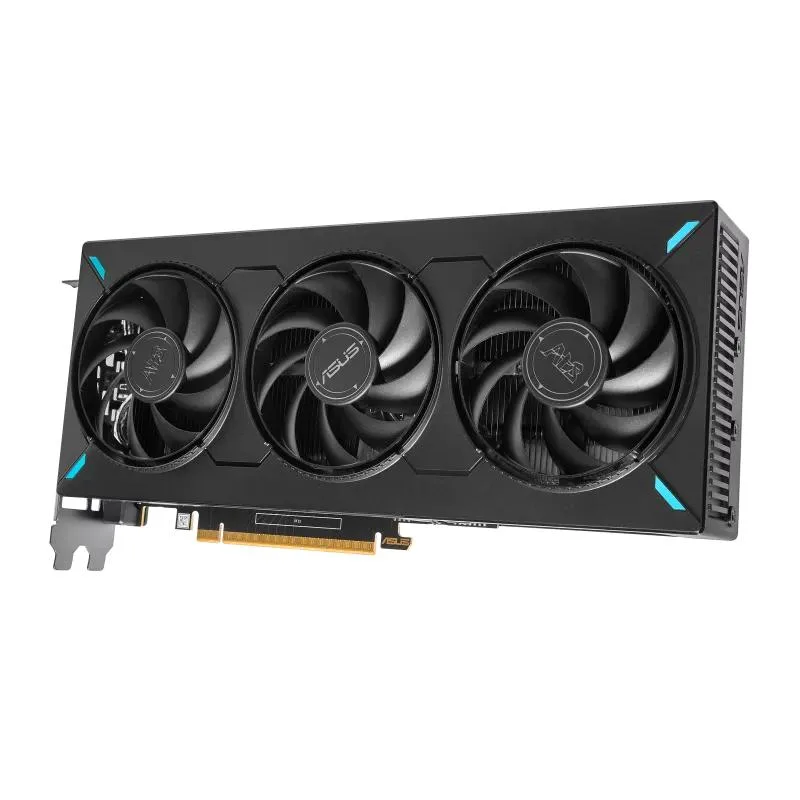

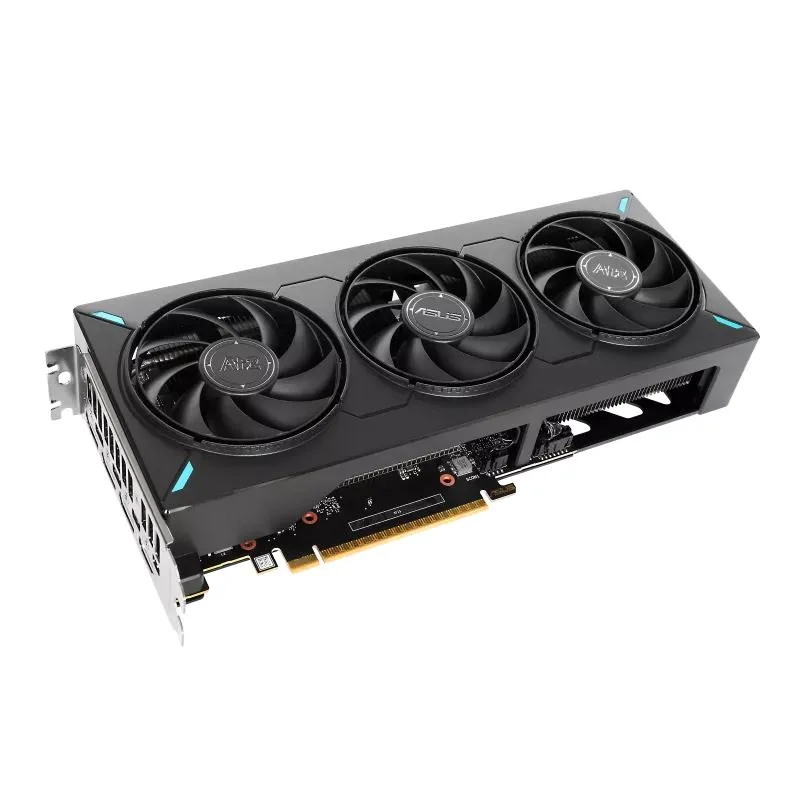

Black dual-slot graphics card with three axial fans, silver backplate, one HDMI and three DisplayPort outputs

ASUS

ASUS ATS GeForce RTX 5060 Ti 8GB GDDR7 graphics card ATS-RTX5060TI-O8G

SKU CH-T3AJ-966KT

Delivers 8 GB of 128-bit GDDR7 memory at 28 Gbps with 4608 CUDA cores, PCIe 5.0 x8, DLSS 4.0, and 1 HDMI 2.1b plus 3 DisplayPort 2.1b outputs for 7680 x 4320 resolution

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • ArchitectureBlackwell
  • CUDA Cores4608

model ATS OC

  • 8GB GDDR7 memory at 28 Gbps fuels high-resolution textures
  • 4608 CUDA cores accelerate ray-traced workloads
  • PCIe 5.0 x8 link doubles host bandwidth
  • HDMI 2.1b plus three DisplayPort 2.1b drive 7680 x 4320 displays
  • DLSS 4.0 upscaling boosts frame rates with AI

ASUS ATS GeForce RTX 5060 Ti 8GB GDDR7

This graphics card pairs a Blackwell GPU with 8GB of GDDR7 memory on a 128-bit bus. It delivers 4608 CUDA cores and connects via PCI Express 5.0 x8. The board outputs to four displays through one HDMI 2.1b and three DisplayPort 2.1b connectors.

Suits builders needing modern display outputs

The card fits systems that can use PCIe 5.0 x8 and want HDMI 2.1b plus triple DisplayPort 2.1b for high-refresh 4K panels. It is less suited for workloads that require more than 8GB of frame buffer or a wider memory bus.

128-Bit GDDR7 at 28 Gbps memory subsystem

The 128-bit interface running at 28 Gbps sets the bandwidth ceiling for the 8GB frame buffer. This specification determines whether the card can feed the 4608 CUDA cores fast enough for your target resolution and texture quality.

Highlights

  • 8GB GDDR7 memory at 28 Gbps fuels high-resolution textures
  • 4608 CUDA cores accelerate ray-traced workloads
  • PCIe 5.0 x8 link doubles host bandwidth
  • HDMI 2.1b plus three DisplayPort 2.1b drive 7680 x 4320 displays
  • DLSS 4.0 upscaling boosts frame rates with AI

Specifications

BrandASUS
SeriesATS
ModelATS-RTX5060TI-O8G
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
ArchitectureBlackwell
CUDA Cores4608
Effective Memory Clock28 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage550W
Power Connector8-Pin
Features• AI Performance: 758 AI TOPS
• Powered by the NVIDIA Blackwell architecture and DLSS 4
• SFF-Ready Enthusiast GeForce Card
• Axial-tech fans feature a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
• 2.5-slot design allows for greater build compatibility while maintaining cooling performance
• Dual-ball fan bearings last up to twice as long as standard sleeve bearings
• 0dB technology lets you enjoy light gaming in relative silence
• Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles
• Auto-Extreme man
Form FactorATX
Max GPU Length304 mm
Card Dimensions (L x H)304 x 120 x 50 mm
11.96 x 4.72 x 1.97 inch
Slot Width2.5 Slots

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which version of the ASUS ATS GeForce RTX 5060 Ti should I choose?

This model is the ATS-RTX5060TI-O8G with 8GB GDDR7 on a 128-bit bus and 4608 CUDA cores.

What does the 28 Gbps effective memory clock mean for actual use?

The 28 Gbps GDDR7 memory delivers high bandwidth over the 128-bit interface for 4608 CUDA cores at 2617 MHz boost.

What does the PCI Express 5.0 x8 interface cap in practice?

The card uses a PCIe 5.0 x8 electrical link and provides one HDMI 2.1b plus three DisplayPort 2.1b outputs.
