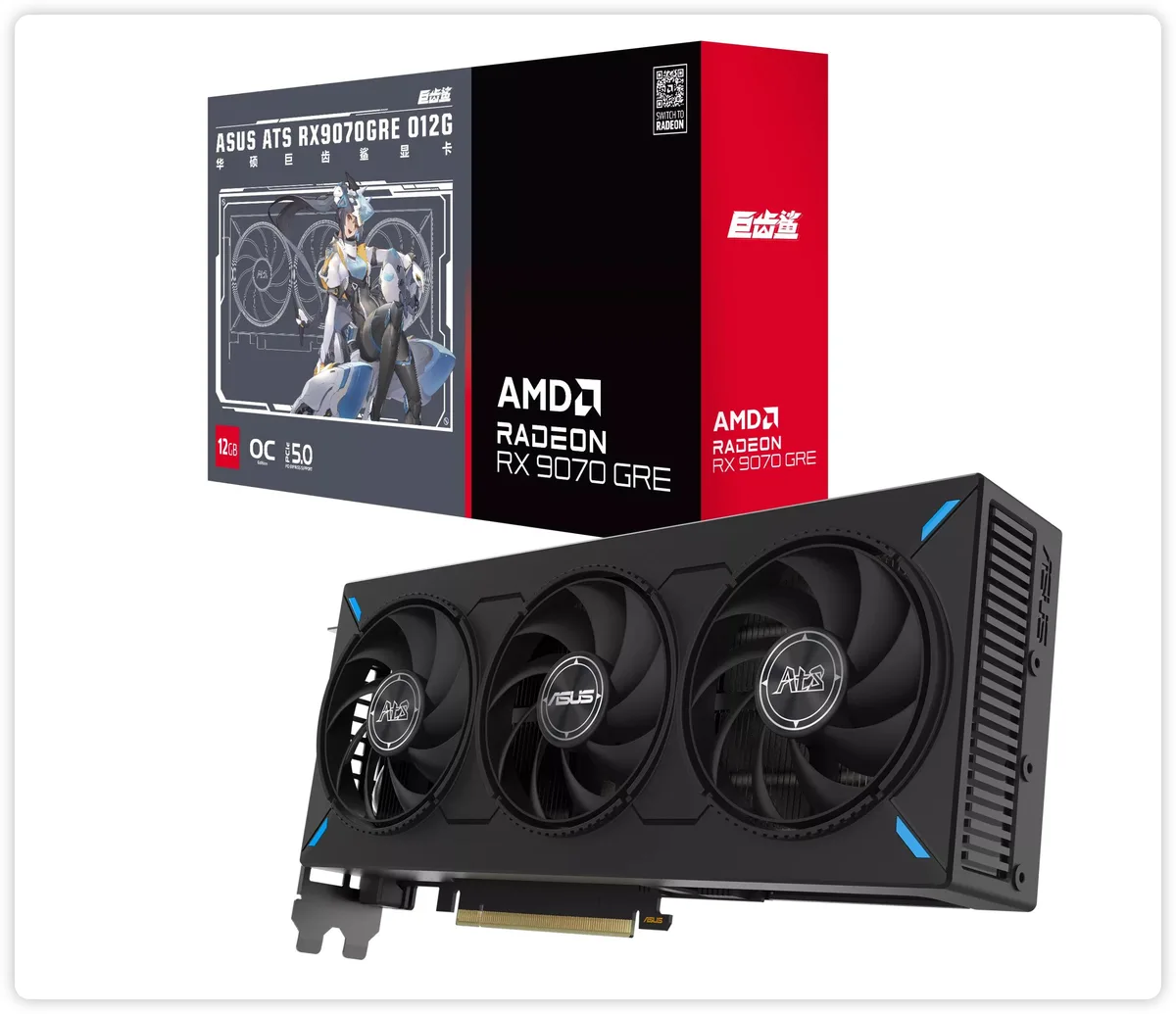

ASUS ATS Radeon RX 9070 12GB triple-fan graphics card with dark metal shroud and backplate

ASUS

ASUS ATS Radeon RX 9070 12GB graphics card ATS-RX9070GRE-O12G

SKU CH-B9CK-FCE5T

12GB GDDR6 RDNA 4 GPU with 3072 stream processors, 192-bit bus, 432 GB/s bandwidth, PCIe 5.0 x16, 220 W TDP, HDMI 2.1b and triple DisplayPort 2.1a for 7680×4320 output

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9070
  • ArchitectureRDNA 4
  • Stream Processors3072
  • RDNA 4 architecture delivers 34.3 TFLOPs compute performance
  • 12 GB GDDR6 memory at 18 Gbps provides 432 GB/s bandwidth
  • Triple axial-tech fans with phase-change thermal pad keep 220 W TDP cool
  • HDMI 2.1b and three DisplayPort 2.1a outputs drive 7680 × 4320 resolution
  • Dual 8-pin power connectors support factory OC boost clock of 2880 MHz

ASUS ATS Radeon RX 9070 12GB for 1440p gaming

The ASUS ATS Radeon RX 9070 12GB targets 1440p gaming with the RDNA 4 architecture. It delivers 3072 stream processors and 12GB of GDDR6 memory across a 192-bit bus. Factory profiles reach a 2880 MHz boost clock in OC mode. The board draws up to 220 W typical board power.

Dual 8-pin power and triple-fan cooling

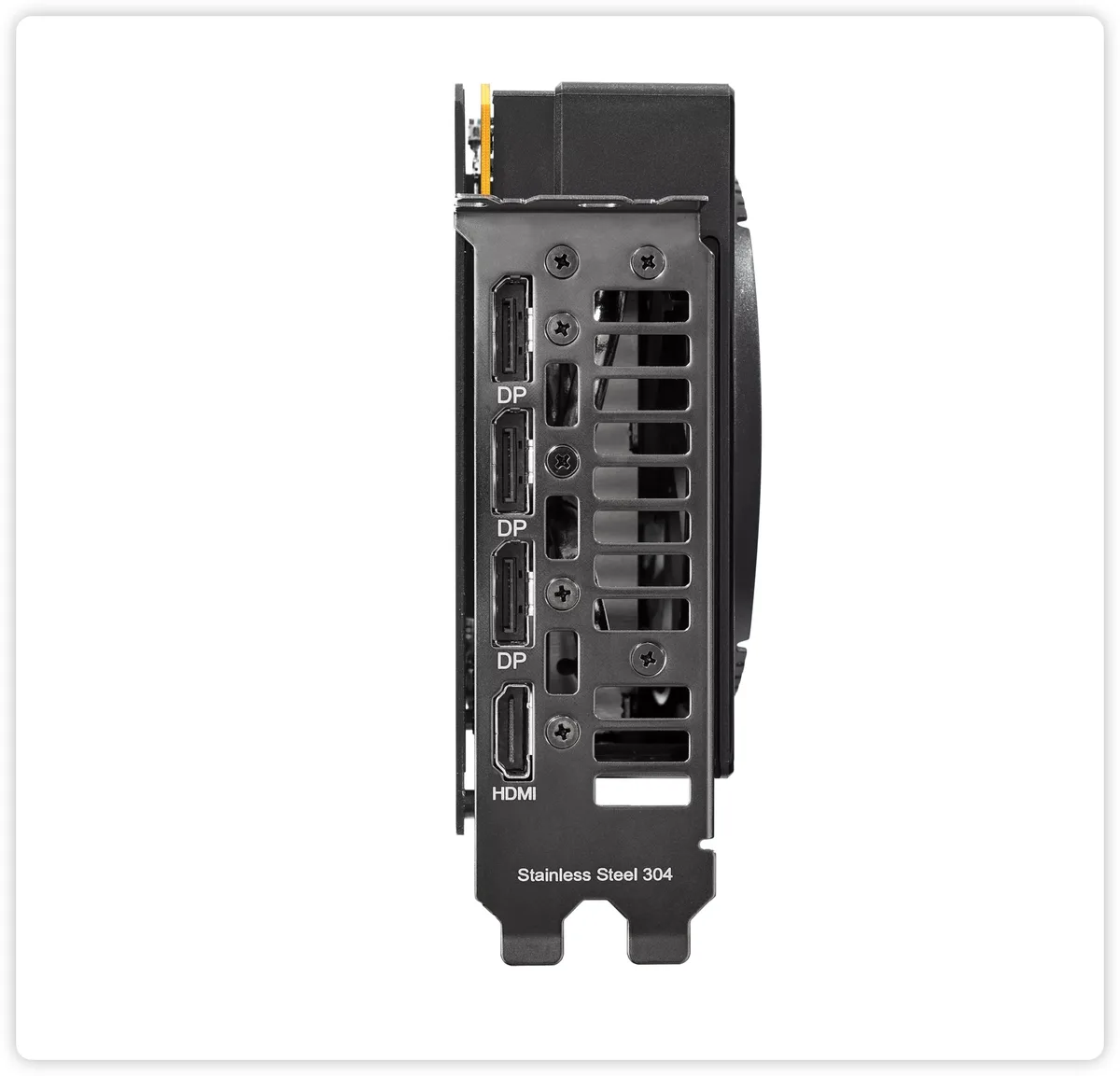

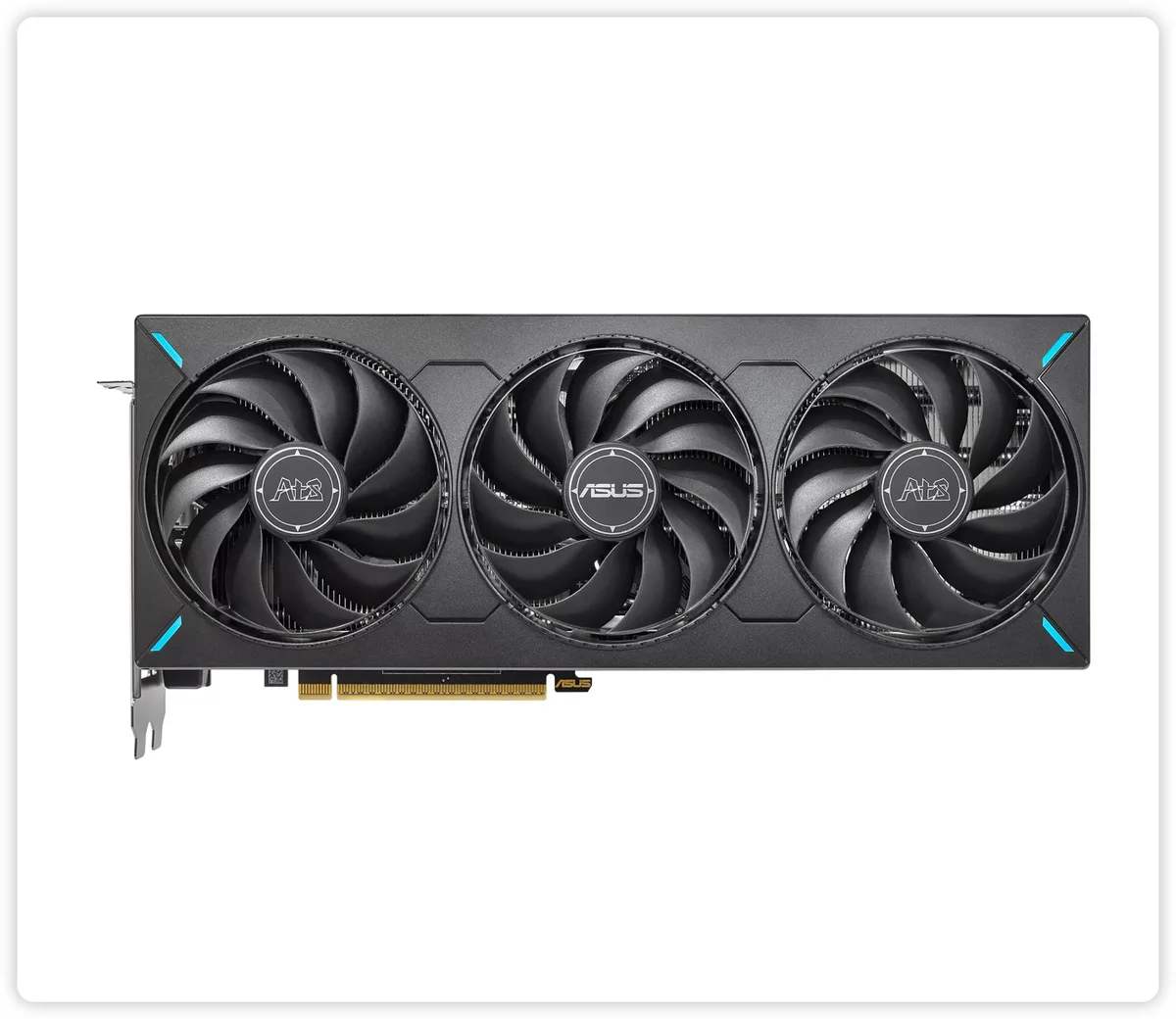

Dual 8-pin connectors feed the 220 W typical board power, so a 650 W 80 PLUS Bronze or better supply is specified. Triple axial-tech fans with double ball bearings move air through a MaxContact mirror-finish heatsink and phase-change thermal interface. A metal backplate and reinforced frame stiffen the full-length PCB. One HDMI 2.1b and three DisplayPort 2.1a outputs drive up to four displays at 7680 x 4320.

Verify PCIe 5.0 x16 slot and case length

Confirm the motherboard provides a PCI Express 5.0 x16 slot for full bandwidth. Measure case clearance for a triple-slot, full-length card and check that two 8-pin power cables reach without strain. Ensure the power unit meets the 650 W minimum with the required connectors. Driver support for DirectX 12 and OpenGL 4.6 should be current.

Highlights

  • RDNA 4 architecture delivers 34.3 TFLOPs compute performance
  • 12 GB GDDR6 memory at 18 Gbps provides 432 GB/s bandwidth
  • Triple axial-tech fans with phase-change thermal pad keep 220 W TDP cool
  • HDMI 2.1b and three DisplayPort 2.1a outputs drive 7680 × 4320 resolution
  • Dual 8-pin power connectors support factory OC boost clock of 2880 MHz

Specifications

BrandASUS
SeriesATS
ModelATS-RX9070GRE-O12G
Part NumberATS-RX9070GRE-O12G
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9070
ArchitectureRDNA 4
Stream Processors3072
Effective Memory Clock18 Gbps
Memory Size12GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1a
Max Resolution7680 x 4320
CoolerTriple Fans
Thermal Design Power220W

Questions about this item

What bandwidth does the PCI Express 5.0 x16 interface provide for the ATS-RX9070GRE-O12G?

The PCI Express 5.0 x16 interface delivers up to 64 GB/s of theoretical bandwidth, capping the maximum data transfer rate between the GPU and the rest of the system.

What physical space and power connectors does the ATS-RX9070GRE-O12G require to fit and mount?

The card uses a triple-fan cooler and needs two 8-pin power connectors; a 650 W PSU is recommended to meet the 220 W typical board power.

How is the ATS-RX9070GRE-O12G installed, and which step do builders often miss?

Seat the card in the primary PCIe 5.0 x16 slot, attach both 8-pin power cables, then connect the display cables — builders often forget the second 8-pin connector.
