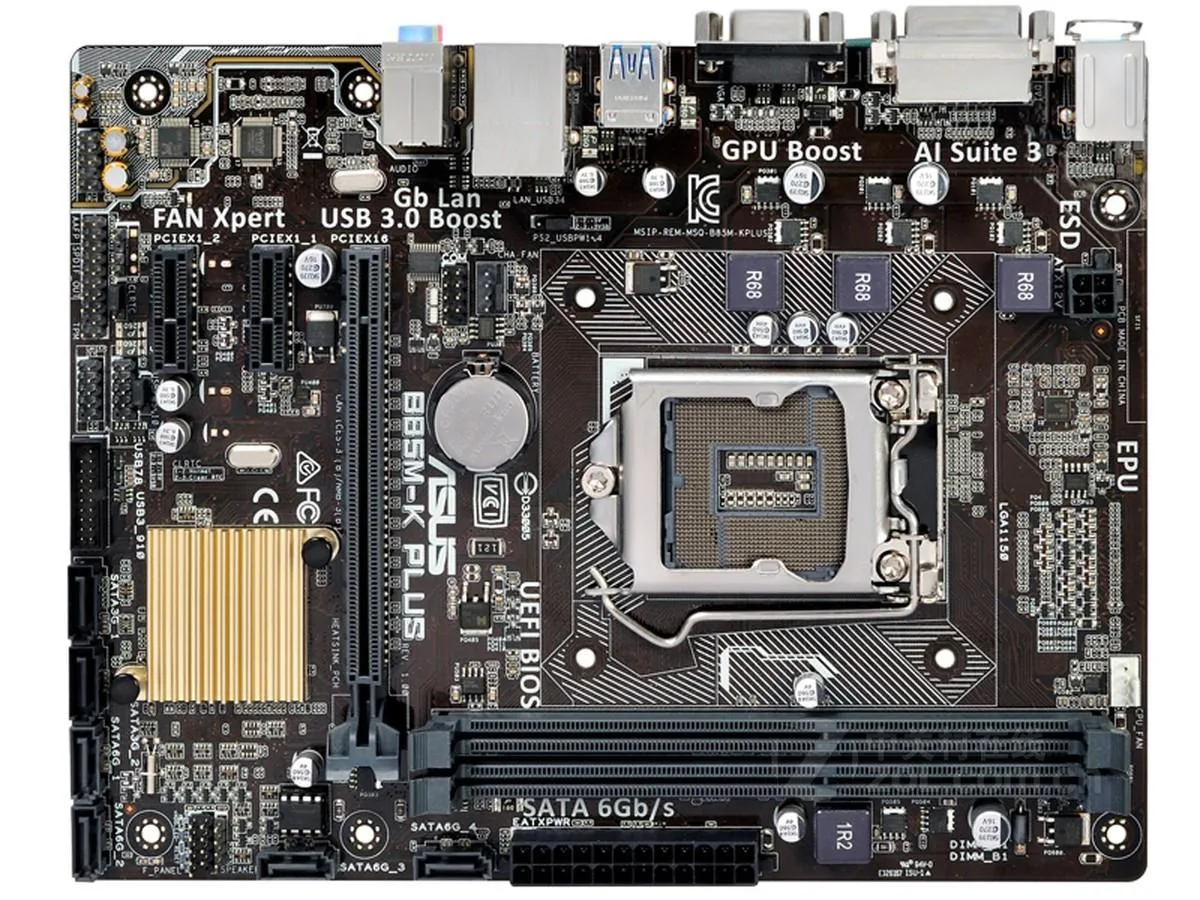

Green Micro ATX motherboard with silver LGA 1150 socket and black DDR3 slots

ASUS

ASUS B85M-K PLUS LGA 1150 DDR3 16GB Micro ATX Intel motherboard

SKU CH-E0ZE-GYQKN

Micro ATX Intel B85 board with LGA 1150 socket supporting 16 GB DDR3, 7.1 audio and Gigabit LAN

  • CPU Socket TypeLGA 1150
  • CPU TypeSupports LGA1150 slot Intel 4th generation and new 4th gener
  • ChipsetIntel B85
  • Memory StandardSupports dual-channel DDR3 1600/1333/1066MHz memory
  • Maximum Memory Supported16GB
  • PCI Slots1 xPCI Express 3.0/2 x16 expansion card slot (x16 mode) 2 xP
  • Supports 16 GB DDR3 for responsive multitasking
  • Micro ATX board at 22.6 x 17.5 cm fits compact cases
  • Intel B85 chipset with four SATA III ports for fast storage
  • Realtek ALC887 7.1 channel audio delivers clear sound
  • Realtek RTL8111GR Gigabit LAN provides wired network speed

Socket LGA 1150 Micro ATX Board

This ASUS B85M-K PLUS motherboard uses the Intel B85 chipset and fits the LGA 1150 socket. It accepts fourth-generation Core i7, i5, i3, Pentium and Celeron processors. The Micro ATX form factor measures 22.6 by 17.5 centimetres. Dual-channel DDR3 memory runs at 1600, 1333 or 1066 MHz up to a 16 GB limit.

Builders needing legacy DDR3 support

This board suits builders who need a replacement LGA 1150 platform with DDR3 memory and multiple SATA ports. It is not for buyers who want more storage bandwidth than six SATA connectors provide. It is not for builders who need a second full-length graphics card slot. It is not for systems that require memory beyond the 16 GB ceiling.

Check CPU cooler clearance and power

Verify that your CPU cooler fits the Micro ATX layout and the LGA 1150 mounting holes. Confirm your power supply delivers the ATX 24-pin and 4-pin CPU connectors the board requires. Ensure your case has the I/O cut-out for the supplied rear panel. Remember the package includes only the motherboard, one SATA cable and the I/O shield.

Highlights

  • Supports 16 GB DDR3 for responsive multitasking
  • Micro ATX board at 22.6 x 17.5 cm fits compact cases
  • Intel B85 chipset with four SATA III ports for fast storage
  • Realtek ALC887 7.1 channel audio delivers clear sound
  • Realtek RTL8111GR Gigabit LAN provides wired network speed

Specifications

BrandASUS
SeriesASUS B85M-K PLUS
ModelASUS B85M-K PLUS
CPU Socket TypeLGA 1150
CPU TypeSupports LGA1150 slot Intel 4th generation and new 4th generation Core i7 /Core i5Core i3 /Pentium/Celeron processor supports 22nm processor supports Intel Turbo Boost 2.0 technology:
ChipsetIntel B85
Memory StandardSupports dual-channel DDR3 1600/1333/1066MHz memory
Maximum Memory Supported16GB
PCI Slots1 xPCI Express 3.0/2 x16 expansion card slot (x16 mode)
2 xPCI Express 2.0 x1 expansion card slots
SATA RAID4XSATA III interface, 2xSATA II interface
Audio ChipsetRealtek ALC887 high fidelity 7.1 channel audio codec chip
LAN ChipsetRTL8111GR Gigabit Network Controller Realtek
Onboard USBIntel B85 Express Chipset - Supports USB 3.0 Boost Technology
4 x USB 3.0/2 (2 on rear panel, 2 on main board)
Intel B85 Express Chipset
6 x USB 2.0/1 (2 on rear panel, 4 on main board)

Questions about this item

Which processor socket must my CPU have to fit this ASUS B85M-K PLUS board?

The board uses an LGA 1150 socket and supports 4th generation Intel Core i7, i5, i3, Pentium and Celeron processors built on a 22nm process with Intel Turbo Boost 2.0 technology.

Will the single PCI Express 3.0 x16 slot run at full speed if I keep an older PCIe 2.0 graphics card?

Yes, the x16 slot is backward compatible so a PCIe 2.0 card will operate at its native 2.0 speeds while the two x1 slots remain PCI Express 2.0.

How can I confirm the Realtek ALC887 audio codec is delivering 7.1 channel output after assembly?

Open the Realtek audio control panel in Windows, select 7.1 speaker configuration and run the built-in speaker test to hear a tone from each of the eight channels.
