Compact silver mini PC with flat rectangular shape and smooth matte finish

ASUS

ASUS Mini PC PL64 90MS02J2-M006X0 i5-1235U 8GB 512GB

SKU CH-KQGV-YCDWB MPN 90MS02J2-M006X0

Fan-less ultra-slim workstation with 12th Gen Intel Core i5, 8 GB RAM, 512 GB PCIe 4.0 SSD, triple 4K HDMI, dual LAN including 2.5G, dual COM and Wi-Fi 6E

  • WorkloadWorkstation
  • TypeTiny
  • CPU TypeIntel Core i5 12th Gen
  • CPU FeaturesIntel® Core™i5-1235U Processor
  • # of Processors Installed1
  • Installed Memory Size8GB
  • Silent fan-less chassis rated for 15 W CPU and 50 °C ambient
  • Triple 4K display via three HDMI 2.1 ports with EDID emulation
  • Dual Intel LAN with 2.5 G and 1 G ports for segregated traffic
  • Two RS-232/422/485 COM ports plus five USB 3.2 Gen 2/Gen 1 ports
  • PCIe 4.0 NVMe SSD and Wi-Fi 6E ready for fast storage and wireless

Ultraslim workstation with 12th Gen Intel Core i5

The ASUS Mini PC PL64 is a fan-less ultraslim workstation built around an Intel Core i5-1235U processor rated at 15 watts. It ships with 8GB of installed memory and a 512GB M.2 NVMe PCIe 4.0 SSD. The compact chassis measures 199.7 x 119.7 x 33.9 mm and weighs 1.0 kg, operating silently in ambient temperatures up to 50°C. No operating system is pre-installed, with support for Windows 11 Pro and Home editions.

Dual LAN and triple 4K display for industrial use

This system suits deployments needing dual Intel LAN ports — one 2.5G and one 1G — plus triple 4K@60Hz output via three HDMI 2.1 ports with EDID emulation. Two COM ports (RJ50) support RS232, 422 and 485 serial protocols for legacy equipment integration. Buyers requiring discrete graphics performance, higher sustained CPU power, or more than two memory slots should consider larger form-factor workstations.

8GB memory and 512GB SSD with expansion headroom

The installed 8GB memory handles typical office, signage and light industrial workloads; two SO-DIMM slots allow expansion up to 64GB total for heavier multitasking. The 512GB NVMe PCIe 4.0 SSD provides fast boot and application storage, while a second M.2 PCIe Gen4x4 slot supports additional capacity. The 65W power adapter supplies the 19Vdc, 3.42A input required for the platform.

Highlights

  • Silent fan-less chassis rated for 15 W CPU and 50 °C ambient
  • Triple 4K display via three HDMI 2.1 ports with EDID emulation
  • Dual Intel LAN with 2.5 G and 1 G ports for segregated traffic
  • Two RS-232/422/485 COM ports plus five USB 3.2 Gen 2/Gen 1 ports
  • PCIe 4.0 NVMe SSD and Wi-Fi 6E ready for fast storage and wireless

Specifications

BrandASUS
ModelMini PC PL64
Part Number90MS02J2-M006X0
WorkloadWorkstation
TypeTiny
CPU TypeIntel Core i5 12th Gen
CPU FeaturesIntel® Core™i5-1235U Processor
# of Processors Installed1
Installed Memory Size8GB
Max Memory CapacityMax Capacity: 32GB x 2
Number of Memory Slots2
SSD (Installed)512GB M.2 NVMe™ PCIe® 4.0 SSD
LAN Ports10/100/1000/2500 Mbps, 2.5G Intel® LAN
10/100/1000 Mbps, 1G Intel® LAN

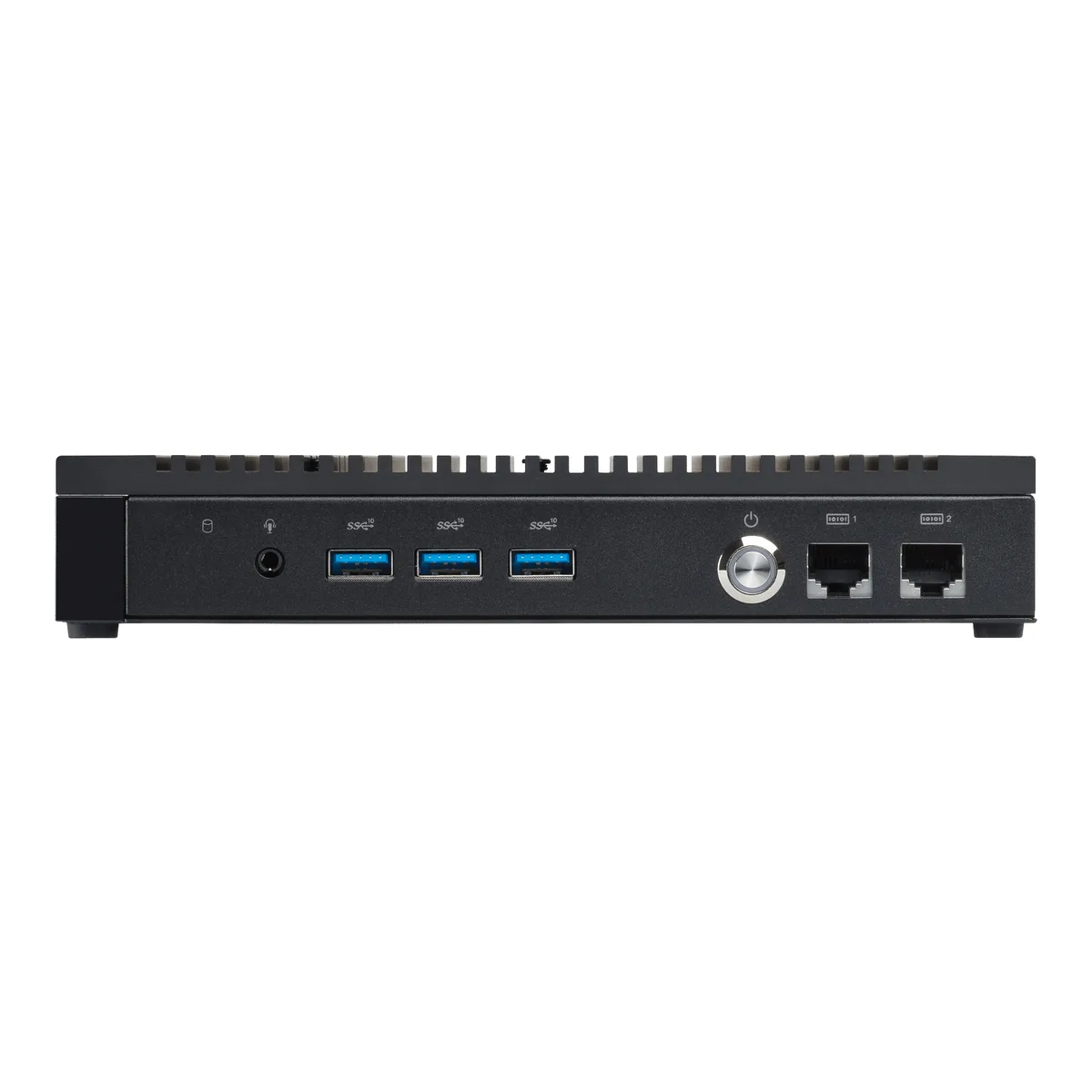

Other portsFront(Side) I/O Ports:
3 x USB 3.2 Gen2 Type-A(5V/0.9A, 10Gbps)
2 x USB 3.2 Gen1 Type-A(5V/0.9A, 5Gbps)(side)
2 x COM (RJ50; support RS232, 422, 485 )
1 x Audio Jack(Line out/Mic in/Headphone out)
1 x Kensington Lock(side)

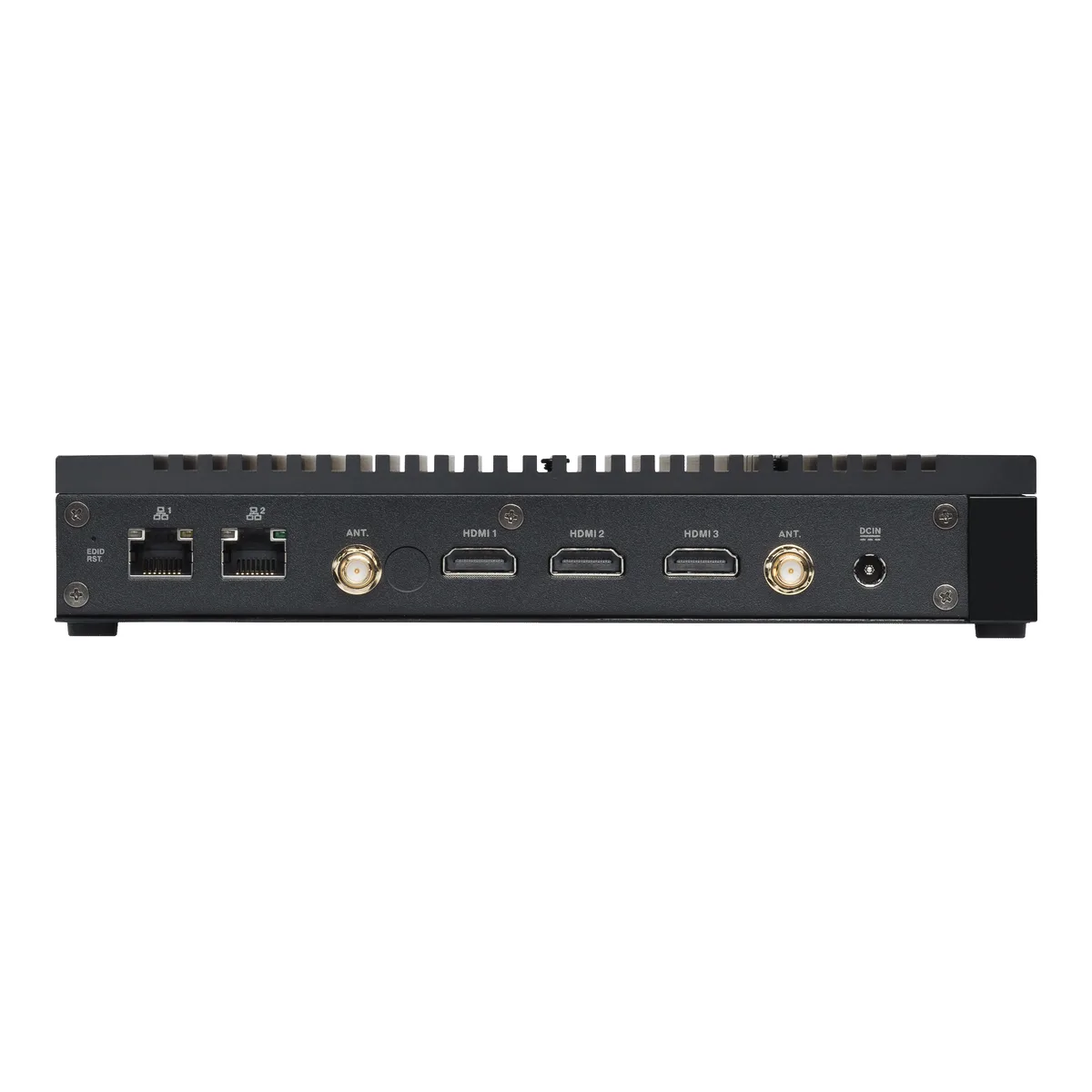

Back I/O Ports:
3 x HDMI 2.1 (Up to 4K@60Hz)
1 x 2.5G RJ45 LAN
1 x RJ45 LAN
1 x EDID reset
2 x Antenna Jack
1 x DC-in
Operating SystemOperating system not installed
Support Win11 Pro, Win 11 Home
Power Characteristics19Vdc, 3.42A, 65W Power Adapter
Weight1.0 kg
FeaturesCertificates: BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
Package ContentsAccessories:
AC Adapter
Driver DVD (non OS SKU only)
Power Cord
Screw Pack
User Manual
Warranty Card
Keyboard & Mouse (optional)
RJ50 to COM Cable (optional)
VESA Mount (optional)
Wall Mount (optional)
Wi-Fi Antenna (optional)
Shipping weight2.04 kg
Package size305 × 216 × 70 mm

Questions about this item

What display cables do I need to use the three HDMI 2.1 ports for 4K triple-display?

The back panel provides three HDMI 2.1 ports supporting up to 4K@60Hz each, so three standard HDMI cables and three compatible monitors are required.

Will my existing RS-422 serial device connect directly to the dual COM ports?

The two RJ50 COM ports support RS232, 422 and 485, so an RS-422 device can be connected using a suitable RJ50-to-DB9 or RJ50-to-terminal-block cable.

How can I confirm the 512 GB M.2 NVMe PCIe 4.0 SSD is recognised and running at Gen 4 speed after setup?

In the OS device manager or BIOS the drive should appear as a PCIe 4.0 x4 NVMe device with 512 GB capacity; benchmark tools will show sequential reads near the drive's rated Gen 4 performance.
