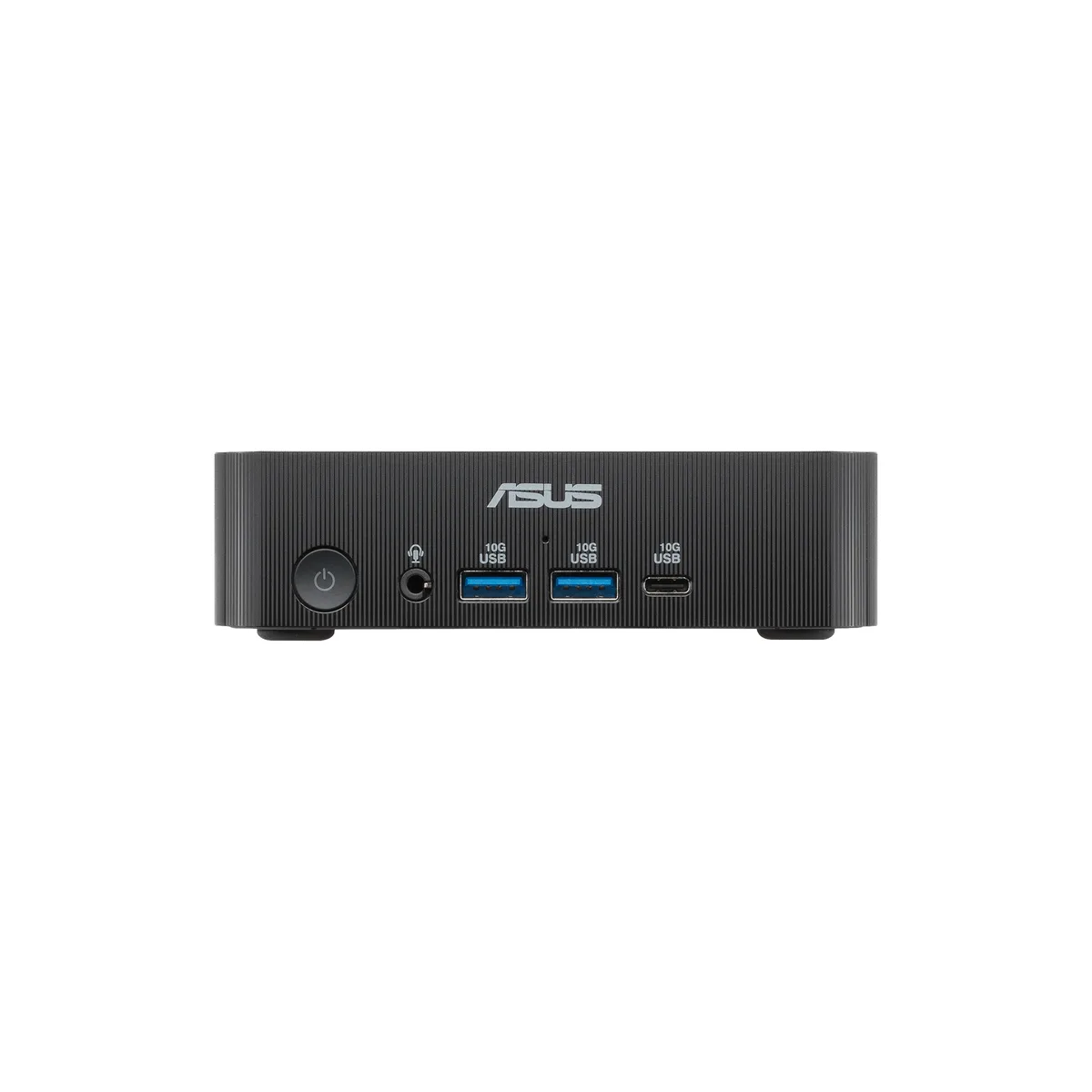

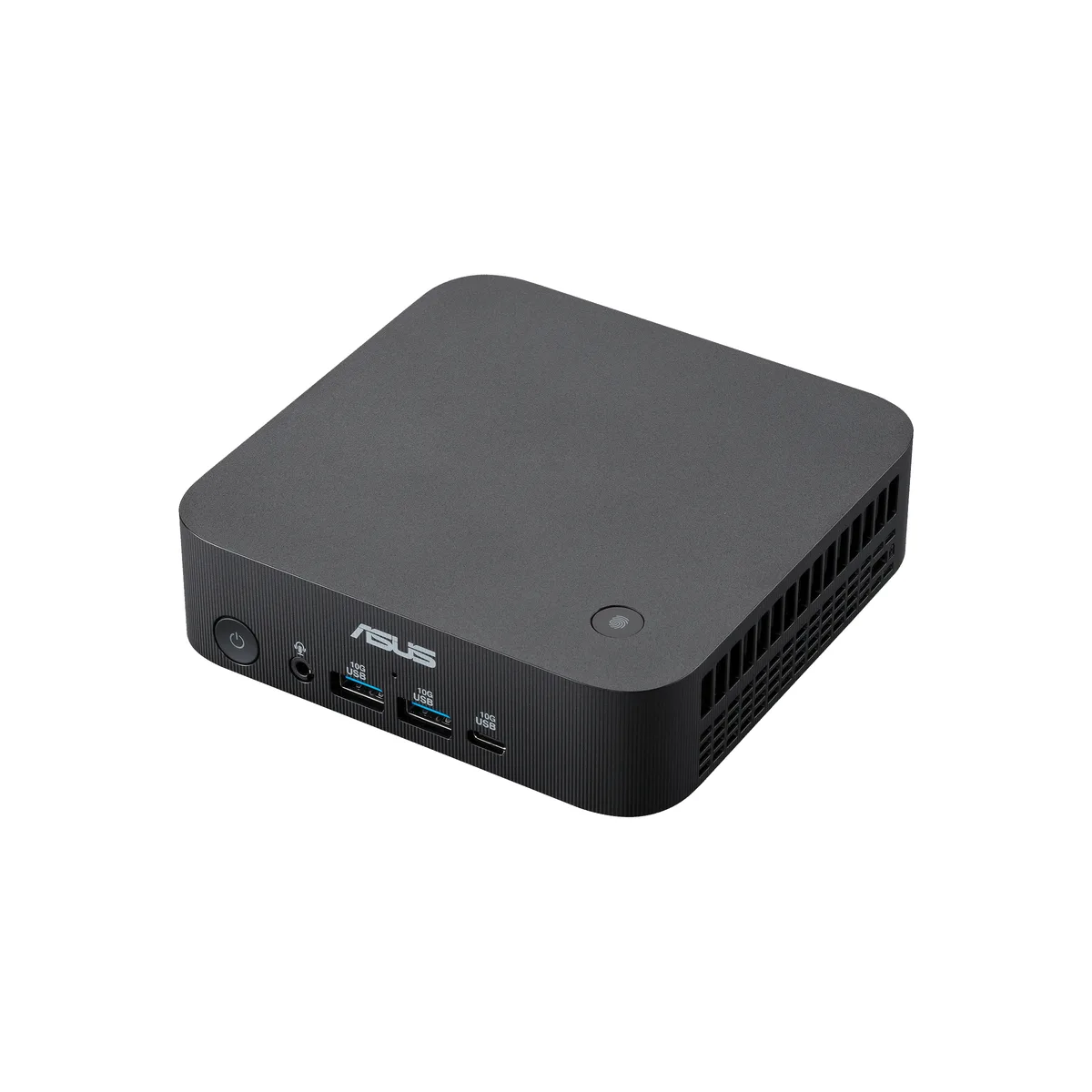

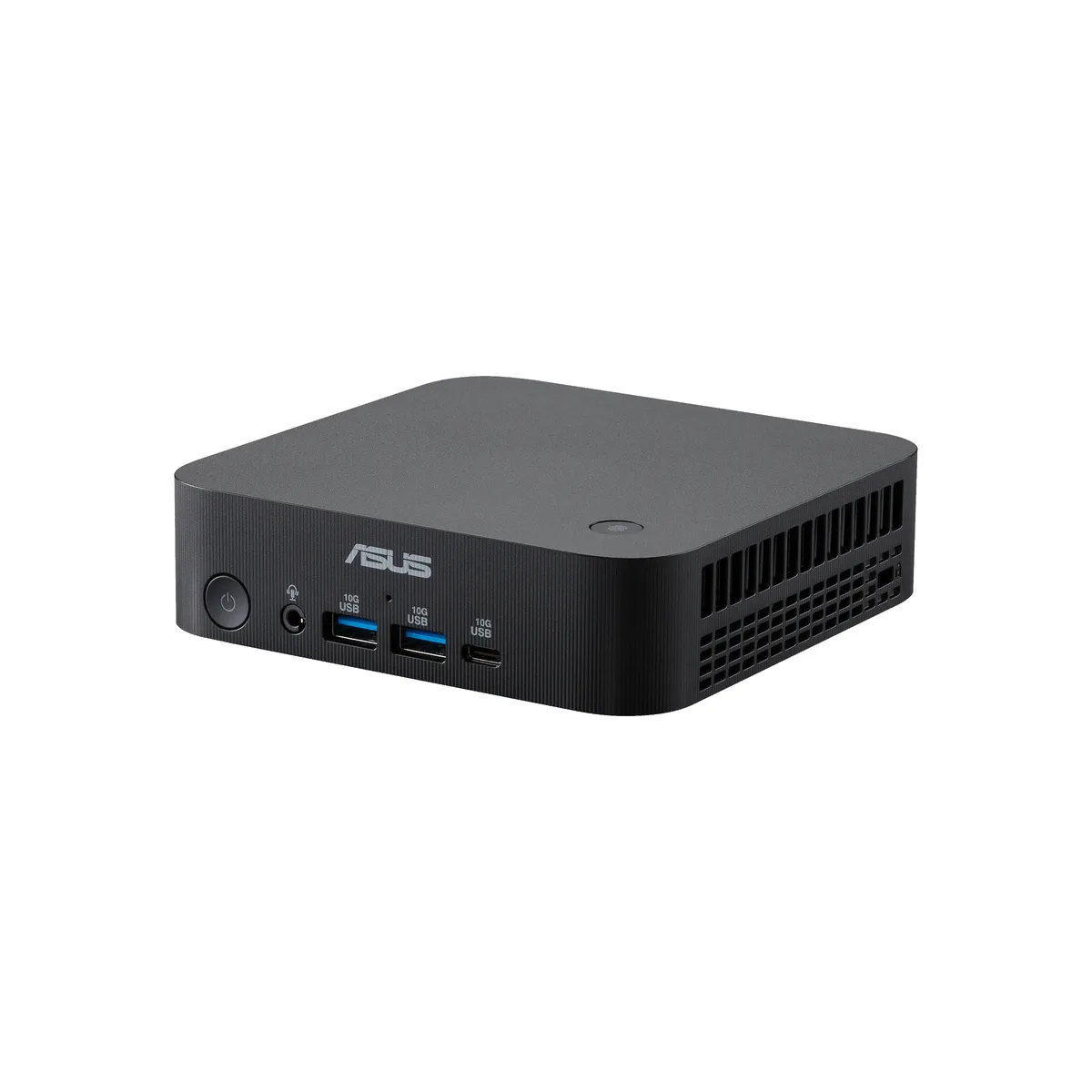

Small black slim mini PC with toolless chassis and VESA mount

ASUS

ASUS PN54-S1-BB3000ETL barebone mini PC Ryzen 3 210 4-core DDR5

SKU CH-359A-1719Z MPN PN54-S1-BB3000ETL

A barebone mini PC with a 4-core Ryzen 3 210 CPU, DDR5 5600 memory support, dual 2.5 GbE LAN, Wi-Fi 7 and tool-free chassis access

  • ColorBlack
  • Form FactorSlim
  • CPU TypeAMD Ryzen 3 210
  • CPU Cores4-Core
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR5 5600

Type AMD Ryzen 3 210

  • 4-core Ryzen 3 210 handles multitasking efficiently
  • DDR5 5600 memory support for fast data access
  • Wi-Fi 7 and Bluetooth 5.4 deliver modern wireless speeds
  • Dual 2.5G LAN ports provide high-bandwidth wired connections
  • Tool-free chassis allows quick component upgrades

ASUS ExpertCenter PN54 Barebone

The ASUS ExpertCenter PN54-S1-BB3000ETL is a slim mini-PC barebone built around the AMD Ryzen 3 210 processor with four cores and integrated AMD Radeon 740M graphics. It arrives as a new, 34 mm chassis that includes a VESA mount and tool-free access for adding memory and storage. Dual 2.5 GbE LAN, Wi-Fi 7 and Bluetooth 5.4 provide modern wired and wireless connectivity.

Suits compact workstations and signage

This barebone suits IT teams deploying compact workstations, digital-signage players or thin-client endpoints that need dual 2.5 GbE links and Wi-Fi 7 in a 34 mm VESA-mountable case. Buyers who require discrete graphics, multiple additional PCIe cards or a larger chassis for high-wattage components should consider other form factors.

DDR5 5600 SO-DIMM memory support

The platform provides two 262-pin SO-DIMM slots that accept DDR5 5600 modules, so the memory type and speed are fixed by the board design. Storage uses two M.2 2280 PCIe Gen4x4 NVMe slots supporting 256 GB to 2 TB drives. Video output includes HDMI 2.1 at 4K 60 Hz and two DisplayPort 1.4 connectors driven by the Radeon 740M iGPU.

Highlights

  • 4-core Ryzen 3 210 handles multitasking efficiently
  • DDR5 5600 memory support for fast data access
  • Wi-Fi 7 and Bluetooth 5.4 deliver modern wireless speeds
  • Dual 2.5G LAN ports provide high-bandwidth wired connections
  • Tool-free chassis allows quick component upgrades

Specifications

BrandASUS
SeriesExpertCenter
ModelPN54-S1-BB3000ETL
Part Number90MR01D2-M001C0
ColorBlack
Form FactorSlim
CPU TypeAMD Ryzen 3 210
CPU Cores4-Core
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 5600
M.2 Slot2 x M.2 2280 PCIe Gen4x4 NVMe SSD (supports 256GB ~ 2TB)
Integrated GraphicsAMD Radeon 740M
LAN2 x Realtek RTL8125B-CG (2.5 GbE)
Max LAN Speed2.5Gbps
Wireless LANMediatek MT7925B22M, Wi-Fi 7, 2x2
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4
Front USB1 x USB 3.2 Gen2 Type-C (5V/3A, 10Gbps)
2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x Audio Jack (Line out/Mic in/Headphone out)
HDMI1 x HDMI 2.1 (up to 4K@60Hz)
DisplayPort2 x DisplayPort 1.4
Rear USB1 x USB 4.0 Type-C (with DP1.4/PD-in*, 5V/3A, 40Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 (5V/0.5A)
RJ452 x Realtek 2.5G LAN (RJ45)
Other Rear Ports1 x DC-in
1 x Kensington Lock Slot (Side)
Power Supply120W Power Adapter
Dimensions1.34" x 5.12" x 5.12" (0.6L)
Weight1.21 lbs.
FeaturesTPM: dTPM 2.0 (Hardware)
Internal Speaker: Yes
PackagingVESA Mount / AC Power Adapter / Power Cord
Shipping weight1.59 kg
Package size188 × 157 × 127 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the two DDR5 SO-DIMM slots need a memory upgrade later?

The board has two 262-pin SO-DIMM slots that accept DDR5 5600 modules; add or replace sticks when workload demands more than the installed capacity.

What limits sustained throughput on the dual 2.5 GbE ports?

Each Realtek RTL8125B-CG controller tops out at 2.5 Gbps, so aggregate wired throughput cannot exceed that per port.

How loud and hot does the 34 mm chassis get during 24/7 operation?

The tool-free slim chassis is built for continuous 24/7 use, with internal cooling sized for the Ryzen 3 210 and Radeon 740M thermal envelope.
