ASUS ExpertCenter PN54-S1-BB5000ETL barebone mini PC Ryzen 5 220 6-core

Barebone mini PC with Ryzen 5 220

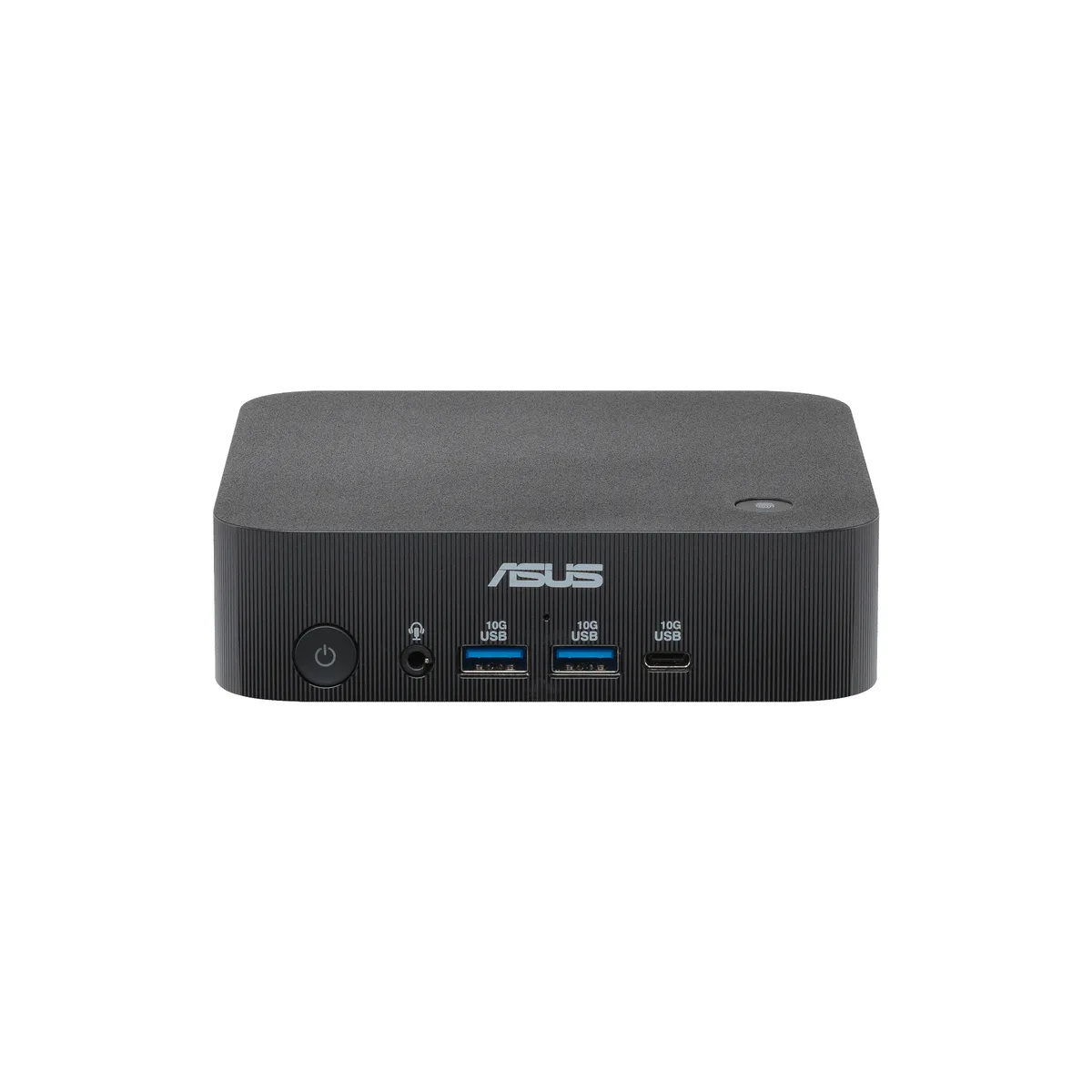

This ASUS ExpertCenter barebone mini PC comes with a soldered AMD Ryzen 5 220 six-core processor and integrated AMD Radeon 740M graphics. It is built for system integrators and IT buyers who want a compact, fanless-ready platform they can finish with their own DDR5 5600 SO-DIMMs and up to two PCIe Gen4x4 NVMe drives. The 34 mm slim chassis supports VESA mounting and tool-free access for quick assembly.

Suited for office, signage and light HTPC builds

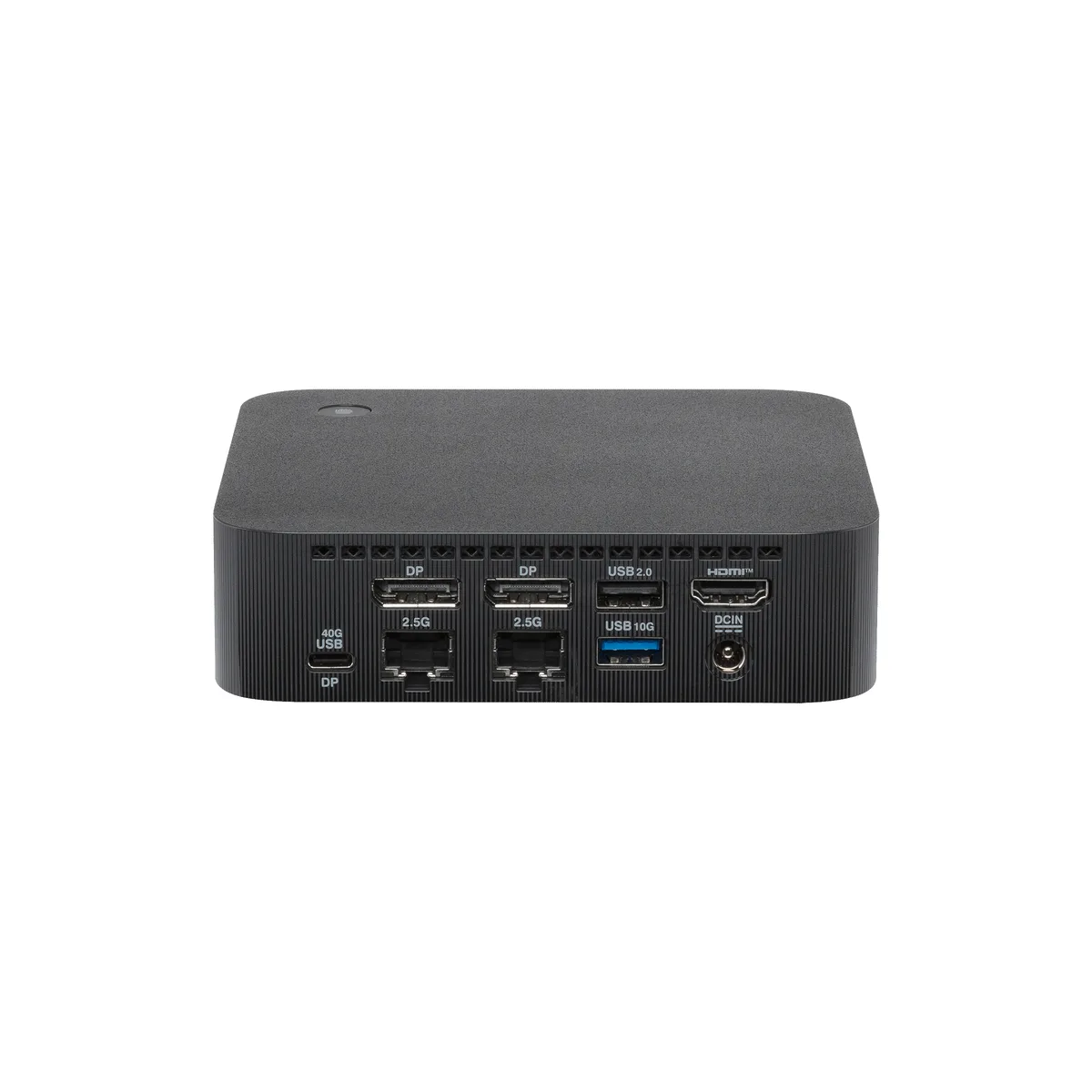

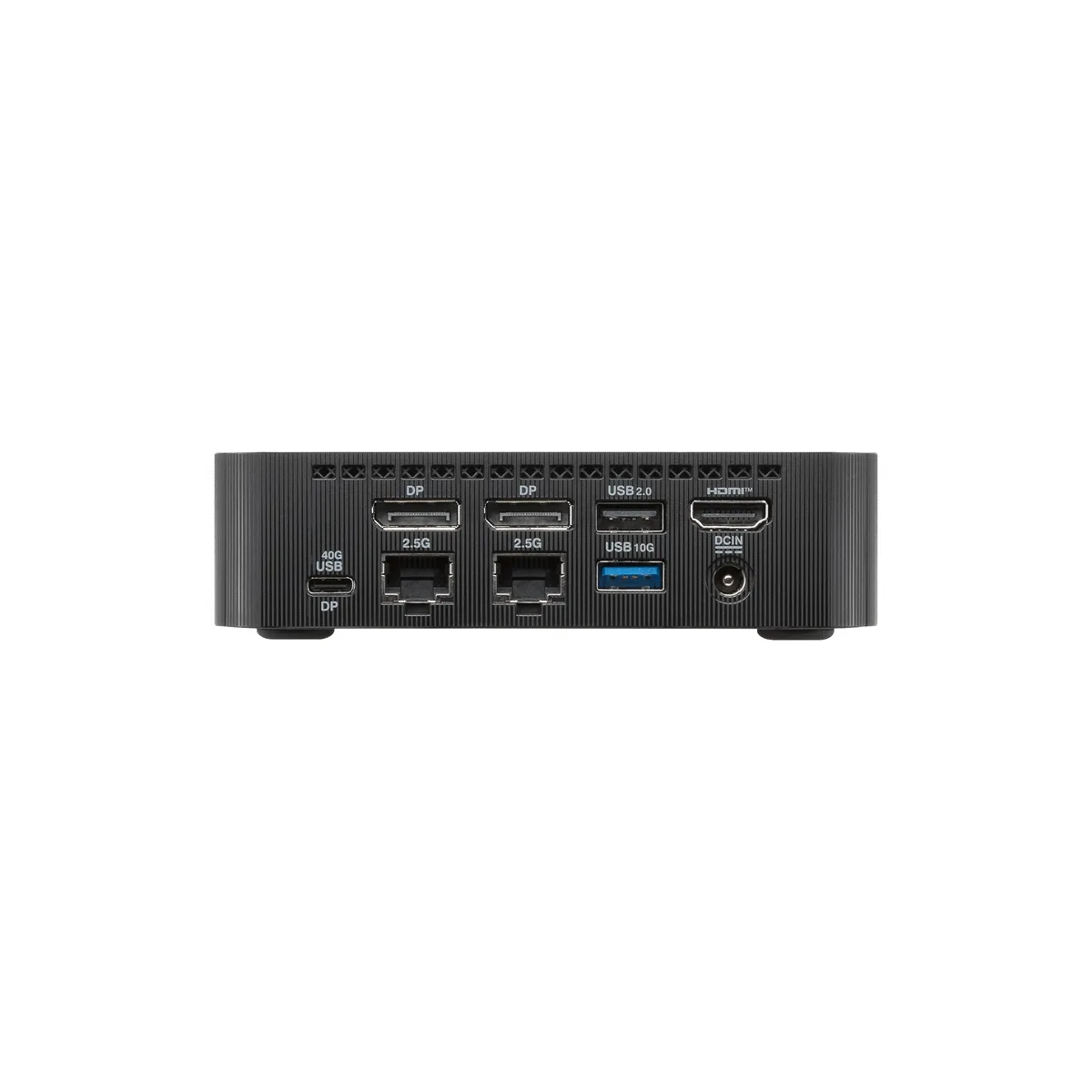

The platform fits commercial desktops, digital signage players and home-theatre PCs that need 4K 60 Hz output on up to four displays via HDMI 2.1 and dual DisplayPort 1.4. Dual 2.5 GbE LAN, Wi-Fi 7 and Bluetooth 5.4 cover modern network needs. Buyers who need discrete graphics performance, more than 64 GB of memory, or a pre-installed operating system and storage should look at a fully configured mini PC instead.

Soldered six-core Ryzen 5 220 processor

The CPU is not socketed and cannot be swapped or upgraded after purchase. This single fact decides whether the unit matches the project: if the workload demands a different core count, a higher TDP envelope or a user-replaceable processor, this barebone is not the right starting point.
