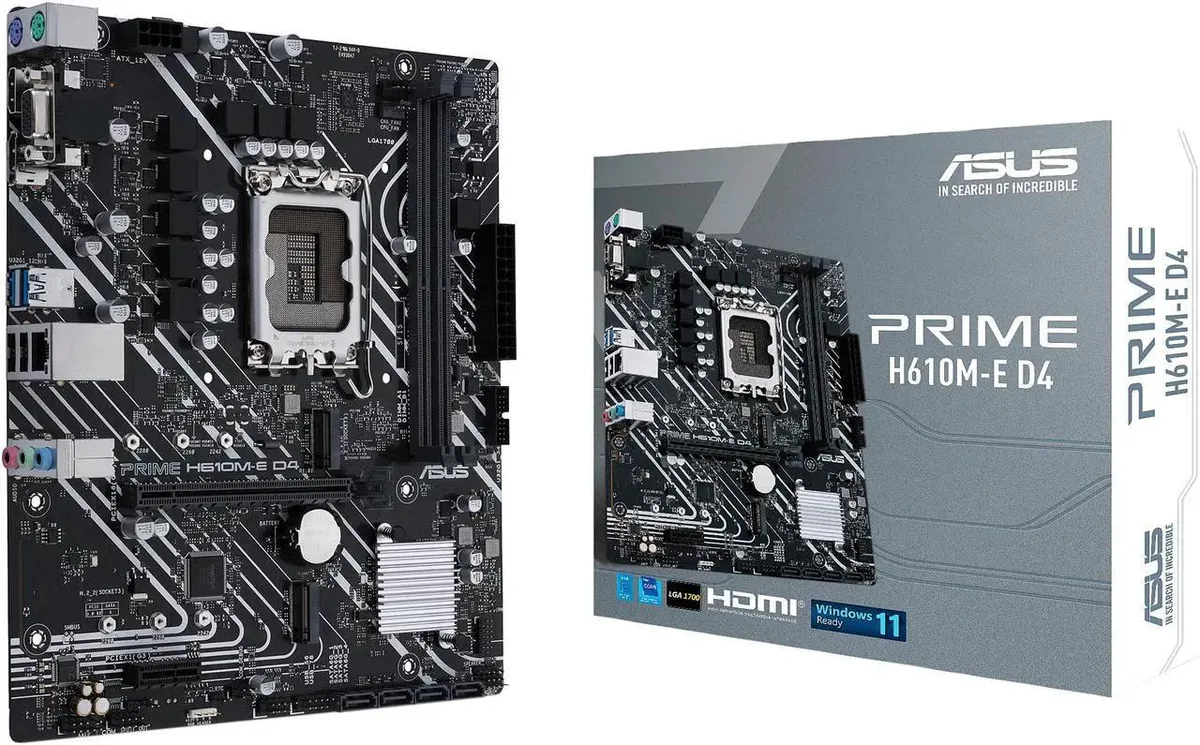

ASUS PRIME H610M-E D4 mATX motherboard, black PCB, silver heatsink, LGA 1700 socket, two DDR4 slots, PCIe x16 slot, two M.2 slots

ASUS

ASUS PRIME H610M-E D4 Intel motherboard

SKU CH-EQ65-E6YA5

Supports 12th and 13th Gen Intel Core processors on an LGA 1700 mATX board with DDR4, PCIe 4.0 x16, dual M.2 slots, 1 Gb Ethernet and 7.1 audio

  • CPU Socket TypeLGA 1700 * Dedicated LGA1700 mounting bracket is required.
  • CPU TypeSupports 13th / 12th Gen Intel Core Processors, Pentium Gold
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel H610
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 12th and 13th Gen Intel Core processors with LGA 1700 socket
  • Dual-channel DDR4 memory up to 64 GB across two 288-pin slots
  • PCI Express 4.0 x16 slot for modern graphics cards
  • Two M.2 slots at 2242 2260 2280 with PCIe 3.0 x4 and x2 modes
  • Realtek 7.1 surround audio and 1 Gb Ethernet with USB 3.2 Gen 1 ports

Ready for 12th & 13th Gen Intel Core

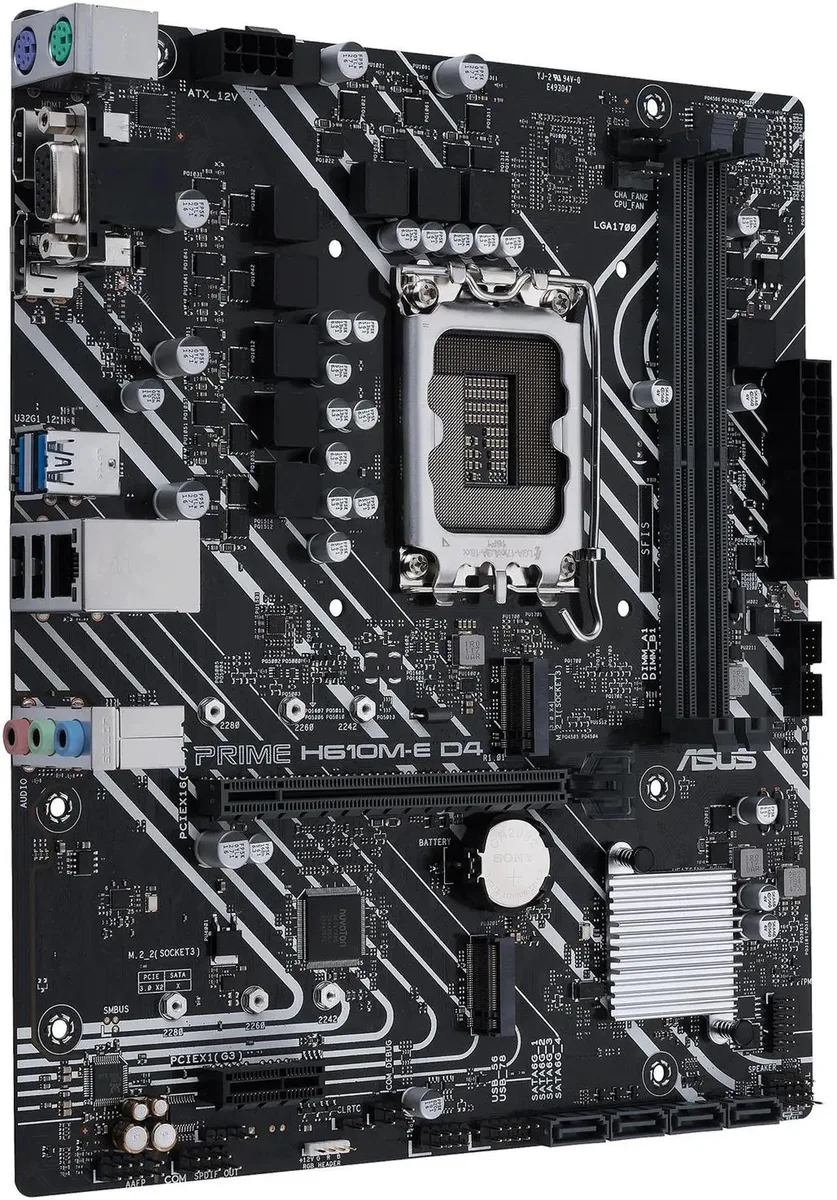

This micro-ATX board uses the Intel H610 chipset and an LGA 1700 socket. It supports 12th and 13th generation Intel Core processors plus Pentium Gold and Celeron chips. Dual-channel DDR4 memory tops out at 64 GB across two slots. A single PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot handle expansion.

BIOS update and CPU cooler mounting

A BIOS update may be required before a 13th generation processor will boot. The board needs a dedicated LGA 1700 mounting bracket for the CPU cooler; verify your cooler includes one. Front-panel 7.1 surround sound needs a chassis with an HD audio module. Four SATA 6 Gbps ports and two M.2 Key M slots (2242, 2260, 2280) provide storage connections.

PCH heatsink, Fan Xpert 2+ and 5X Protection III

A PCH heatsink and Fan Xpert 2+ software manage system cooling. 5X Protection III bundles multiple hardware safeguards. Rear I/O includes DisplayPort, HDMI, D-Sub, two USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, Realtek 1 Gb Ethernet, PS/2 keyboard and mouse ports, and three audio jacks. A COM header and RGB header are available internally.

Highlights

  • Supports 12th and 13th Gen Intel Core processors with LGA 1700 socket
  • Dual-channel DDR4 memory up to 64 GB across two 288-pin slots
  • PCI Express 4.0 x16 slot for modern graphics cards
  • Two M.2 slots at 2242 2260 2280 with PCIe 3.0 x4 and x2 modes
  • Realtek 7.1 surround audio and 1 Gb Ethernet with USB 3.2 Gen 1 ports

Specifications

BrandASUS
ModelPRIME H610M-E D4
CPU Socket TypeLGA 1700
* Dedicated LGA1700 mounting bracket is required.
CPU TypeSupports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors*
*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/
* Refer to www.asus.com for CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel H610
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 *
* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16
* Actual support may vary by CPU.
PCI Express x11 x PCI Express 3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.2M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC*
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels7.1 Channels
LAN ChipsetRealtek 1Gb Ethernet
Max LAN Speed1Gbps

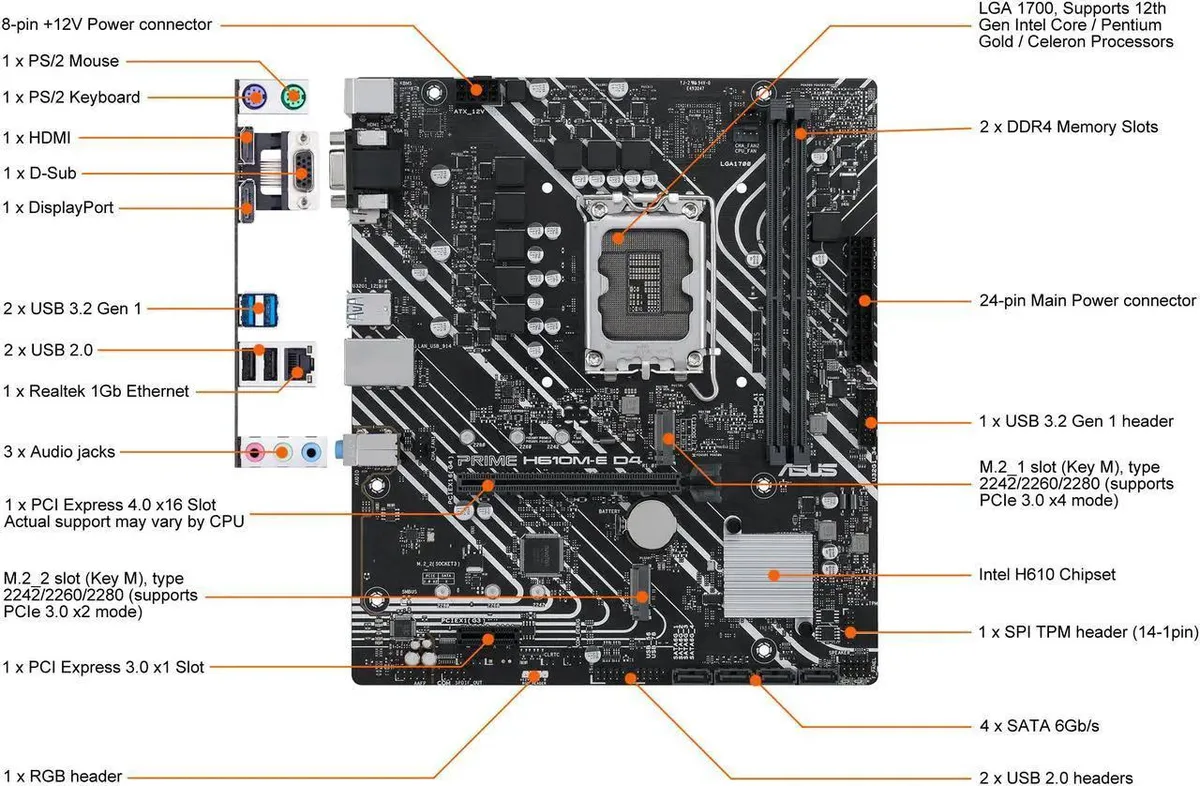

Back I/O Ports2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Onboard USB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Windows 11Supported
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 8.3"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
FeaturesSpecial Features:
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS Lighting Control
- RGB header
Software Features:
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS:
128 Mb Flash ROM, UEFI AMI BIOS
Mana
Package ContentsAccessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User guide

Questions about this item

Does the board come with a CPU cooler bracket or do I need to buy a separate LGA 1700 mounting kit?

A dedicated LGA 1700 mounting bracket is required and is not included with the motherboard.

Which M.2 slot should I use for the fastest SSD performance on this H610 board?

The M.2_1 slot supports PCIe 3.0 x4 mode for up to 32 Gbps throughput while the M.2_2 slot runs at PCIe 3.0 x2.

What does the 32 Gbps M.2 figure mean for real-world drive speeds on this platform?

It indicates the M.2_1 slot's theoretical PCIe 3.0 x4 bandwidth limit; actual transfer rates depend on the specific SSD and CPU used.
