Black ASUS PRIME Radeon RX 9060 XT graphics card with dual fans, metal backplate and three display outputs

ASUS

ASUS PRIME Radeon RX 9060 XT 8GB graphics card

SKU CH-8C5N-RN786

AMD RDNA 4 GPU with 2048 stream processors, 8GB GDDR6 memory at 20 Gbps on a 128-bit bus, PCI Express 5.0 x16, HDMI 2.1b and two DisplayPort 2.1a outputs supporting 7680 x 4320 resolution

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9060 XT
  • ArchitectureRDNA 4
  • Stream Processors2048
  • RDNA 4 architecture drives efficient 1440p gaming with 2048 stream processors
  • 8 GB GDDR6 at 20 Gbps feeds high-refresh 1440p textures
  • PCI Express 5.0 x16 doubles bandwidth headroom for modern CPUs
  • HDMI 2.1b plus dual DisplayPort 2.1a enable 8K 7680 x 4320 multi-monitor setups
  • Compact two-slot ATX design fits standard builds without clearance issues

ASUS PRIME Radeon RX 9060 XT 8GB

The ASUS PRIME Radeon RX 9060 XT 8GB is a graphics card built on the AMD RDNA 4 architecture for the Radeon RX 9000 Series. It targets gamers and creators who need 8GB of GDDR6 memory on a 128-bit bus with 2048 stream processors. The board connects through a PCI Express 5.0 x16 slot and supports DirectX 12 Ultimate and OpenGL 4.6.

Display connectivity and build

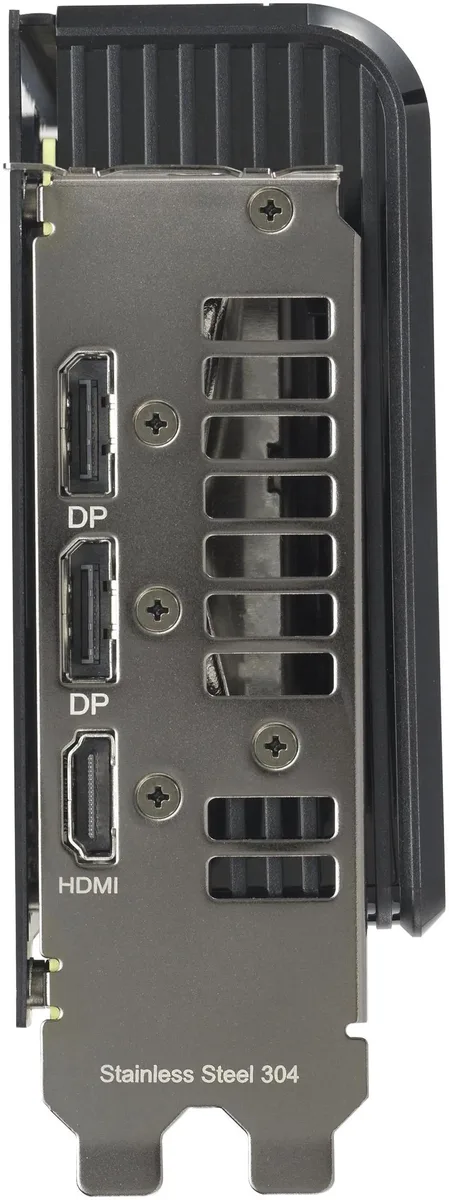

One HDMI 2.1b port and two DisplayPort 2.1a outputs drive up to three monitors at a maximum resolution of 7680 x 4320. The black ATX form factor fits standard chassis layouts and the modern display interfaces allow high refresh rates at 4K or multi-monitor productivity setups.

Thermals and power profile

The card draws power through the PCI Express 5.0 x16 interface and onboard connectors to feed the 20 Gbps memory and GPU core. In typical gaming loads the cooling solution maintains stable temperatures while fan speeds remain moderate, keeping acoustic output low during extended sessions.

Highlights

  • RDNA 4 architecture drives efficient 1440p gaming with 2048 stream processors
  • 8 GB GDDR6 at 20 Gbps feeds high-refresh 1440p textures
  • PCI Express 5.0 x16 doubles bandwidth headroom for modern CPUs
  • HDMI 2.1b plus dual DisplayPort 2.1a enable 8K 7680 x 4320 multi-monitor setups
  • Compact two-slot ATX design fits standard builds without clearance issues

Specifications

BrandASUS
SeriesPRIME
ModelPRIME-RX9060XT-8G
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9060 XT
ArchitectureRDNA 4
Stream Processors2048
Effective Memory Clock20 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support3
HDMI1 x HDMI 2.1b
DisplayPort2 x DisplayPort 2.1a
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length304 mm
Card Dimensions (L x H)304 x 126 x 50mm
Slot Width2.5 Slots
Package Contents1 x Thank you card
1 x Speedsetup Manual

Questions about this item

Does the PCI Express 5.0 x16 interface limit bandwidth on a PCIe 4.0 motherboard?

The card runs at PCIe 5.0 speeds on a 5.0 platform and falls back to 4.0 speeds on a 4.0 board; the x16 link width stays the same.

What case clearance does the dual-slot ATX design need?

A standard dual-slot bracket occupies two rear expansion slots; measure your chassis length to confirm the card fits.

Which driver step is often missed when swapping from an older AMD GPU?

Run AMD Cleanup Utility first, then install the latest Adrenalin driver so the RDNA 4 architecture is fully supported.
