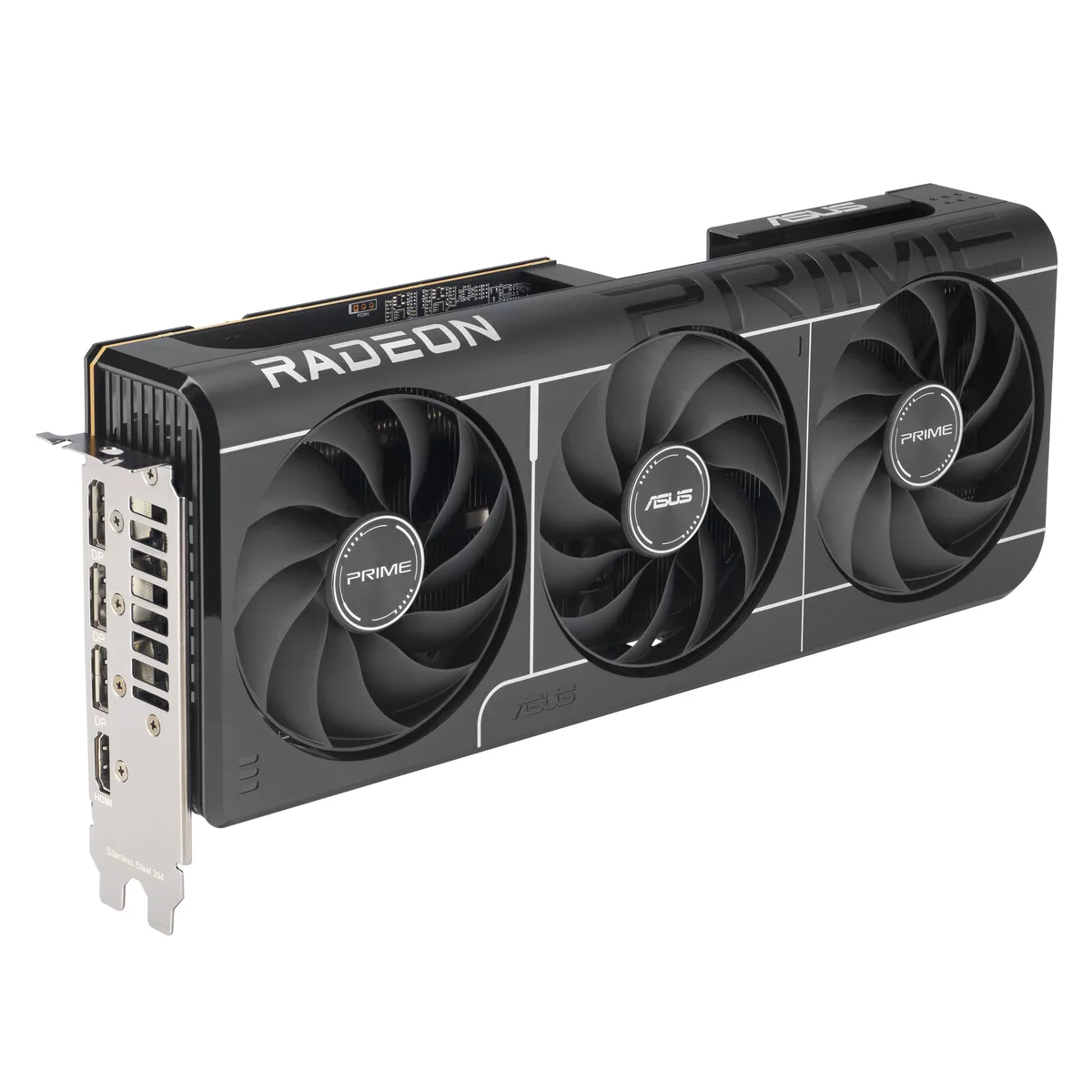

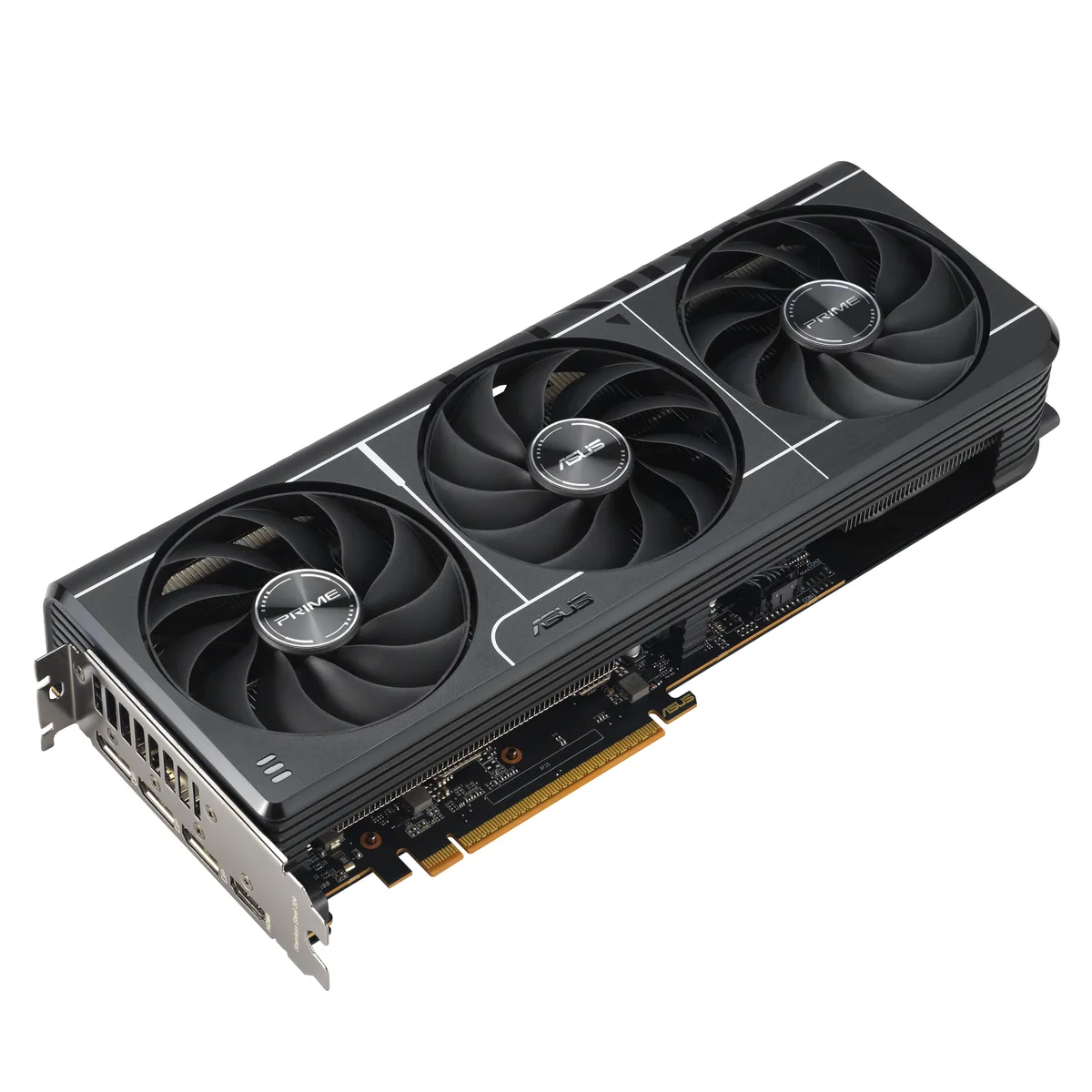

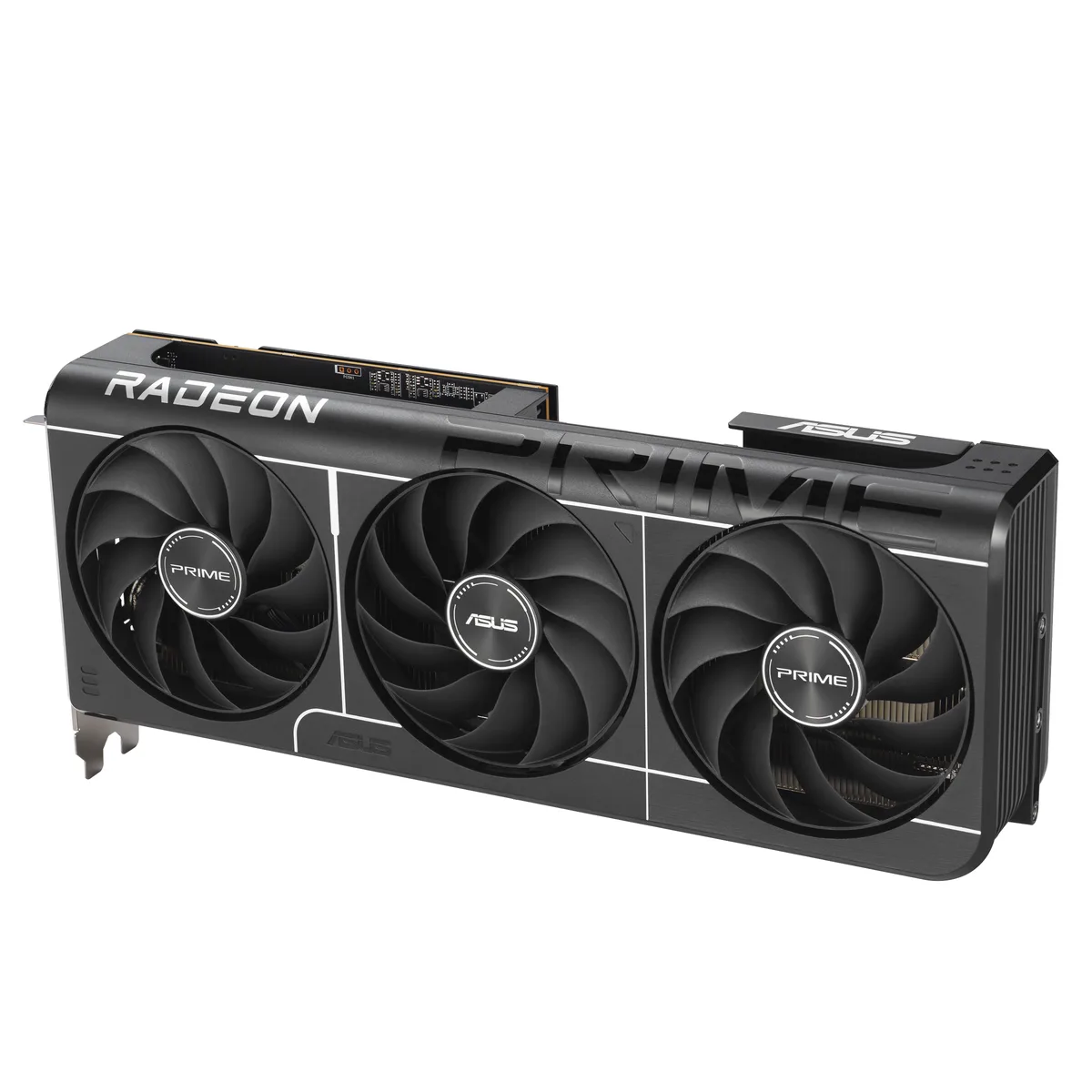

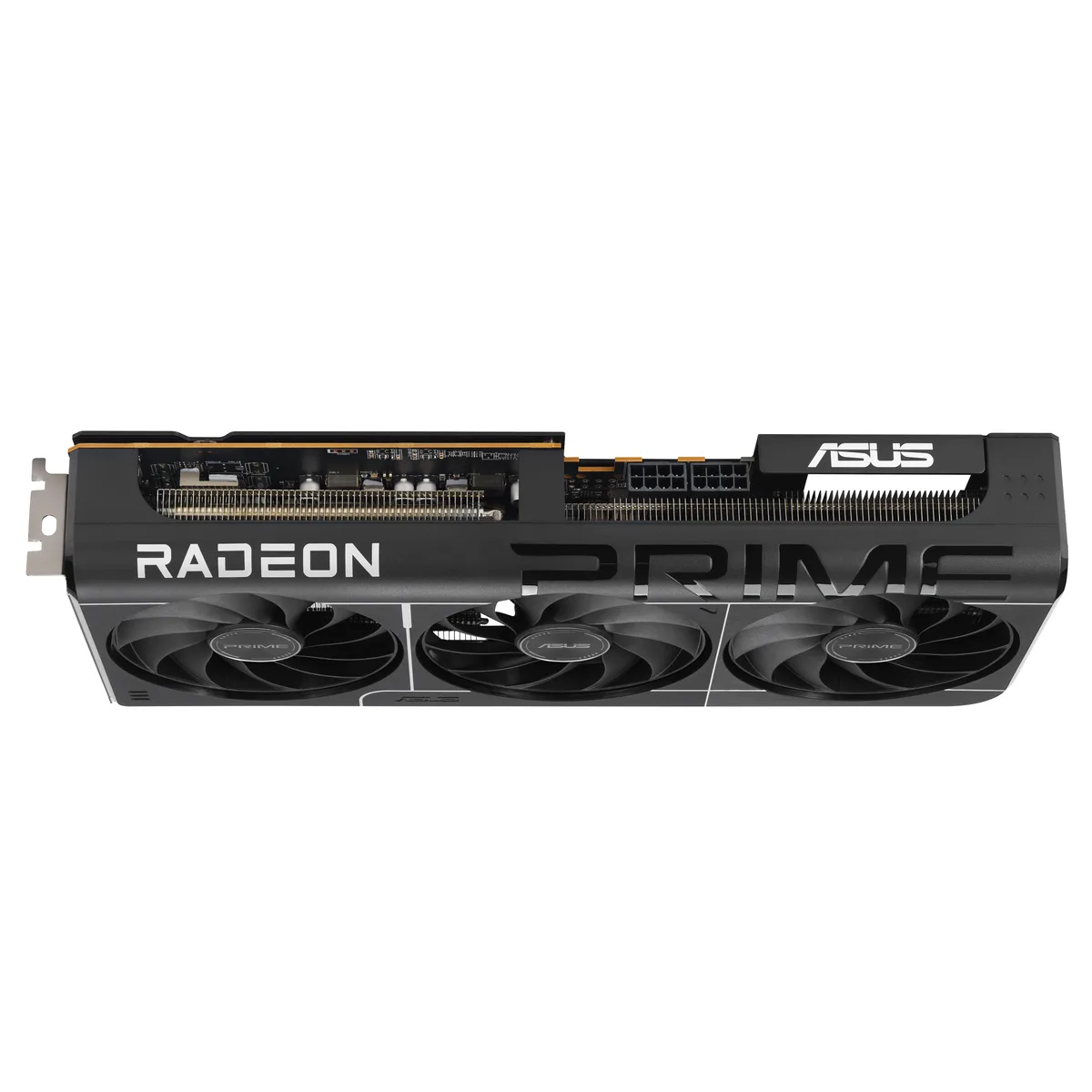

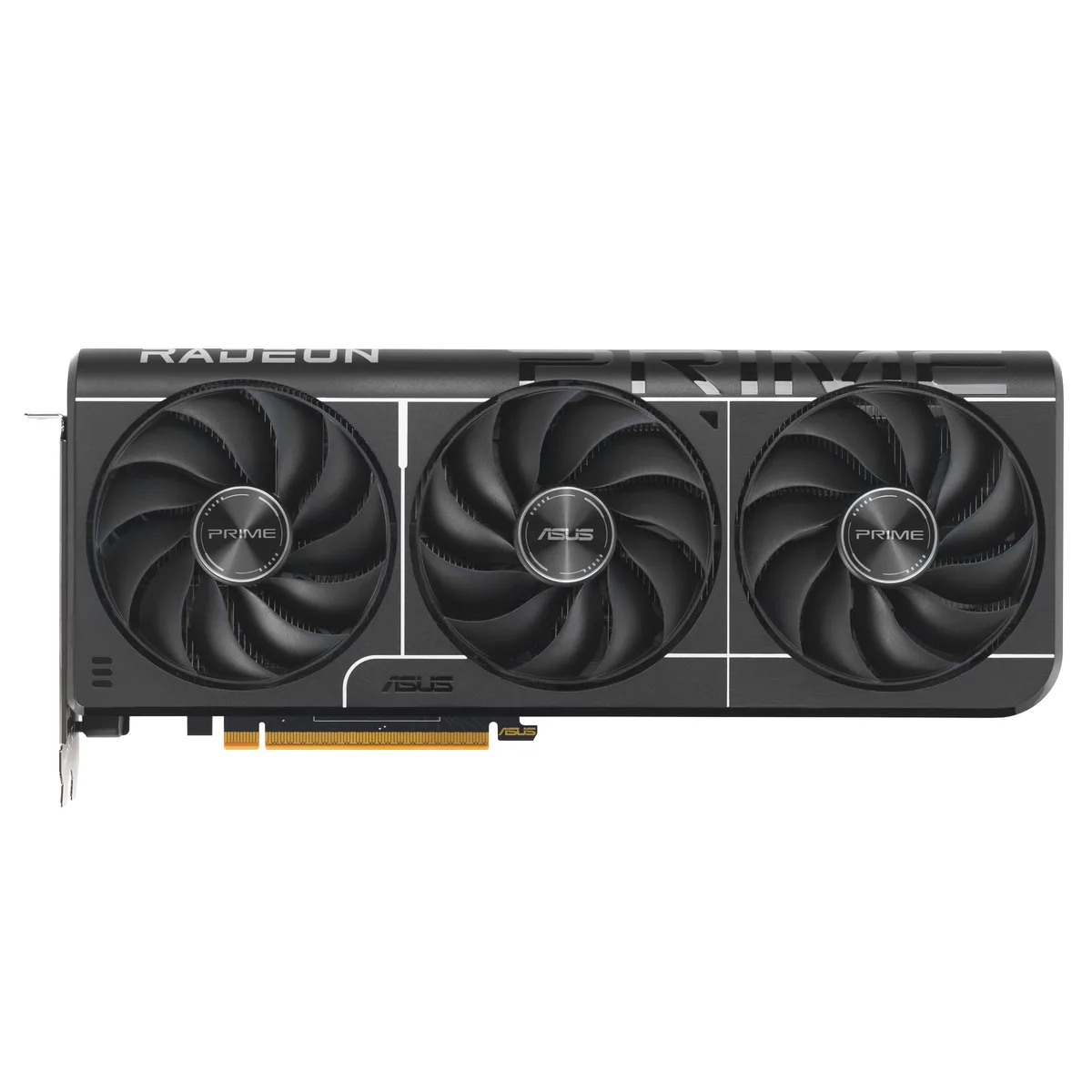

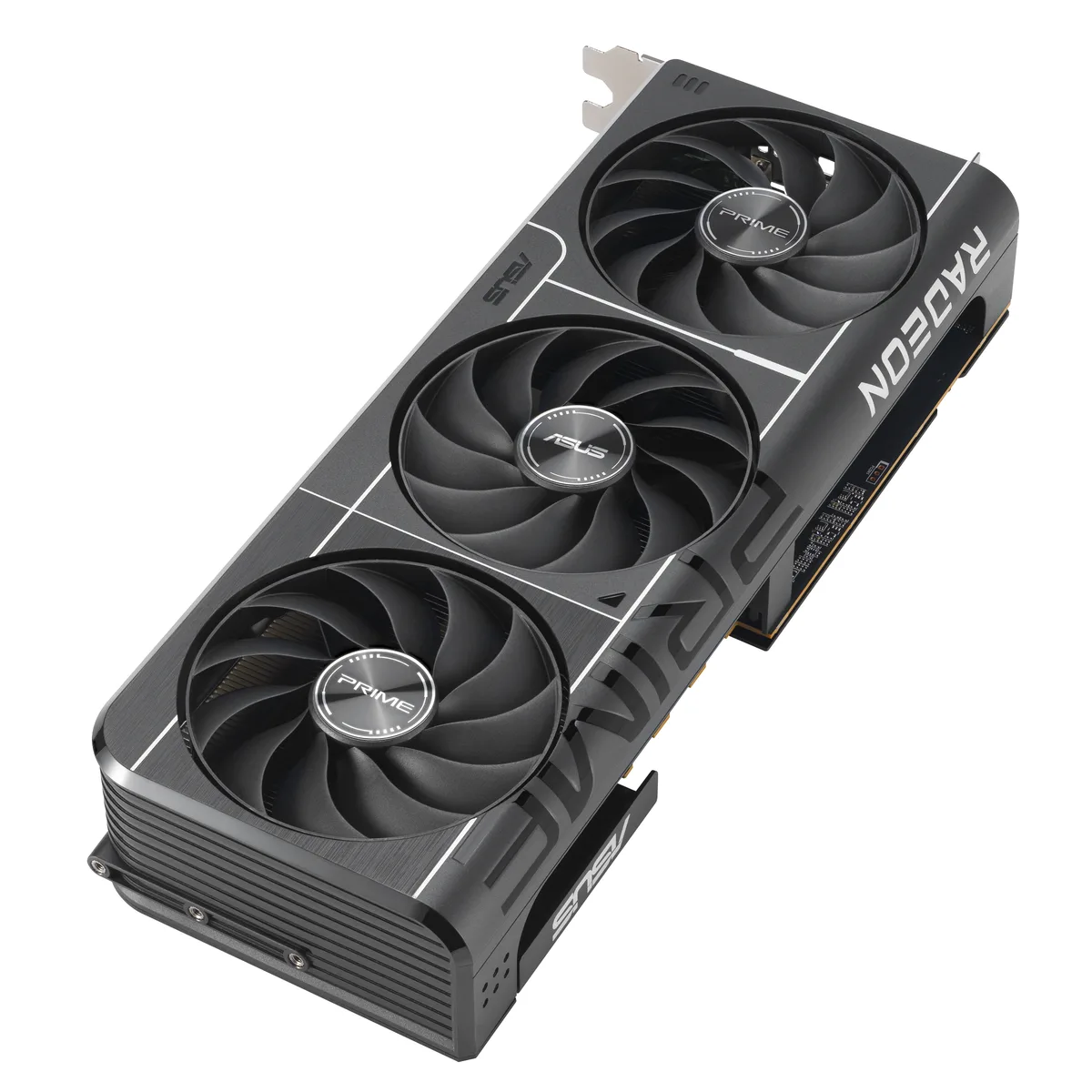

Black triple-fan ATX graphics card, 2.5-slot, 312 mm long

ASUS

ASUS PRIME-RX9070-O16G-EVO Radeon RX 9070 16GB graphics card

SKU CH-FEC7-H4NP0 MPN PRIME-RX9070-O16G-EVO

Radeon RX 9070 GPU with 16 GB GDDR6 memory on a 256-bit bus, 3584 stream processors, PCIe 5.0 x16 interface, and triple-fan cooling in a 2.5-slot ATX design

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9070
  • ArchitectureRDNA 4
  • Stream Processors3584
  • 16GB GDDR6 memory at 20 Gbps for high-resolution gaming
  • RDNA 4 architecture with 3584 stream processors for modern workloads
  • PCI Express 5.0 x16 interface for maximum bandwidth
  • Triple-fan cooler handles 220W TDP within a 2.5-slot design
  • HDMI 2.1b and three DisplayPort 2.1a outputs drive four displays

ASUS PRIME RX 9070 16GB graphics card

The ASUS PRIME RX 9070 is a graphics card built for 1440p and 4K gaming. It uses the AMD RDNA 4 architecture with 3584 stream processors and a 20 Gbps effective memory clock. The 16GB GDDR6 frame buffer on a 256-bit interface feeds high-resolution textures. A PCI Express 5.0 x16 link connects the card to modern platforms.

16GB GDDR6 capacity and headroom

Sixteen gigabytes of GDDR6 memory give comfortable headroom for current 1440p ultra settings and most 4K titles. The 256-bit bus and 20 Gbps clock keep bandwidth high for ray-tracing workloads and large texture pools. Very heavy 4K ray-tracing or future titles with larger assets may start to pressure the 16GB buffer. The 220W thermal design power and 650W recommended PSU define the power envelope.

PCI Express 5.0 and display output limits

The PCI Express 5.0 x16 interface delivers full bandwidth on compatible motherboards and runs at PCIe 4.0 speeds on older platforms without user intervention. Display outputs comprise one HDMI 2.1b and three DisplayPort 2.1a connectors supporting up to 7680 x 4320 resolution. Four simultaneous monitors are supported for multi-display setups. The ATX form factor fits standard cases with 312 mm length and 2.5-slot width clearance.

Highlights

  • 16GB GDDR6 memory at 20 Gbps for high-resolution gaming
  • RDNA 4 architecture with 3584 stream processors for modern workloads
  • PCI Express 5.0 x16 interface for maximum bandwidth
  • Triple-fan cooler handles 220W TDP within a 2.5-slot design
  • HDMI 2.1b and three DisplayPort 2.1a outputs drive four displays

Specifications

BrandASUS
SeriesPRIME
ModelPRIME-RX9070-O16G-EVO
Part Number90YV0MQ0-M0AA00
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9070
ArchitectureRDNA 4
Stream Processors3584
Effective Memory Clock20 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1a
ColorBlack
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power220W
Recommended PSU Wattage650W
Form FactorATX
Max GPU Length312 mm
Slot Width2.5 Slots
Shipping weight1.45 kg
Package size405 × 233 × 88 mm

Questions about this item

Will the PCI Express 5.0 x16 interface work with my older PCIe 4.0 motherboard?

Yes, the card is backward compatible and will run at PCIe 4.0 speeds on a PCIe 4.0 motherboard without any configuration needed.

How can I verify the 20 Gbps memory clock and 3584 stream processors are active after installation?

Open GPU-Z or AMD Adrenalin software; the sensors tab will report 20 Gbps effective memory clock and 3584 stream processors for the Radeon RX 9070 GPU.

Does the box include the 2.5-slot bracket and required power cables for the 220W TDP?

The card ships with the 2.5-slot ATX bracket installed; you must supply a 650W PSU with native 12V-2x6 or dual 8-pin PCIe power cables.
