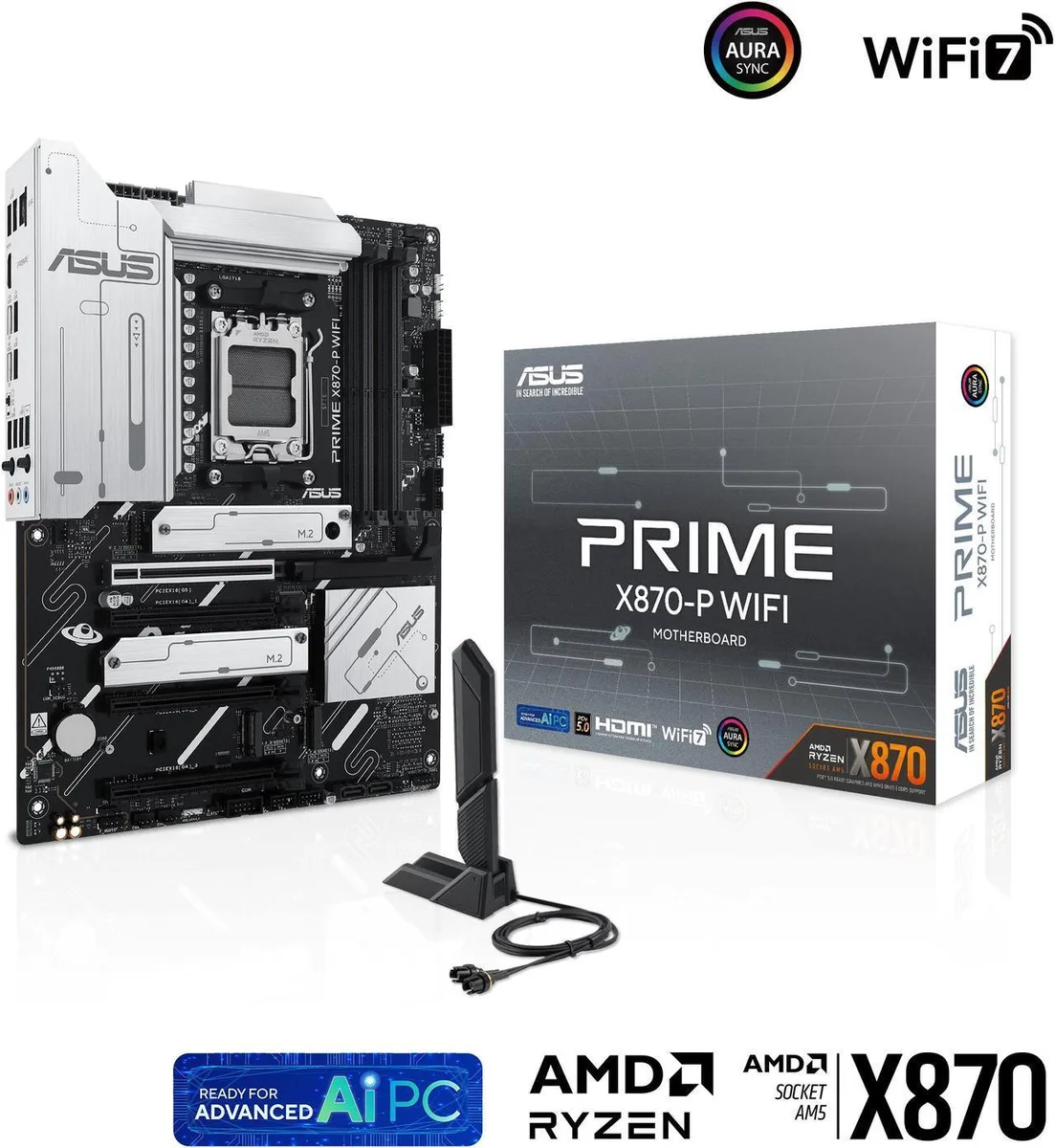

ATX motherboard with silver VRM heatsinks, black PCB, white PCIe slot and four M.2 shields

ASUS

ASUS PRIME X870-P WIFI AMD motherboard 14+2+1 80A DrMOS

SKU CH-XJWW-WGG1V

ATX board for AMD AM5 CPUs with 14+2+1 80A DrMOS, DDR5 to 192GB, PCIe 5.0 x16 and M.2, Wi-Fi 7, 2.5Gb LAN, USB4 and DIY-friendly features

  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel
  • ECC SupportedYes
  • Stable power for heavy workloads with 14+2+1 80A DrMOS stages
  • Future-ready platform supports Ryzen 9000 8000 7000 series on AM5 socket
  • Fast storage via PCIe 5.0 M.2 slot and four M.2 connectors
  • High-speed networking through Wi-Fi 7 and 2.5Gb Ethernet
  • Easy building with Q-Release PCIe slot and M.2 Q-Latch

Ready for Ryzen 9000 8000 7000 Series

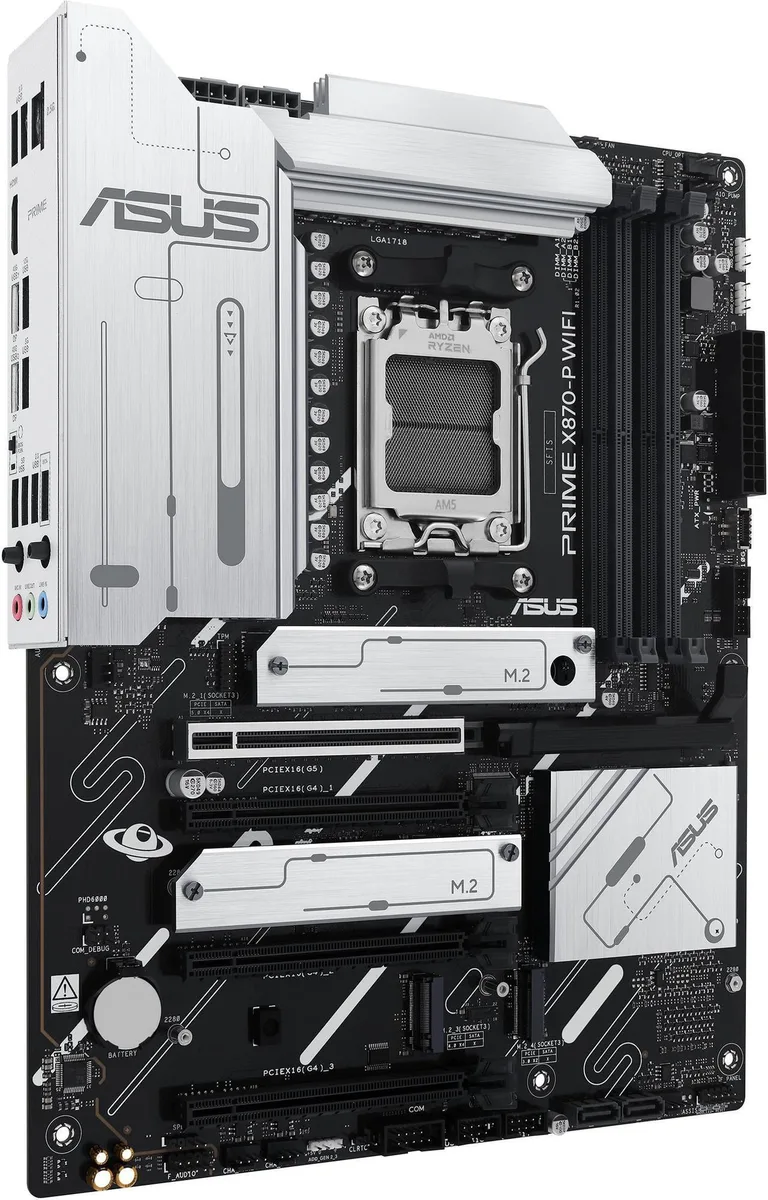

This ATX motherboard uses the AMD X870 chipset and the AM5 socket to support Ryzen 9000 8000 and 7000 series desktop processors. It delivers a 14+2+1 80A DrMOS power design on an 8-layer PCB with ProCool connectors. Four DDR5 slots accept up to 192GB of memory and support speeds beyond 8000 MT/s when overclocked with EXPO profiles.

Check CPU generation for PCIe 5.0 and M.2 speeds

PCIe 5.0 x16 graphics and the top M.2 2280 slot run at 5.0 speeds only with Ryzen 9000 or 7000 series CPUs. With Ryzen 8000 series the same slots operate at PCIe 4.0. The board also provides three chipset PCIe 4.0 x16 slots at x1 mode two SATA 6Gb/s ports and additional M.2 slots wired through the X870 chipset.

Large VRM heatsink dual M.2 heatsinks

Comprehensive cooling uses a large VRM heatsink dual M.2 heatsinks and a PCH heatsink paired with hybrid fan headers controlled by Fan Xpert 4 and AI Cooling II. The 80A DrMOS stages and 8-layer PCB keep power delivery efficient under load. A Realtek 2.5Gb LAN controller and Wi-Fi 7 handle network traffic while the Realtek 7.1 audio codec drives 24-bit 192 kHz output.

Highlights

  • Stable power for heavy workloads with 14+2+1 80A DrMOS stages
  • Future-ready platform supports Ryzen 9000 8000 7000 series on AM5 socket
  • Fast storage via PCIe 5.0 M.2 slot and four M.2 connectors
  • High-speed networking through Wi-Fi 7 and 2.5Gb Ethernet
  • Easy building with Q-Release PCIe slot and M.2 Q-Latch

Specifications

BrandASUS
ModelPRIME X870-P WIFI
Part Number90MB1IS0-M0AAY0
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported192GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870 Chipset
3 x PCIe 4.0 x16 slots (support x1 mode)***
*** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
Serial ATA (SATA)2 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)****
** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4

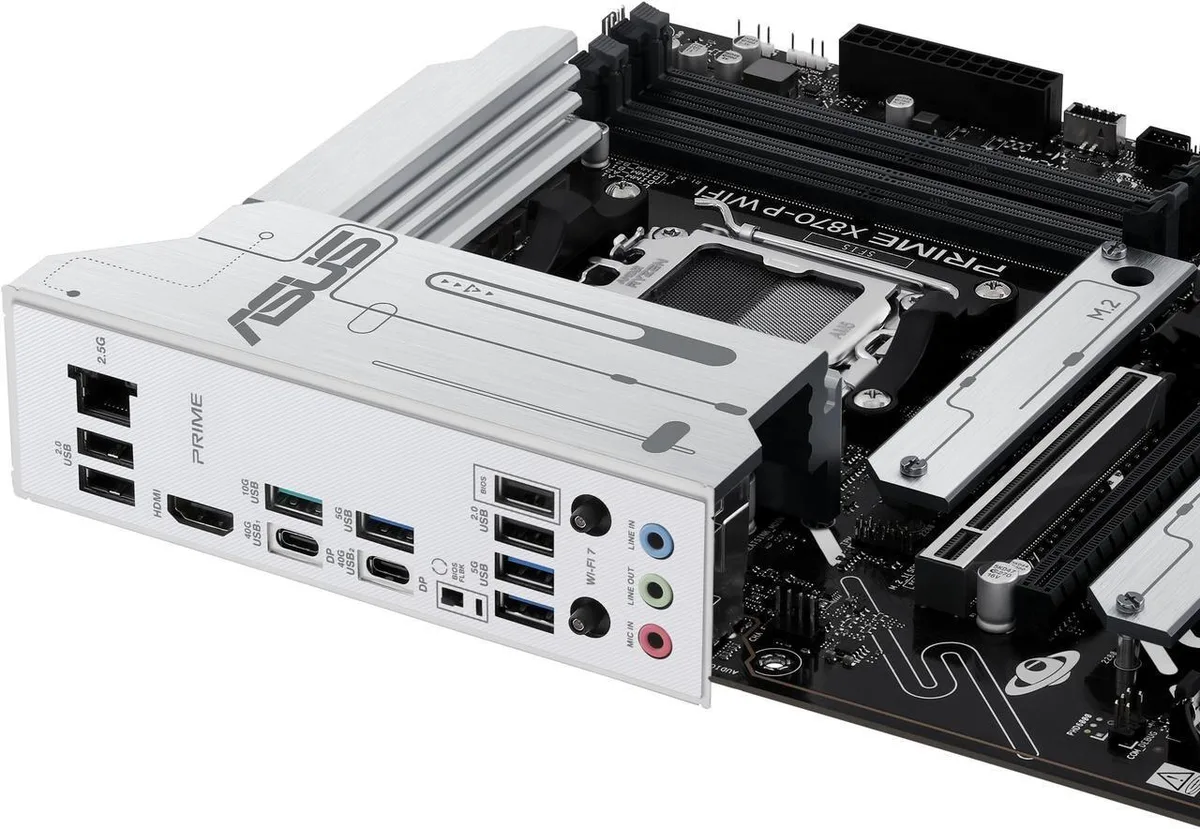

Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable Gen2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

Questions about this item

What comes in the box with the PRIME X870-P WIFI and what must I buy separately?

The board includes a pre-mounted I/O shield, Q-Antenna, M.2 Q-Latch and Flexible M.2 heatsink. You must purchase an AMD AM5 Ryzen 7000, 8000 or 9000 series processor, DDR5 memory, storage drives and a power supply separately.

Which memory capacity should I choose for the four DDR5 slots?

The board supports up to 192 GB total across four 288-pin slots. A two-module kit activates dual-channel mode; add a second identical kit later if you need more capacity.

What does the 14+2+1 80A DrMOS power design mean for daily use?

Fourteen 80 A DrMOS stages for the CPU cores, two for the SoC and one for auxiliary rails deliver stable current to Ryzen 7000, 8000 and 9000 processors under heavy multi-threaded loads.
