ASUS
ASUS Prime Z370-P LGA 1151 ATX Intel motherboard
ATX motherboard for 8th Gen Intel Core processors with LGA 1151 socket, Z370 chipset, four DDR4 slots up to 64 GB, dual PCIe 3.0 x16, four SATA 6Gb/s, two M.2.
- CPU Socket TypeLGA 1151 (300 Series)
- CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
- Supported CPU TechnologiesTurbo Boost Technology 2.0
- ChipsetIntel Z370
- Onboard Video ChipsetSupported only by CPU with integrated graphic
- Number of Memory Slots4x288pin (DDR4)
- Supports 8th Gen Intel Core i7/i5/i3 processors via LGA 1151 socket
- Dual-channel DDR4 memory up to 64 GB with speeds to 4000(O.C.)
- Two PCIe 3.0 x16 slots and four PCIe x1 slots for expansion
- Four SATA 6Gb/s ports and two M.2 slots for storage
- Realtek ALC887 8-channel audio and Realtek 8111H Gigabit LAN

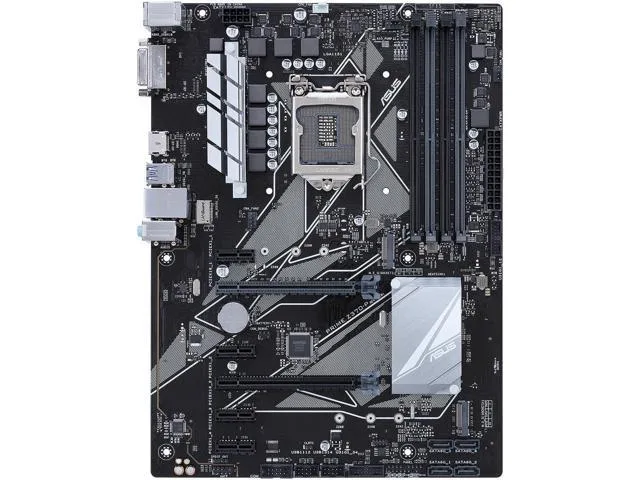

ASUS Prime Z370-P for 8th Gen Intel Core
This ATX motherboard uses the Intel Z370 chipset and an LGA 1151 socket that accepts only 8th Generation Core i7, i5 and i3 processors. It provides four DDR4 memory slots supporting dual-channel operation up to 64 GB and includes two PCI Express 3.0 x16 slots, four PCI Express x1 slots, four SATA 6Gb/s ports and two M.2 sockets. Onboard graphics output via HDMI works only with CPUs that have integrated graphics.
Thermals noise and power draw
FanXpert 4 Core with an AIO pump header gives software control over chassis fans and liquid-cooling pumps so airflow can match actual system load. The Realtek 8111H LAN controller and Realtek ALC887 8-channel audio codec are low-power components that add minimal heat. No acoustic or power-draw measurements are supplied for typical workloads.
5X Protection III and SafeSlot Core
5X Protection III combines SafeSlot Core reinforcement on the primary PCIe slot, LANGuard surge protection on the Ethernet port and overvoltage guards on key voltage rails. SafeSlot Core uses a metal bracket and solder-point strengthening to resist physical stress from heavy graphics cards. LANGuard adds coupling capacitors and a TVS diode array to reduce damage from static discharge or power surges on the network cable.
Highlights
- Supports 8th Gen Intel Core i7/i5/i3 processors via LGA 1151 socket
- Dual-channel DDR4 memory up to 64 GB with speeds to 4000(O.C.)
- Two PCIe 3.0 x16 slots and four PCIe x1 slots for expansion
- Four SATA 6Gb/s ports and two M.2 slots for storage
- Realtek ALC887 8-channel audio and Realtek 8111H Gigabit LAN
Specifications
| Brand | ASUS |
|---|---|
| Model | Prime Z370-P |
| CPU Socket Type | LGA 1151 (300 Series) |
| CPU Type | Core i7 / i5 / i3 (8th Gen, LGA1151) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel Z370 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 2666 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 |
| PCI Express x1 | 4 x PCI Express x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 2 x M.2 |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111H |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | DVI |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 4 x USB 3.1 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 3.1 + 4 x USB 2.0 |
| Other Connectors | 1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control*2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control*1 x AIO PUMP connector1 x Front panel audio connector (AAFP)1 x System panel connector1 x S/PDIF out header1 x COM Header1 x Clear CMOS jumper* By default, the CPU/Chassis Q-Fan control setting is set to Auto mode, which detects the CPU and chassis fans installed and changes the control mode automatically. |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 8.9" |
| Power Pin | 24 Pin |
| Features | Multi-GPU Support:Supports AMD CrossFireX TechnologyASUS Special Features:ASUS 5X PROTECTION III- ASUS SafeSlot Core: Fortified PCIe with solid soldering- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: 7 Phase digital power designSuperb PerformanceM.2 onboard- The latest transfer technologies with up to 32Gb/s data transfer speedsASUS Fan Xpert 4 Core- Advanced fan a |

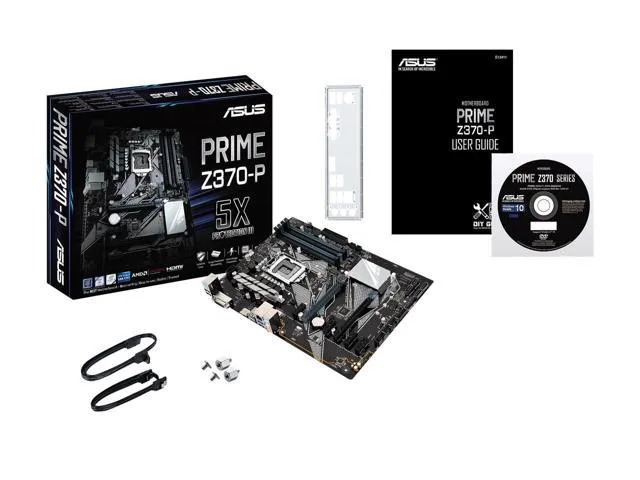

| Package Contents | Accessories:2 x SATA 6Gb/s cables1 x IO Shield1 x M.2 Screw Package1 x Support DVD1 x User's manual |
Questions about this item
Does this board accept 6th- or 7th-generation Intel Core processors?
No — the LGA 1151 socket on this Z370 board is keyed for 8th-generation Core i7, i5 and i3 CPUs only; older generations will not fit or boot.
What is the highest DDR4 speed the memory slots can run at without overclocking?
The native memory standard is DDR4 2666; speeds above that require manual overclocking and will vary depending on the specific processor installed.
How many SATA 6 Gb/s drives and M.2 modules can I connect at the same time?
Four SATA 6 Gb/s ports and two M.2 slots are available, so you can populate all six interfaces simultaneously.
