ATX motherboard in box with Intel Core Ultra 5 245K CPU

ASUS

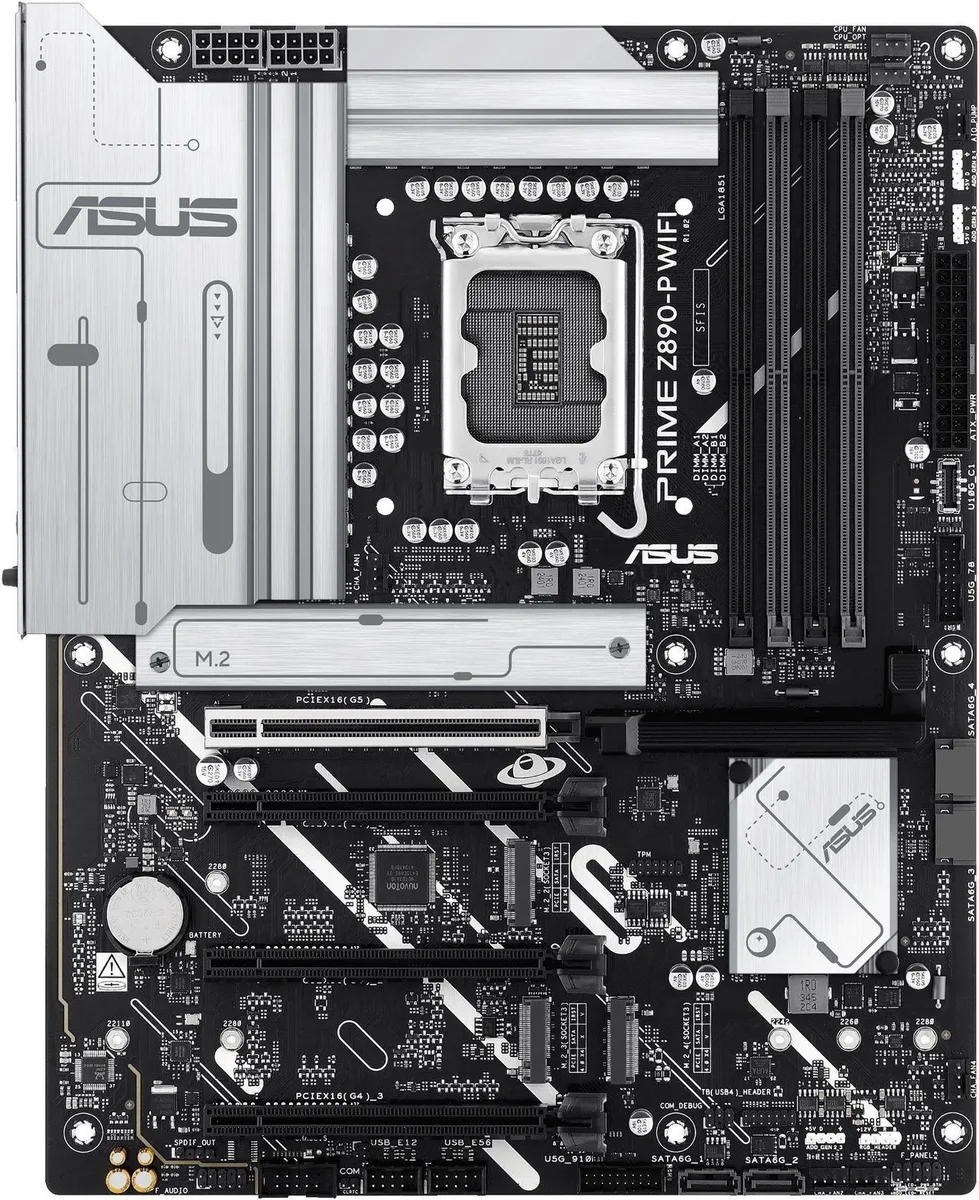

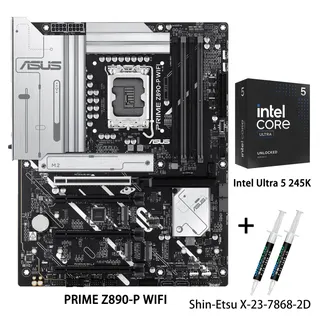

ASUS PRIME Z890-P WIFI Intel motherboard & Core Ultra 5 245K CPU

SKU CH-BXH9-59NRX

LGA 1851 ATX board with 14+1+1+2 80A power stages, four DDR5 slots up to 256 GB, one PCIe 5.0 and three PCIe 4.0 M.2 slots, Thunderbolt 4, Wi-Fi 7 and 2.5 Gb Ethernet.

  • CPU Socket TypeLGA 1851
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Memory FeatureSupport up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked U

Model PRIME Z890-P WIFI

+CPU +Ultra 5 245K

  • AI-ready platform with Intel Core Ultra 5 245K CPU and Z890 chipset
  • Robust 14+1+1+2 80A power stages for stable delivery to 125W processor
  • DDR5 memory support up to 8666 MT/s across four slots and 256GB capacity
  • PCIe 5.0 graphics slot plus one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots
  • Wi-Fi 7, Bluetooth 5.4, 2.5Gb Ethernet and Thunderbolt 4 USB Type-C connectivity

Ready for Advanced AI PCs

The ASUS PRIME Z890-P WIFI motherboard paired with the Intel Core Ultra 5 245K CPU targets builders who want a platform prepared for demanding AI workloads. The LGA 1851 socket accepts Intel Core Ultra Processors (Series 2) and the Z890 chipset unlocks the connectivity required for modern acceleration tasks. This combination delivers the compute headroom and I/O breadth that advanced AI applications demand from a desktop foundation.

PCIe 5.0 and 4.0 lane distribution

The processor provides one PCIe 5.0 x16 slot and one M.2 slot at PCIe 5.0 x4, while the chipset adds two PCIe 4.0 x16 slots running at x4, one PCIe 4.0 x16 slot at x1, and two further M.2 slots at PCIe 4.0 x4. Four SATA 6Gb/s ports remain available for traditional storage. Thunderbolt 4 USB Type-C on the rear panel and a front-panel USB 10Gbps Type-C header extend high-speed peripheral options without saturating the primary GPU or storage lanes.

Robust power and thermal layout

Fourteen plus one plus one plus two 80A DrMOS power stages feed the CPU through ProCool connectors on a six-layer PCB with alloy chokes and durable capacitors. Large VRM heatsinks, dedicated M.2 and PCH heatsinks, and hybrid fan headers managed by Fan Xpert 4 with AI Cooling II keep temperatures in check. Onboard Wi-Fi 7 with ASUS WiFi Q-Antenna, 2.5Gb Ethernet and Bluetooth 5.4 handle networking, while 7.1 surround audio with shielding covers output needs.

Highlights

  • AI-ready platform with Intel Core Ultra 5 245K CPU and Z890 chipset
  • Robust 14+1+1+2 80A power stages for stable delivery to 125W processor
  • DDR5 memory support up to 8666 MT/s across four slots and 256GB capacity
  • PCIe 5.0 graphics slot plus one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots
  • Wi-Fi 7, Bluetooth 5.4, 2.5Gb Ethernet and Thunderbolt 4 USB Type-C connectivity

Specifications

BrandASUS
ModelPRIME Z890-P WIFI+Ultra 5 245K
CPU Socket TypeLGA 1851
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory FeatureSupport up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel Core Ultra Processors(series 2)*
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel Z890 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(series 2)*
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
SATA RAID* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports1 x Thunderbolt 4 USB Type-C port
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt (USB4) header
BIOS Feature256 (128+128) Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
TurboV Core
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Windows 11 (22H2 & later)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Package Contents1 x Intel Core Ultra 5 245K CPU
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which memory speed should I pick for this DDR5 board?

The board supports up to 8666 MT/s when overclocked and runs dual-channel with four 288-pin slots, so choose a kit rated for the highest speed your budget allows.

What does the 125 W CPU rating mean for my cooler choice?

The Core Ultra 5 245K has a 125 W base power and no cooler in the box, so select a CPU cooler rated for at least 125 W TDP.

What bandwidth does the Thunderbolt 4 USB Type-C port provide?

The rear Thunderbolt 4 USB Type-C port provides high-speed data, video and charging over a single connection.
