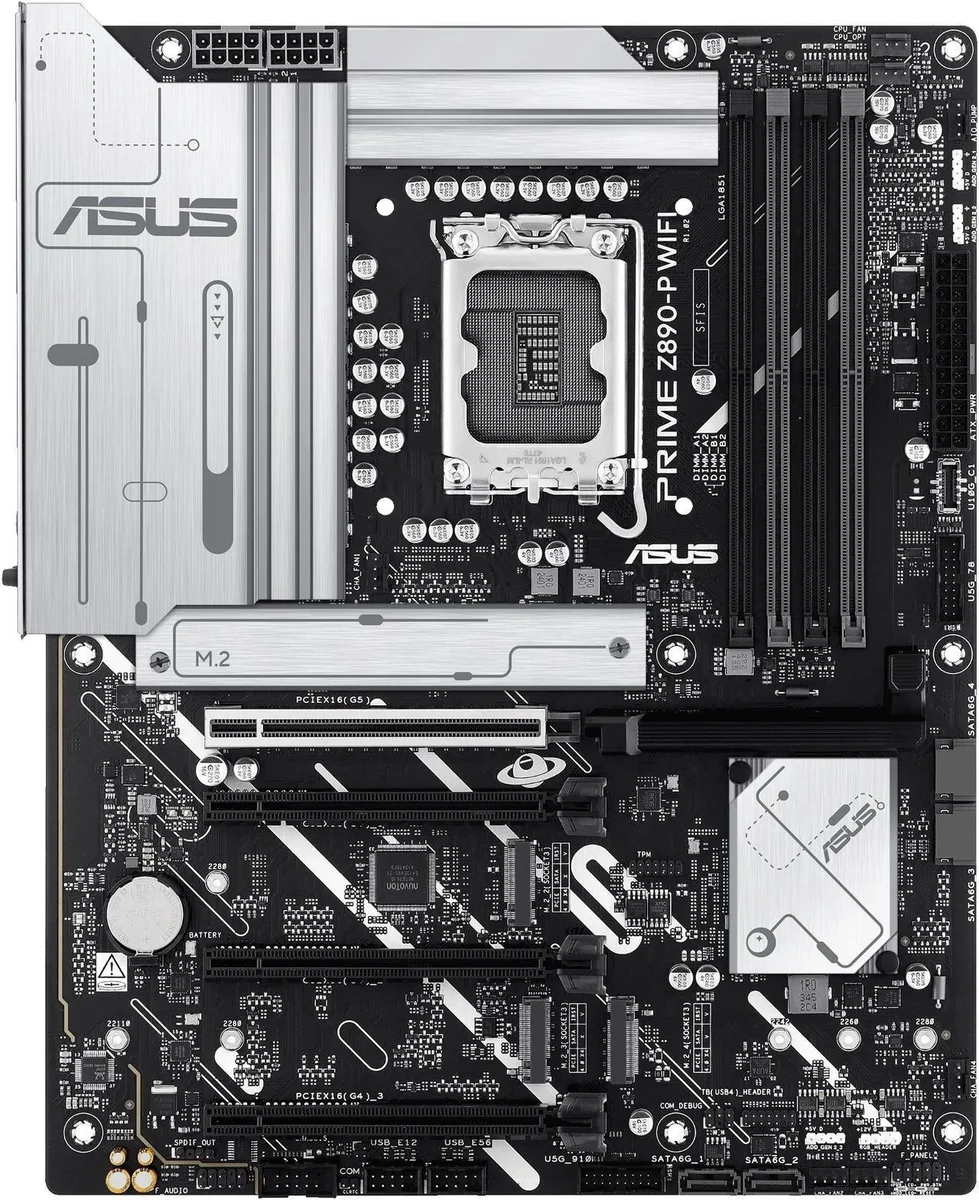

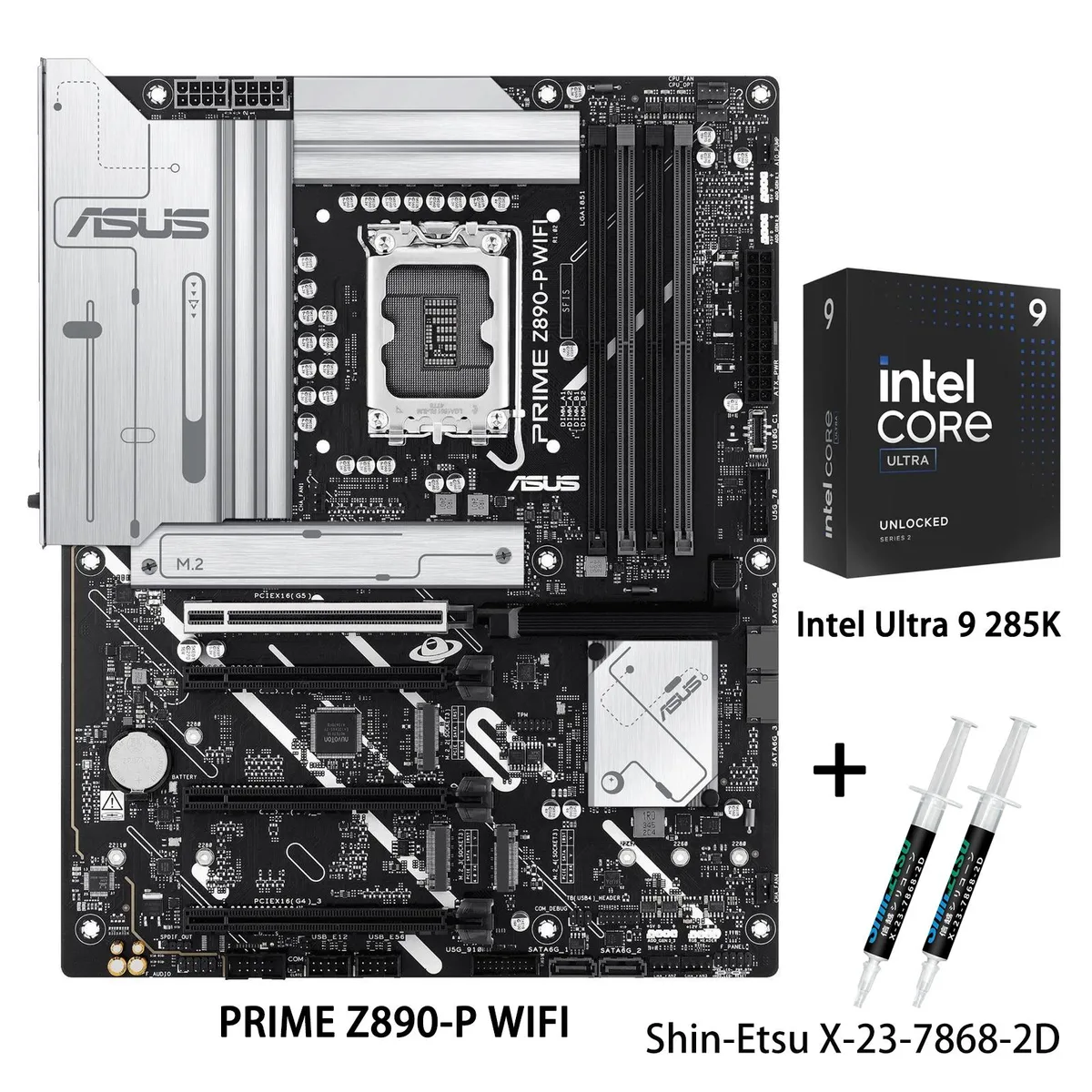

ATX motherboard with silver heatsinks and black PCB, paired with LGA 1851 CPU

ASUS

ASUS PRIME Z890-P WIFI Intel motherboard & Core Ultra 9 285K CPU

SKU CH-28GS-5ZRKG

LGA 1851 ATX motherboard and Core Ultra 9 285K CPU with DDR5 up to 8666 MT/s, PCIe 5.0 M.2, Thunderbolt 4, Wi-Fi 7 and 2.5 Gb Ethernet

  • CPU Socket TypeLGA 1851
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Memory FeatureSupport up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked U

Model PRIME Z890-P WIFI

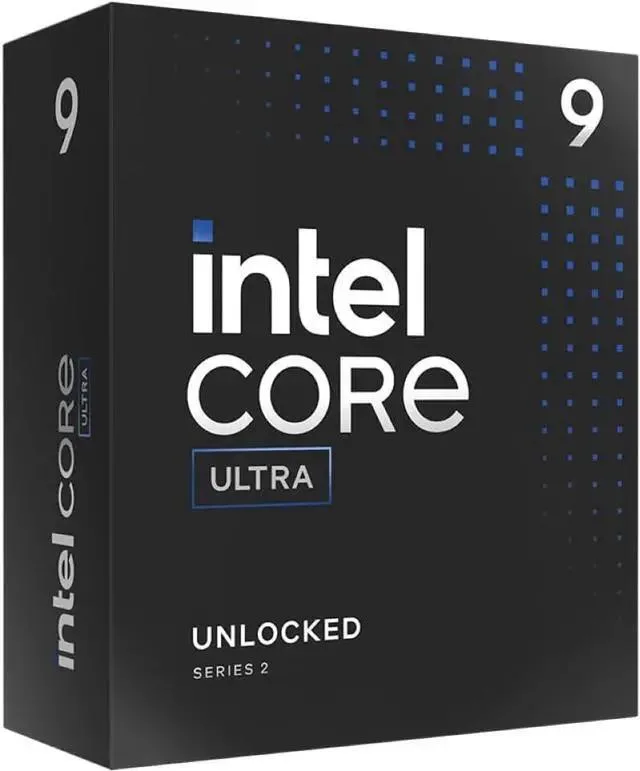

+CPU +Ultra 9 285K

  • Ready for advanced AI workloads with Intel Core Ultra 9 285K processor
  • Robust 14+1+1+2 80A DrMOS power stages deliver stable CPU voltage
  • Optimised cooling via large VRM heatsinks and AI Cooling II fan control
  • One PCIe 5.0 M.2 slot plus three PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 7 and 2.5Gb Ethernet with Bluetooth 5.4 for high-speed networking

AI-Ready Platform

The ASUS PRIME Z890-P WIFI motherboard paired with the Intel Core Ultra 9 285K CPU targets builders who want an advanced AI PC foundation. The LGA 1851 socket accepts Intel Core Ultra Processors Series 2, while the Z890 chipset unlocks high-speed connectivity. Four DDR5 slots support up to 256GB of memory running at 8666+ MT/s when overclocked. This combination delivers the throughput needed for demanding AI workloads and heavy multitasking.

Sustained Power Delivery

A 14+1+1+2 phase design uses 80A DrMOS power stages, ProCool connectors, a 6-layer PCB, alloy chokes and durable capacitors to maintain stable voltage under continuous load. Large VRM heatsinks, dedicated M.2 and PCH heatsinks, plus hybrid fan headers managed by Fan Xpert 4 and AI Cooling II keep temperatures controlled during long rendering or compute sessions. The 125W processor stays fed without throttling, ensuring consistent output over hours rather than minutes.

Connectivity & Build

The rear I/O includes a Thunderbolt 4 USB Type-C port, one USB 10Gbps Type-A, two USB 5Gbps Type-A, four USB 2.0 Type-A, DisplayPort, HDMI, 2.5Gb Ethernet and Wi-Fi 7 with the ASUS WiFi Q-Antenna. Onboard headers add a USB 10Gbps Type-C connector, four USB 5Gbps and four USB 2.0 ports. Storage options cover one PCIe 5.0 M.2 slot with heatsink, three PCIe 4.0 M.2 slots, four SATA 6Gb/s ports and RAID 0/1/5/10 support. Audio uses a Realtek 7.1 codec with shielding and 24-bit/192 kHz playback.

Highlights

  • Ready for advanced AI workloads with Intel Core Ultra 9 285K processor
  • Robust 14+1+1+2 80A DrMOS power stages deliver stable CPU voltage
  • Optimised cooling via large VRM heatsinks and AI Cooling II fan control
  • One PCIe 5.0 M.2 slot plus three PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 7 and 2.5Gb Ethernet with Bluetooth 5.4 for high-speed networking

Specifications

BrandASUS
ModelPRIME Z890-P WIFI+Ultra 9 285K
CPU Socket TypeLGA 1851
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory FeatureSupport up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel Core Ultra Processors(series 2)*
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel Z890 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(series 2)*
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
SATA RAID* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports1 x Thunderbolt 4 USB Type-C port
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt (USB4) header
BIOS Feature256 (128+128) Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
TurboV Core
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Windows 11 (22H2 & later)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Package Contents1 x Intel Core Ultra 9 285K CPU
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How hot or loud does the 14+1+1+2 80A DrMOS VRM get under sustained 125W load?

The board uses large VRM heatsinks, a 6-layer PCB and AI Cooling II via Fan Xpert 4 to manage heat from the 14+1+1+2 80A DrMOS stages during prolonged 125W CPU operation.

Which DDR5 memory kit speed should I have ready for the 8666+ MT/s XMP profile?

You need a DDR5 CUDIMM kit rated for 8666+ MT/s; the four 288-pin slots run dual-channel up to 256GB and support Intel XMP and ASUS AEMP III profiles.

Will my existing PCIe 4.0 GPU and SATA SSDs work without bottlenecks on the Z890 chipset lanes?

Yes — the chipset provides two PCIe 4.0 x16 slots wired x4, one PCIe 4.0 x16 slot wired x1, and four SATA 6Gb/s ports for legacy drives.
