ASUS

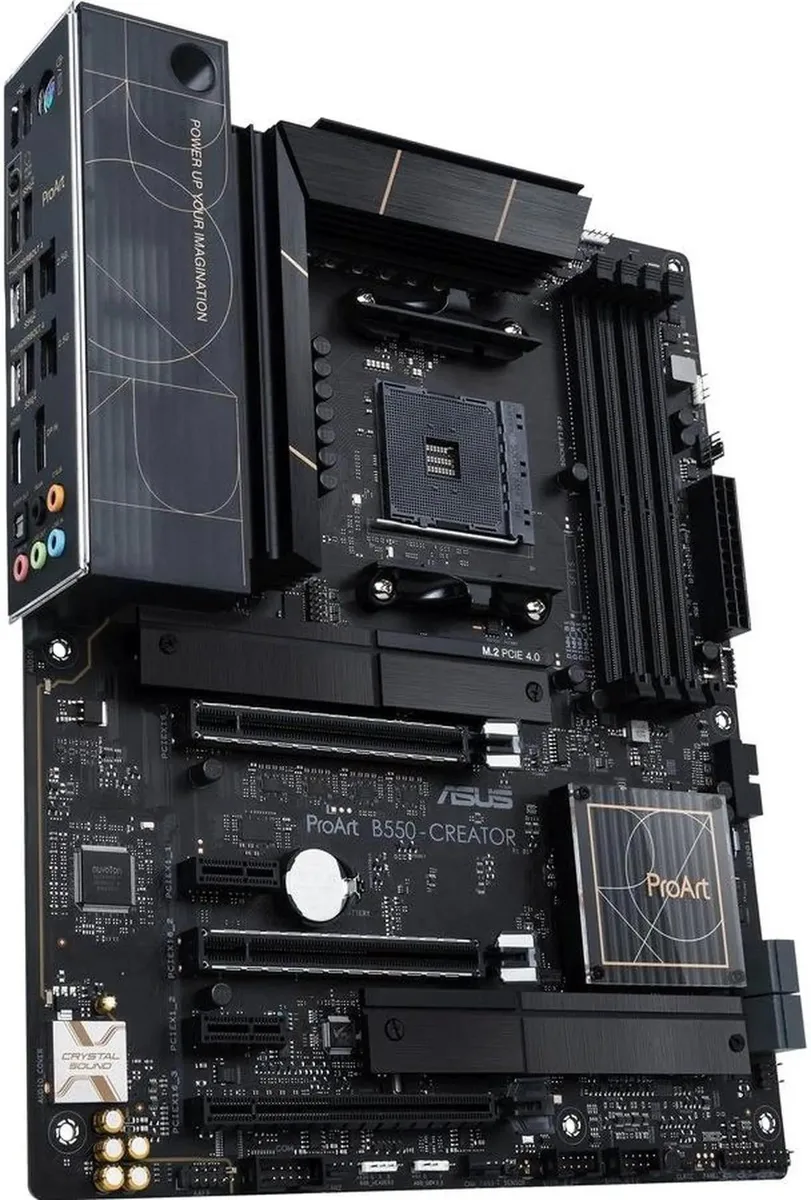

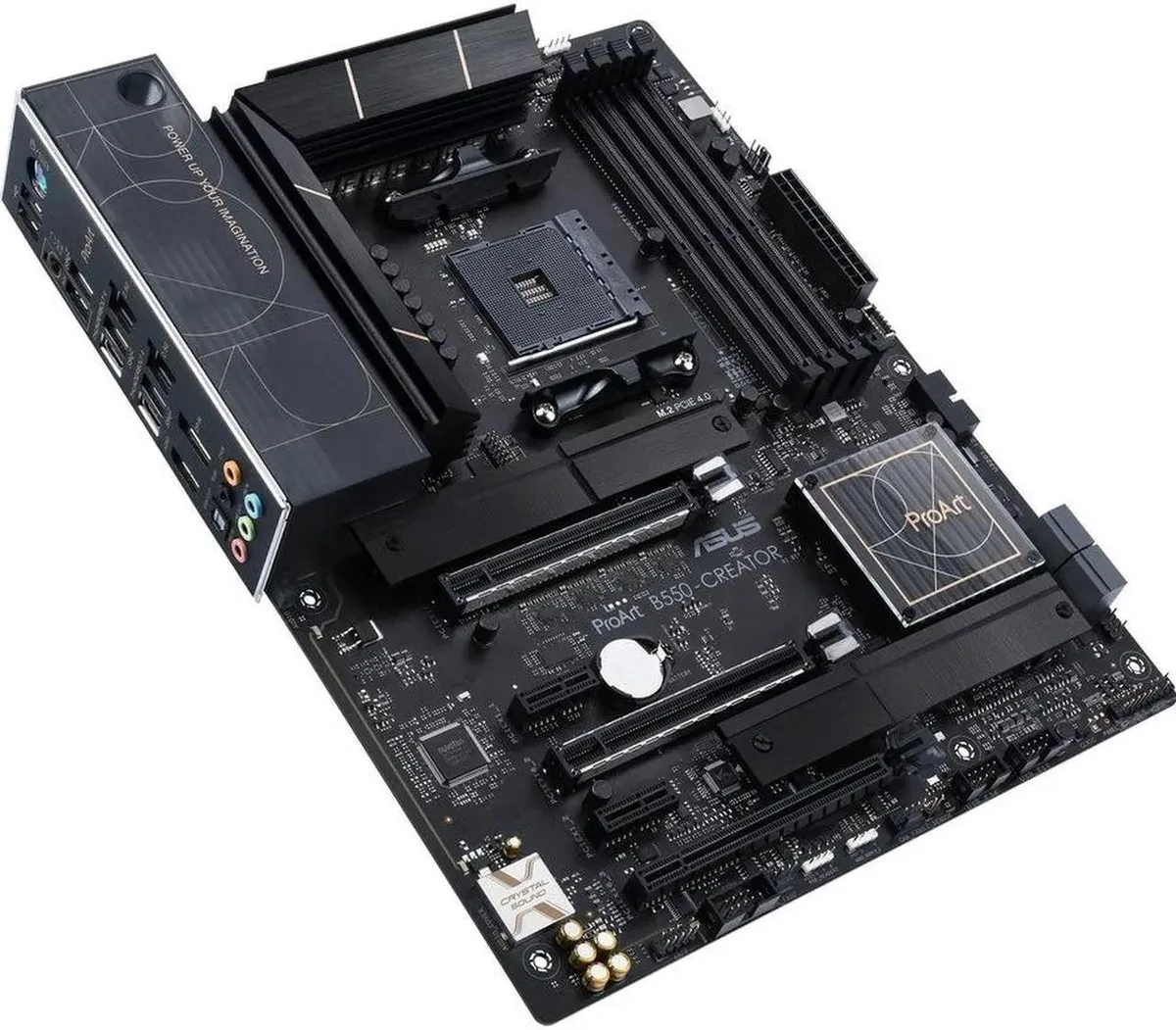

ASUS ProArt B550-CREATOR AMD motherboard
AM4 ATX board for creators with dual Thunderbolt 4 Type-C ports, dual 2.5Gb Ethernet, PCIe 4.0 and 128 GB DDR4 support
- CPU Socket TypeAM4
- CPU TypeSupports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series
- ChipsetAMD B550
- Number of Memory Slots4x288pin (DDR4)
- Memory StandardDDR4 5100(OC) / 4866(OC) / 4600(OC) / 4500(OC) / 4400(OC) /
- Maximum Memory Supported128GB
- PCIe 4.0 ready for high-bandwidth graphics and storage
- Dual Thunderbolt 4 Type-C ports deliver 40 Gb/s connectivity
- Dual Intel 2.5Gb Ethernet ensures fast wired networking
- Four DDR4 slots support up to 128 GB memory
- 12+2 power stages with alloy chokes provide stable CPU delivery
Creator AM4 platform
The ASUS ProArt B550-CREATOR is an ATX motherboard built for content creators who need an AMD AM4 socket with PCIe 4.0 support. It accepts Ryzen 5000 Series, 4000 G-Series and 3000 Series processors and provides four DDR4 slots for up to 128 GB of dual-channel memory. Dual Thunderbolt 4 Type-C ports and dual Intel 2.5Gb Ethernet give the I/O bandwidth creative workflows demand.
PCIe 4.0 and Thunderbolt limits
The primary x16 slot and the first M.2 socket run at PCIe 4.0 x4 when a Ryzen 5000 or 3000 Series CPU is installed; with a 4000 G-Series chip they drop to PCIe 3.0 speeds. The second x16 slot is wired for PCIe 3.0 x4 and shares bandwidth with the Thunderbolt 4 controller, so populating that slot disables Thunderbolt video output. Two PCIe 3.0 x1 slots also share lanes with the second M.2 socket.
CPU, memory and M.2 checks
Verify that your chosen processor appears on the ASUS CPU support list because feature availability changes by series. Confirm your DDR4 kit matches a validated speed from the supported range up to 5100(OC) and that ECC requirements align with the specific CPU. Check which M.2 form factors (2242, 2260, 2280, 22110) your drives use and whether you need SATA or PCIe mode on each slot.
Highlights
- PCIe 4.0 ready for high-bandwidth graphics and storage
- Dual Thunderbolt 4 Type-C ports deliver 40 Gb/s connectivity
- Dual Intel 2.5Gb Ethernet ensures fast wired networking
- Four DDR4 slots support up to 128 GB memory
- 12+2 power stages with alloy chokes provide stable CPU delivery
Specifications
| Brand | ASUS |
|---|---|
| Model | ProArt B550-CREATOR |
| CPU Socket Type | AM4 |
| CPU Type | Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series Processors* * Refer to www.asus.com for CPU support list. |
| Chipset | AMD B550 |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 5100(OC) / 4866(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 4000 G-Series Processors) DDR4 4866(OC) / 4600(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 * (AMD Ryzen 5000 Series / 3000 Series Desktop Processors) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | ECC Memory (ECC mode) support varies by CPU. |
| Buffer Supported | Un-buffered |
| PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16* * Actual support may vary by CPU. |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16* * Running at x4 mode. * PCIe 3.0 x4 will be switched from Thunderbolt 4 to PCIEX16_3 if the slot is populated; by then Thunderbolt 3 will have no output. |
| PCI Express x16 | None |
| PCI Express x1 | 2 x PCIe 3.0 x1* * These PCIe x1 slots share bandwidth with M.2_2, which runs at PCIe 3.0 x4 by default. You may go to BIOS setting to set M.2_2 to PCIe 3.0 x4 or x2 at will. |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | AMD Ryzen 5000 Series / 3000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 4000 G-Series Processor: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Audio Chipset | Realtek S1220A |
| Audio Channels | 7.1 Channels* * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| LAN Chipset | 2 x Intel I225-V |
| Max LAN Speed | 2 x 2.5Gbps |

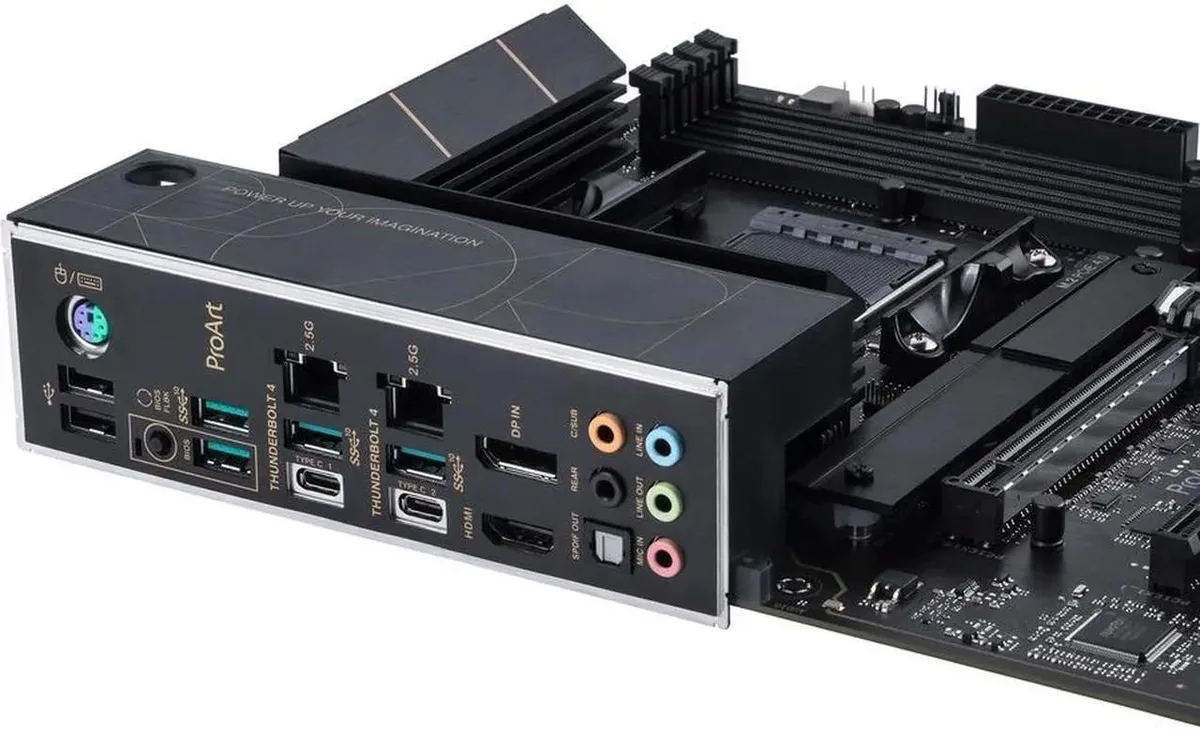

| Back I/O Ports | 2 x Thunderbolt 4 USB Type-C port(s) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI port 2 x Intel I225-V 2.5Gb Ethernet ports 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x PS/2 Keyboard/Mouse combo port |
| HDMI | 1 x HDMI |
| USB 3.0 | 2 x USB 3.0 |
| Onboard USB | 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector |
| Windows 11 | Supported |
| Features | Multi-GPU Support: Supports AMD 3-Way/2-Way CrossFireX Technology Special Features: Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with Dr. MOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Latch - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Box Headers - |
| Package Contents | Accessories: Cables 2 x SATA 6Gb/s cables 1 x DP to DP cable for Thunderbolt 4 Miscellaneous 1 x M.2 Rubber Package(s) Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User manual |
Questions about this item
Should I choose a Ryzen 5000 Series or 4000 G-Series CPU for this AM4 board?
Both families fit the AM4 socket; 5000 Series enables PCIe 4.0 on the primary M.2 and graphics slots while 4000 G-Series limits M.2_1 to PCIe 3.0 and adds integrated graphics.
What does PCIe 4.0 on the B550 chipset actually deliver for my GPU and storage?
With a Ryzen 5000 CPU the top x16 slot and M.2_1 run at PCIe 4.0 x4 speeds; a 4000 G-Series CPU drops both to PCIe 3.0.
How do the dual Thunderbolt 4 Type-C ports share bandwidth with the third PCIe x16 slot?
The third x16 slot is wired as PCIe 3.0 x4; if you populate it the Thunderbolt 4 controller loses its PCIe link and the ports become USB-only.
