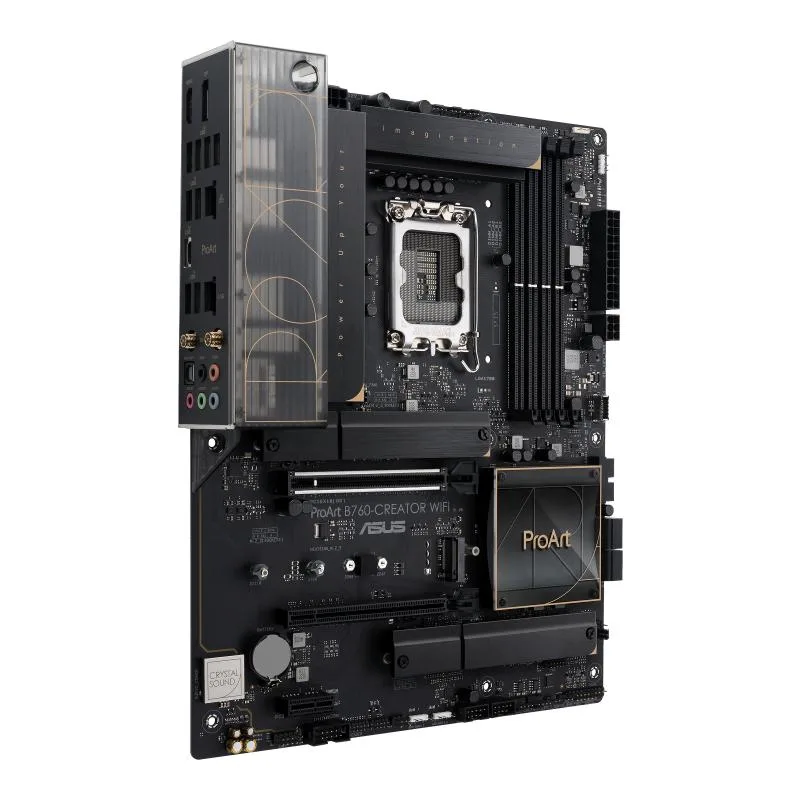

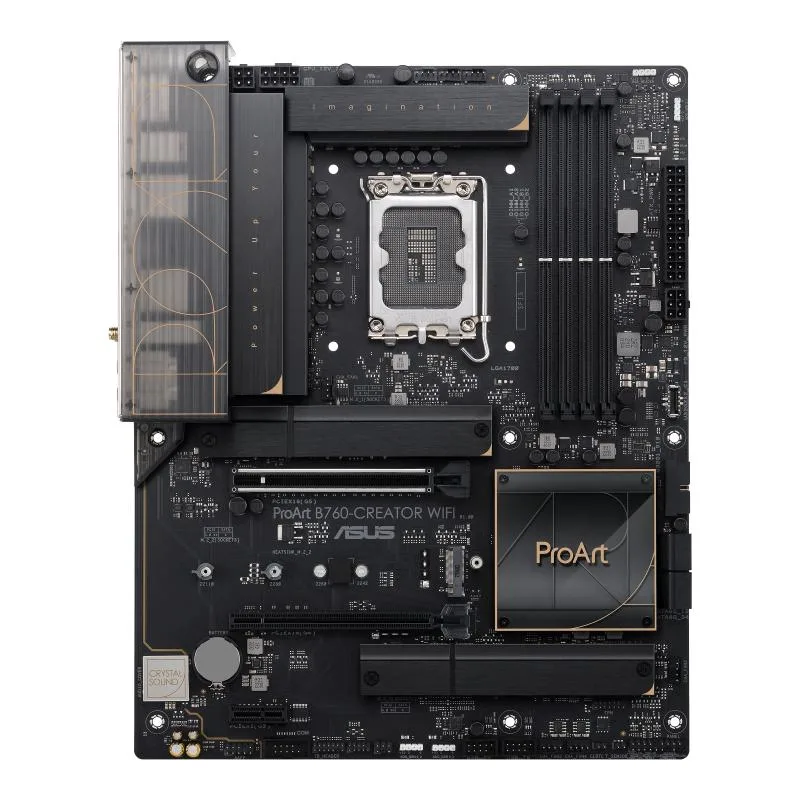

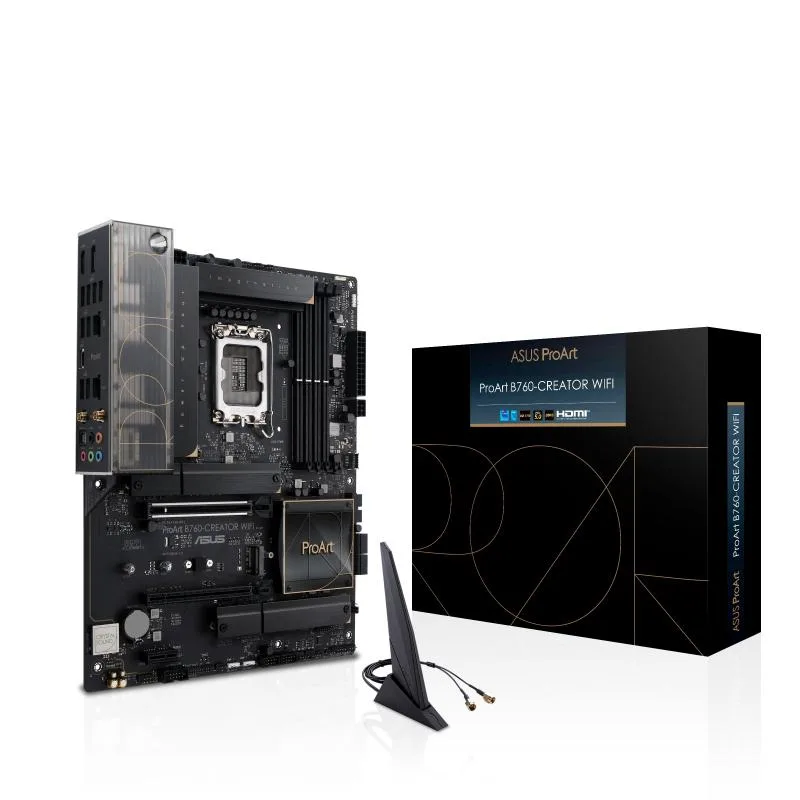

ASUS ProArt B760-CREATOR WIFI ATX motherboard with black finish and silver heatsinks

ASUS

ASUS ProArt B760-CREATOR WIFI Intel motherboard

SKU CH-48HV-7PQ0D

Supports 14th Gen Intel CPUs with PCIe 5.0 graphics, DDR5 via AEMP II, three M.2 slots, WiFi 6, dual Ethernet and a USB 3.2 Gen 2x2 front connector with 60W Quick Charge 4+

  • CPU Socket TypeLGA 1700
  • PCIe 5.0 graphics bandwidth doubles PCIe 4.0 throughput
  • 14 power stages at 50 A each feed demanding CPUs
  • AEMP II optimises DDR5 memory without manual tuning
  • WiFi 6 plus dual 2.5 Gb and 1 Gb Ethernet keeps transfers fast
  • USB 3.2 Gen 2x2 front header delivers 60 W Quick Charge 4+

ProArt B760-Creator WIFI identity

The ASUS ProArt B760-Creator WIFI is an Intel LGA 1700 ATX motherboard built for creative workstations. It delivers PCIe 5.0 for graphics cards and PCIe 4.0 for M.2 storage, plus WiFi 6 and dual Ethernet. A USB 3.2 Gen 2x2 front-panel connector with 60 W Quick Charge 4+ rounds out the I/O.

Who this suits and who it does not

Content creators who need fast GPU and storage links, robust DDR5 tuning via AEMP II, and comprehensive fan control through Fan Xpert 4 will find the feature set aligned. Builders who require more than three M.2 slots or additional high-speed USB ports should look at other platforms.

Power-stage count decides fit

The board uses 12+1+1 power stages rated at 50 A each, giving a 14-phase design that determines how cleanly the CPU voltage is delivered under sustained creative loads. If that phase count matches the thermal envelope of the chosen processor, the platform will remain stable.

Highlights

  • PCIe 5.0 graphics bandwidth doubles PCIe 4.0 throughput
  • 14 power stages at 50 A each feed demanding CPUs
  • AEMP II optimises DDR5 memory without manual tuning
  • WiFi 6 plus dual 2.5 Gb and 1 Gb Ethernet keeps transfers fast
  • USB 3.2 Gen 2x2 front header delivers 60 W Quick Charge 4+

Specifications

CPU Socket TypeLGA 1700

Questions about this item

What case and power connectors does the ATX board with LGA 1700 socket need?

The board uses standard ATX mounting holes, a 24-pin ATX power connector and the 12+1+1 50A power stages draw from an 8-pin EPS cable; ensure the case has room for three M.2 slots and the USB 3.2 Gen 2x2 front-panel header with 60W Quick Charge 4+.

Which BIOS step is most often missed when installing a 14th Gen Intel Core CPU for PCIe 5.0 and DDR5 AEMP II?

Update the BIOS before first boot so the 14th Gen processor enables PCIe 5.0 graphics and AEMP II DDR5 profiles; then enable XMP or AEMP II in BIOS and connect the 8-pin EPS cable for the 12+1+1 50A power stages.

What cooling and firmware upkeep does the board need over time?

Use ASUS Fan Xpert 4 to tune case fans and any AIO cooler connected to the headers; check the ASUS support site periodically for BIOS updates that improve DDR5 compatibility and PCIe 5.0 stability.
