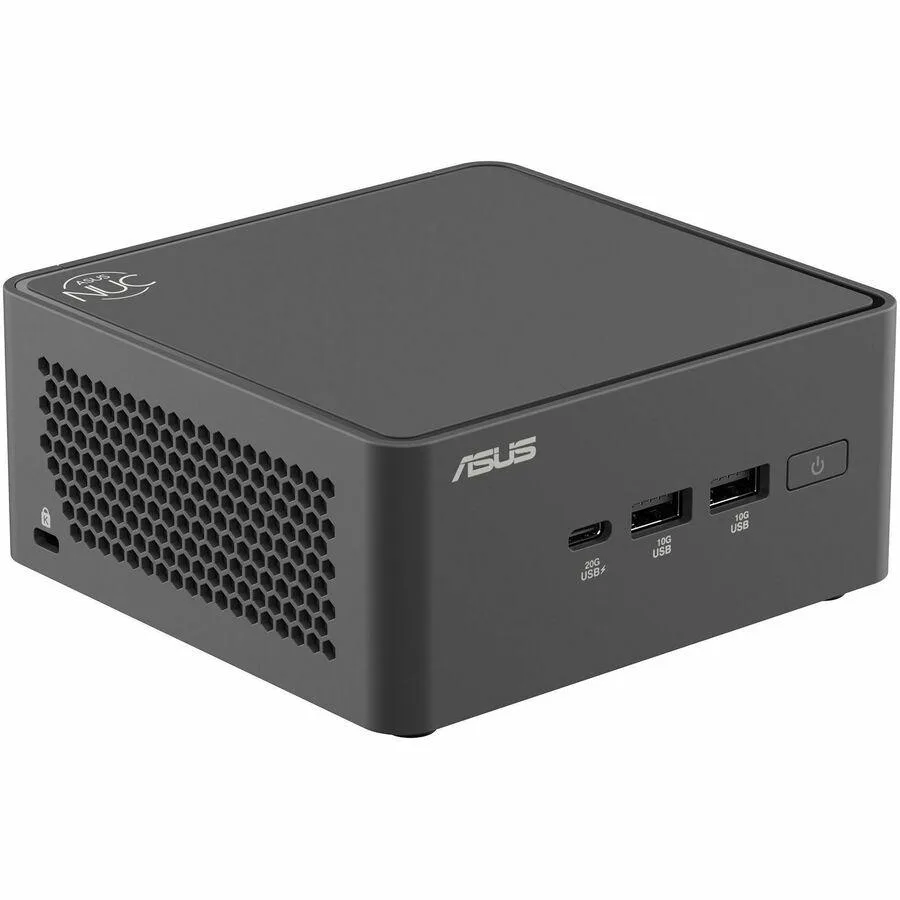

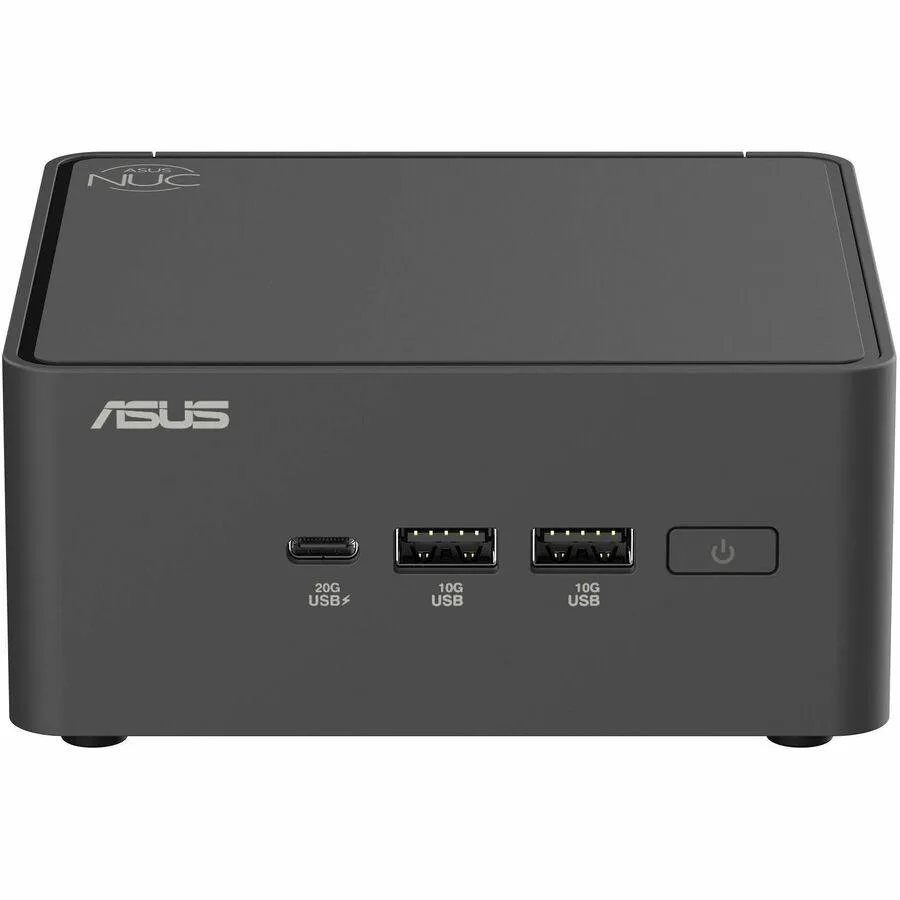

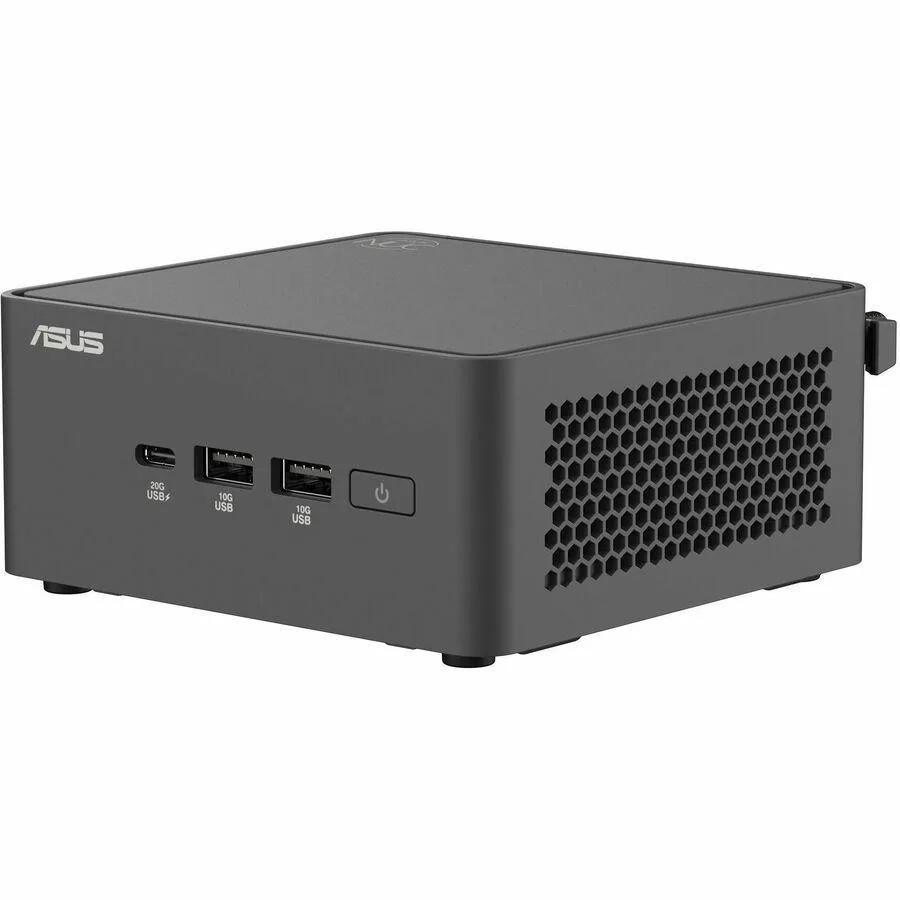

ASUS RNUC15CRHI30000U NUC 15 Pro barebone mini PC Core 3 100U 96GB DDR5 dual M.2

NUC 15 Pro barebone for compact workloads

This ASUS barebone mini PC uses an Intel Core 3 100U processor at 1.2 GHz with six cores. It targets builders who need a small, VESA-mountable system for office tasks, digital signage or light development. The tall black chassis measures 4.61" x 4.41" x 2.13" and weighs 0.8 lb. No memory or storage is included, so the buyer adds DDR5 SO-DIMMs and NVMe drives.

Sustained load on 1.2 GHz six-core CPU

The 90 W power supply and tall form factor provide thermal headroom for the 1.2 GHz six-core processor during extended workloads. Integrated Intel Graphics shares system memory, so sustained GPU compute will reduce bandwidth available to the CPU. Two SO-DIMM slots accept DDR5-5600 or CSO-DIMM DDR5-6400 modules up to 96 GB total, allowing memory capacity to match long-running multitasking demands.

Dual M.2 PCIe 4.0 storage and Thunderbolt 4 limits

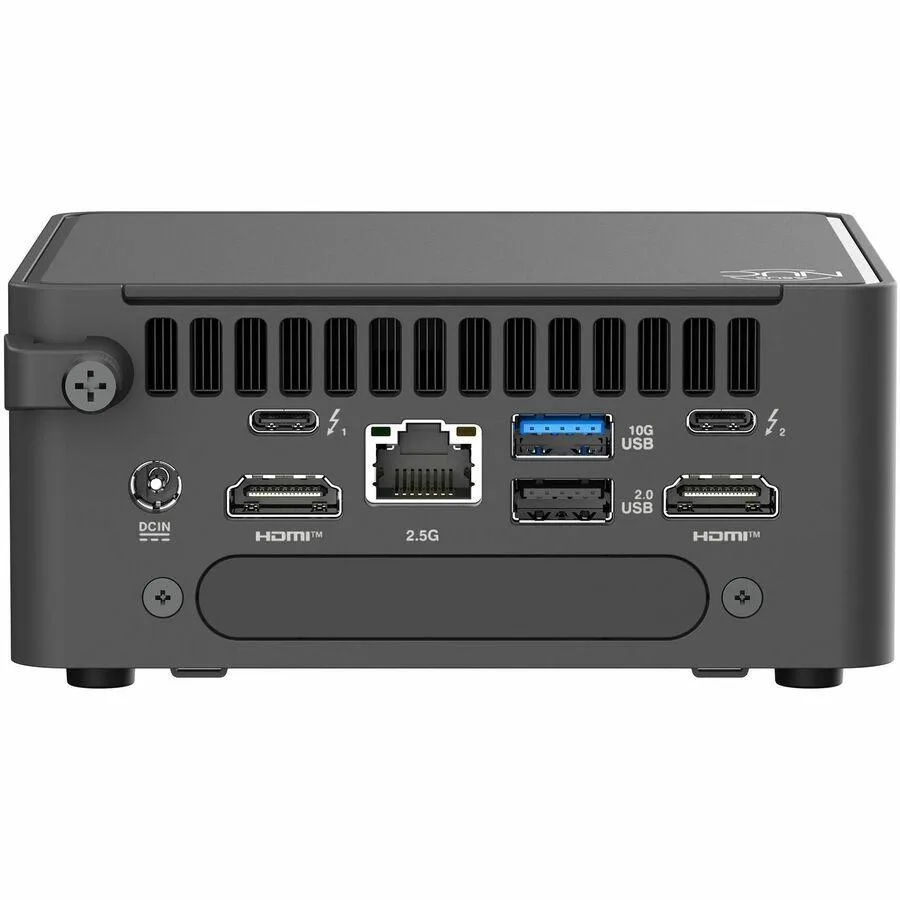

One M.2 2280 slot and one M.2 2242 slot both run at PCIe Gen4x4 and are labelled PCIe Gen 5 ready, giving two NVMe drives full 4.0 bandwidth simultaneously. Thunderbolt 4 ports add DisplayPort 2.1 and 40 Gbps external expansion, while the 2.5 Gbps Ethernet and Wi-Fi 7 (802.11be) with Bluetooth 5.4 handle network traffic. HDMI 2.1 outputs support 4K at 60 Hz.
